Rhinoceros 1.2ton Mini Excavator Small Digger Crawler Excavator
RHINOCEROS XN12 1.2TON MINI EXCAVATOR YANMAR ENGINE, EURO 5 & EPA 4This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small Japan Yanmar engine,three cylinders, simple design, easy to maintain. D......
Send Inquiry
Product Description
RHINOCEROS XN12 1.2TON MINI EXCAVATOR YANMAR ENGINE, EURO 5 & EPA 4
This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small Japan Yanmar engine,three cylinders, simple design, easy to maintain.

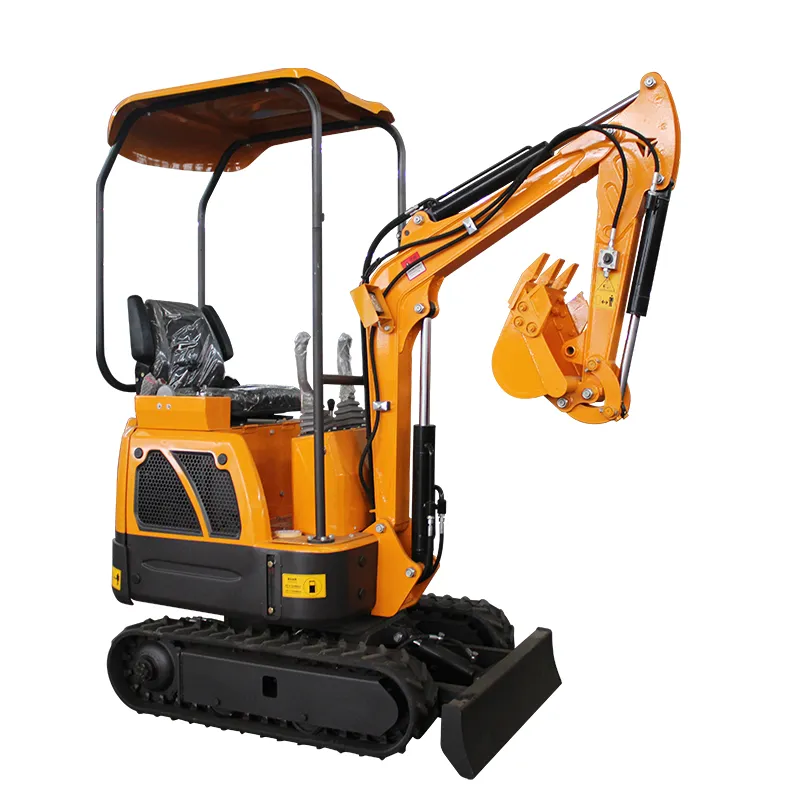

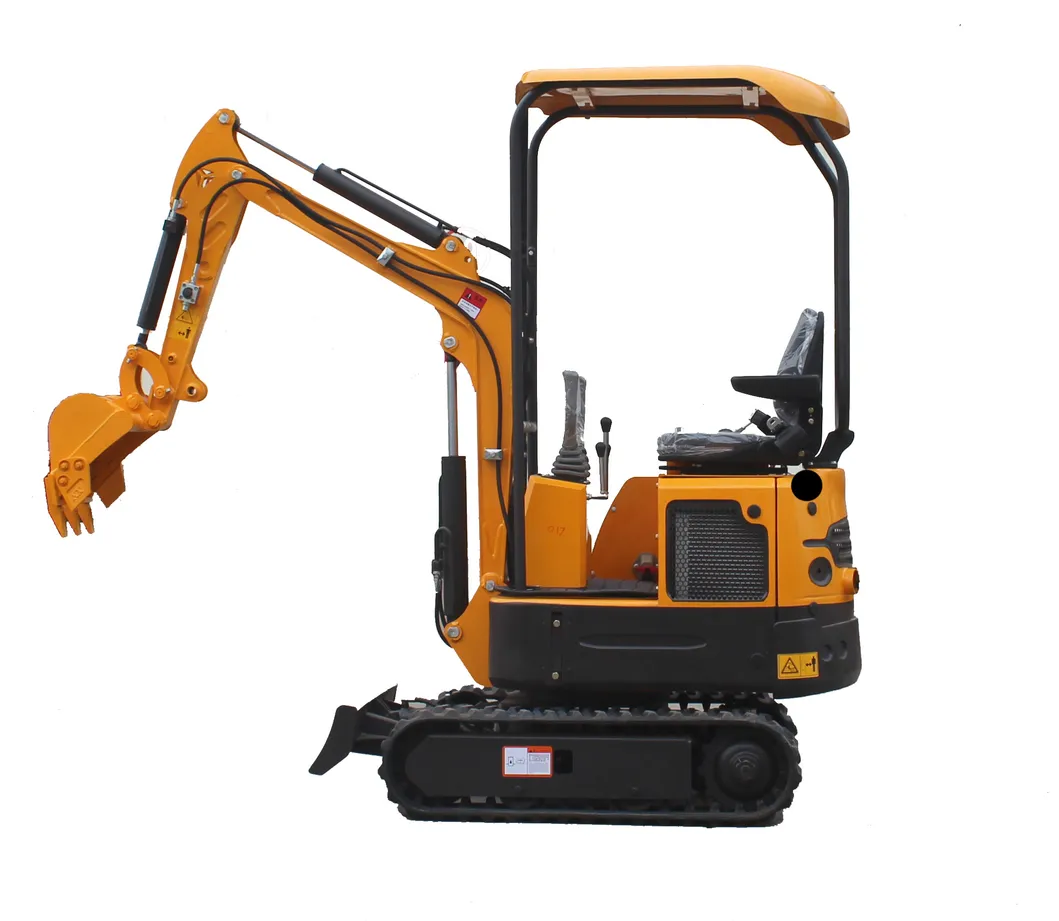

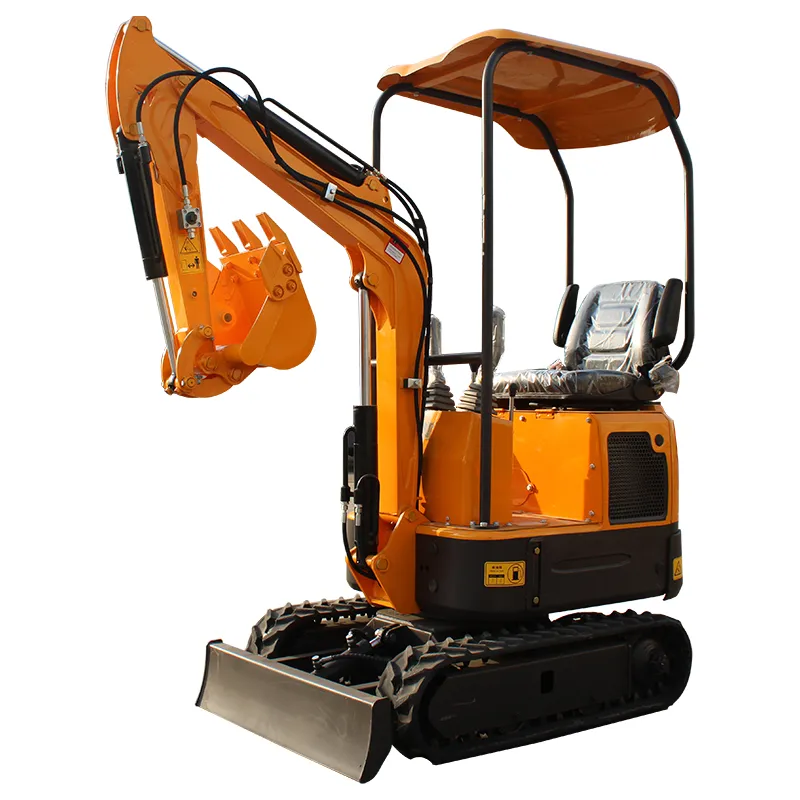

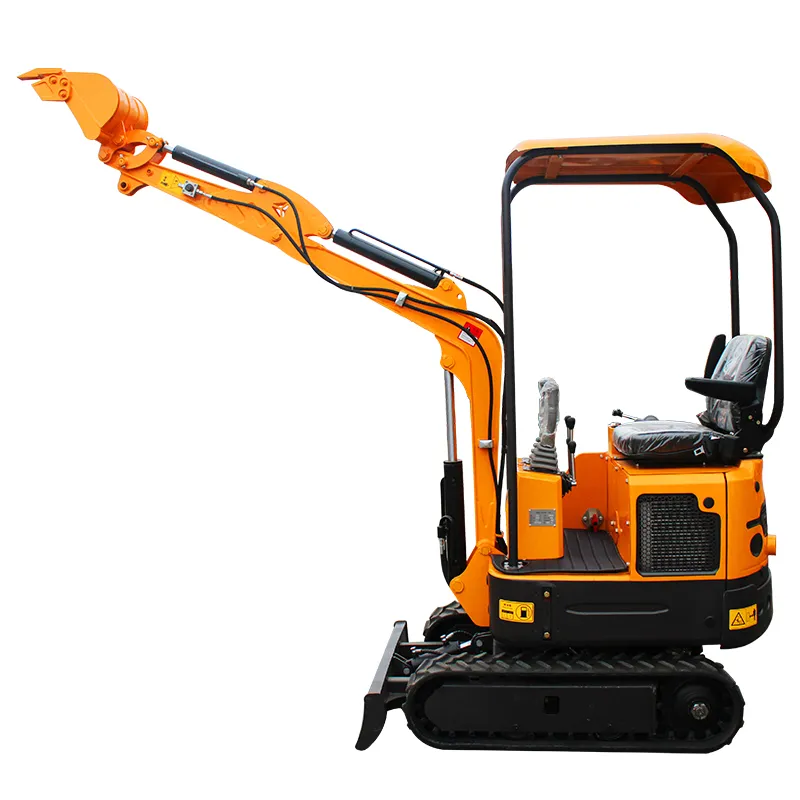

Detailed Images
Model | XN12 | MAIN DEMENSIONS | |
Manufacturer | SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD | Overall dimension( LxWxH) | 2770x896x1490 mm |
Brand | RHINOCEROS | Total length of track | 1230mm |
Operating Weight | 1040kg | Platform ground clearance | 380 mm |
Digging bucket capacity | 0.025cbm | Platform back turning radius | 784 mm |
Bucket width | 380mm | Chassis width | 896 mm |
Engine | Yanmar engine 3 cylinders | Track width | 180 mm |
Rated power | 10 kw/2200r/min | Chassis ground clearance | 132 mm |
Displacement | 0.211 L | Track height | 320 mm |
Bore stroke | 70x55 | Diesel tank capacity | 10 L |
Main pump | ZANEDA | Hydraulic oil tank capacity | 16L |
Displacement | 6.8ml/r | OPERATING RANGE | 16L |
Hydraulic system pressure | 16 Mpa | Max. Digging depth | 1650 mm |
Swing motor | SJ-TECH (MP-1-160) | Max. Digging height | 2610 mm |
Traveling motor | KERSEN (OMS-2450) | Max. Dumping height | 1850 mm |
Travel speed | 1.5km/h | Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm | ||
Max. Upgrade height of bulldozer blade | 345 mm | ||
Max. Digging depth of bulldozer blade | 255 mm |

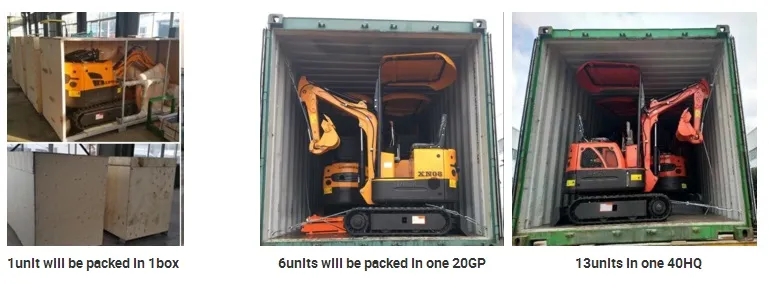

Packing & Delivery
1.Standard packing,the machine body is without packing,but the will be well fastened and fixed in the container by wire rope.
2.Spare parts or wearing parts will be packed in wood box or paper carton.
3.Standard shipping method is by container,most of our excavator can be load in container
2.Spare parts or wearing parts will be packed in wood box or paper carton.
3.Standard shipping method is by container,most of our excavator can be load in container

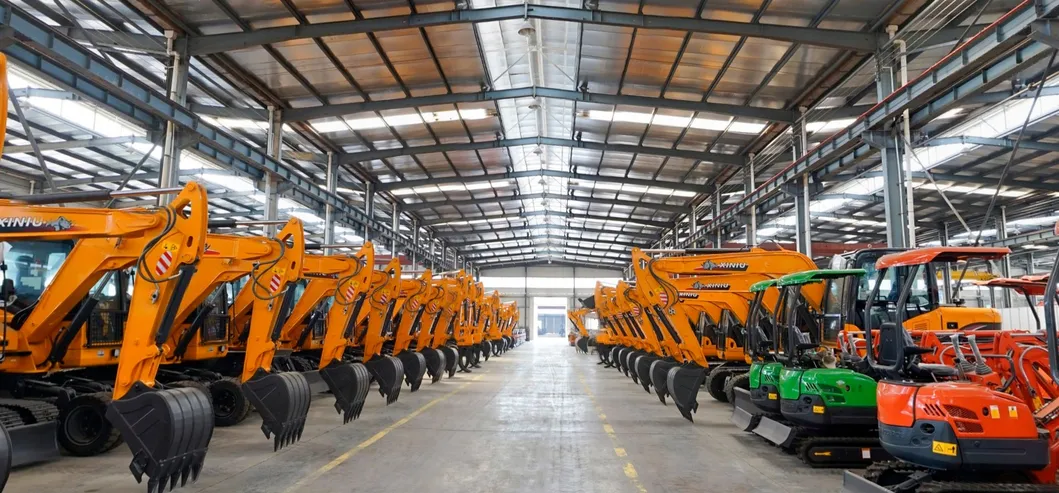

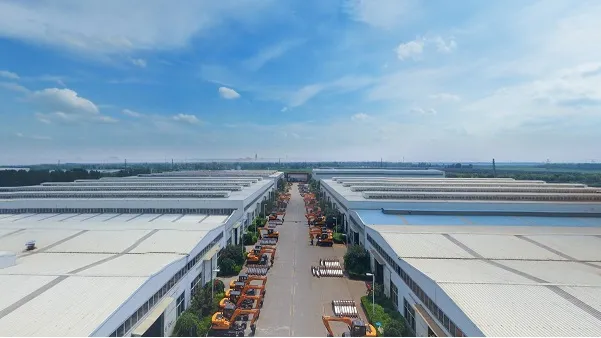

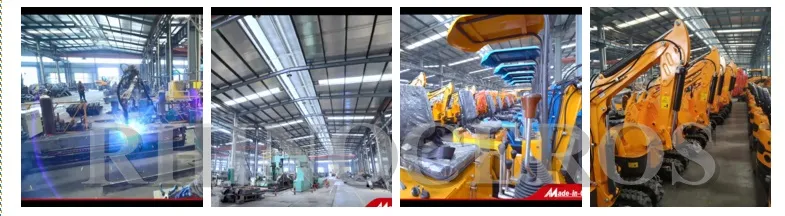

Our Company
Shandong Rhinoceros Engineering Machinery Co.,Ltd is we are professional manufacturer of construction & engineering machinery with 25 years in china. Products covers wheel excavator 8 ton, crawler excavator 0.8ton, 1.6ton, 2.0ton to 8 ton , wheel & crawler excavator 9ton, most of the machines are with CE certificate, our company is with ISO certificated. The machine has good market all over the world, hope we can cooperate this time

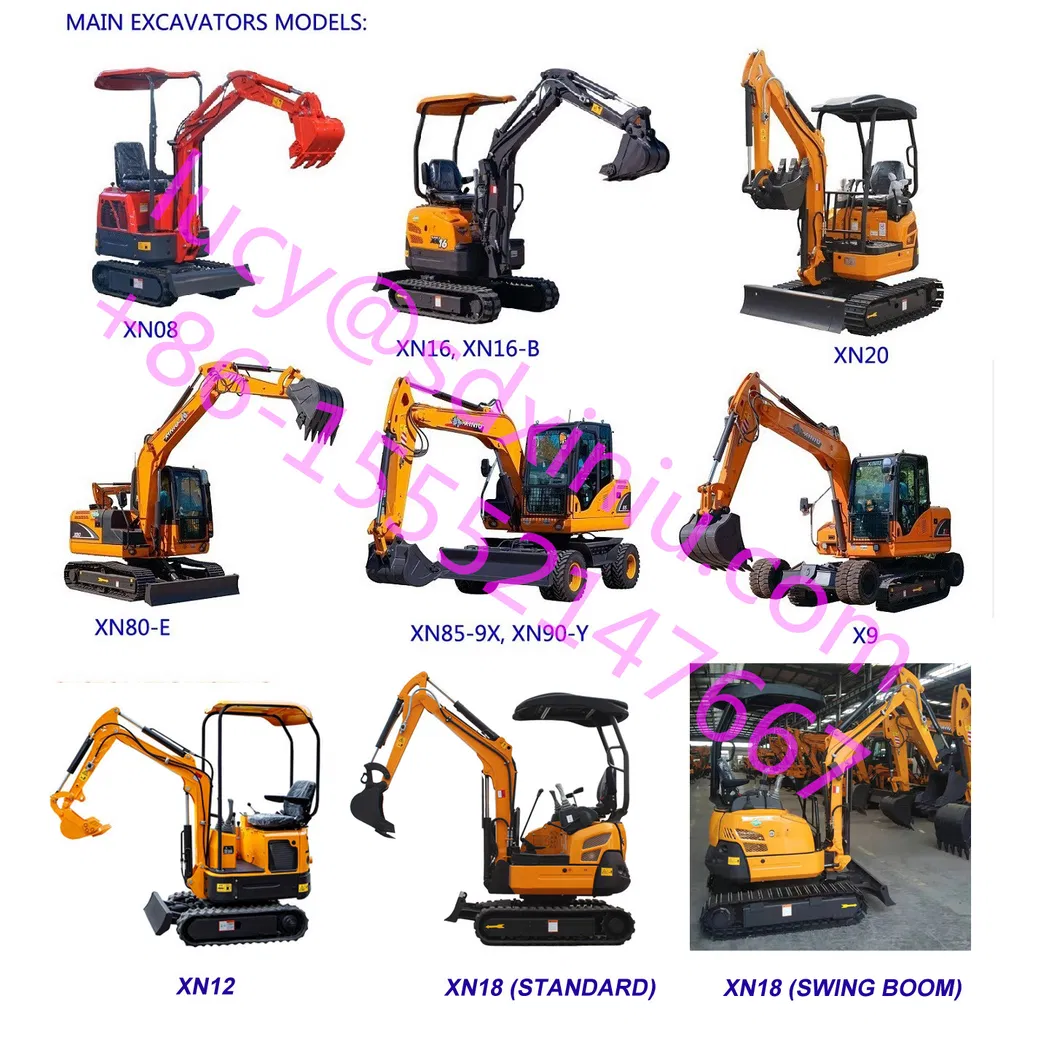

Main Products:
XN08 0.8tonCrawler type changchai engine single cylinder (EURO 5)
XN12 1.2ton Crawler type Yanmar engine three cylinders (EURO 5 & EPA 4)
XN16 1.6ton Crawler type Yanmar engine three cylinders(EURO 5 & EPA 4)
XN18 1.8ton Crawler type Yanmar engine three cylinders(EURO 5 & EPA 4)
XN20 2.0ton Crawler type Yanmar engine three cylinders(EURO 5 & EPA 4)
XN80-E 8.0ton Crawler type Yanmar engine four cylinders
XN85-9Y 8.0ton Wheel type Yanmar engine four cylinders
XN85-9X 8.0ton Wheel type XinChai engine four cylinders
X9 9.0ton Wheel &CrawlerType (Patent excavator) Yanmar engine four cylinders
XN25 (2.5ton ) and XN35 (3.5ton) is in testing, only for China market at present. we can export to other countries after test.

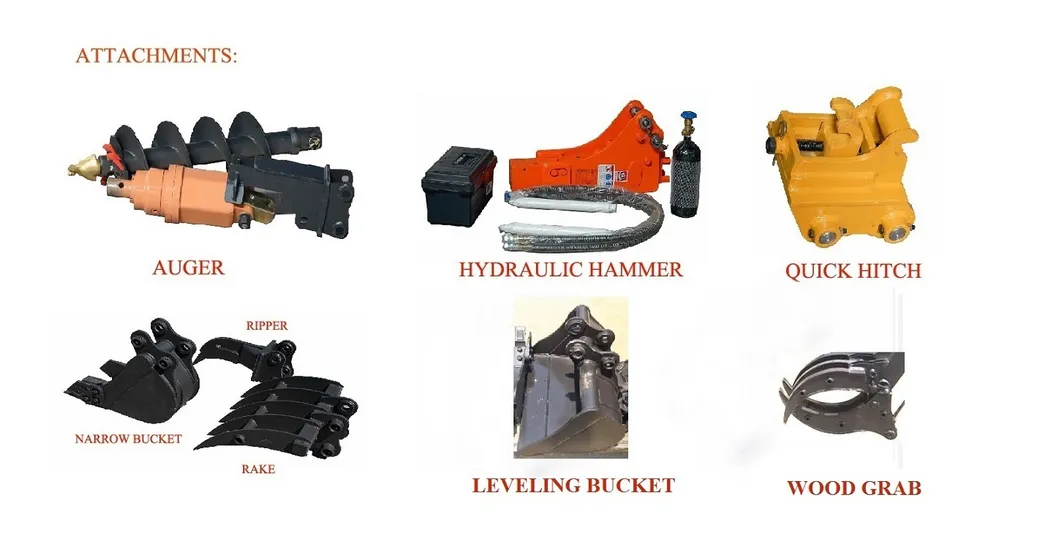

Attachments:
Hydraulic Hammer,Auger,Wood Grab,Ripper,Rake,Tilt bucket, Narrow bucket 200mm,Leveling Bucket 500mm/600mm and Quick hitch can be supplied.
Certifications
Customers Visited
Bauma Fair & Canton Fair & Customers Visited our factory
