Product Description
lego bucket wheel excavator 6 ton hydraulic excavator for sale
1.Adopting world famous brand YANMAR engine, with strong driving force, low noise, low oil consumption, and more reliable.
2.Adopting energy saving hydraulic system, main hydraulic parts using original world famous brand to guarantee the good quality and work performance. Low energy consumption, fast response speed, precision control, small impact, can keep strong mining capacity and excellent operation efficiency.
Germany brand Rexroth pump,famous RuiLong brand valve & swing motor
3.Using high performance radiator, unobstructed air flow, fast flow speed, good hear dissipation effect, stable working temperature, and long service life.
4.The welding of machine main structures use automatic welding robot, key parts welding flaw detection to ensure all parts in high strength, high quality, and to prolong the service life of the machine.

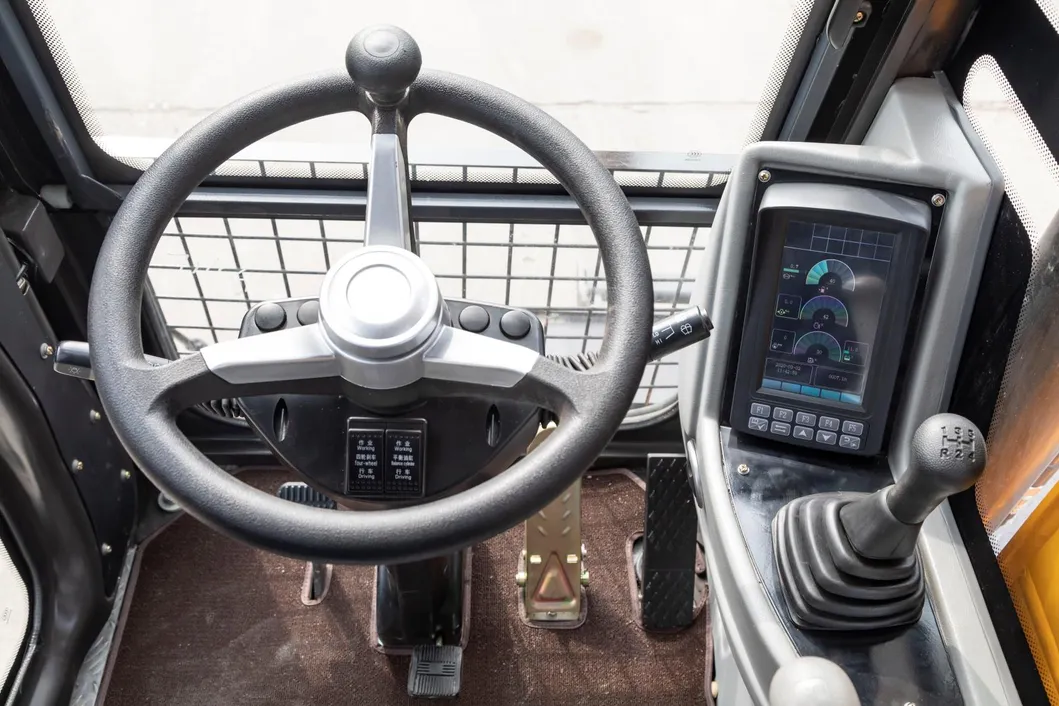

5.Good vibration and noise effect of the cab, both warm and cool air-conditioner, makes driving comfortable and safe.

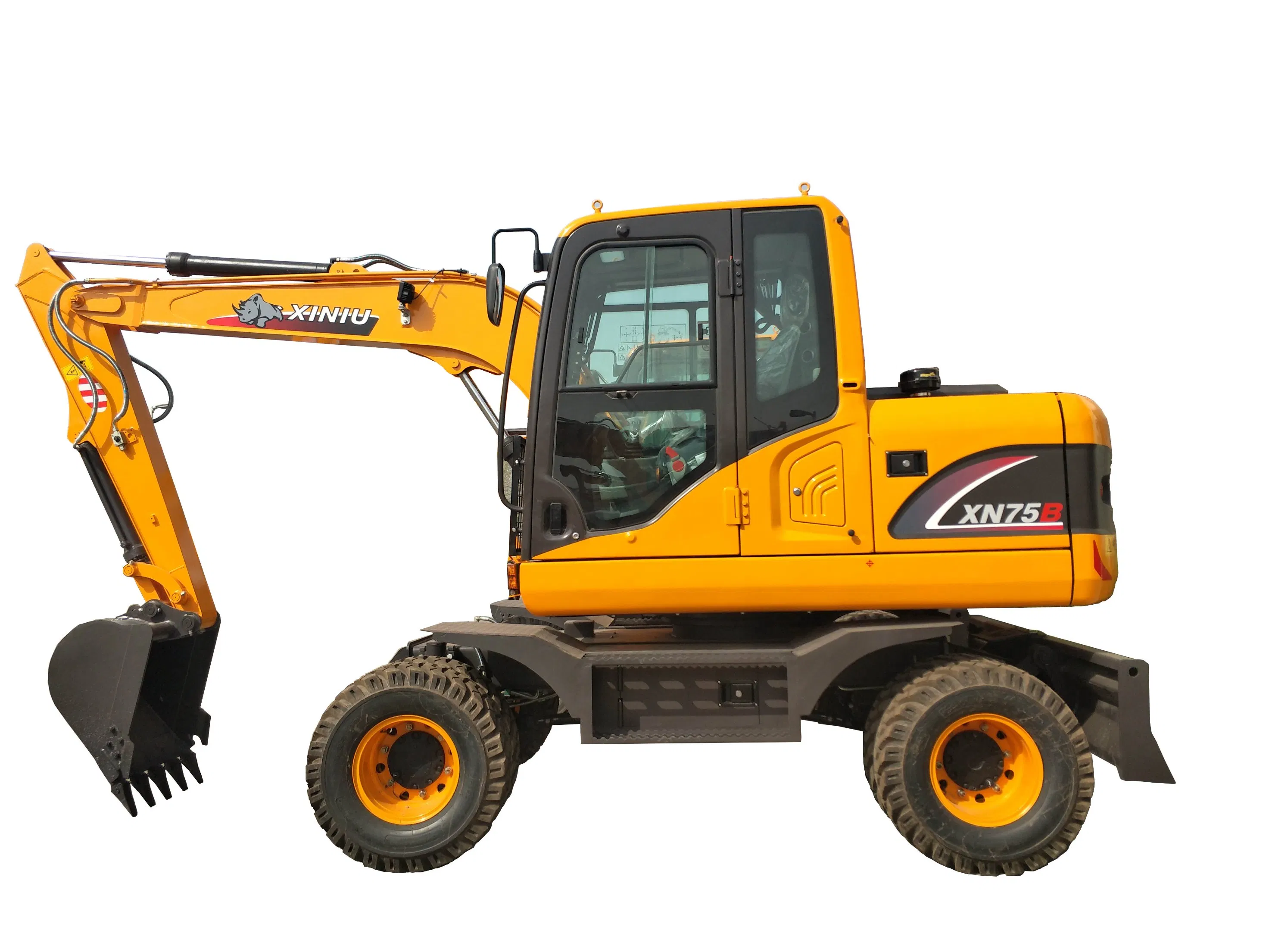

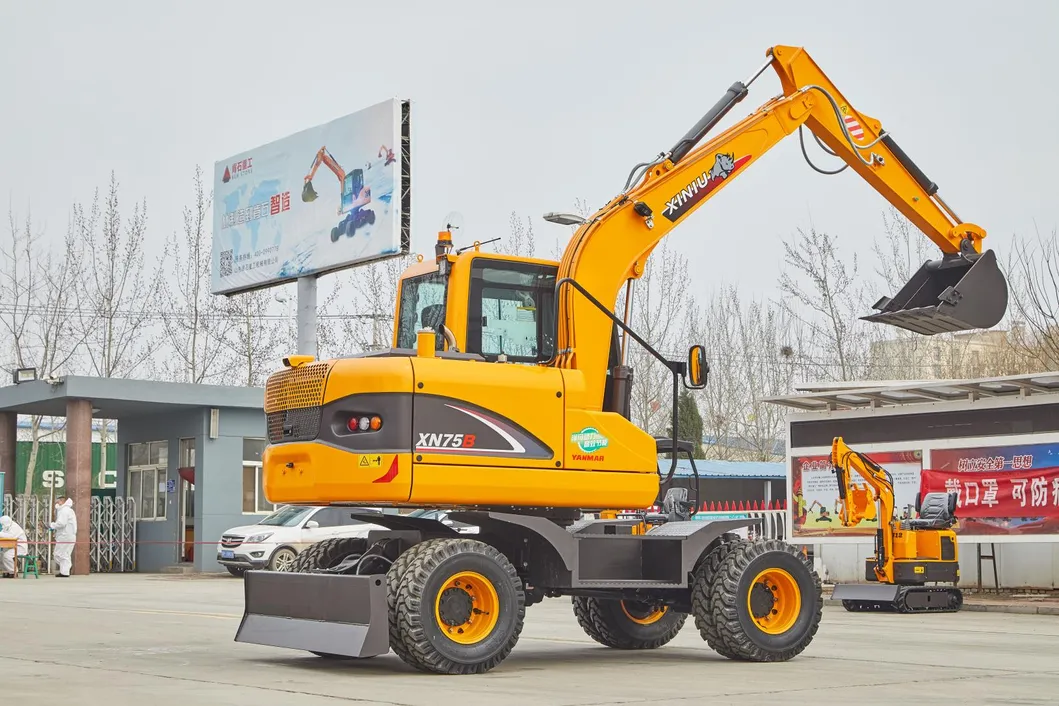

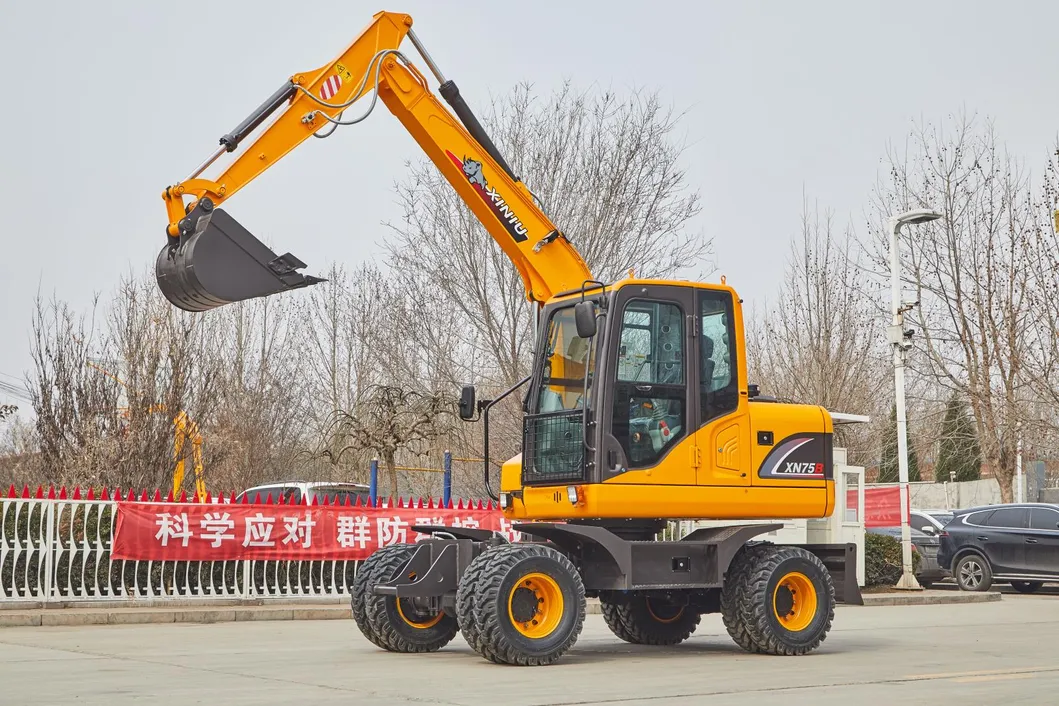

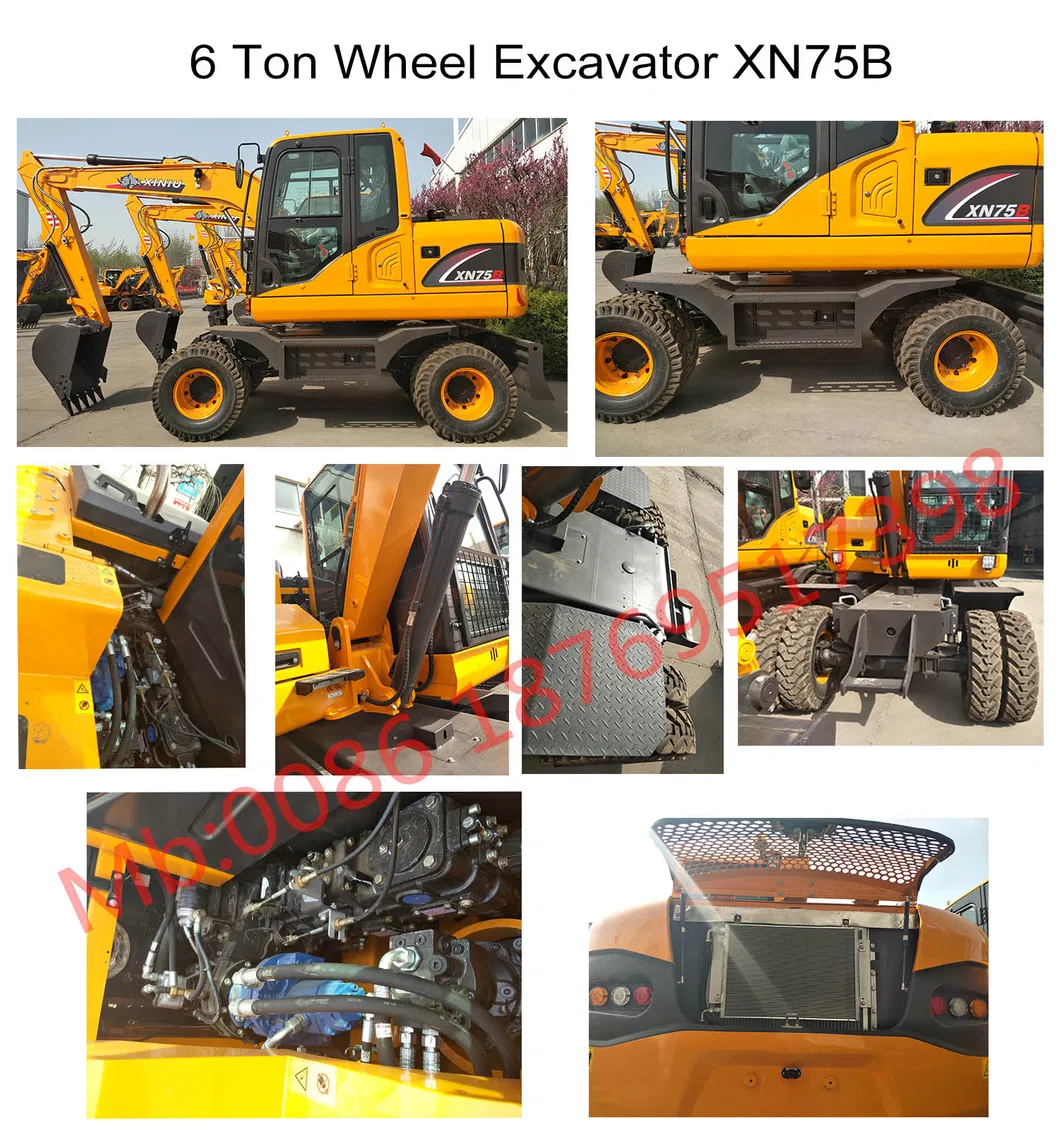

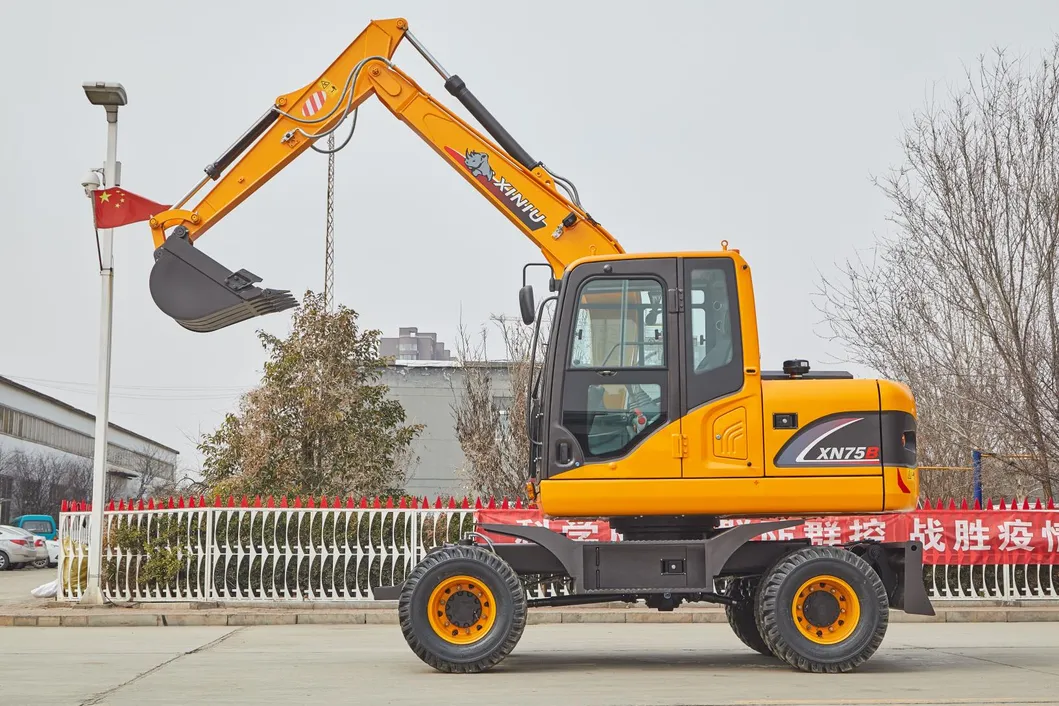

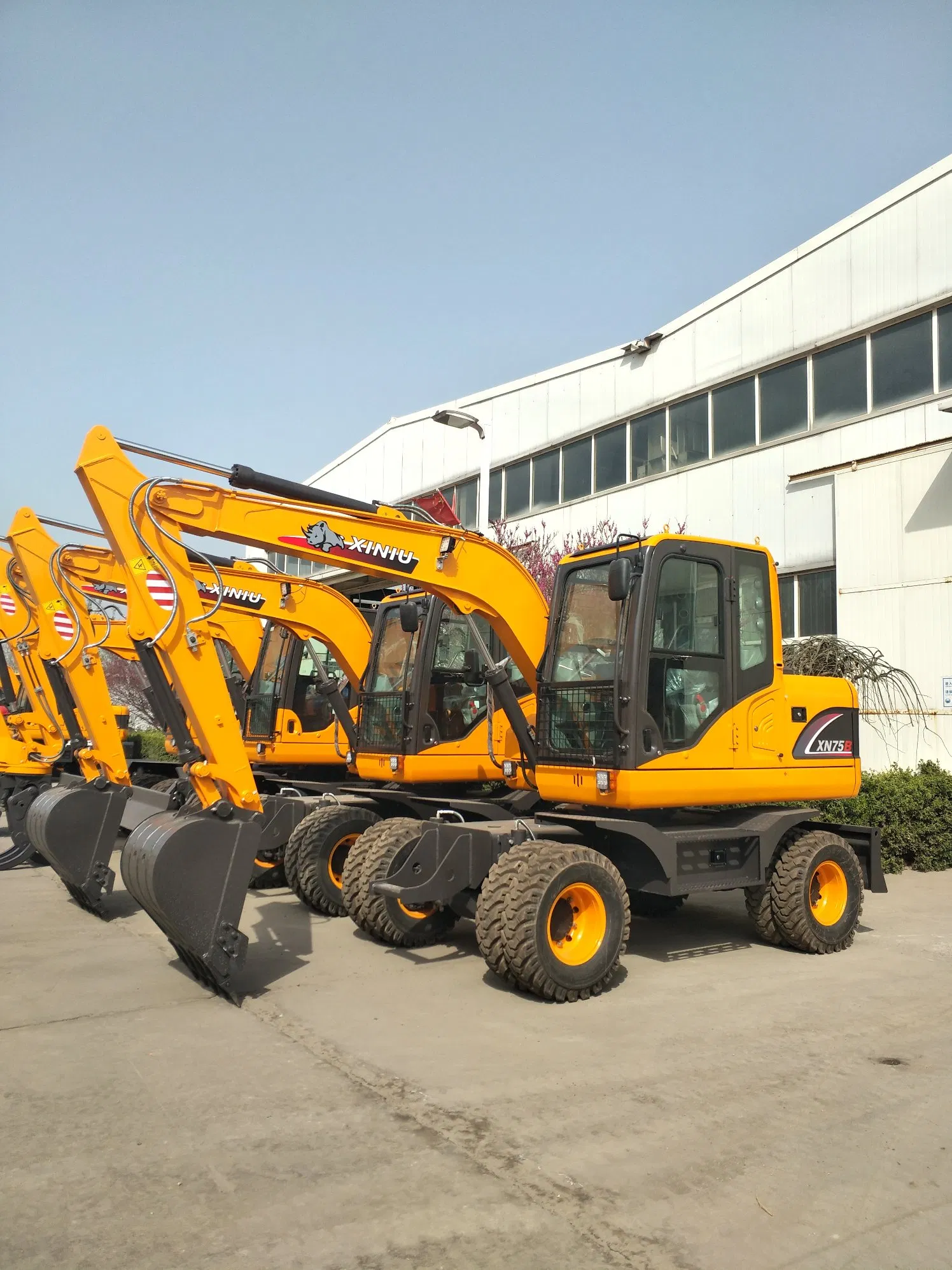

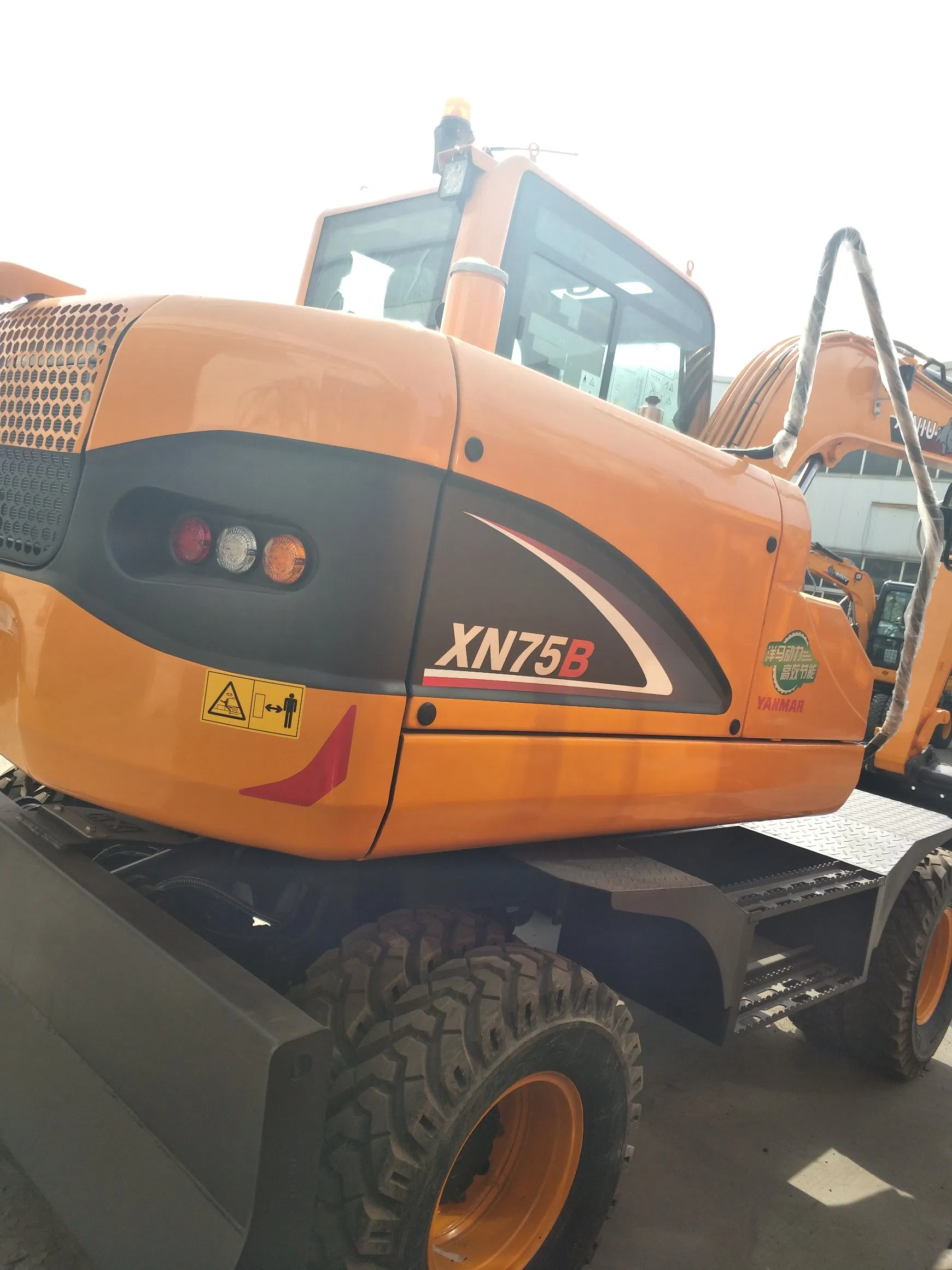

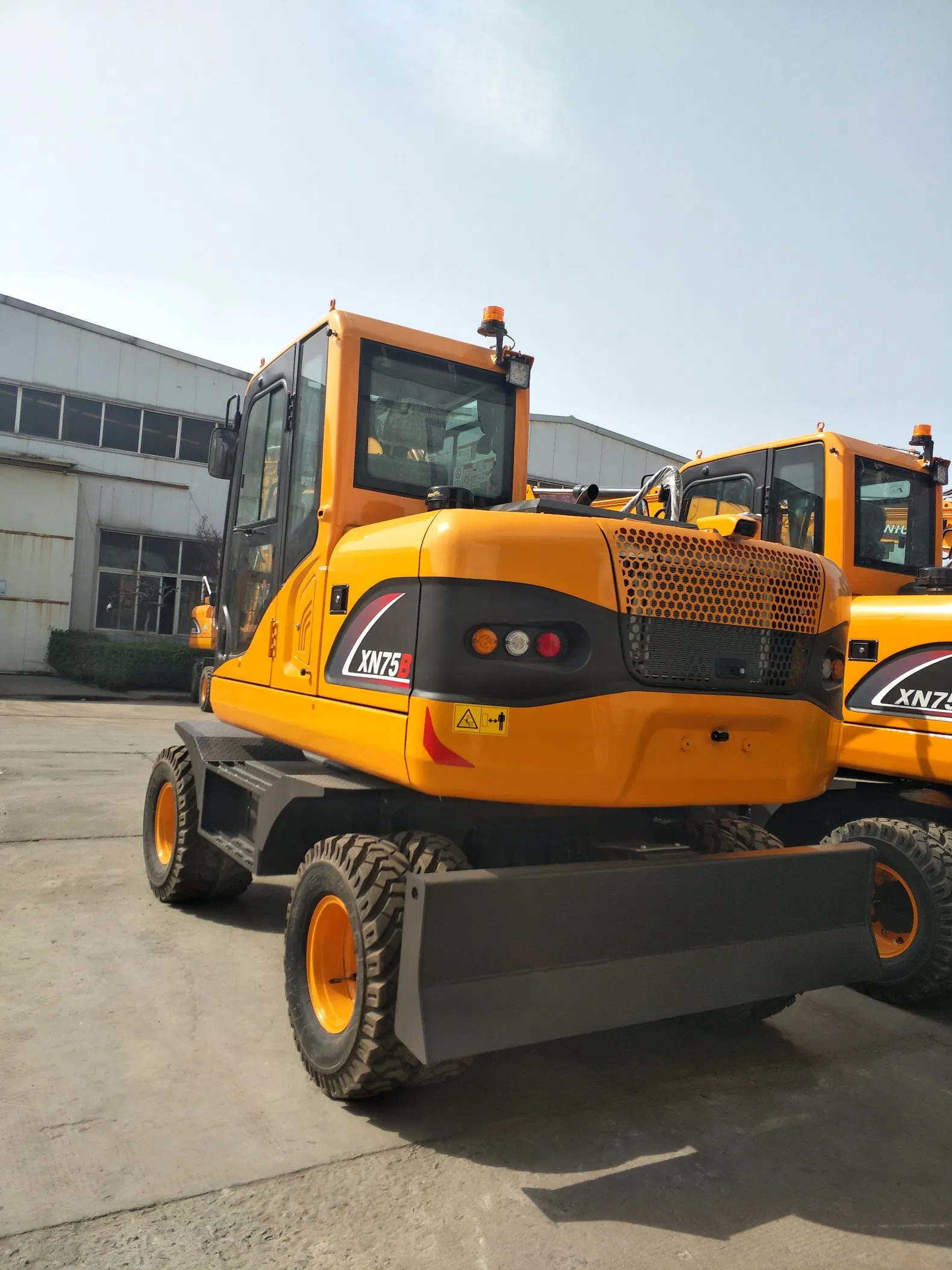

Wheel excavator XN75B photos:
HS CODE :84295211
Load method : 2 units / 40HQ ; 1 unit also need 40HQ
Details information for Wheel excavator XN75-B
| SPECIFICATION | Unit | |
| Operating Weight | 6230kg | |
| Bucket capacity | 0.3m³ | |
| engine | Model | Yanmar 4TNV94L-BVBKC |
| Displacement | 3.054L | |
| Rated power / Speed | 33.7kw/2200rpm | |
| Maximum torque | 193.2-210.6N.m/1260±100 rpm | |
| Speed/Digging force | Max.travel speed | 28km/h |
| Swing speed | 11rpm | |
| Max. Grade ability | 30° | |
| Hydraulic and liquid capacity | Pump type | Variablex2 + Gear x2 |
| Pressure P1 P2 | 21.5Mpa | |
| Flow rate P1 P2 | 60.5x2 L/min | |
| Pressure P3 | 20.6Mpa | |
| Flow rate P3 | 40.3L/min | |
| Pressure P4 | 2.9Mpa | |
| Flow rate P4 | 9.9L/min | |
| Hydraulic Tank Capacity | 150L | |
| Fuel tank capacity | 150L | |
| Engine Fuel tank capacity | 12L | |

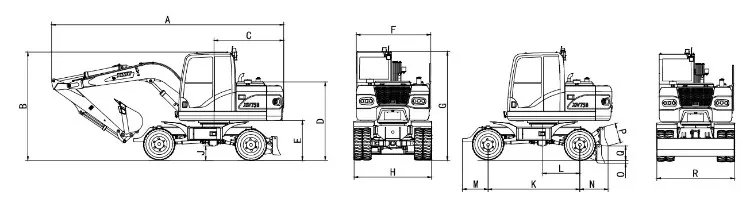

| A Total length | 6066mm |
| B Total Height | 2880 mm |
| C Counter weight turning radius | 1820mm |
| D Hood Height | 2052mm |
| E Counterweight Ground Clearance | 1040mm |
| F Upper structure width | 1944mm |
| G Cab Height | 2880mm |
| H Total Tire Width | 2070mm |
| J Minimum Ground Clearance | 380mm |
| K Wheel Tread | 2400mm |
| L Distance of swing center to rear wheel | 966mm |
| M Front Extension | 668mm |
| N Back Extension | 740mm |
| O The Maximum Reduction Of The Dozer Blade | 70mm |
| P Height Of Dozer Blade | 510mm |
| Q Maximum Lift Of Dozer | 377mm |
| R Overall Width Of Blade | 2026mm |

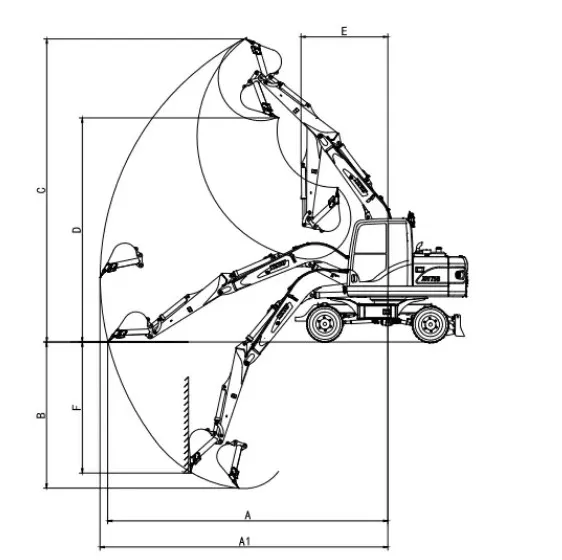

| Range of working | ||
| A1 | Max. Digging radius on ground | 6538mm |
| A | Max. Digging radius on ground | 6361mm |
| B | Max. Digging depth | 3320mm |
| C | Max. Digging height | 6888mm |
| D | Max. Dumping height | 5093mm |
| E | Minimum turning radius | 1974mm |
| F | Maximum vertical digging depth | 2975mm |
| Bucket digging force(KN) | 56mm | |
| Bucket arm digging force(KN) | 38mm | |

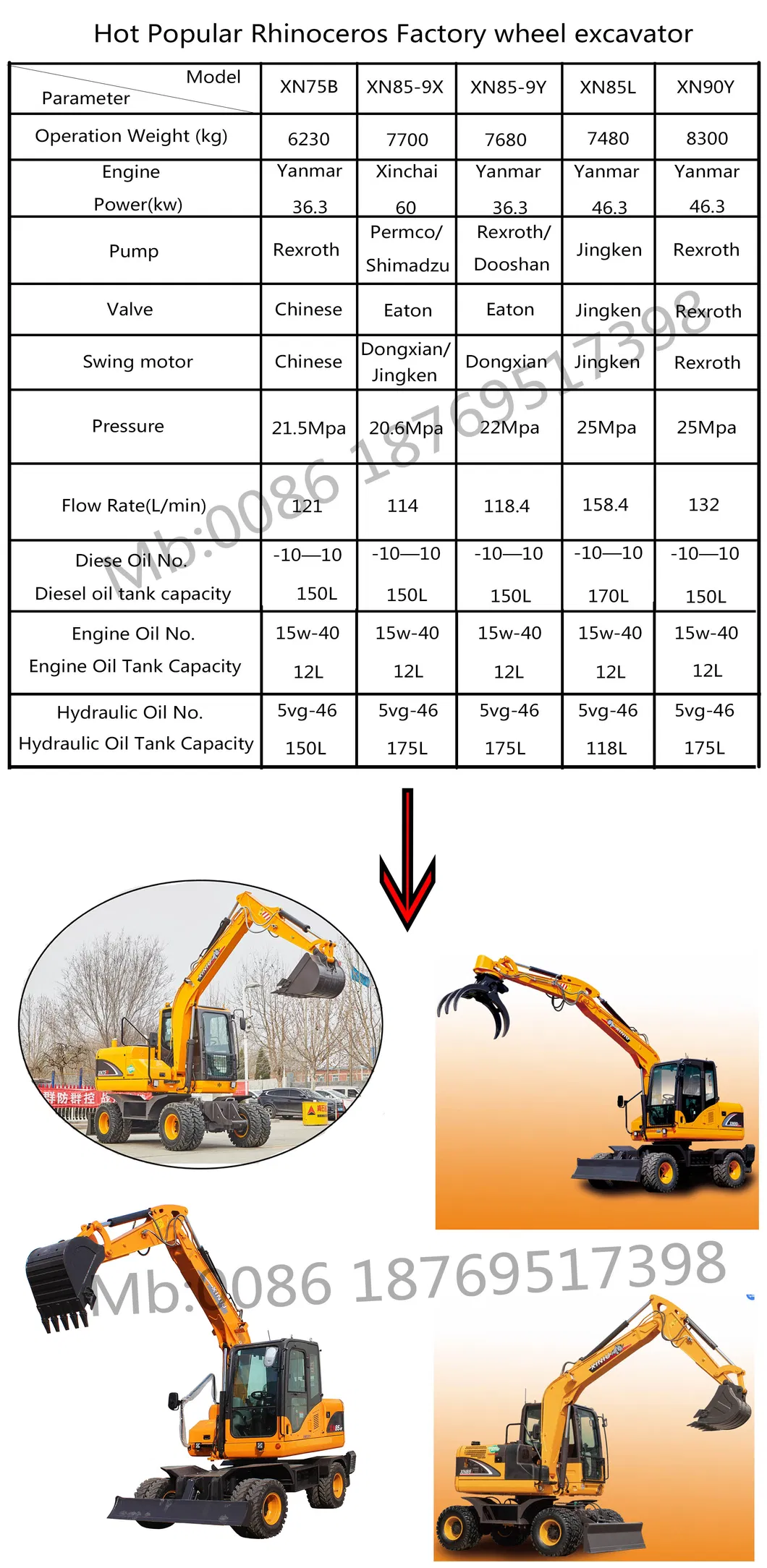

We also other models of wheel excavator XN85-9X XN85-9Y XN85L XN90Y XN95Y now,some information for wheel excavator XN85-9X XN85-9Y XN85L XN90Y XN95Y as below:
The wheel excavator XN75C XN75L XN75LX will be start exported.
Main Products of Rhinoceros Excavator:
1) crawler excavator: 0.8t ,1.5t,1.6t,1.8t,4.5t,15t,21t,24t,35t,75ton;
2) wheel excavator: 5t, 6t, 7t, 8t 10 ton, 2wheel driven or 4 wheel driven;
3) backhoe loader XNWZ74180, 7ton, similar to JCB 3cx but much cheaper;
4) concrete pump, 26m,33 meters sizes.
Company information:
Shandong Rhinoceros Engineering Machinery Co.,Ltd since 1995 year.
We specialize in backhoe loader 7T,excavator 0.8T-24T, loader(1-5T), forklift ,concrete pump(26M & 33M) ,skid steel loader for 22 years,with good quality and pretty competitive price.All machine with CE & ISO certificate
