Sany Sy220 22tons Small Wheel RC Hydraulic Excavator with ISO Certification
SY220C medium excavator features strengthened structure, undercarriage and components, making it very robust and stable. Low maintenance cost and high fuel efficiency of the 22 ton excavator help customers make more profit.Advanced Dynamic ControlDOMCS intelligent controlPositive flow controlDiffere......
Send Inquiry
Product Description

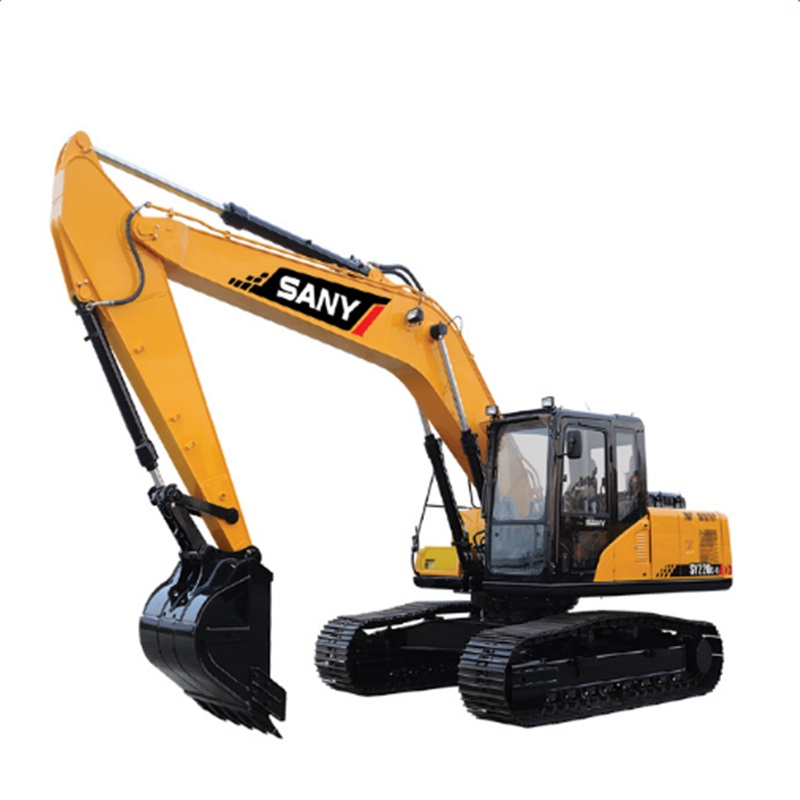

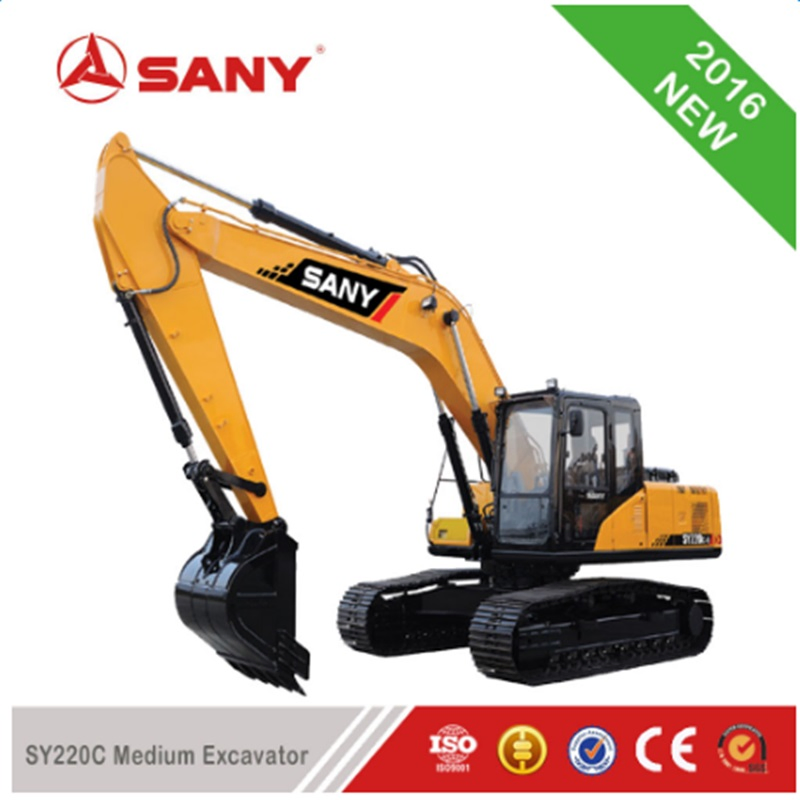

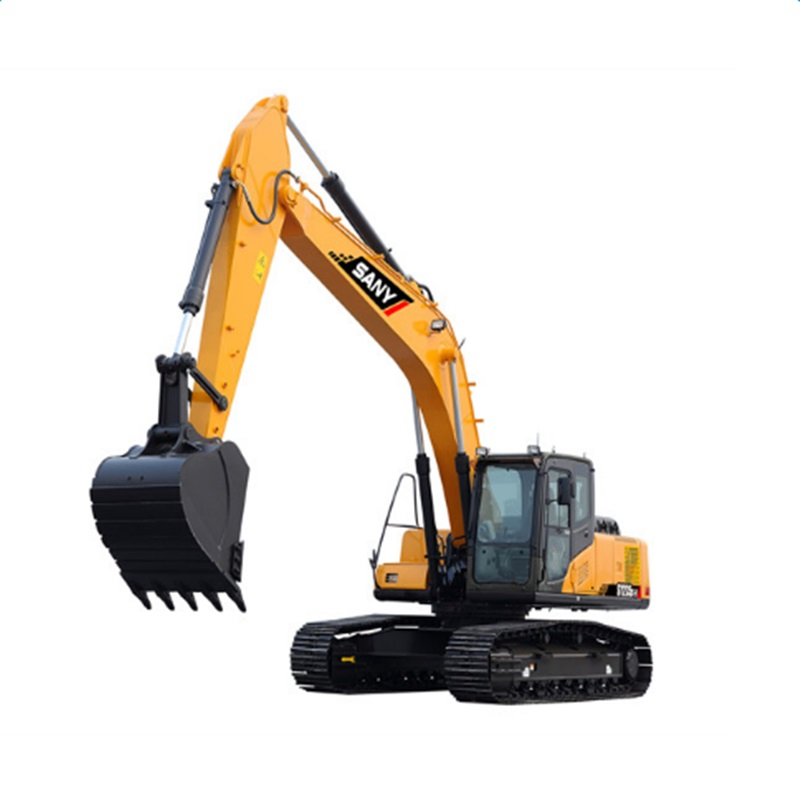

SY220C medium excavator features strengthened structure, undercarriage and components, making it very robust and stable. Low maintenance cost and high fuel efficiency of the 22 ton excavator help customers make more profit.
Advanced Dynamic Control
DOMCS intelligent control
Positive flow control
Different working modes
High Profitability
Low fuel consumption
Higher working efficiency
Lower maintenance cost
Remote Monitoring System
Advanced GPRS monitoring
Remote error diagnosis
Smart machine alerts
Stable and Reliable
Proven hydraulic components
Heavy duty structure

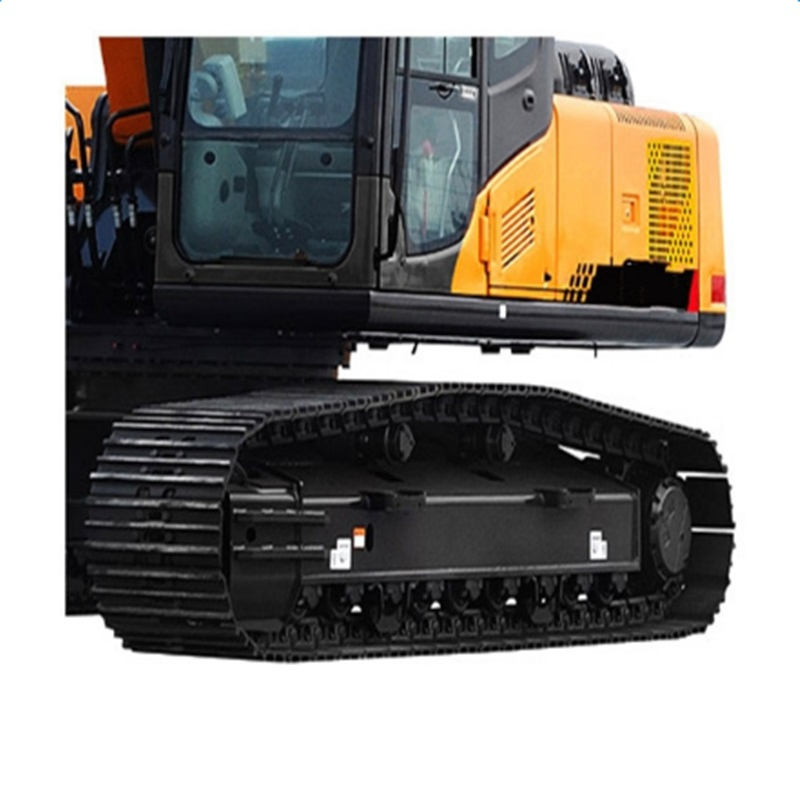

Robust under carriage
Engine model | Mitsubishi D06S2 | Rated power | 114/2050 kW/rpm |
Max.torque | 590N.m@1400rpm | Displacement | 5.86L |
Emission standard | Tier 2 | Operating weight | 21900kg |
Max. digging height | 9113m | Max. dumping height | 6240mm |
Max. digging depth | 6600mm | Max. digging reach | 9312mm |
Min. swing radius | 3730mm | Height at min.swing radius | 7680mm |
Transport length | 9650mm | Transport width | 2980mm |
Transport height | 3440mm | Upper width | 2875mm |
Cab height | 2990mm | Tail swing radius | 2890mm |
Min. ground clearance | 440mm | Std. track shoe width | 600mm |
Bucket capacity | 1.0m³ | Track shoes(per side) | 47 |
Upper rollers | 2 | Lower rollers | 8 |
Track gauge | 2380mm | Track length | 600mm |
Boom length | 5700mm | Arm length | 2400mm |
Travel speed | 5.4/3.3km/h | Swing speed | 11rpm |
Gradeability | 70%/35° | Ground pressure | 47kPa |
Tractive force | 209KN | Bucket digging force | 152KN |
Arm digging force | 137KN | Fuel tank | 340L |
Hyd tank | 239L | Engine oil | 22L |

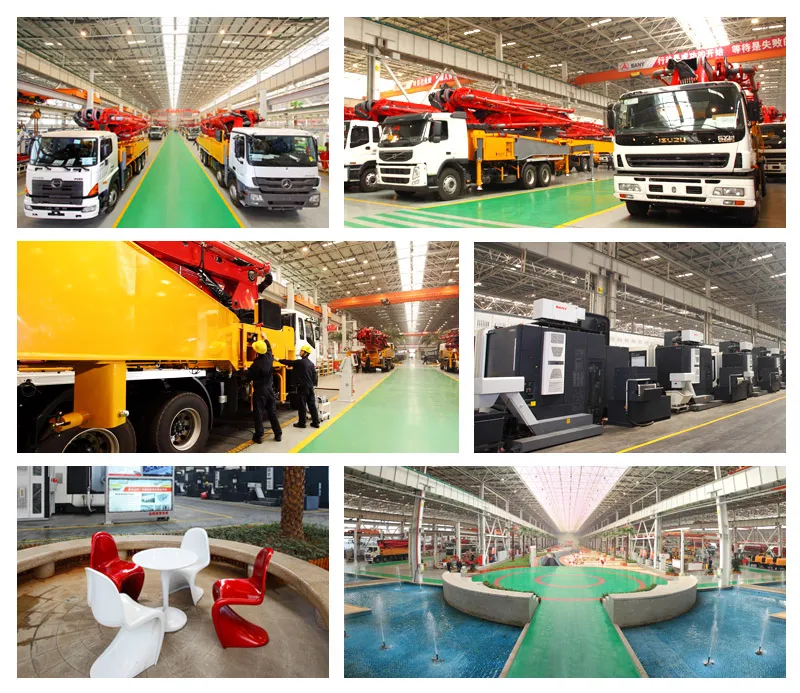

Producing Environment
Company Information
SANY On Exhibition
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
