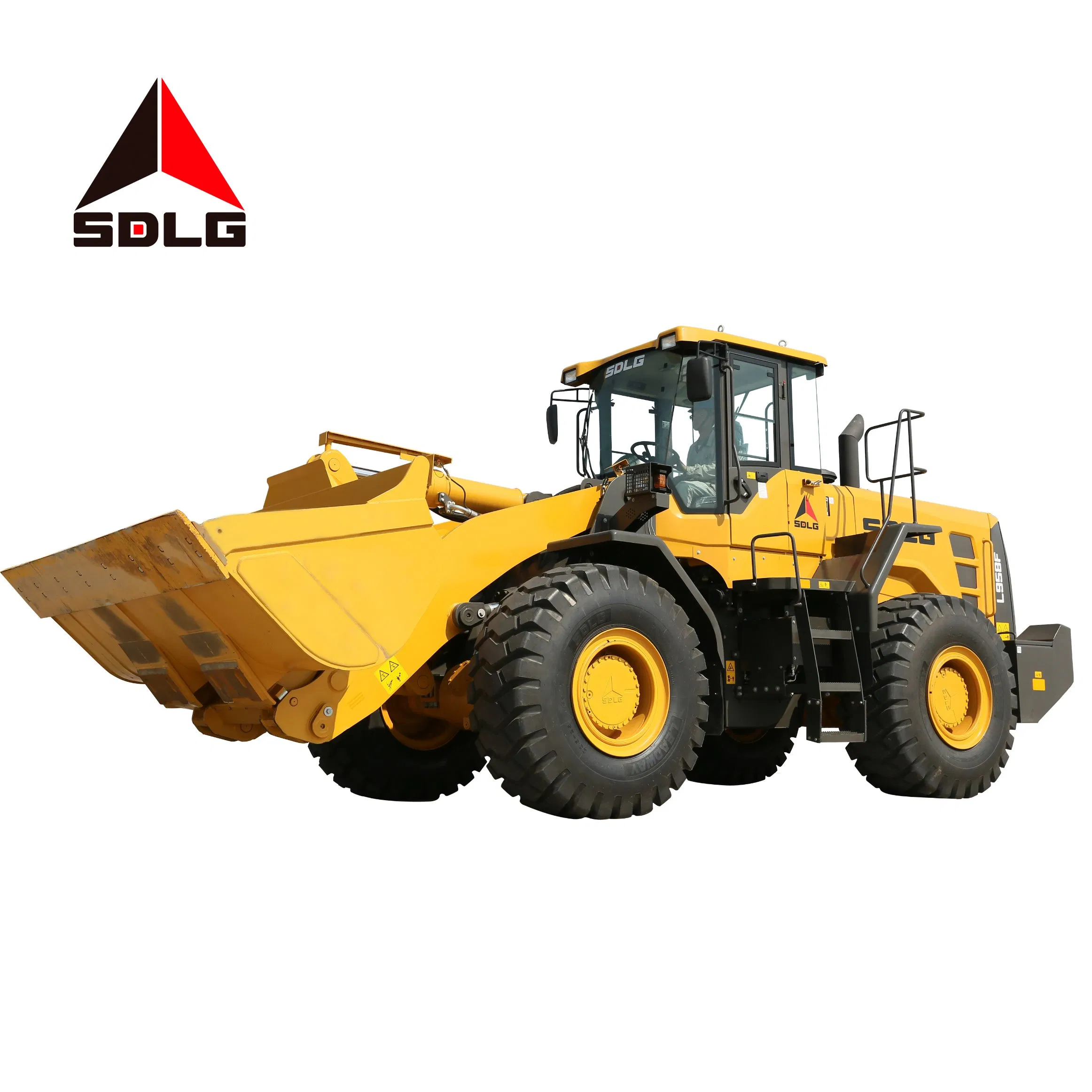

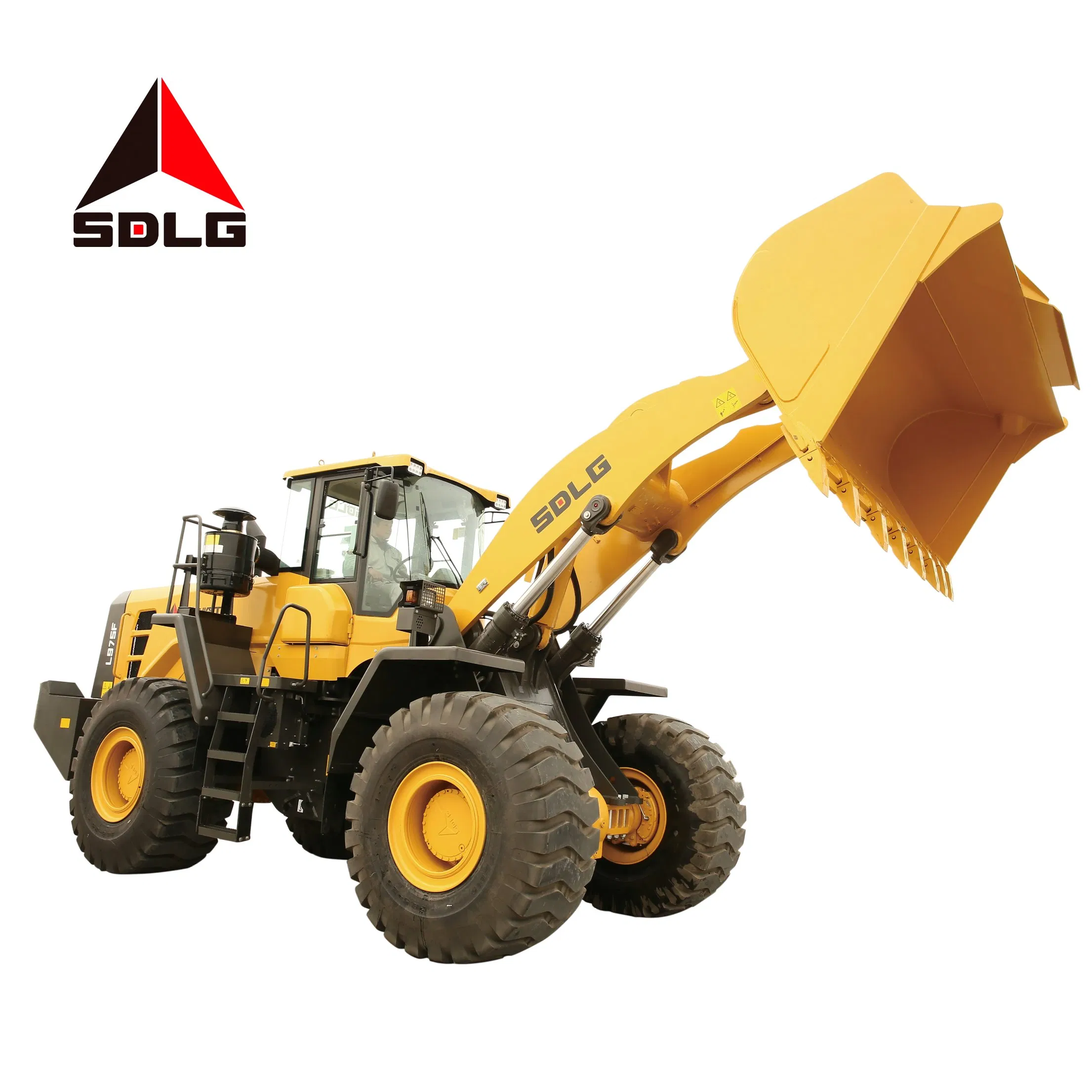

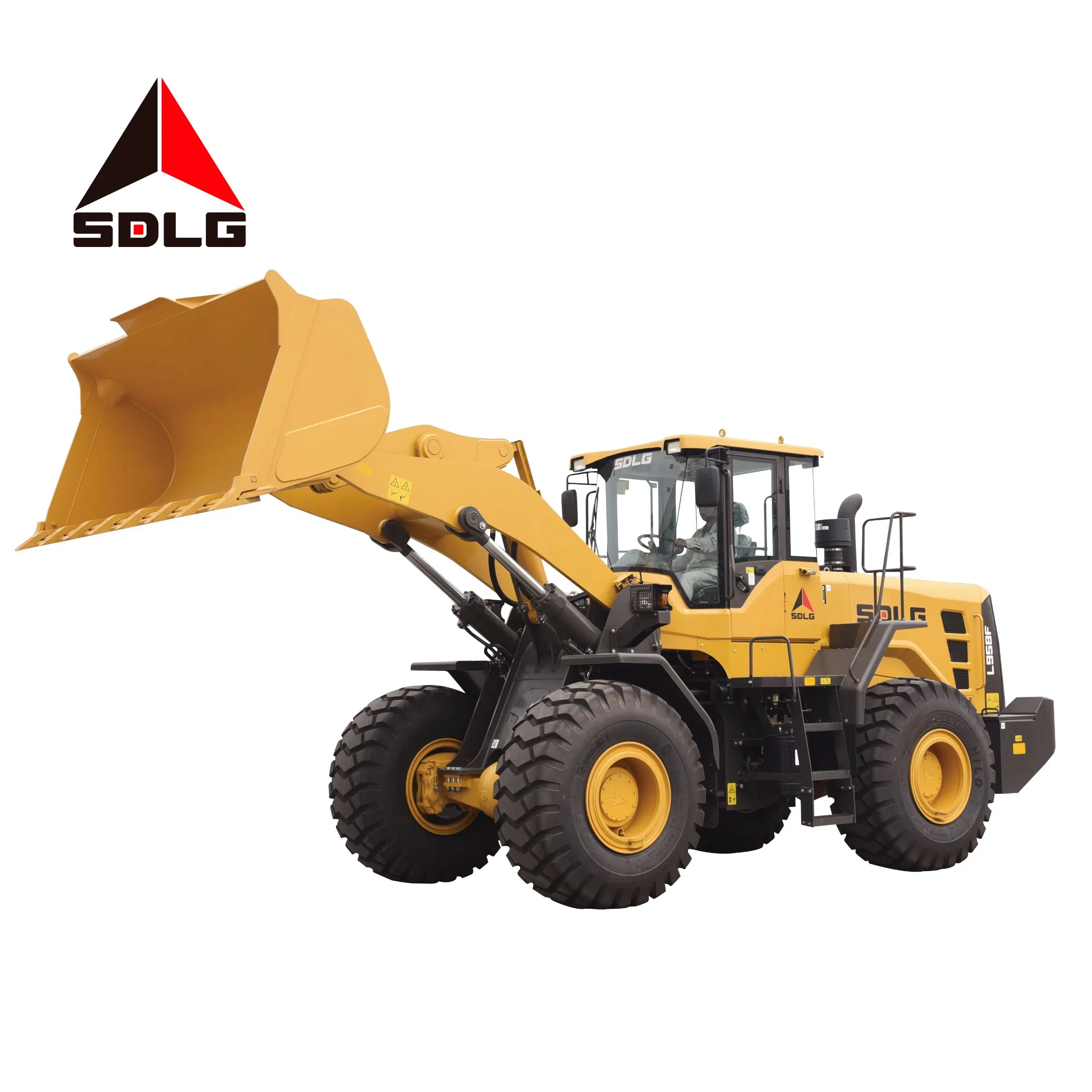

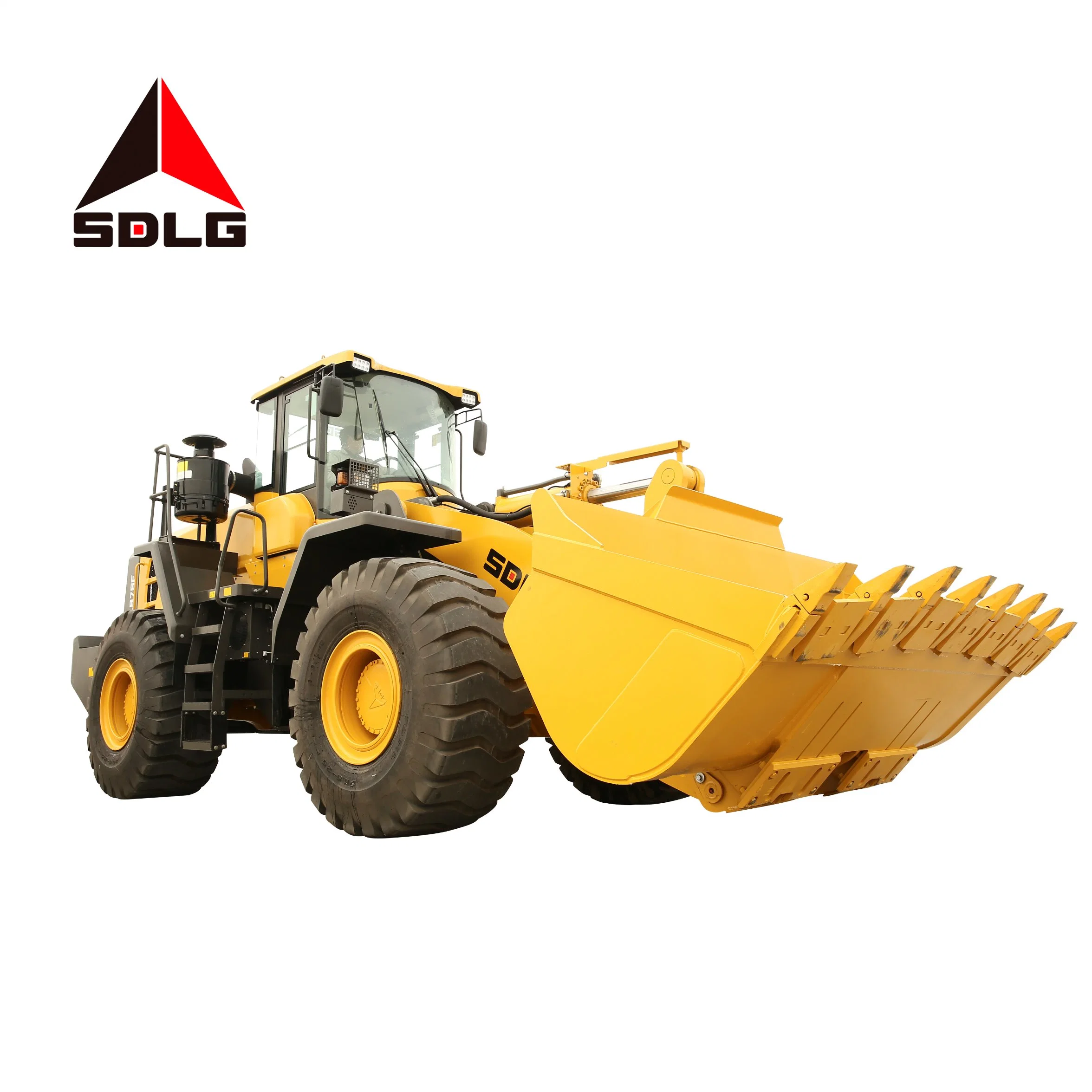

    Sdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II Engine
    • Sdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II EngineSdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II Engine
    • Sdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II EngineSdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II Engine
    • Sdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II EngineSdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II Engine
    • Sdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II EngineSdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II Engine

    Sdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II Engine

    SDLG B877F compact excavator loader with 1m3 loading bucketB877F is a new design of cost-effective small multi-function machinery, widely used in urban and ruralhighway construction and maintenance, cablecasting, electricity and the airport project, municipal construction,a mountain stone and other ......

    Send Inquiry

    Product Description

    Sdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II Engine

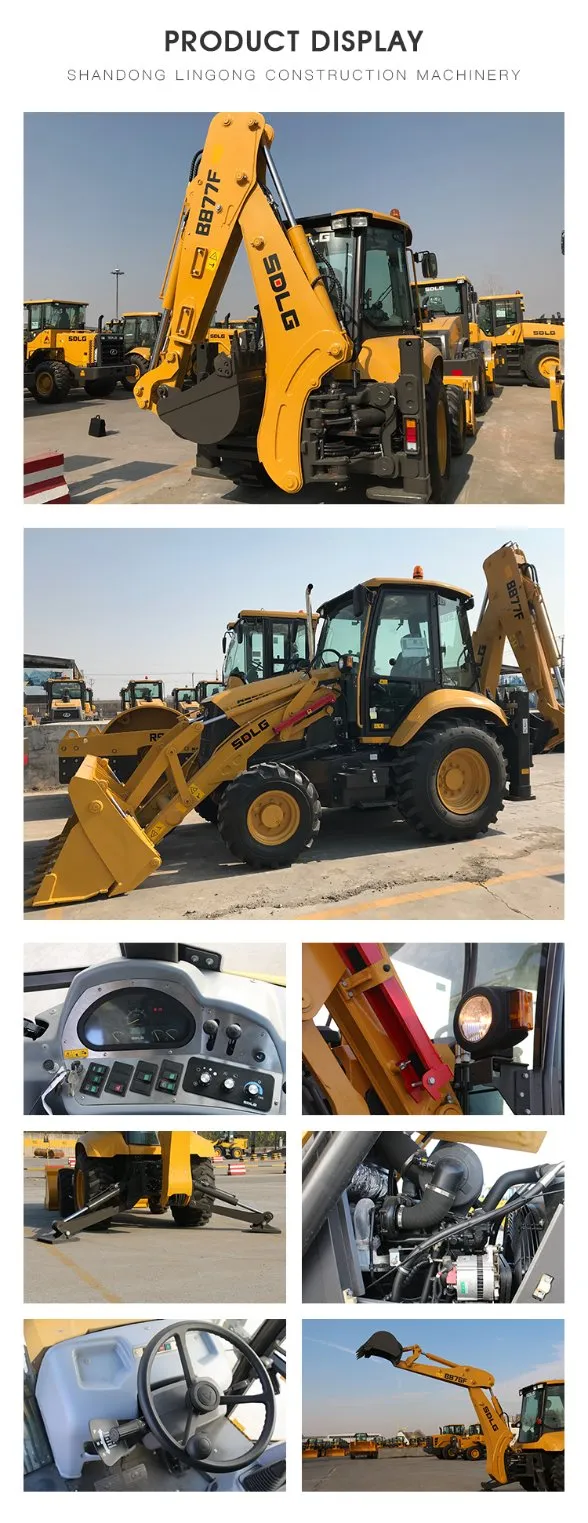

    SDLG B877F compact excavator loader with 1m3 loading bucket
    B877F is a new design of cost-effective small multi-function machinery, widely used in urban and rural
    highway construction and maintenance, cablecasting, electricity and the airport project, municipal construction,
    a mountain stone and other building construction engineering.
    Sdlg 4t Medium-Size Wheel Loader LG946L with Weichai Tier II Engine


    Overall dimension
    L*W*H5917*2350*3608mm
    Max. dumping height2693mm
    Dumping distance830mm
    Min. ground clearance346mm
    Max. digging depth4303mm
    Max. digging radius5393mm
    wheel tread(front/rear)1928/1790mm
    Wheel base2170mm
    Min. turning radius4118mm
    horizontal crossing radius5350mm
    Overall parameters
    Operating weight8000kg
    Loading bucket capacity1m3
    Rated load1800kg
    Max. tractive force86kN
    Digging bucket capacity0.18m3
    Max. digging force55kN
    Max. breakout force55kN
    Engine
    ModelYC4A105Z-T20
    TypeInline, watercooled,four-stroke,supercharged,direct injection combustion chamber
    Rated power70kW
    Rated speed2200r/min
    Engine displacement4837ml
    Max. torque420N.m
    Emission standardGB 20891-2007(China Phase II)
    Min. fuel-consume ratio230g/kw.h
    Transmission system
    Torgue convertersingle-stage single-phase radial-inward flow turbine type
    Transmission typePower shifting
    GearsForward 4 reverse 3
    Brake system
    Service brake typeVacuum booster type
    Parking brake typeCaliper disc type
    Steering system
    TypeLoad sensing full hydraulic steering
    System pressure15 Mpa
    Fill capacity
    Fuel135L
    Hydraulic oil155L
    Engine10L
    Transmission20L
