Sdlg B876f Mini Excavator Loader for Urban and Rural Highway
Sdlg B876f Mini Excavator Loader for urban and rural highwayB876F is a new design of cost-effective small multi-function machinery,widely used in urban and rural highway construction and maintenance,cablecasting, electricity and the airport project, municipal construction,and other building construc......
Send Inquiry
Product Description

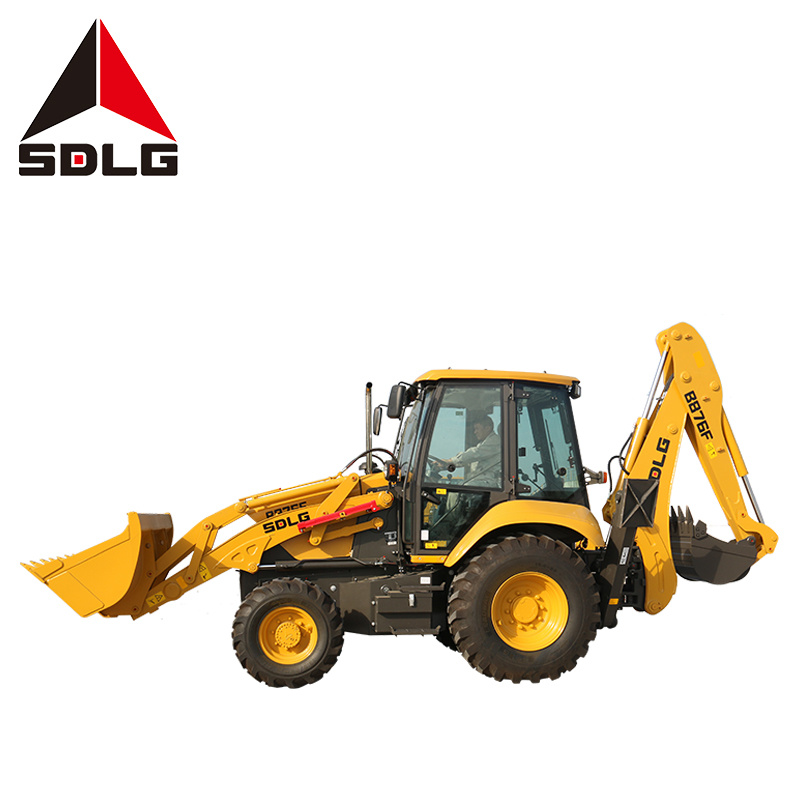

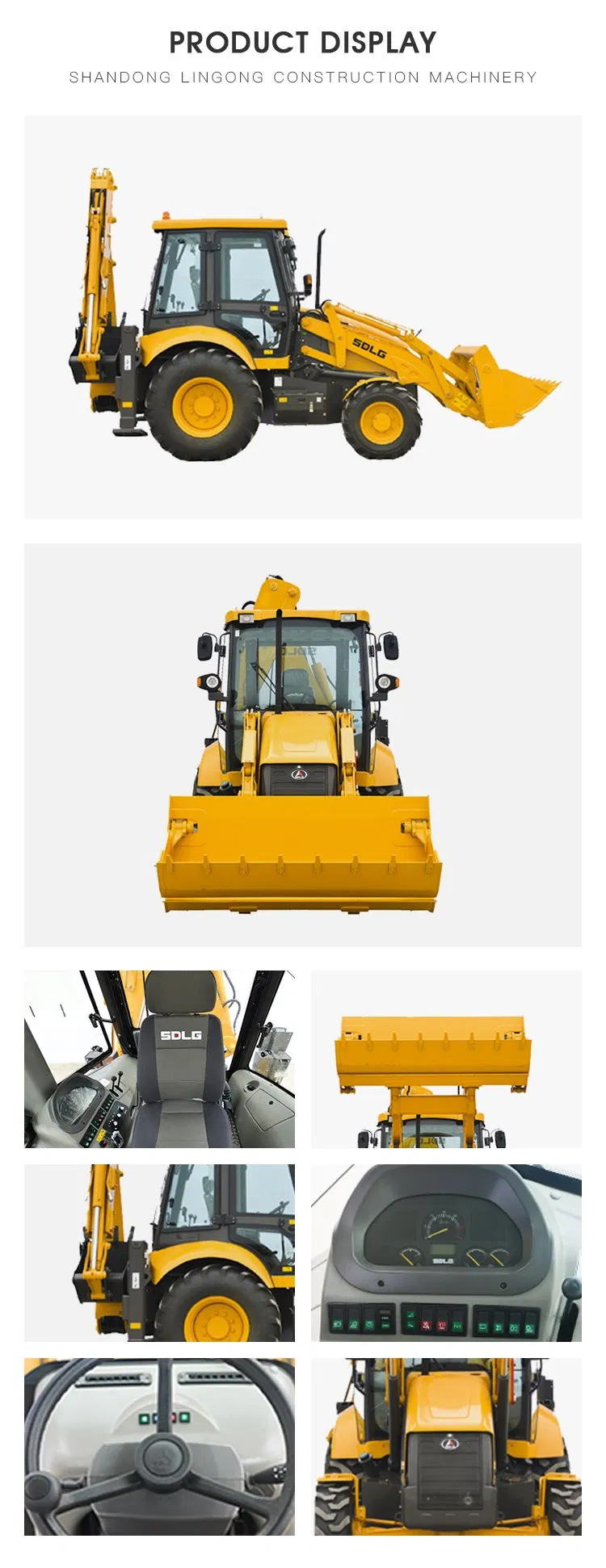

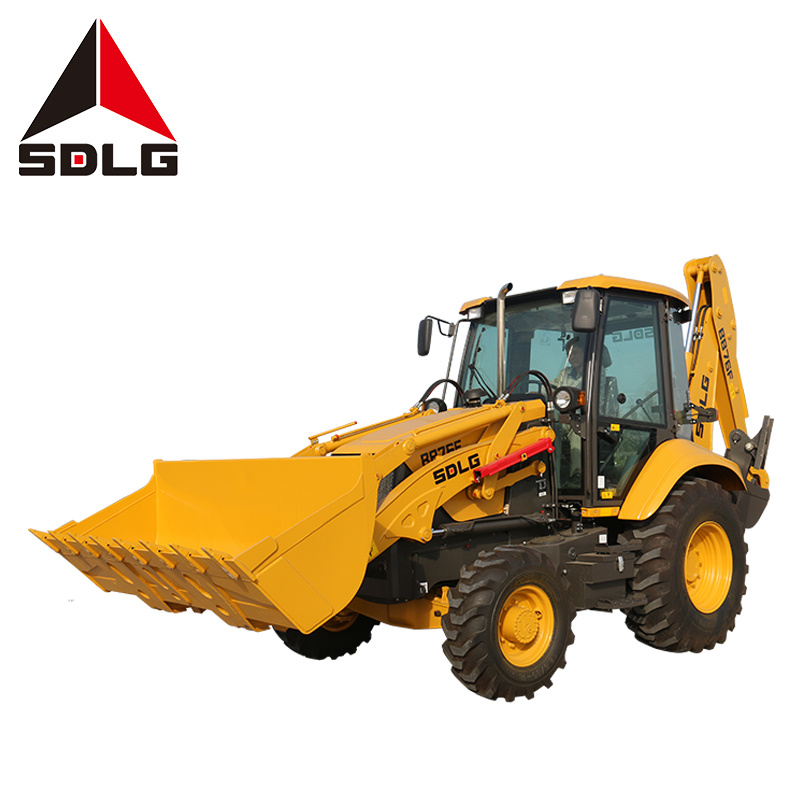

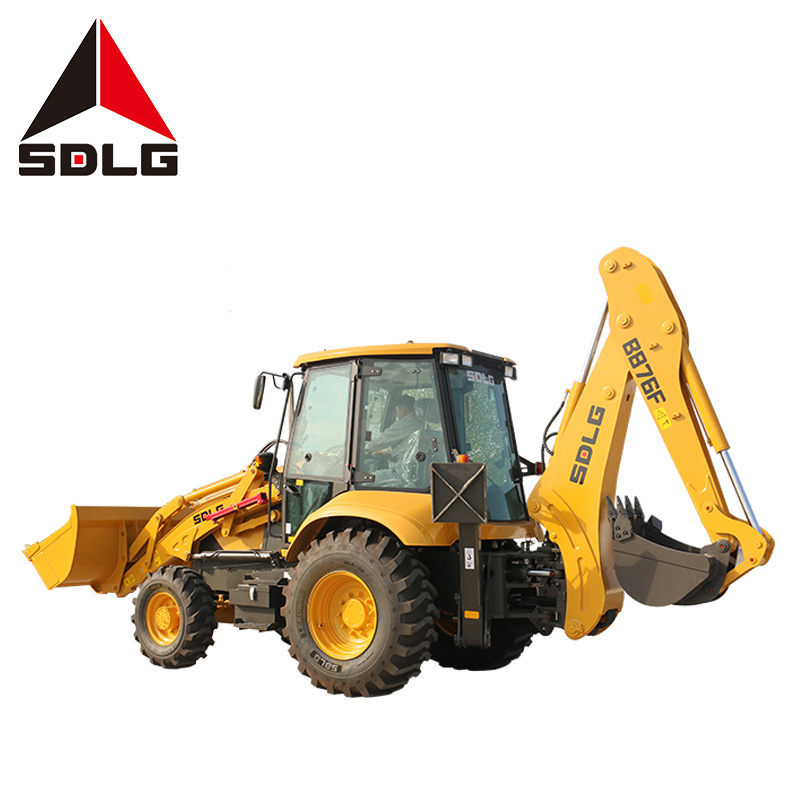

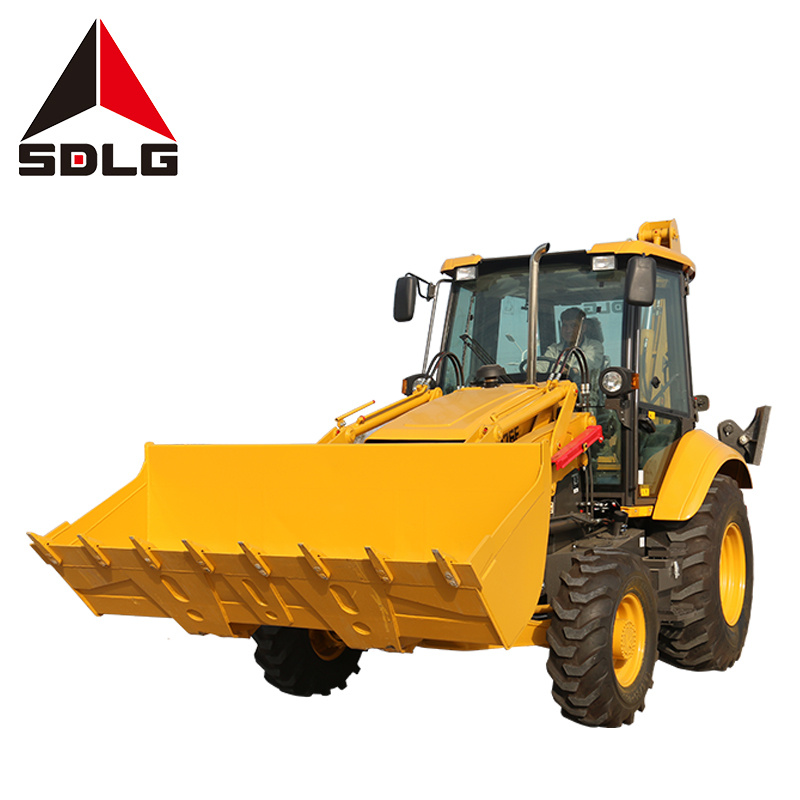

Sdlg B876f Mini Excavator Loader for urban and rural highway
B876F is a new design of cost-effective small multi-function machinery,
widely used in urban and rural highway construction and maintenance,
cablecasting, electricity and the airport project, municipal construction,
and other building construction engineering.
| Overall dimension | |
| L*W*H | 7233*2350*3608mm |
| Max. dumping height | 2693mm |
| Dumping distance | 830mm |
| Min. ground clearance | 346mm |
| Max. digging depth | 4303mm |
| Max. digging radius | 5393mm |
| wheel tread(front/rear) | 1928/1790mm |
| Wheel base | 2170mm |
| Min. turning radius | 4118mm |
| horizontal crossing radius | 5350mm |
| Overall parameters | |
| Operating weight | 7700kg |
| Loading bucket capacity | 1m3 |
| Rated load | 1800kg |
| Max. tractive force | 86kN |
| Digging bucket capacity | 0.18m3 |
| Max. digging force | 48kN |
| Max. breakout force | 48kN |
| Engine | |
| Model | YC4A105Z-T20 |
| Type | Inline, watercooled,four-stroke,supercharged,direct injection combustion chamber |
| Rated power | 70kW |
| Rated speed | 2200r/min |
| Engine displacement | 4837ml |
| Max. torque | 420N.m |
| Emission standard | GB 20891-2007(China Phase II) |
| Min. fuel-consume ratio | 230g/kw.h |
| Transmission system | |
| Torgue converter | single-stage single-phase radial-inward flow turbine type |
| Transmission type | Power shifting |
| Gears | Forward 4 reverse 3 |
| Brake system | |
| Service brake type | Vacuum booster type |
| Parking brake type | Caliper disc type |
| Steering system | |
| Type | Load sensing full hydraulic steering |
| System pressure | 15 Mpa |
| Fill capacity | |
| Fuel | 135L |
| Hydraulic oil | 165L |
| Engine | 11L |
| Transmission | 18L |
