Product Description

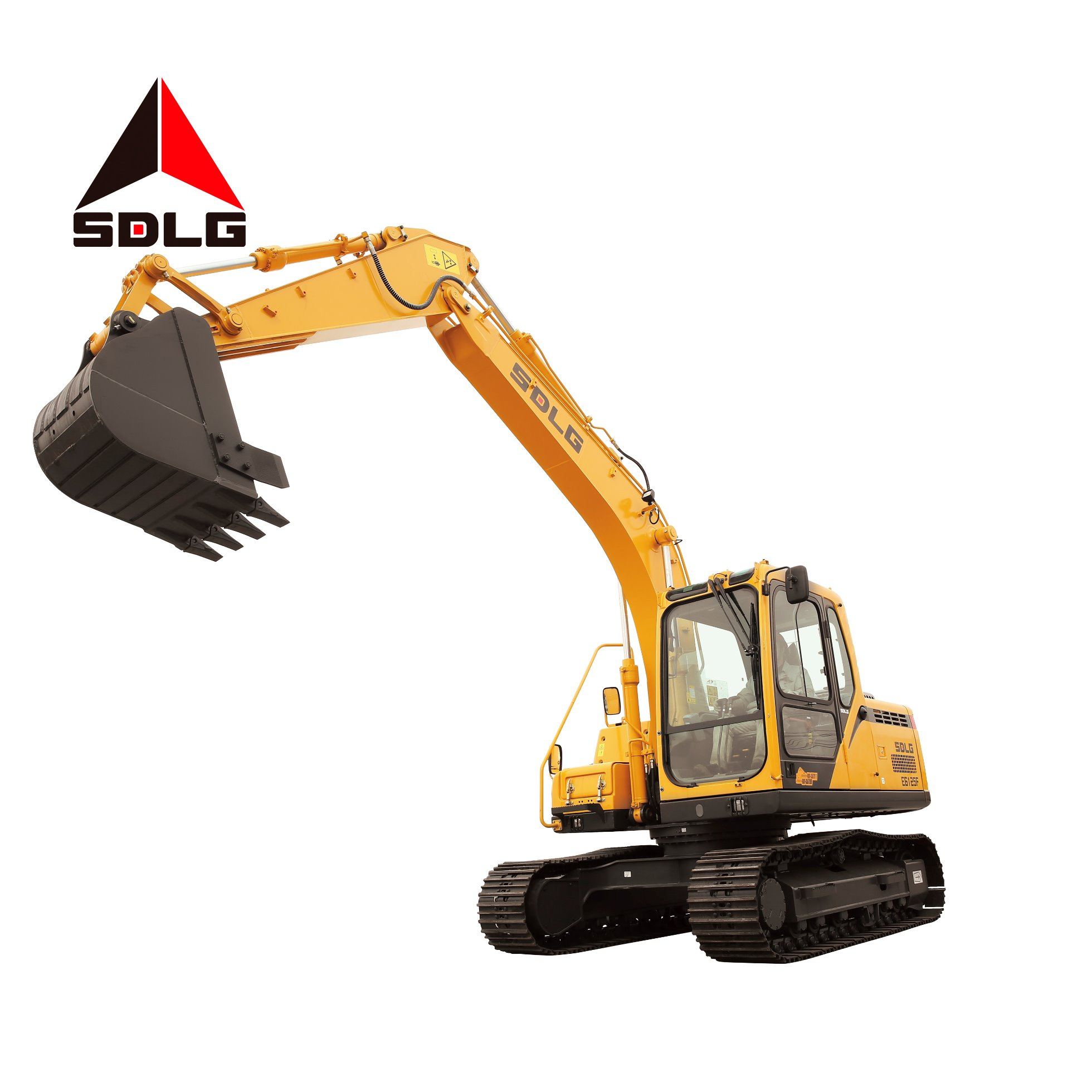

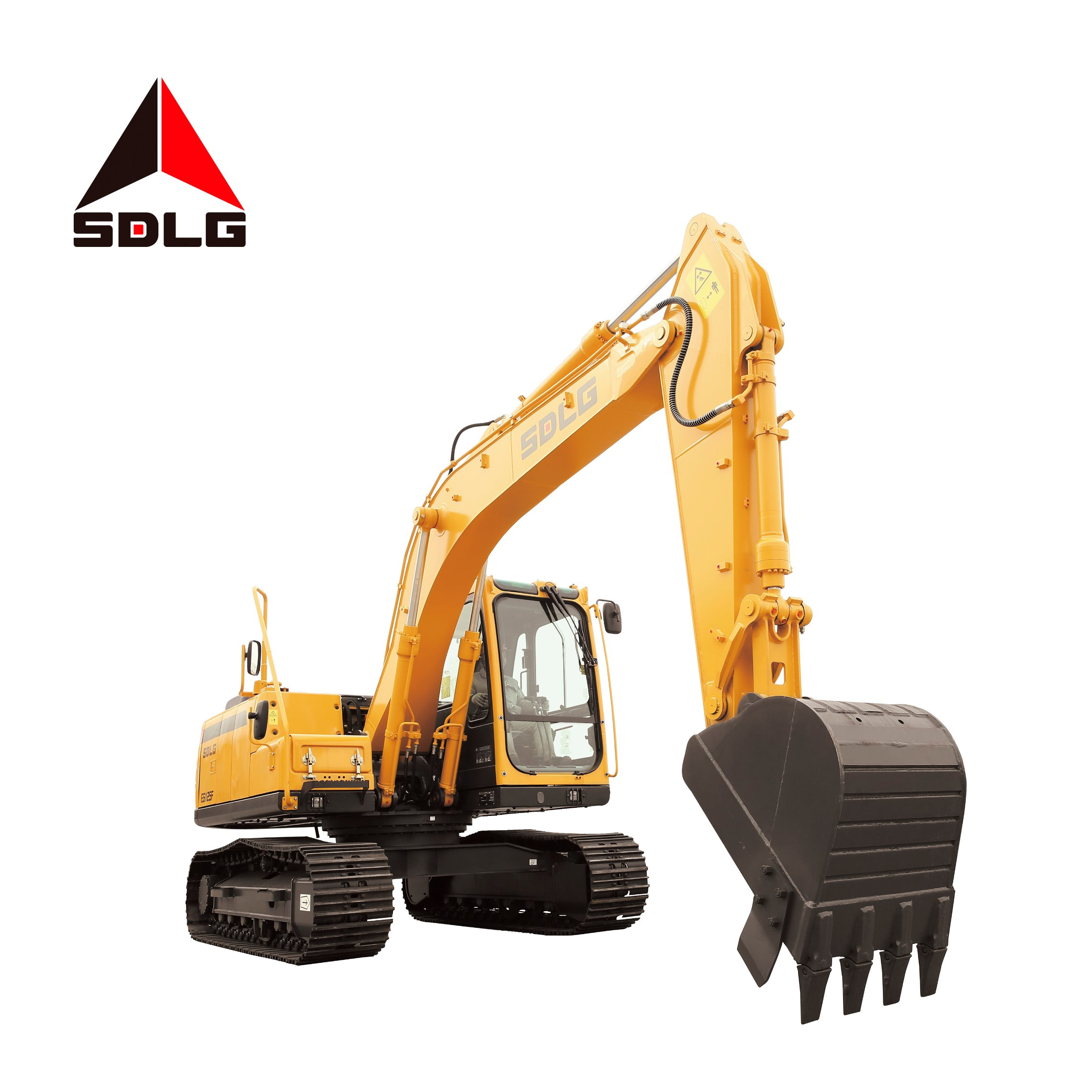

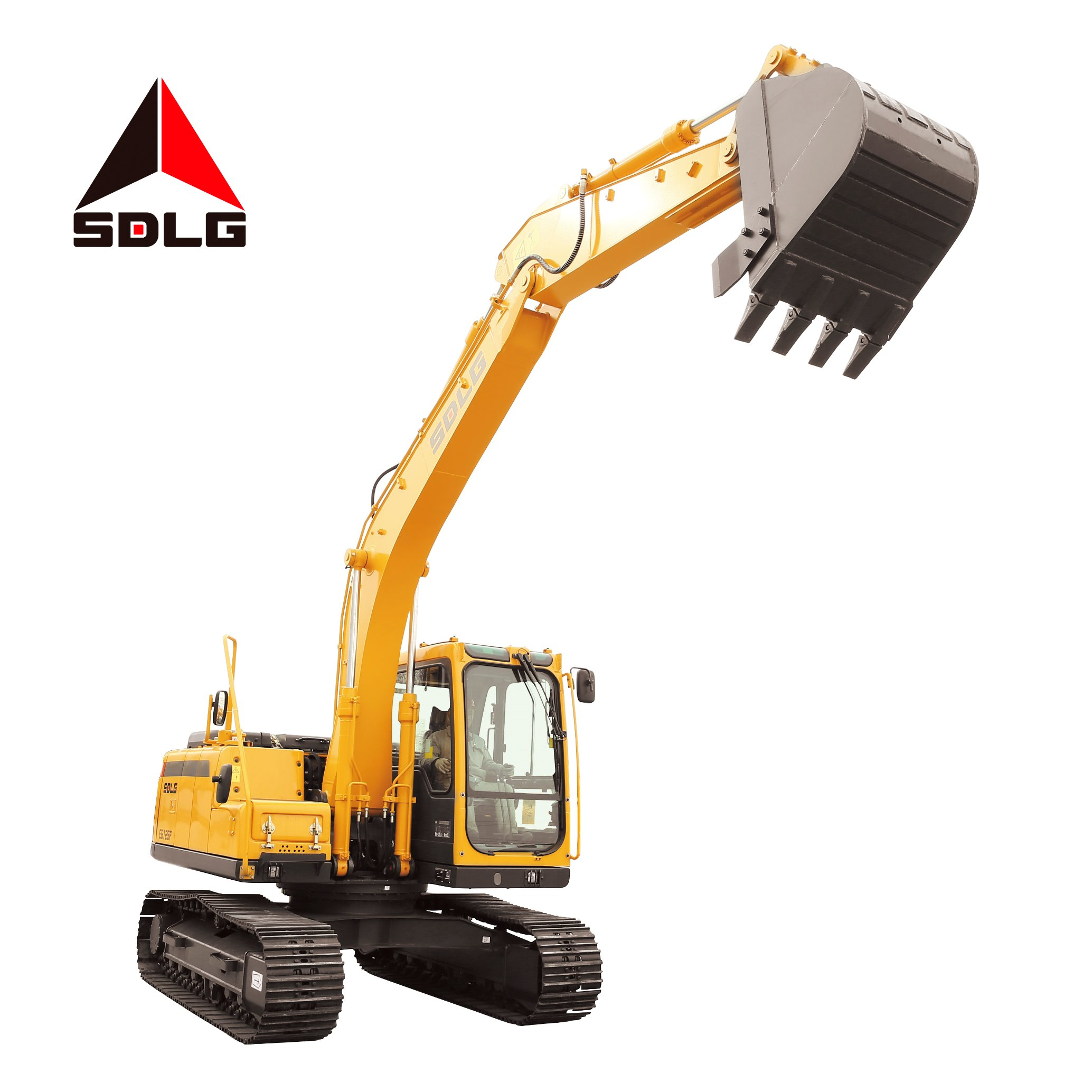

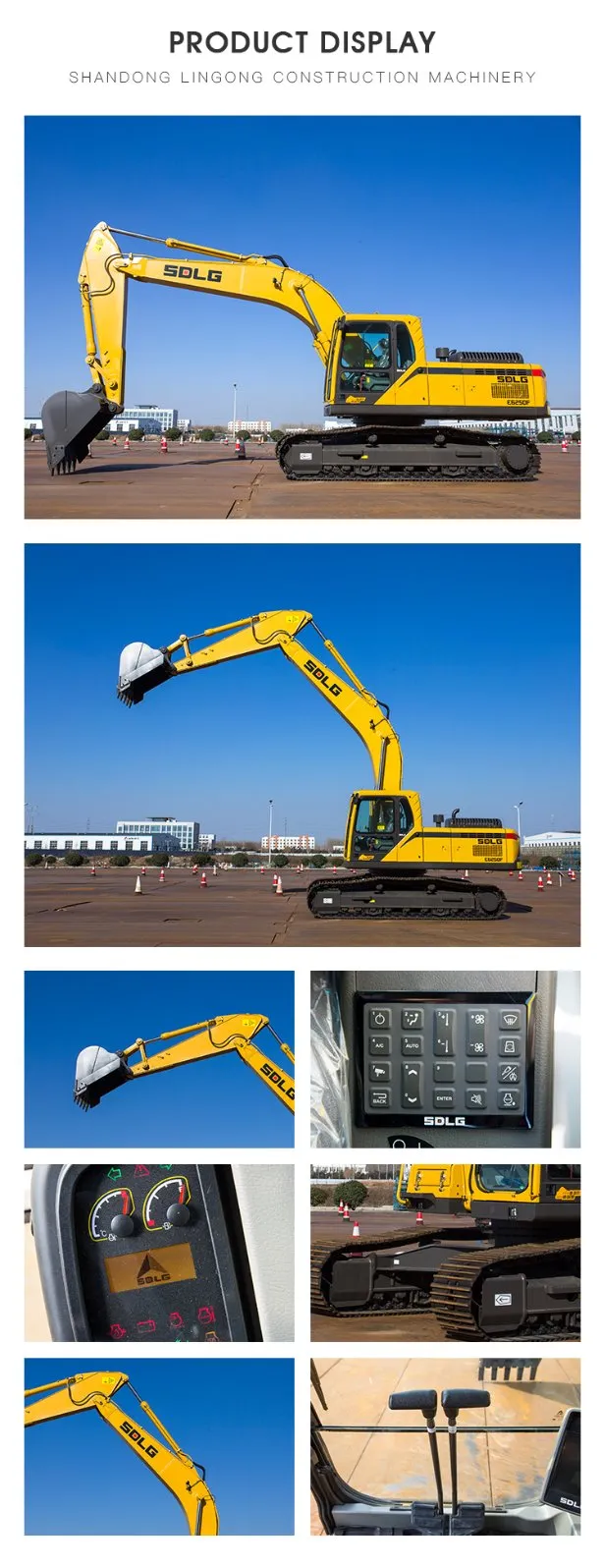

SDLG E6250F 25t medium size hydraulic excavator for mining
E6250F is a core product that is developed by SDLG after fully researching the Chinese market. It features a high-strength chassis, heavy-duty working units, and an optimized matching hydraulic system and is suitable for tough conditions.
| Overall dimension | |
| Overall width of upper assembly | 2890mm |
| Overall width | 3190mm |
| Overall height | 3040mm |
| Tail swing radius | 2940mm |
| Overall height of engine hood | 2370mm |
| Ground clearance of counterweight | 470mm |
| Wheelbase | 3850mm |
| Crawler length | 4650mm |
| Crawler gauge | 2590mm |
| Crawler pad width | 600mm |
| Min. ground clearance | 470mm |
| Overall length | 10205mm |
| Overall height of boom | 3430mm |
| Overall parameters | |
| Bucket capacity | 1.2m³ |
| Overall operating weight | 24400kg |
| Max. excavation force | 176KN |
| Slew speed | 11.3r/min |
| Traveling speed (low/high) | 3.3/5.5km/h |
| Average ground pressure | 48.5kPa |
| Max. digging radius | 10260mm |
| Max. digging depth | 6980mm |
| Max. digging height | 9690mm |
| Max. dumping height | 6800mm |
| Min. front slewing radius | 3890mm |
| Engine | |
| Model | SD70B |
| Type | Four-stroke,inter-cooled, supercharged |
| Rated Power@Revolution Speed | 138kW |
| Displacement | 7146mL |
| Cylinder bore × stroke | 108*130mm |
| Emission standard | GB20891-2014 China Phase III |
| Rated fuel consumption | 206g/kw.h |
| Max. torque | 870N.m |
| Traveling/swing system | |
| Qty. of carrier rollers (single side) | 2 |
| Qty. of track rollers (single side) | 9 |
| Traveling brake type | Wet disc brake |
| Swing mode | Hydraulic drive internal tooth single-row ball-bearing |
| Swing brake type | Wet disc brake |
| Hydraulic system | |
| Hydraulic control type | Pilot proportional control valve |
| Hydraulic system type | Dual pump constant power negative flow control system |
| Max. flow | 2*240+18L/min |
| Operating pressure | 330kgf/cm2 |
| Fill capacity | |
| Fuel | 380L |
| Engine oil | 32L |
| Hydraulic oil | 330L |
