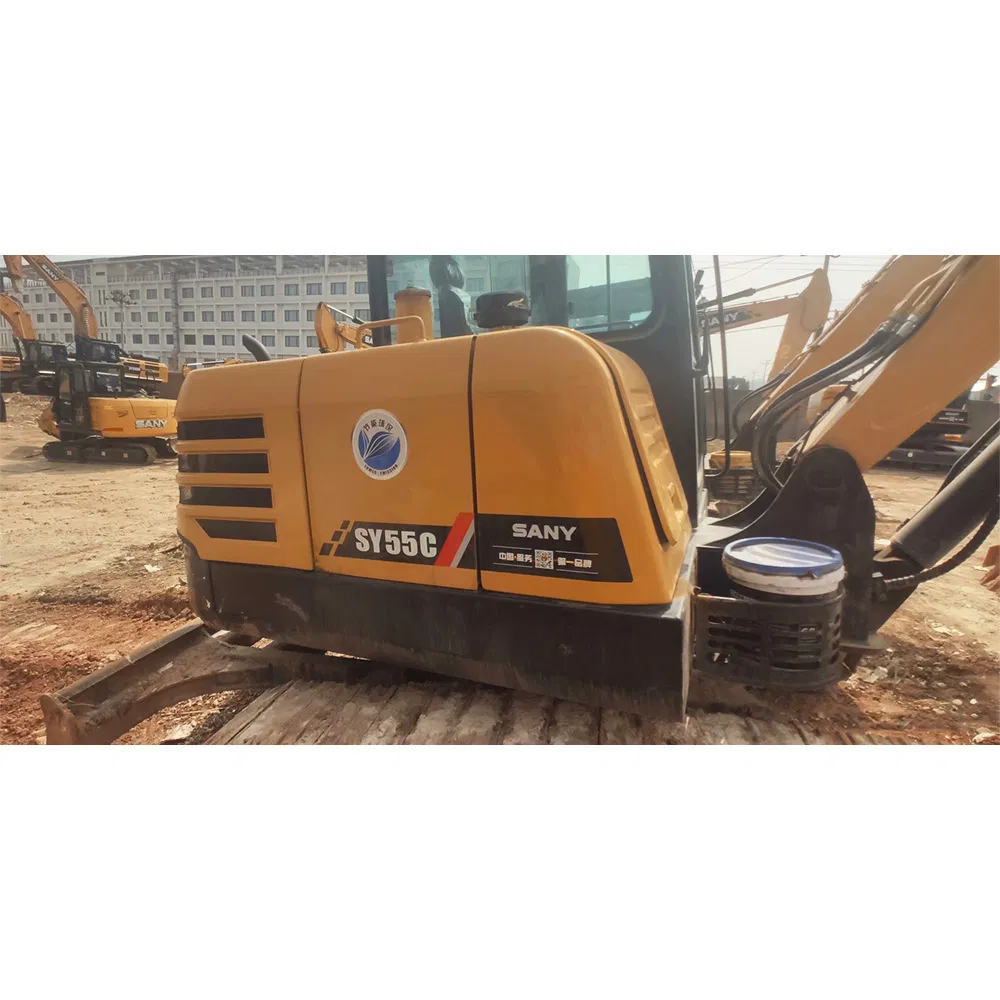

Second Hand 99% New The Highest Breakout Force 5.2 Tons High Operating Efficiency Hydraulic Rock Breaker Excavator Sy55c From China
Second Hand 99% New The Highest Breakout Force 5.2 Tons High Operating Efficiency Hydraulic Rock Breaker Excavator Sy55c From ChinaProduct DescriptionAll parts and whole machine is in good condition.Besides,we could provide all model second hand excavator and all in good condition.If you want to imp......
Send Inquiry
Product Description

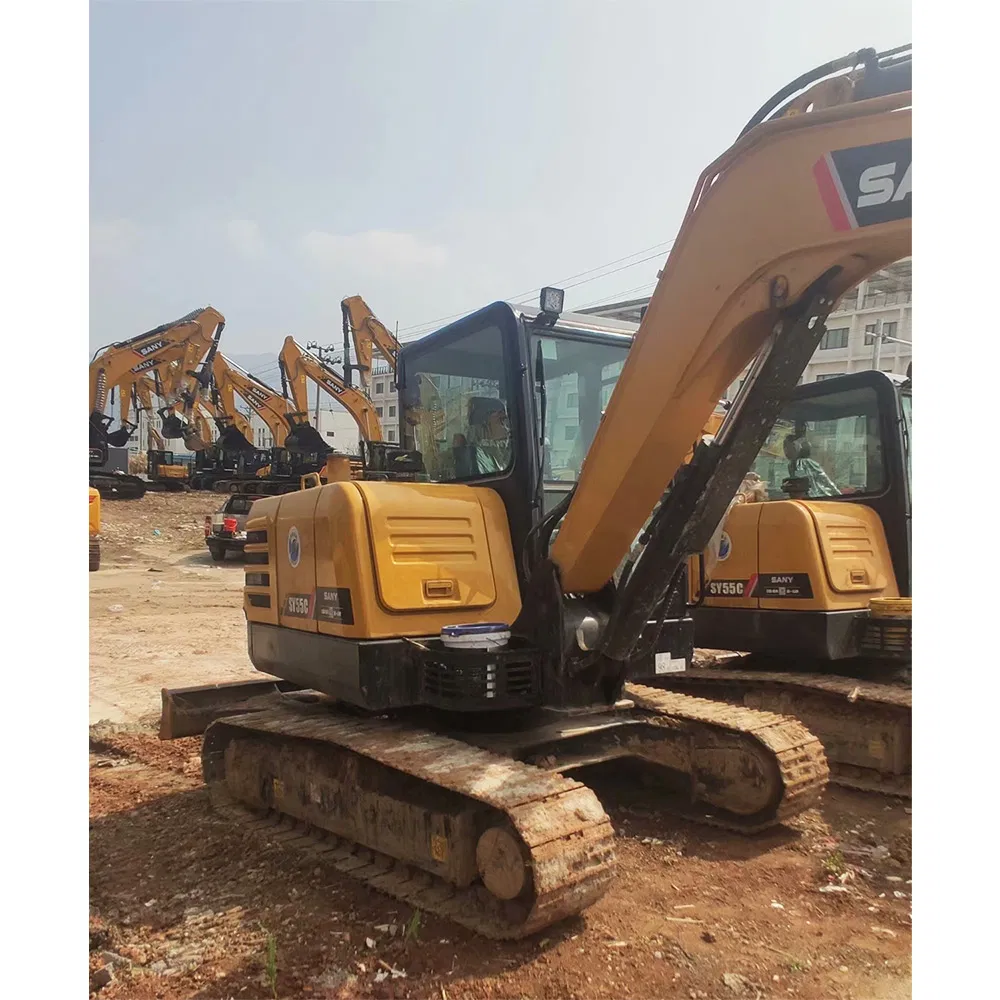

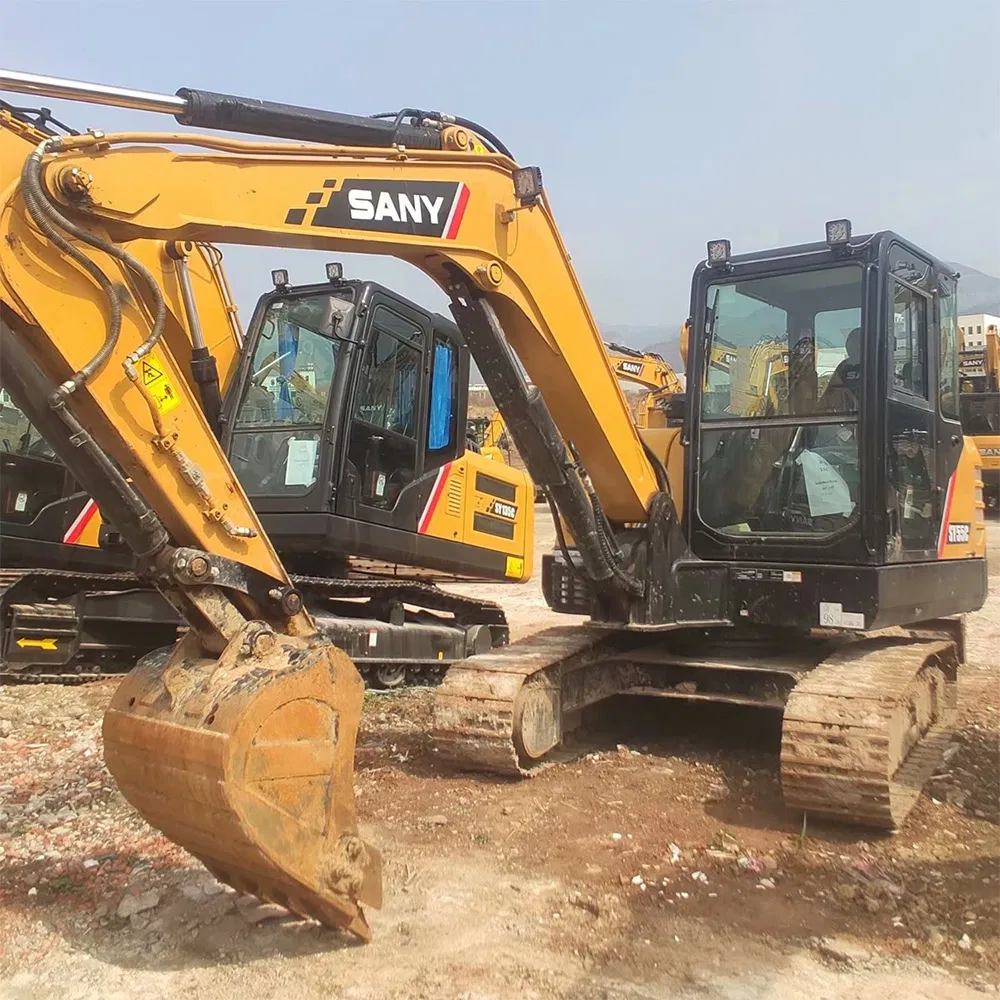

Second Hand 99% New The Highest Breakout Force 5.2 Tons High Operating Efficiency Hydraulic Rock Breaker Excavator Sy55c From China
All parts and whole machine is in good condition.
Besides,we could provide all model second hand excavator and all in good condition.If you want to import good quality second hand excavator,I am sure we are your best choice!
Welcom to visit our company and have a try of our machine.
The selling points of SY55C as below:
Energy conservation and environment protection

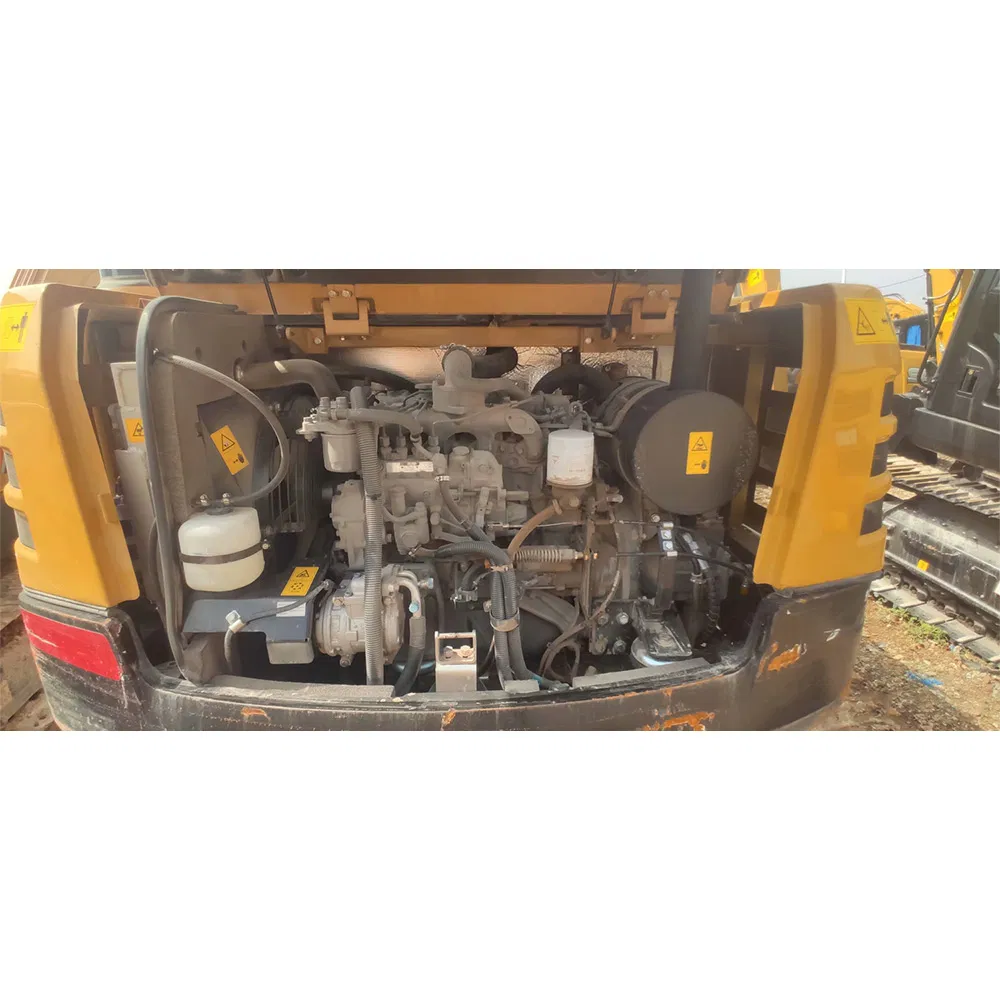

The engine is equipped with high pressure common rail eletronic controlled fuel injection system to control fuel injection precisely in real time,so that the fuel combustion becomes more sufficient.The operationg modes may be selected in allusion to different working condition.As compared with previous generation of equivalent efficiency,the fuel consumption decreases and the engine is more economically-efficient and environmental friendly.
Stable & Reliable
In allusion to the characteristics of fuel oil and heavy-dust construction environment working condition,dual-layer fuel filtering system is introduced for various oils;the emission meets the national standard of stage 3.With top-grade protection,the overall performance becomes more stable.
Well-Adapted
Adapt tailless zero rotation design,make sure the rear is always within the width of the machine during slewing.Especially in the narrow working condition,this machine is more adaptable.
Convenient maintenance
The more accessible butter filling port, open cover design and removable radiator strainer make lubrication, filter replacement, radiator cleaning and other maintenance work more convenient
Overall Dimensions(mm)
Performance parameters/Standard
Operating range(mm)
All parts and whole machine is in good condition.
Besides,we could provide all model second hand excavator and all in good condition.If you want to import good quality second hand excavator,I am sure we are your best choice!
Welcom to visit our company and have a try of our machine.
The selling points of SY55C as below:
Energy conservation and environment protection
The engine is equipped with high pressure common rail eletronic controlled fuel injection system to control fuel injection precisely in real time,so that the fuel combustion becomes more sufficient.The operationg modes may be selected in allusion to different working condition.As compared with previous generation of equivalent efficiency,the fuel consumption decreases and the engine is more economically-efficient and environmental friendly.
Stable & Reliable
In allusion to the characteristics of fuel oil and heavy-dust construction environment working condition,dual-layer fuel filtering system is introduced for various oils;the emission meets the national standard of stage 3.With top-grade protection,the overall performance becomes more stable.
Well-Adapted
Adapt tailless zero rotation design,make sure the rear is always within the width of the machine during slewing.Especially in the narrow working condition,this machine is more adaptable.
Convenient maintenance
The more accessible butter filling port, open cover design and removable radiator strainer make lubrication, filter replacement, radiator cleaning and other maintenance work more convenient
Overall Dimensions(mm)
| Overall length(in transportation state) | 5375 mm |
| Overall Width | 1960 mm |
| Overall height(in transportation state) | 2620 mm |
| Upper Width | 1760 mm |
| Overall height(cab top) | 340 mm |
| Width of standard track shoe | 400 mm |
| Track gauge | 1560 mm |
| Minimum ground clearance | 315 mm |
| Slewing radius of tail | 980 mm |
| Ground contact length of track | 1990 mm |
| Track shoe length | 2510 mm |
Performance parameters/Standard
| Total weight,kg | 5200 |
| Bucket capacity m³ | 0.1-0.19(0.152) |
| Rated power,KW/rpm | 30.7/2200 |
| Traveling speed,(high/low),km/h | 4.2/2.7 |
| Slewing speed,rpm | 10 |
| Gradeability | 70%/30ºC |
| Ground pressure,kpa | 29.4 |
| Digging force of bucket,KN | 32.5 |
| Digging force of bucket rod,KN | 22.9 |
Operating range(mm)
| Maximum digging height | 5425 mm |
| Maximum unloading height | 3780 mm |
| Maximum digging depth | 3430 mm |
| Maximum digging depth with vertical boom | 2460 mm |
| Maximum digging distance | 5870 mm |
| Minimum slewing redius | 2515 mm |
| Maximum height at maximum slewing radius | 4130 mm |
