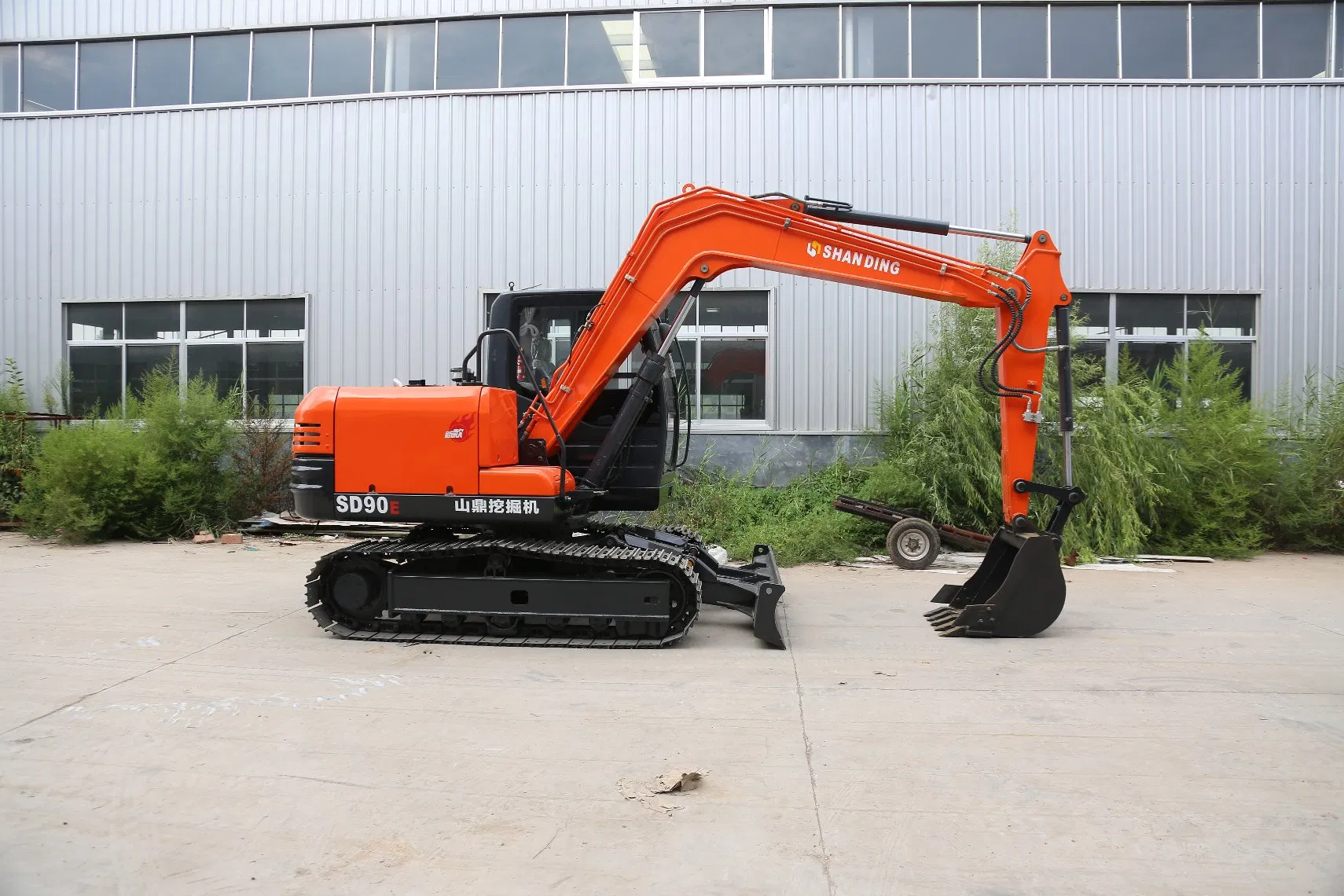

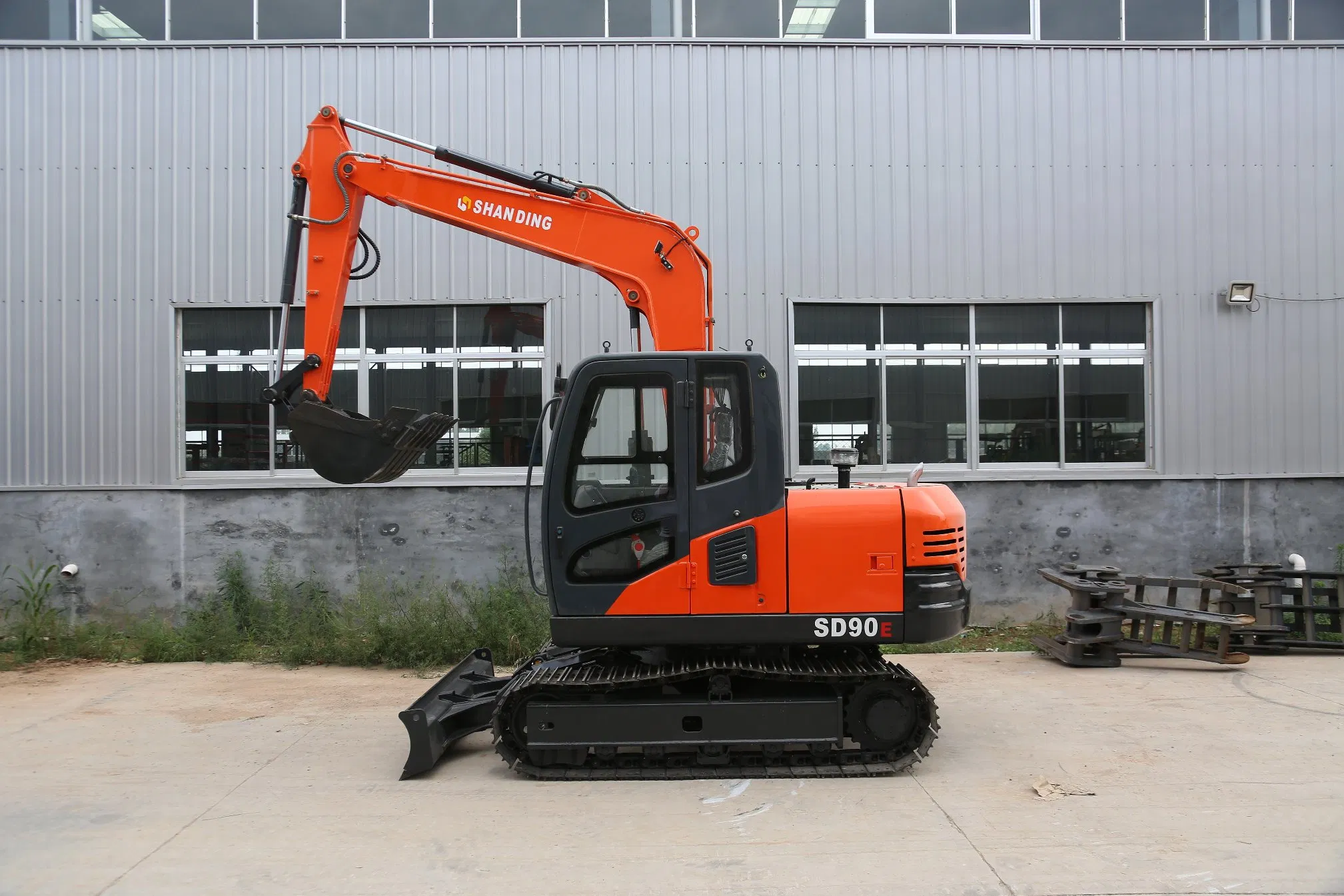

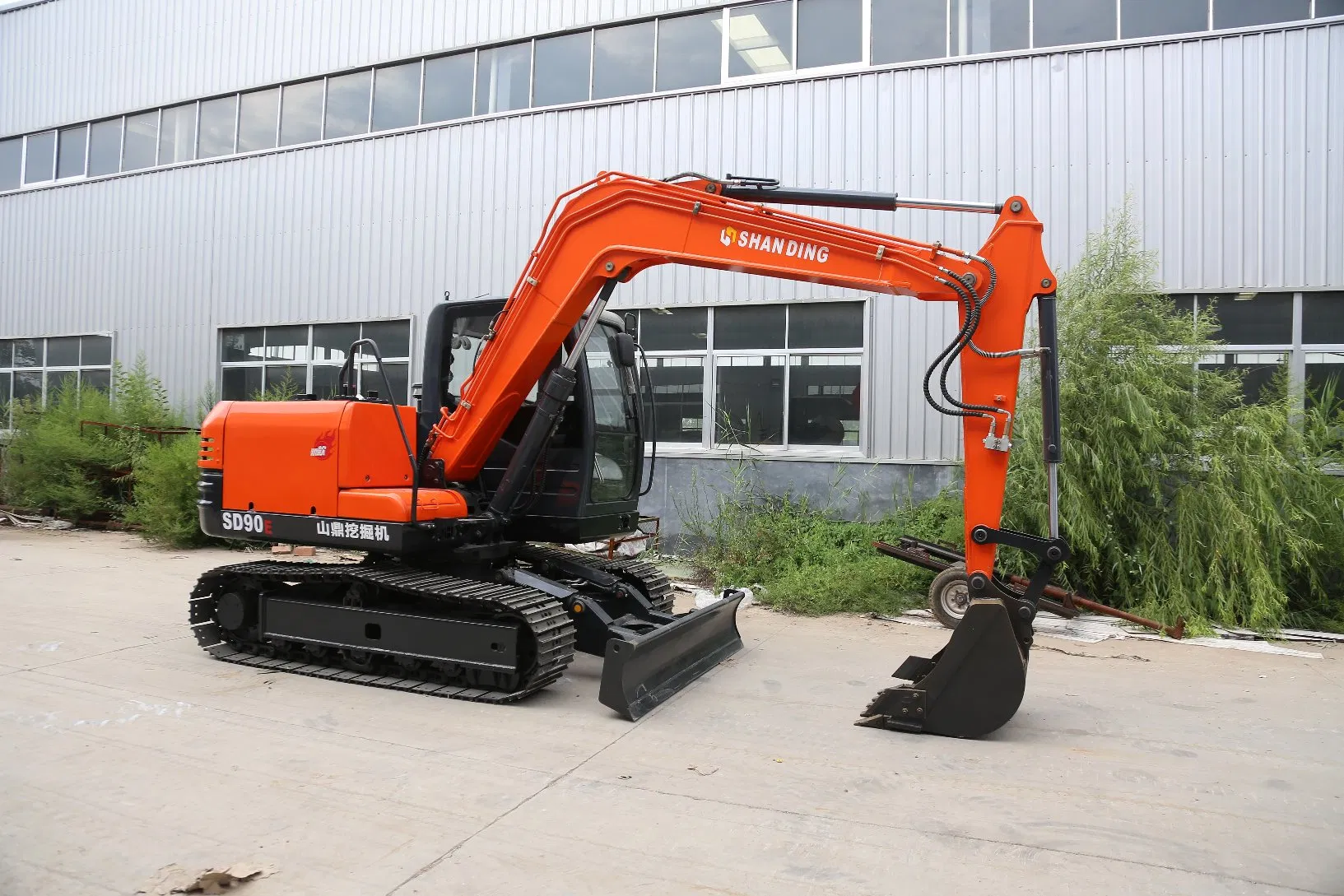

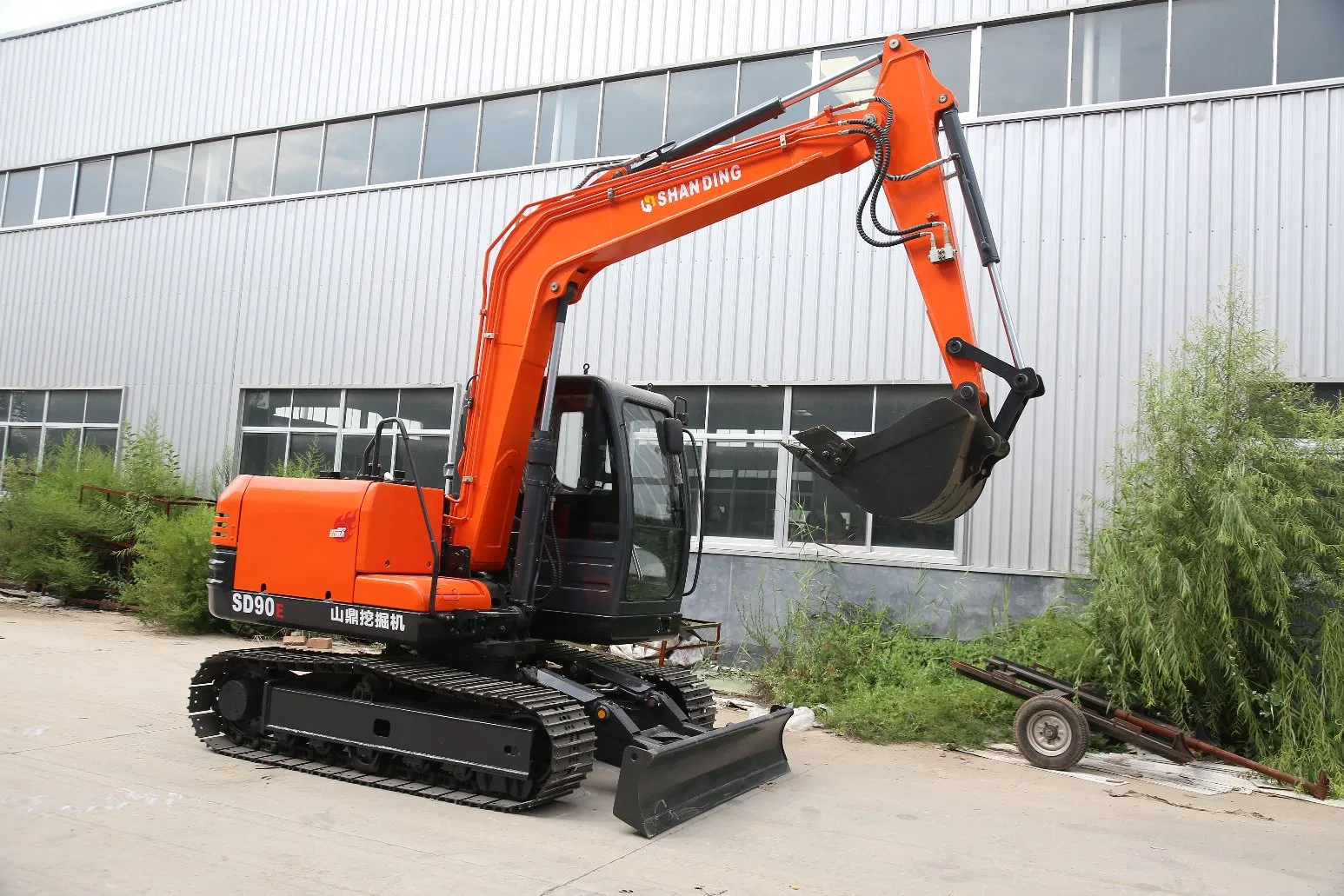

Shanding Mini Crawler Excavator SD90e Rotary Motor Eaton
Physical SizeTotal length6404mmTotal width 2150mmTotal heigth2748mm Bucket capacity0.3m³Bucket width 760mmOverall weight7400kgPerformance ParametersEngine brandYangdongEngine specificationDiesel 4 cylinderRated power60kwRotation speed12rpmGround pressure32kpaMax.digging force49knMax.......
Send Inquiry
Product Description
| Physical Size | |
| Total length | 6404mm |
| Total width | 2150mm |
| Total heigth | 2748mm |
| Bucket capacity | 0.3m³ |
| Bucket width | 760mm |
| Overall weight | 7400kg |
| Performance Parameters | |
| Engine brand | Yangdong |
| Engine specification | Diesel 4 cylinder |
| Rated power | 60kw |
| Rotation speed | 12rpm |
| Ground pressure | 32kpa |
| Max.digging force | 49kn |
| Max.climb ability | 35° |
| Max.walking speed | 35km/h |
| Working Range | |
| Max.digging radius | 6547mm |
| Max.digging depth | 4364mm |
| Max.digging heigth | 6536mm |
| Max.dumping height | 4872mm |
| Min.radius of gyration | 2288mm |
