Product Description

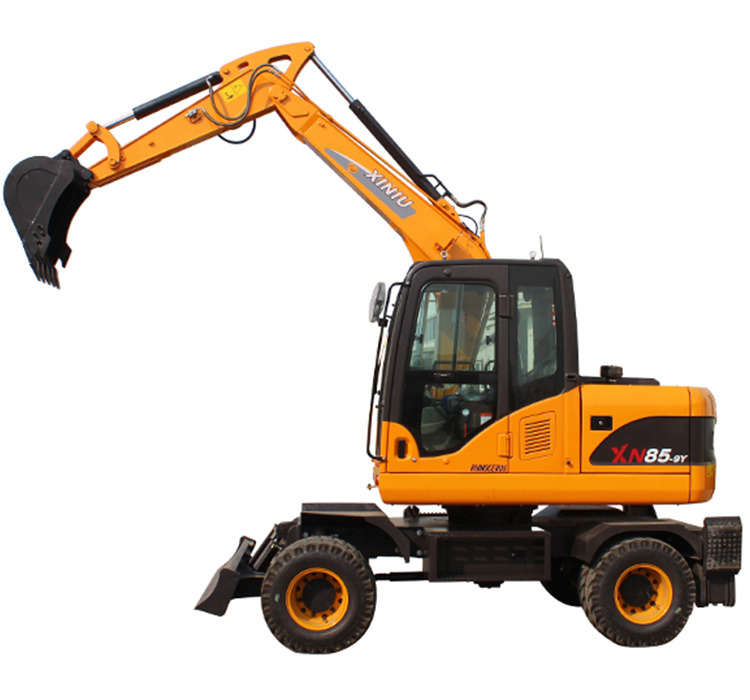

Small Bucket Wheel Excavators Oem Wheel Excavator Price

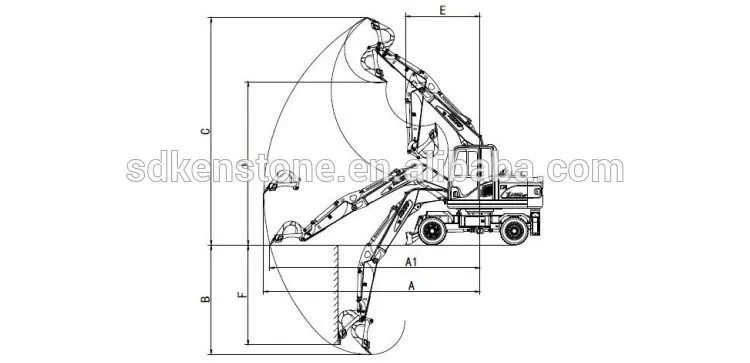

Range of working | Boom3. 3m+Bucket arm 1.75m | Boom3. 5m+Bucket arm 2.00m |
Max Digging radius | 6323mm | 6787mm |
Max.Digging radius on ground | 6144mm | 6585mm |
Max. Digging depth | 3200mm | 3635mm |
Max. Digging height | 6820mm | 7105mm |
Max. Dumping height | 4935mm | 5230mm |
Minimum turning radius | 2177mm | 2334mm |
Maximum vertical digging depth | 2912mm | 3325mm |
(KN) Bucket digging force | 56mm | 56mm |
(KN) Bucket arm digging force | 38mm | 36mm |

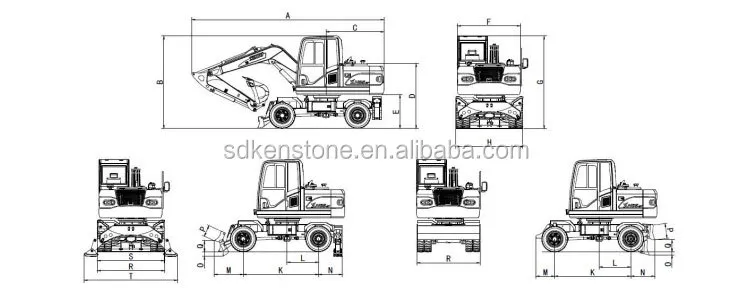

Specification | Front Dozer Blade /Rear Outrigger | Rear Dozer Blade |
Total length(boom3. 3m+Bucket arm1.75m) | XN85-9Y-A 6120mm | XN85-9Y-B 6102mm |
Total length(boom3. 5m+Bucket arm 2.00m) | XN85-9Y-C 6266mm | XN85-9Y-D 6266mm |
Total Height(boom3. 3m+Bucket arm 1.75m) | XN85-9Y-A 2932mm | XN85-9Y-B 2932mm |
Total Height(boom3. 3m+Bucket arm2.00m) | XN85-9Y-C 2932mm | XN85-9Y-D 2932mm |
Counter weight turning radius | 1836mm | 1836mm |
Hood Height | 2054mm | 2054mm |
Counter weight Ground Clearance | 1070mm | 1070mm |
Upper structure width | 2000mm | 2000mm |
Cab Height | 2932mm | 2932mm |
Total Tire Width | 2130mm | 1990mm |
Minimum Ground Clearance | 285mm | 285mm |
wheel Tread | 2400mm | 2400mm |
Distance swing center to rear wheel | 1000mm | 1000mm |
Front Extension | 920mm | 590mm |
Back Extension | 754mm | 764mm |
Maximum Reduction Of Dozer Blade | 150mm | 100mm |
Height Of Dozer Blade | 360mm | 470mm |
Maximum Lift Of Dozer | 300mm | 390mm |
Overall Width Of Blade | 2138mm | 2000mm |
Total width with outrigger back | 2130mm |
|
Total width with outrigger out | 2965mm |

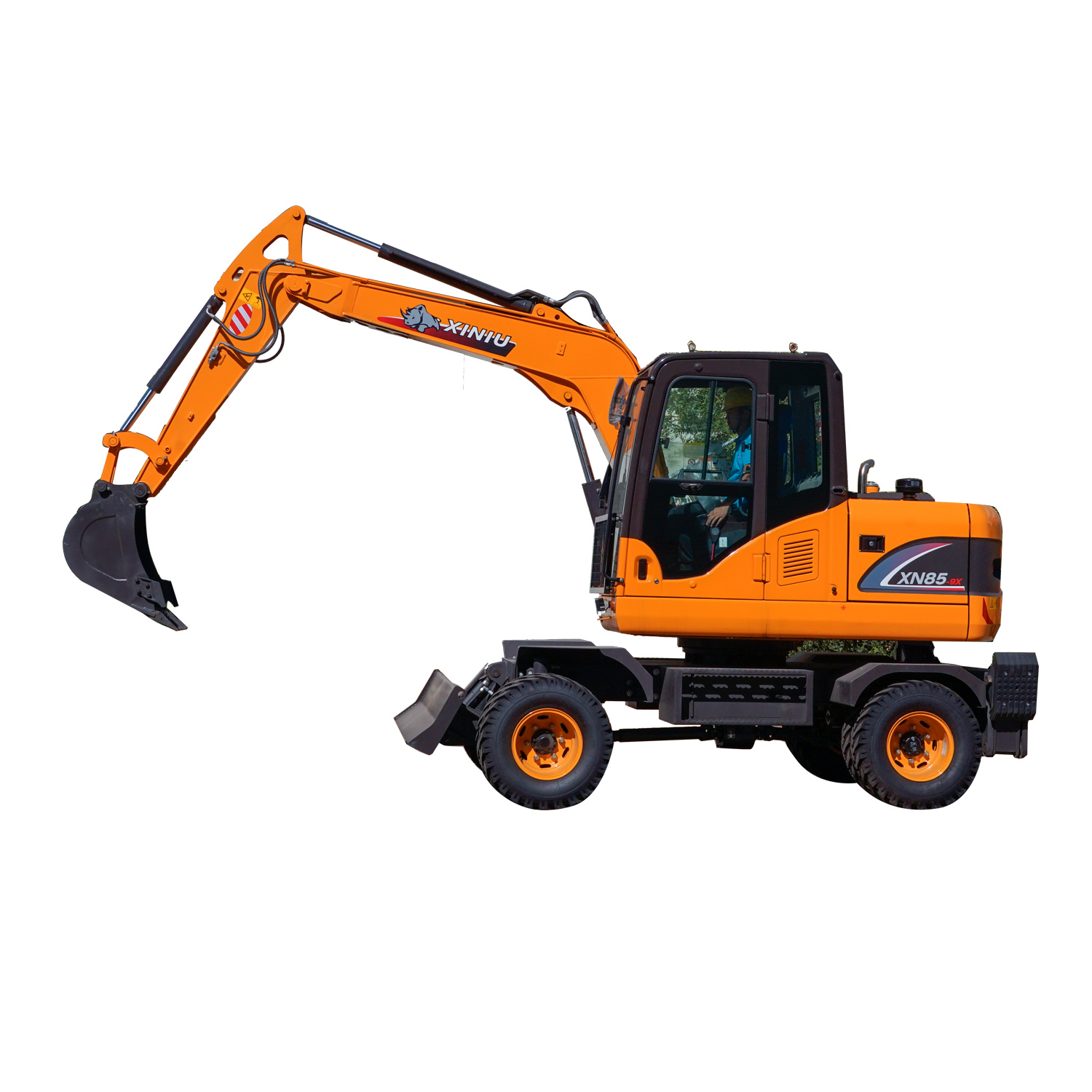

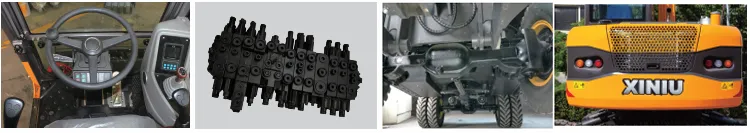

XN85-9 Description
1.Adopting YANMAR / XINCHAI brand engine, with strong driving force, low noise, low oil consumption, and more reliable.
2.Adopting energy saving hydraulic system, main hydraulic parts using original world famous brand. Low energy consumption, fast response speed, precision control, small impact.
3.Using high performance radiator.

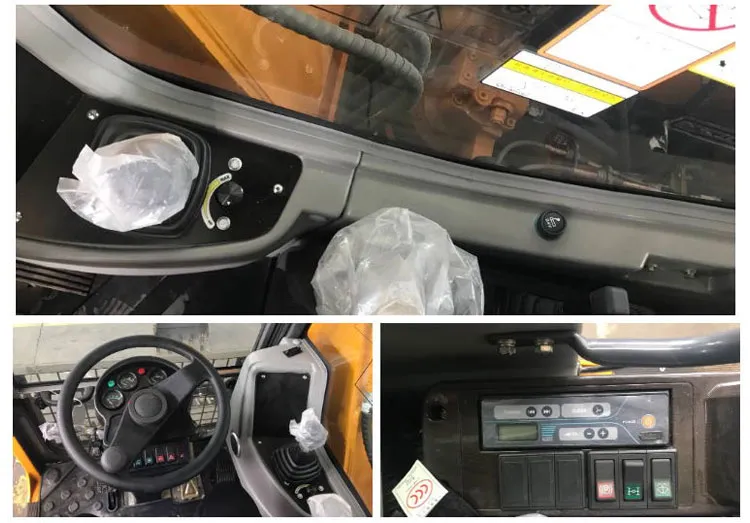

4.Good vibration and noise effect of the cab, both warm and cool air-conditioner, makes driving comfortable and safe.
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO.
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs .
