Product Description

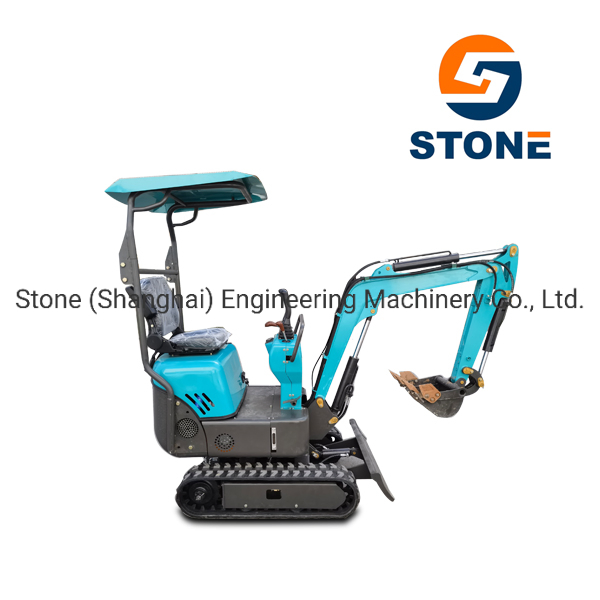

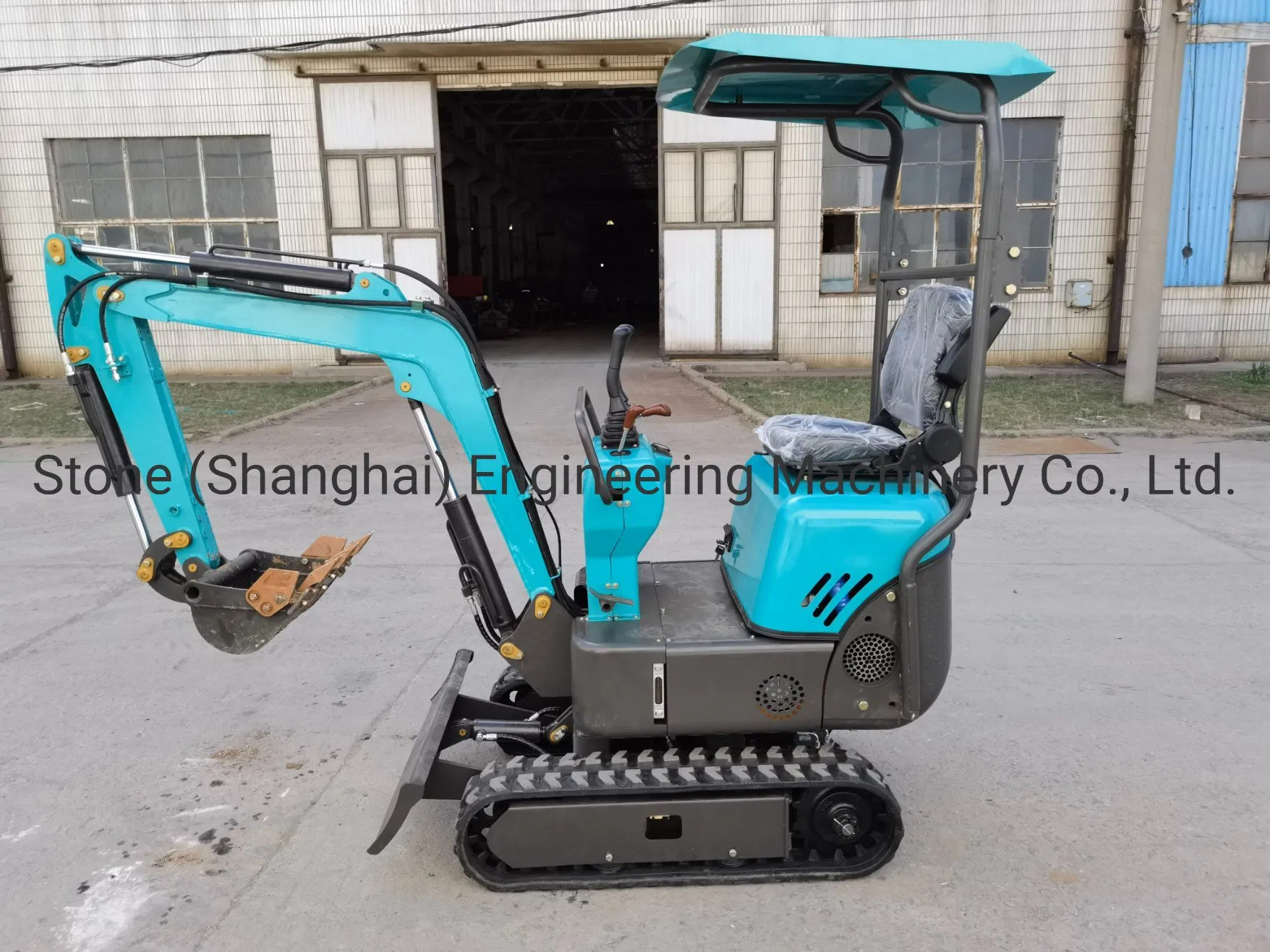

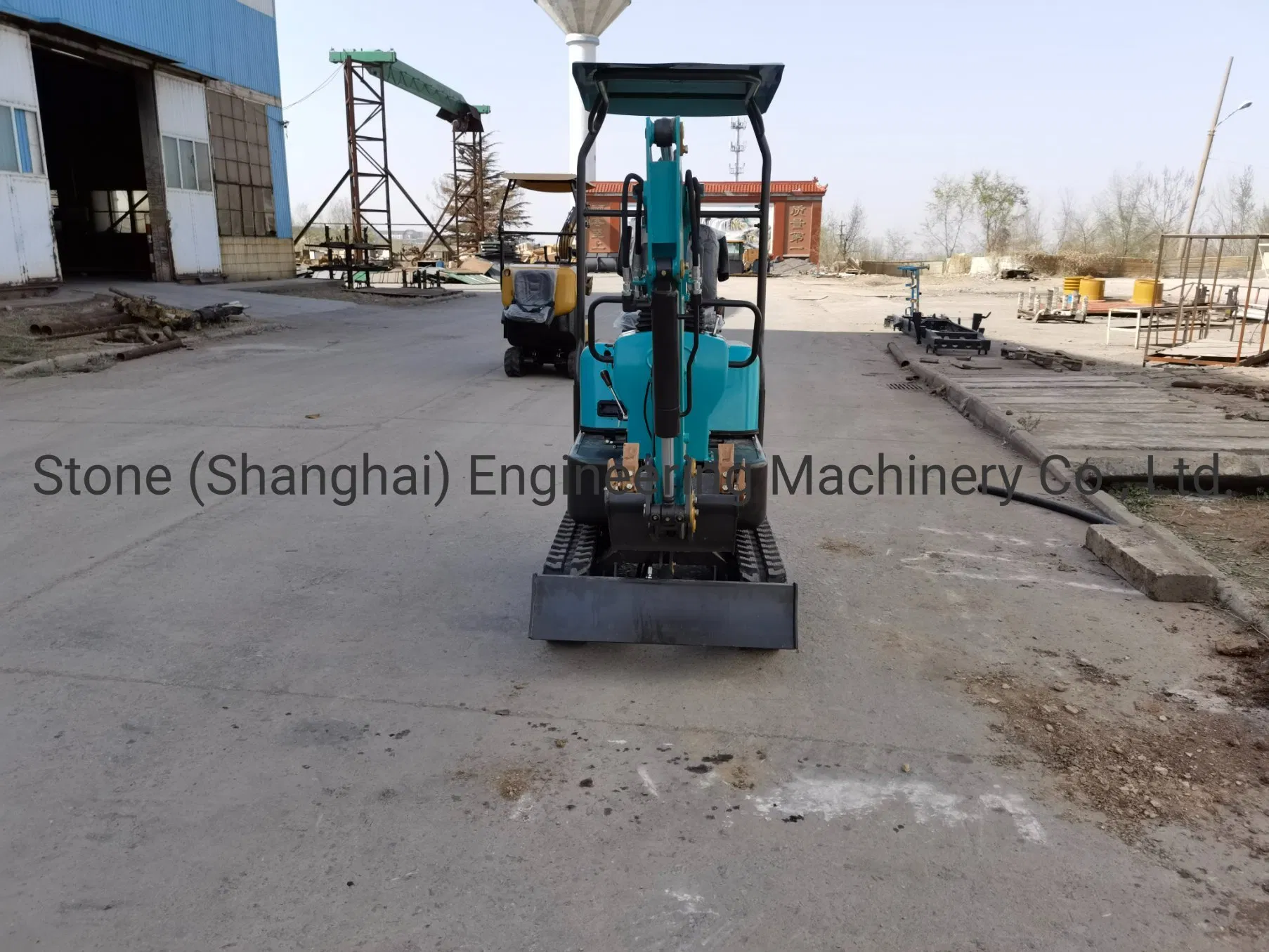

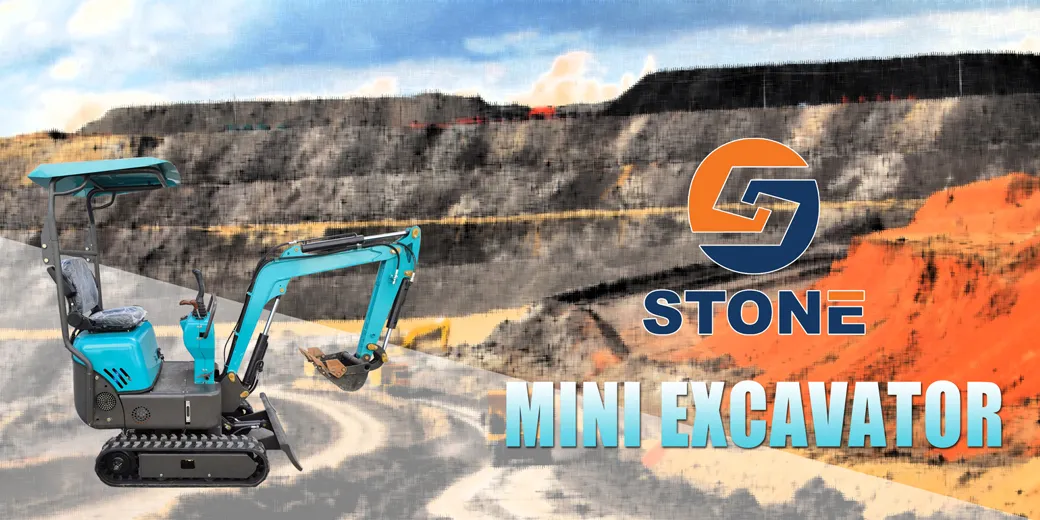

STONE MINI Crawler Track Excavator WM10
WM10 excavator, the body is completely new design, the whole machine is beautiful and generous. Equipped with high-efficiency and environmentally-friendly engine, the power system is highly matched with the hydraulic system.
WM10 excavator, the body is completely new design, the whole machine is beautiful and generous. Equipped with high-efficiency and environmentally-friendly engine, the power system is highly matched with the hydraulic system.
| MODEL | Wm10(Euro 5) |
| Operating weight (kg) | 910 |
| Bucket capacity (cbm) | 0.025 |
| Engine model | KOOP KD192F-1 |
| Rated power (kw/r/min) | 7.0/3000 |
| Hydraulic pump model | China Brand |
| Max.flow (L/min) | 18 |
| Working pressure (Mpa) | 17 |
| Control valve model | China Brand |
| Swing motor model | RMR-315 |
| Travel motor model | R6K-310 |
| Fuel tank capacity (L) | 7 |
| Hydraulic oil tank capacity (L) | 17 |
| Travel speed (km/h) | 1.9 |
| Swing speed (r/min) | 13 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 10.2 |
| Bucket digging force (KN) | 14.8 |
| Average grounding pressure (Kpa) | 28 |
| A-Overall length (mm) | 2949 |
| B-Overall width (mm) | 930 |
| C-Overall height (to top of boom)(mm) | 1095 |
| D-Overall height (to top of cab)(mm) | 2219 |
| E-Counterweight ground clearance(mm) | 362 |
| F-Min. ground clearance (mm) | 134 |
| G-Tail swing radius (mm) | 834 |
| H-Track Ground Length (mm) | 900 |
| J-Track length (mm) | 1233 |
| K-Track gauge (mm) | 740 |
| L-Track width (mm) | 920 |
| M-Track shoe width (mm) | 180 |
| N-Turntable width (mm) | 917 |
| O-Max. digging height (mm) | 2637 |
| P-Max. dumping height (mm) | 1784 |
| Q-Max. digging depth (mm) | 1681 |
| R-Max. vertical wall digging depth (mm) | 1569 |
| T-Max. digging reach (mm) | 3084 |
| U-Max. digging reach at ground level (mm) | 3003 |
| V-Min. swing radius (mm) | 1390 |
| X-Distance between center of rotation and tail length (mm) | 833 |
| Z-Height of counterweight | 530 |
| A1-Ground length (in transportion)(mm) | 2348 |
| Arm length (mm) | 798 |
| Boom length (mm) | 1480 |
Stone (Shanghai) Engineering Machinery Co., Ltd / Shanghai Mountain Pine Engineering Machinery Co., Ltd. founded in 2004, is headquartered in Shanghai, China which is the the most prosperous city for trade and economic development.
CNPINE and STONE are the two major brands of the company at present. Now the company has two main business segments. One is construction machinery equipment sales and trading including excavators, bulldozers, motor graders, road rollers, trucks etc. The company has reached a strategic partnership with SHANTUI, WEICHAI, and SINOTRUCK. Another business line is construction machinery parts R&D, production and trade especially in undercarriage parts and ground engaging tools (such as track chain, track roller, idler, sprocket, bucket teeth, dozer blade etc. ). They are widely used in mining, road construction, water conservancy engineering and other fields.
We had a deeper and pleasant cooperation with more than 3000 mining companies from 160 countries in the past 17 years. It's our primary pursuits to decrease machine downtime by offering high-quality products and giving a suitable construction scheme. Let's join ours hands and build the world together!
