USA EPA Engine 1.8t 2t Mini Cheap Excavators for Sale
USA Epa Engine 1.8t 2t Mini Cheap Excavators For SaleMain Features1) Simple structure in linear type ,easy in installation and maintation.2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.3) High pressure double crank to control the die opening......
Send Inquiry
Product Description

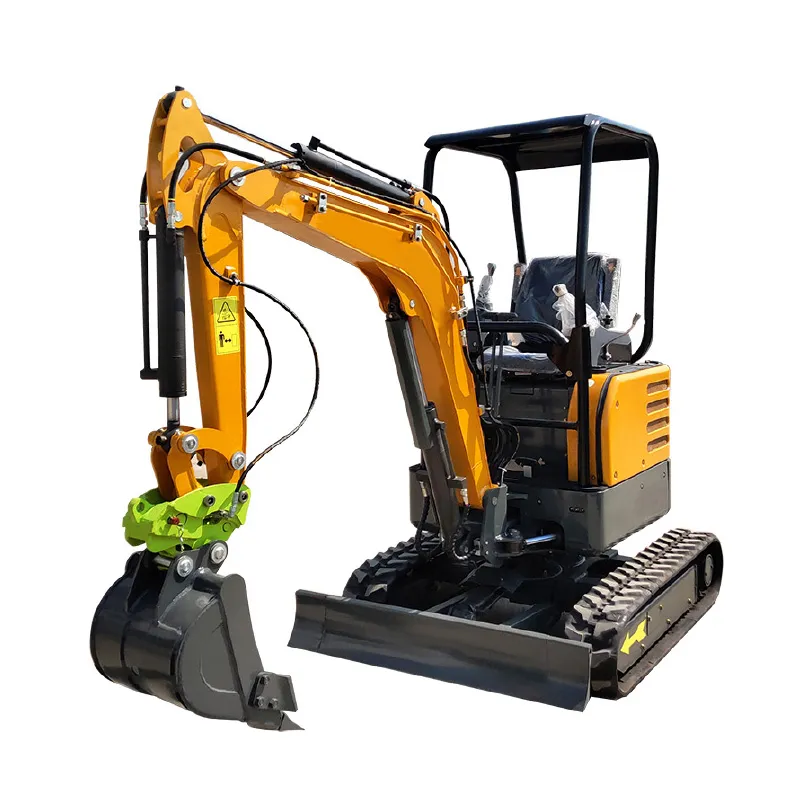

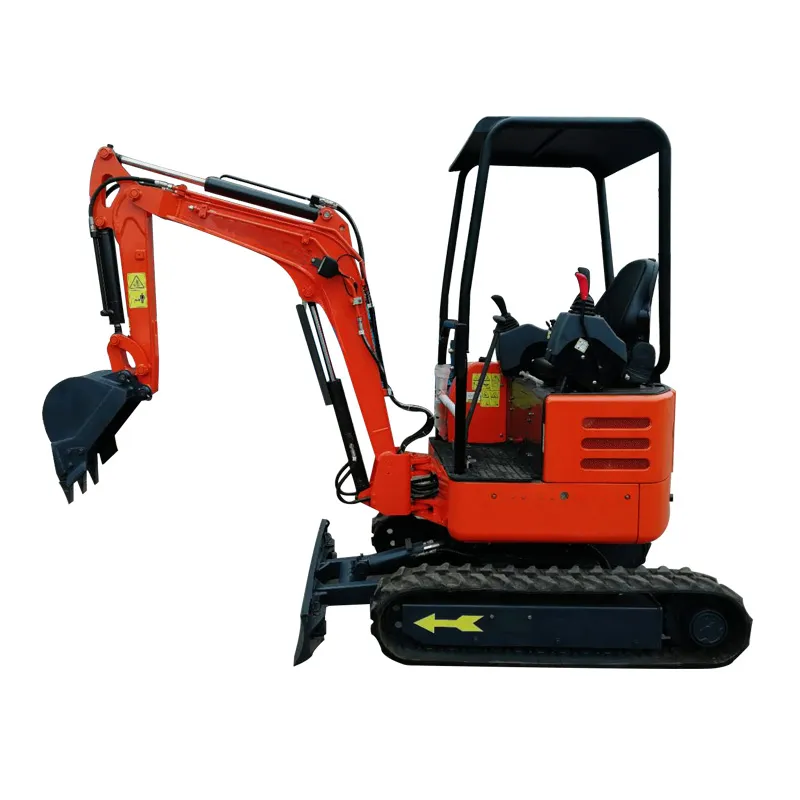

USA Epa Engine 1.8t 2t Mini Cheap Excavators For Sale
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor, which can directly inline with filling machine.

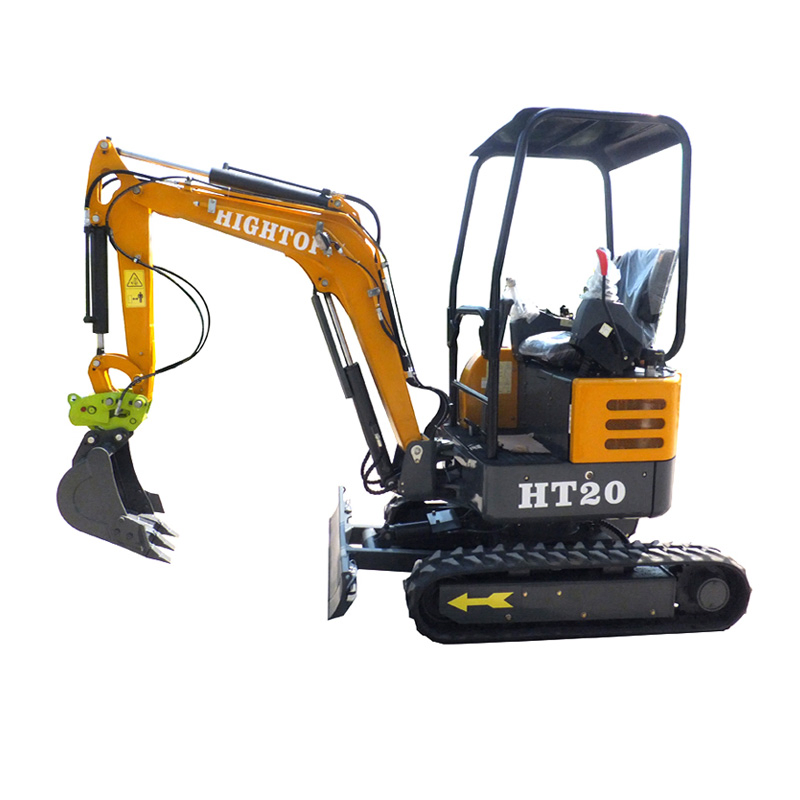

| Model | HT18 | HT20 | ||
Machine Specfication and Function | Machine Specfication | Operating Weight(kg) | 1800 | 1950 |
| Bucket Capacity(m³) | 0.05 | 0.05 | ||
| Max. Digging force(kN) | 15.2 | 15.2 | ||

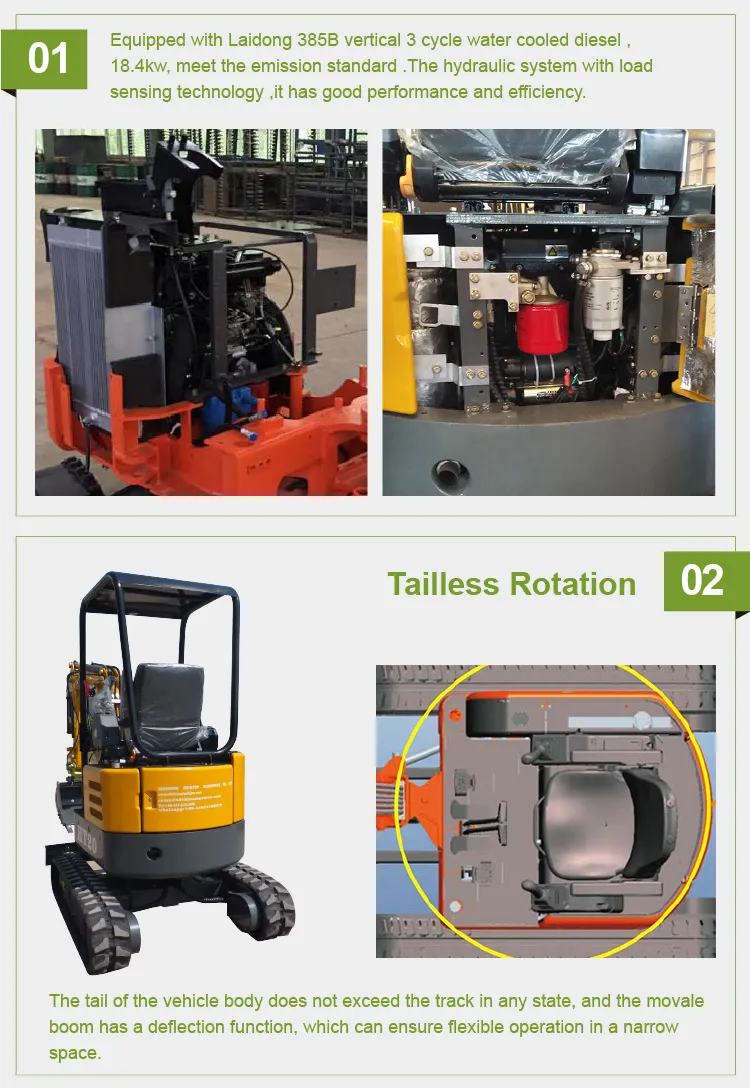

| Function | Tailless rotation | Yes | Yes | |
| Boom Swing | Yes | Yes | ||

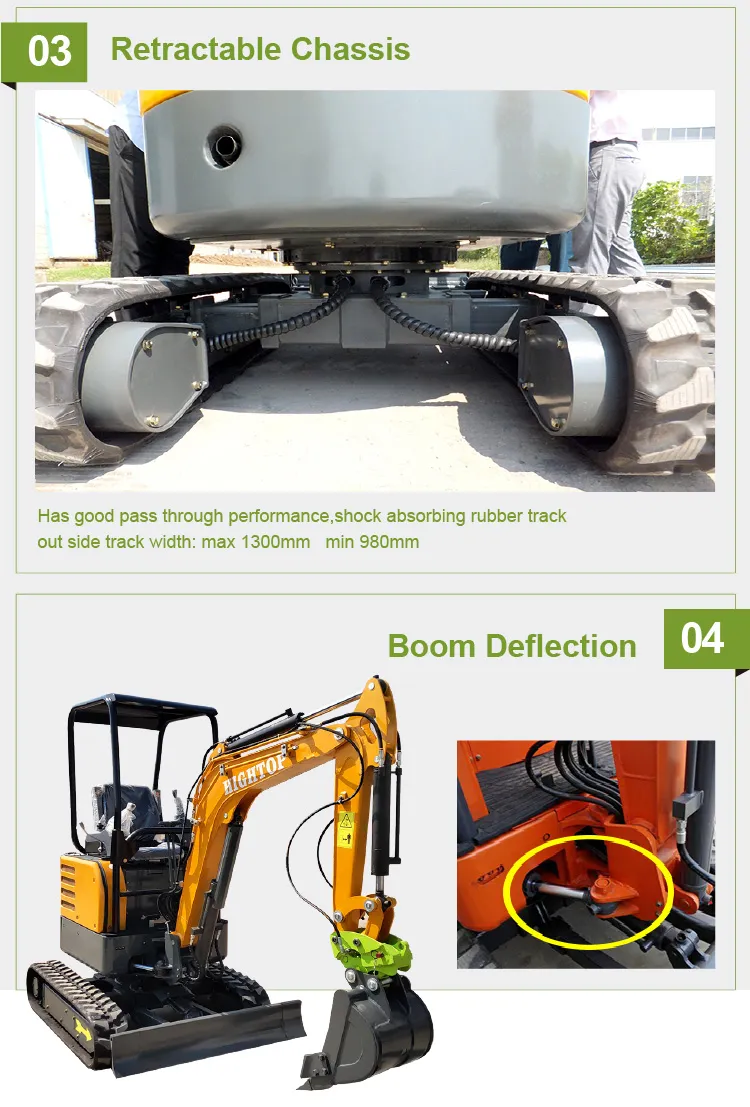

| Adjustable Track | Yes | Yes | ||
| Traveling mode | Double/Single speed | Double/Single speed | ||
Transport Dimension | Transport length(mm) | 3572 | 3572 | |
| Transport width(mm) | 980/1300 | 1300 | ||
| Transport height(mm) | 2356 | 2356 | ||
| Working Range | Working Range | Max. digging depth(mm) | 2247 | 2247 |
| Max. digging radius(mm) | 4045 | 4045 | ||
| Max. dumping height (mm) | 2452 | 2452 | ||
Constituent and Structural Style | Engine | Manufacture | Yanmar | Laidong |
| Model | 3TNV76 | 385B | ||
| Discharge | Europe Three | Europe Two | ||
| Engine power(kw/rpm) | 14.2/2200 | 18.4/2350 | ||
| Hydraulic System | Rated pressure(Mpa) | 20.6 | 20.6 | |
| Type of hydraulic system | Load sensitivity | Load sensitivity | ||
| Hydraulic Pump | Manufacture | Rexroth | China | |
| Structural Style | Plunger pump | Plunger pump | ||
| Valve | Manufacture | Italy | China | |
| Swing Motor | Manufacture | Eaton | Eaton | |
| Structural Style | Orbit motor | Orbit motor | ||
| Traveling Motor | Manufacture | Italy | China | |
| Structural Style | Plunger motor | Orbit motor+Reducer | ||
| Track | Track | Rubber | Rubber | |
JINING CHINA MACHINERY CO.,LTD.
THE CHINA MACHINERY (JINING) GROUP CMJ OFFERS A WIDE RANGE OF IN-NOVATIVE COMPACT CONSTRUCTION EQUIPMENT FOR TODAY'S URBANCONSTRUCTION SITES.
China Machinery(Jining) Co Ltd 's aim is to offer compact class construction equipment with superior performance concerning flexibility, speed and process innovation. Our products are designed for highest fuel efficiency and environmental protection, whereby we intentionally optimize the application processes of our users.

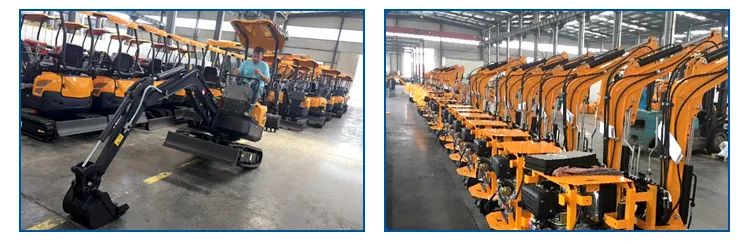

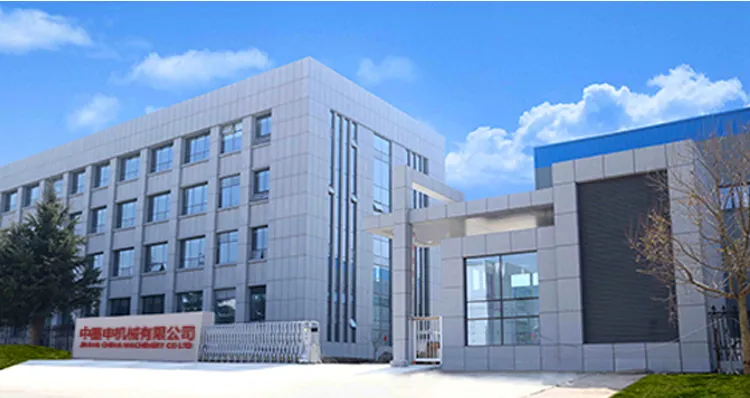

Our manufacturing facilities are located in Jining City, Shandong province, China. We apply with good reasons a high integration of manufacturing. Robot assisted steel fabrication as well as manufacturing of turning joints and cylinders are part of our inhouse manufacturing processes.
