China Wolf 0.8ton-1.8ton Mini Digger Excavator with Euro5/EPA4 Motor

Product Description

Wolf 0.8ton-1.8ton Mini Digger Excavator with Euro5/EPA4 Motor

Wolf 0.8ton-1.8ton Mini Digger Excavator with Euro5/EPA4 Motor

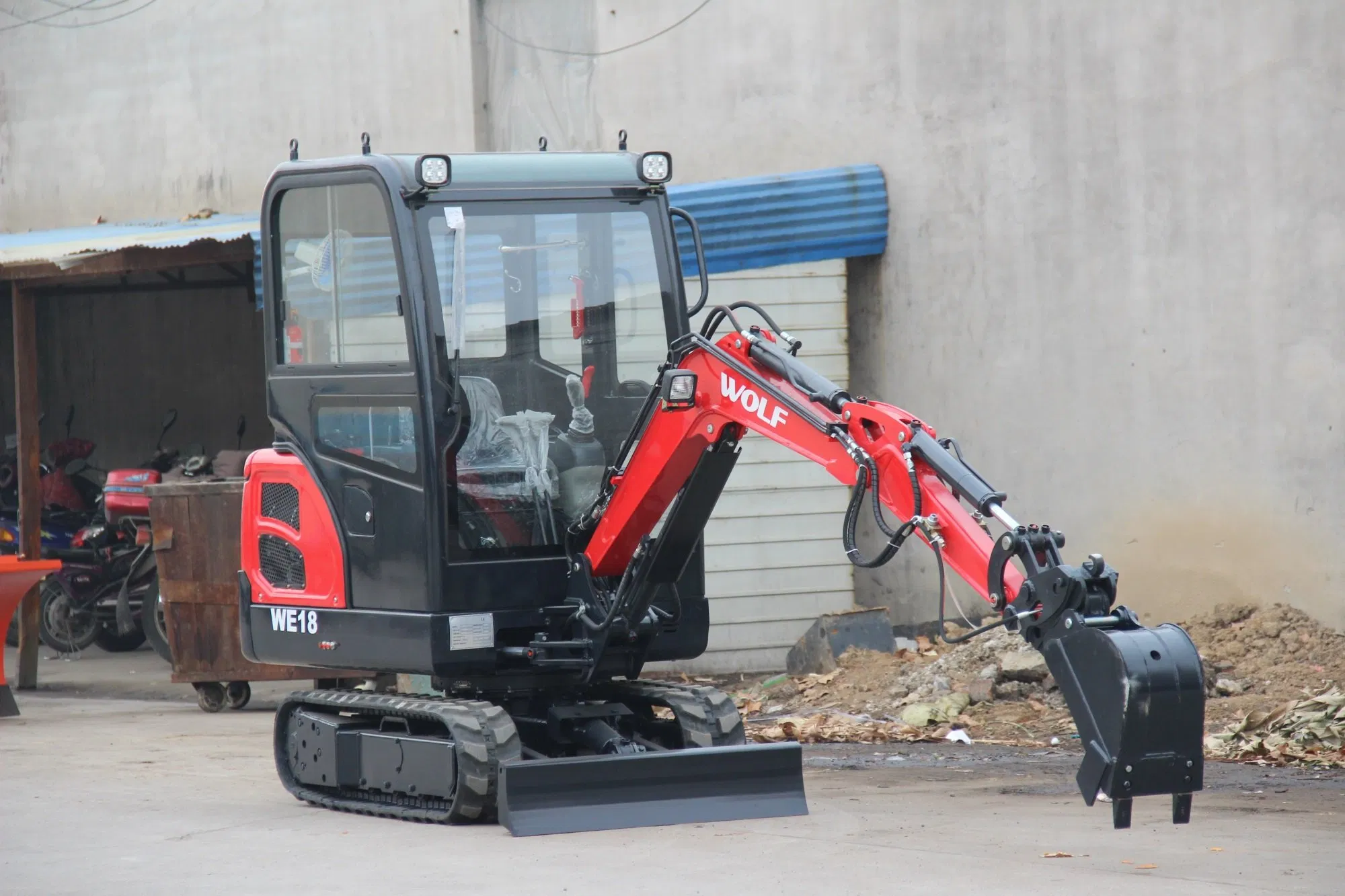

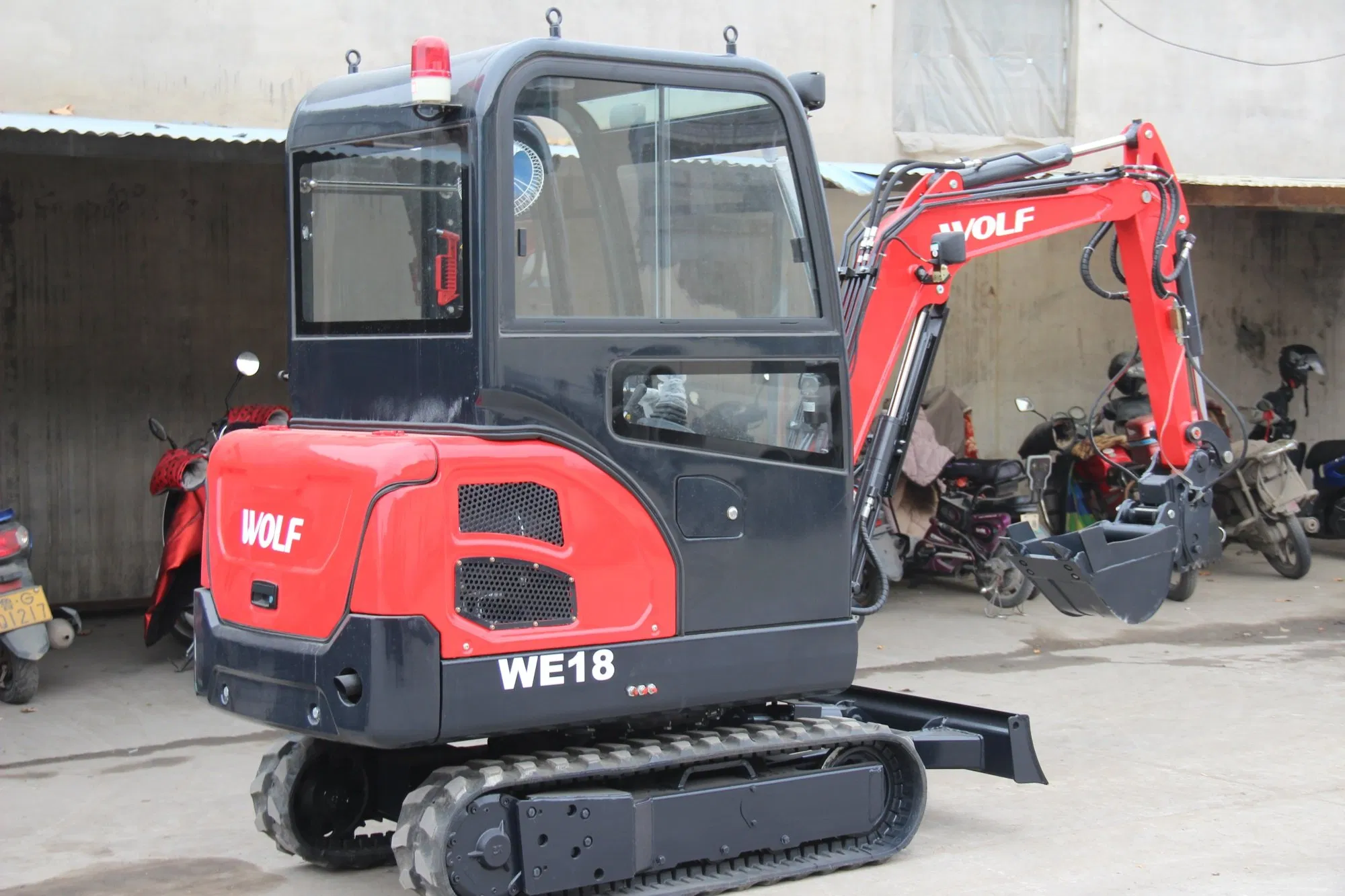

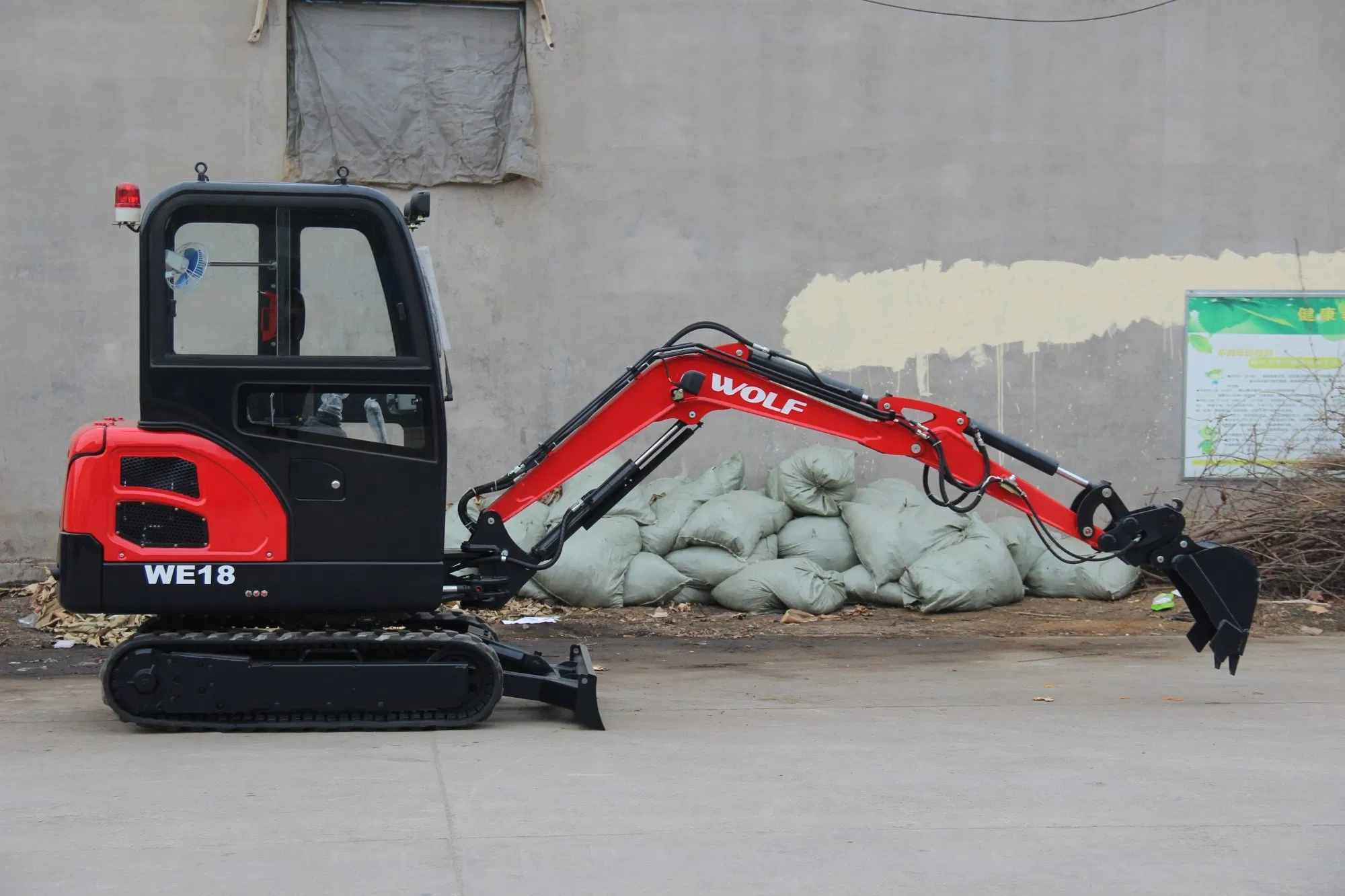

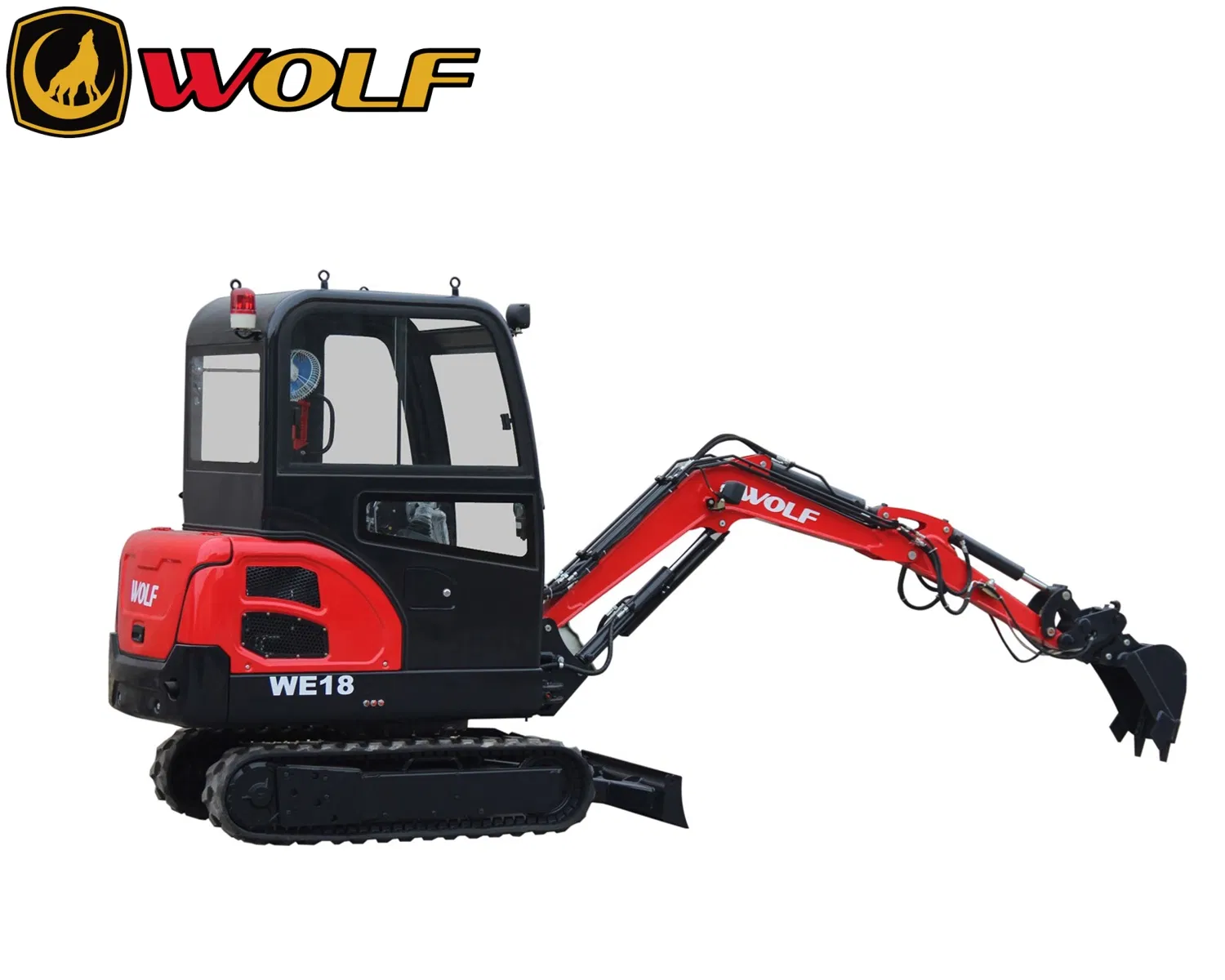

WOLF WE18 1.8Ton mini Excavator with Enclosed Cabin
1. Small size and easy to transport, could be loaded onto light truck or small trailer, 4 sets could be loaded into one 20GP container to save ship cost.
2. Special design on separating engine and radiation space, using enhanced cooling fan to increas cooling efficiency
3. Famous brand hydraulic system parts ensure the stable quality.
4. Equipped with double fuel filter to guarantee fuel purity to protect engine
5. Boom deflexion design meet narrow work condition, reinforced rubber track to protect road.
6. Extended hydraulic line for various attachments.
7. Comfort seat make operator easy to work.
8. Cabin with heater is optional.

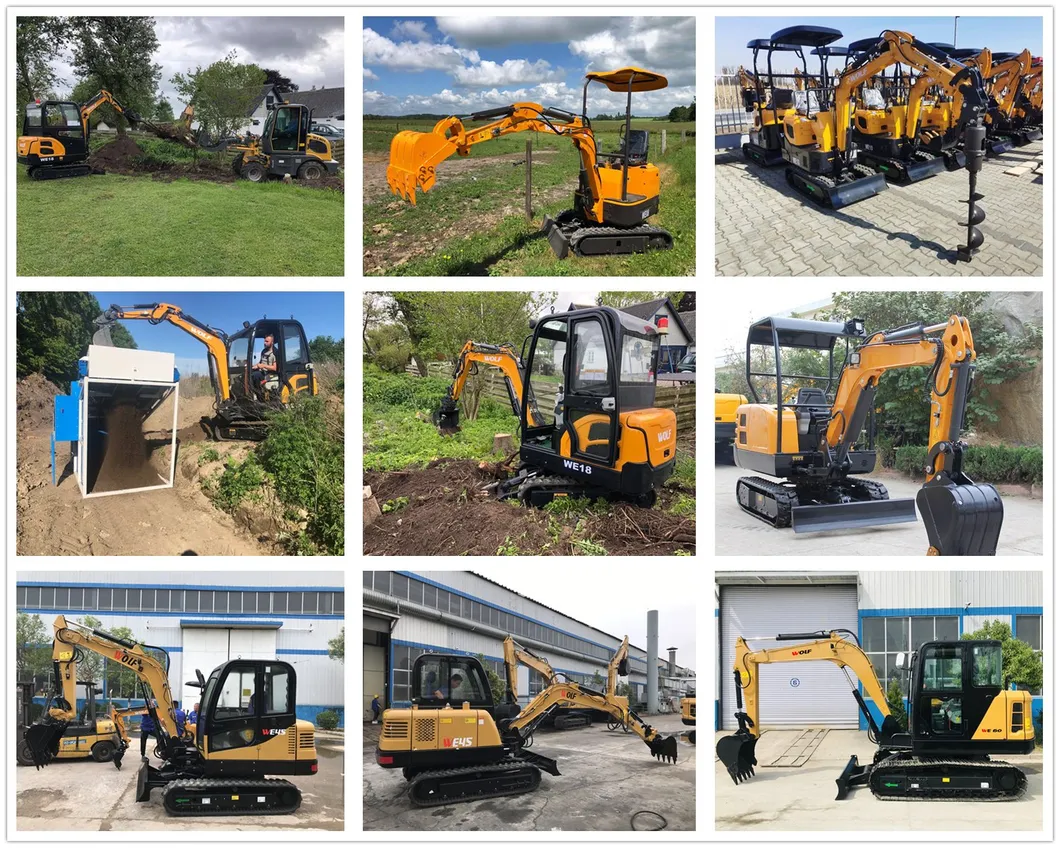

9. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, paper-making factory etc. and could replace 4~5 manpower.

Specifications:

Engine	Model	Laidong KM385B 18.1kW/2200rpm
	Type	Direct injection, water cooled, natural intake
	No. of cylinder	3
Main Performance	Swing Speed	r/min	10-12
	Traveling Speed	km/H	2.8
	Grade ability	%	70(35°)
	Traveling Tracking Force	kN	15
	Bucket Digging Force	kN	11.5
	Arm Digging Force	kN	9.3
Hydraulic System	Hydraulic system working pressure	Mpa	16
	Hydraulic Pump	Gear Pump	TJHD
	Hydraulic pump flow	L/min	2×22+8.8
	Swing Motor		Eaton
	Traveling Motor		Eaton
	Fuel Tank Capacity	L	26
	Hydraulic Tank Capacity	L	27
Overall Dimensions	Overall Length	mm	3800
	Overall Width	mm	1050
	Overall Height	mm	2280
	Ground clearance	mm	485
	Track length	mm	1630
	Track width	mm	230
	Undercarriage width	mm	1050
	Undercarriage ground clearance	mm	235
	Dozer Blade	mm	1050×240
Operation parameters	Operation Weight	KG	1800
	Bucket Capacity	m3	0.06
	Max. Digging Radius	mm	3860
	Max. Digging Depth	mm	2050
	Max. Digging Height	mm	3370
	Max. Dumping Height	mm	2390
	Max. Dozer Cutting	mm	270
	Max. Dozer Lifting	mm	235
	Boom Deflexion (Left/Right)	°	75/45
	Tail Swing Radius	mm	1125
	Front Min. Swing Radius	mm	1720

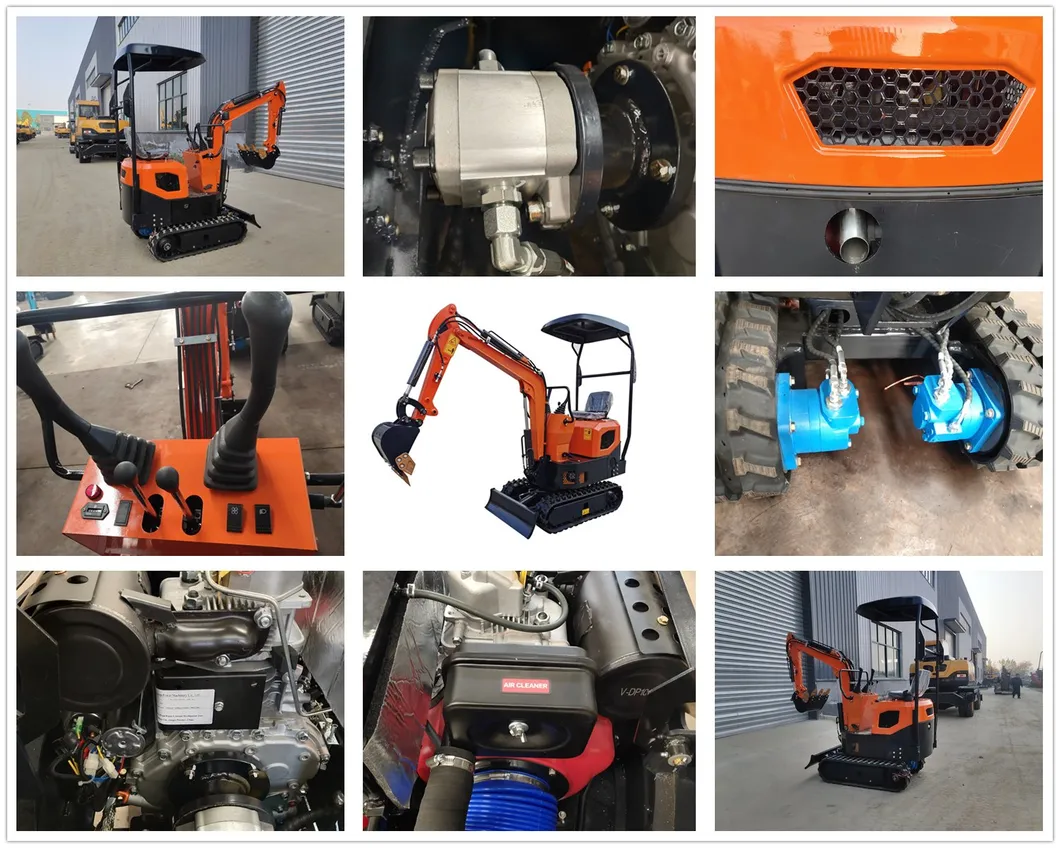

WE08		WE10		WE20
Operating Weight	880	Engine	KD192F-1 E5	Operating Weight	1900
Digging Bucket Capacity	0.025	Rated Power	7KW	Digging Bucket Capacity	0.07
Digging Bucket Width	400	Displacement	6.8	Max. Digging Depth	2400
Engine	KD192F-1 E5	Operation Weight	950	Engine	Kubota
Rated Power	7KW	Bucket Capacity	0.023	Rated Power	14.2
Displacement	6.8	Overall Length	2840	Tracking Force	15.2
Swing Motor	KEERSEN	Overall Width	880	Bucket Digging Force	18
Traveling Motor	USA EATON	Overall Height	2200	Arm Digging Force	11
