XCMG Crawler Excavator Xe370ca 35ton Mining Excavator Price (more models for sale)
XCMG crawler excavator XE370CA 35ton mining excavator priceBucket capacity:1.6 CBM (standard)weight:36600kgsMax digging height:10123mmMax digging reach:10470mmMain configurationISUZU AA-6HK1XQP engine ,190.5/2000kW/ r/min,Hydraulic system ......
Send Inquiry
Product Description

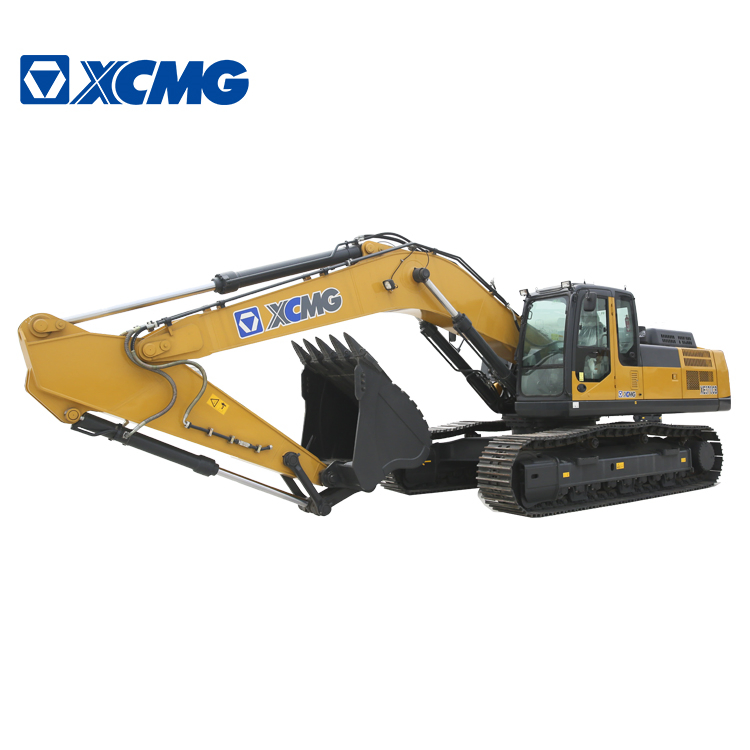

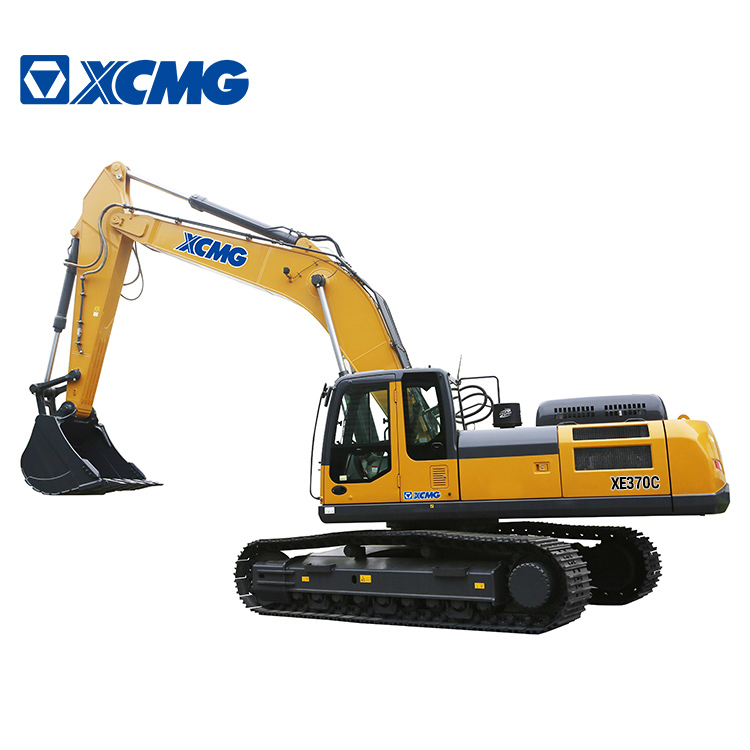

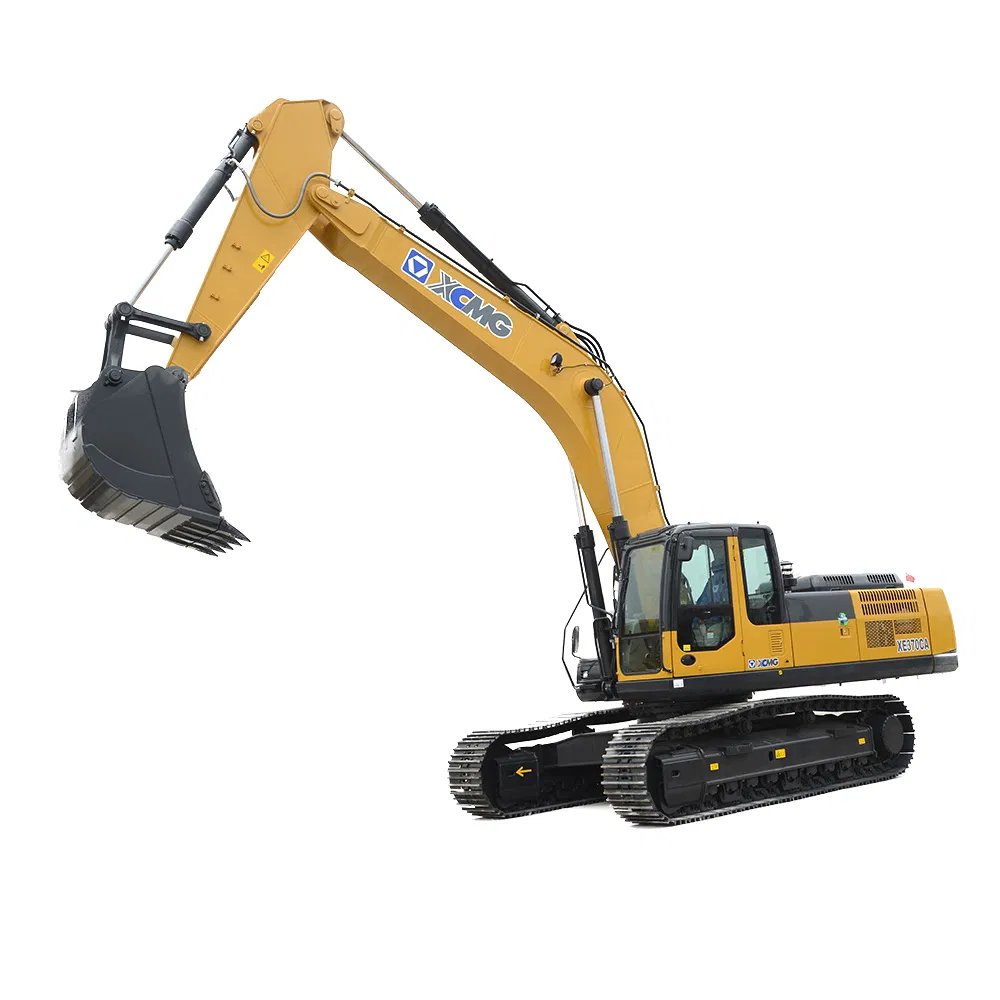

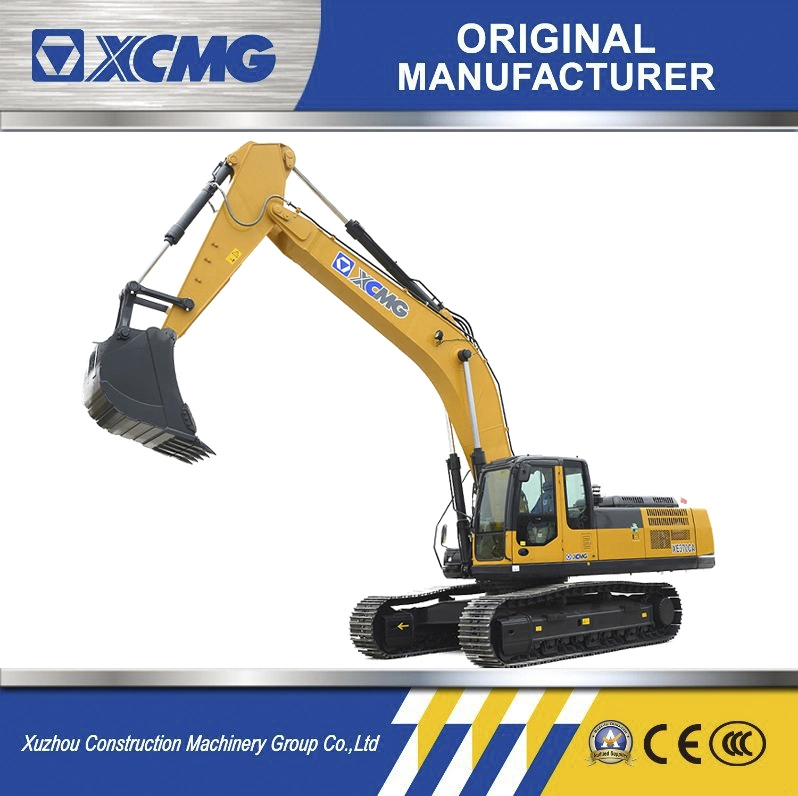

XCMG crawler excavator XE370CA 35ton mining excavator price
Bucket capacity:1.6 CBM (standard)
weight:36600kgs
Max digging height:10123mm
Max digging reach:10470mm
Main configuration
ISUZU AA-6HK1XQP engine ,190.5/2000kW/ r/min,
Hydraulic system
Optional parts:
Breaker/ Quick change system

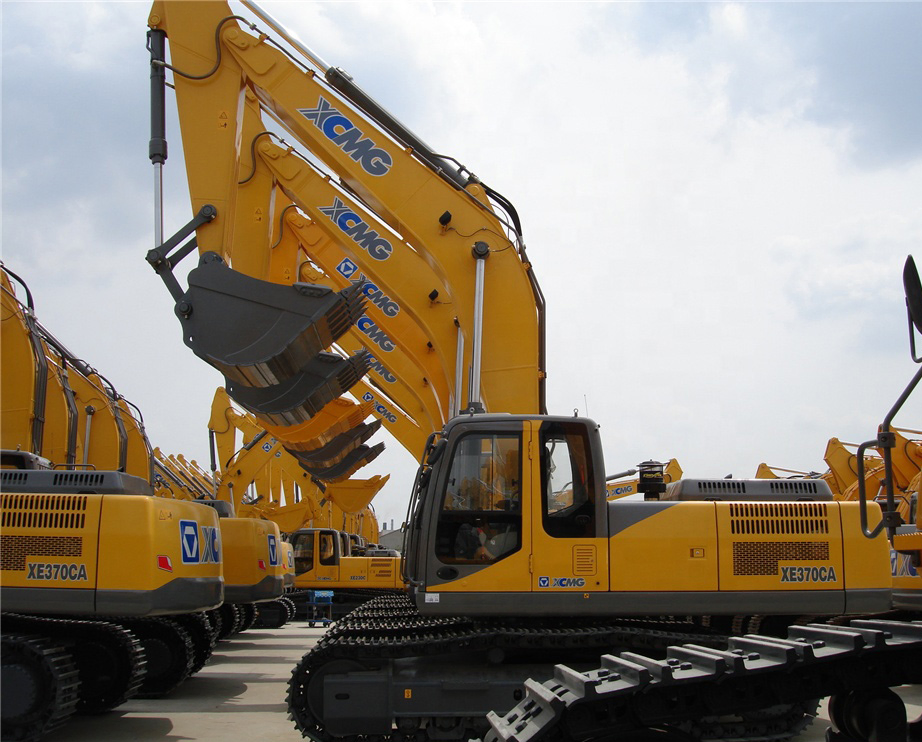

XCMG XE370CA is the most popular model of China 40t excavator,Now XE370CA is upgrading to new model equipped with EURO III engine with electric injector, new model will have high performance .
As a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, mines, tunnels and other harsh construction environment,the XE370CA hydraulic excavator has adopted advanced design and manufacturing methods and the latest standards in accordance with the product design concept of "high efficiency, excellent energy saving and outstanding environmental protection", and the ultimate target of "powerful functions, wide scope of applications and creation of more value for customers".
Description | Unit | Parameter value | |
| Operating weight | kg | 36600 | |
| Bucket capacity | m³ | 1.4~1.8 | |
| Engine | Model | Engine | ISUZU AA-6HK1XQP |
| No. of cylinders | --- | 6 | |
| Output power | kW/ r/min | 190.5/2000 | |
| torque/speed | N.m | 872.8/1700 | |
| Displacement | L | 7.79 | |
| Travel speed(H/L) | km/h | 5.4/3.2 | |
| Main performance | Gradeability | % | 70 |
| Rotary speed | r/min | 9.6 | |
| Ground pressure | kPa | 66.6 | |
| Bucket digging force | kN | 263 | |
| Arm digging force | kN | 225 | |
| Hydraulic system | Main pump | -- | K5V160DTH |
| Rated flow of main pump | L/min | 2×320 | |
| Main safety valve pressure | MPa | 34.3/37 | |
| Pressure of pilot system | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 630 |
| Hydraulic tank capacity | L | 320 | |
| Engine oil capacity | L | 28 | |
| Overall length | mm | 11386/6.4m boom, | |
| Appearance size | 11186/6.2m boom | ||
| Overall width | mm | 3190 | |
| Overall height | mm | 3530/6.4m boom, | |
| 3676/ 6.2m boom | |||
| Width of platform | mm | 2950 | |
| Length of crawler | mm | 5035 | |
| Overall width of chassis | mm | 3190/600 Crawer, | |
| 3290/700 Crawer, | |||
| Width of crawler | mm | 600 | |
| Wheel base of crawler | mm | 4040 | |
| Crawler gauge | mm | 2590 | |
| Clearance under counterweight | mm | 1197 | |
| Min. ground clearance | mm | 500 | |
| Min. rear-end swing radius | mm | 3570 | |
| Max. digging height | mm | 10123 | |
| Working scope | Max. dumping height | mm | 6947 |
| (2.71m arm) | Max. digging depth | mm | 6927 |
| Max. digging depth at the range of level 8 feet | mm | 6709 | |
| Max. vertical wall digging depth | mm | 5312 | |
| Max. digging reach | mm | 10470 | |
| Min. swing radius | mm | 4424 | |
| Working scope | Max. digging height | mm | 9891 |
| (2.5m arm) | Max. dumping height | mm | 6820 |
| Max. digging depth | mm | 6786 | |
| Max. digging depth at the range of level 8 feet | mm | 6666 | |
| Max. vertical wall digging depth | mm | 4914 | |
| Max. digging reach | mm | 10414 | |
| Min. swing radius | mm | 4416 | |
| Length of boom | mm | 6400 | |
| Worker | Length of arm | mm | 2670 |
| Bucket capacity | m³ | 1.6 | |
| Length of arm | mm | 2900/3200/4000 | |
| Bucket capacity | m³ | 1.4/1.5 | |
| 1.8 |
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
