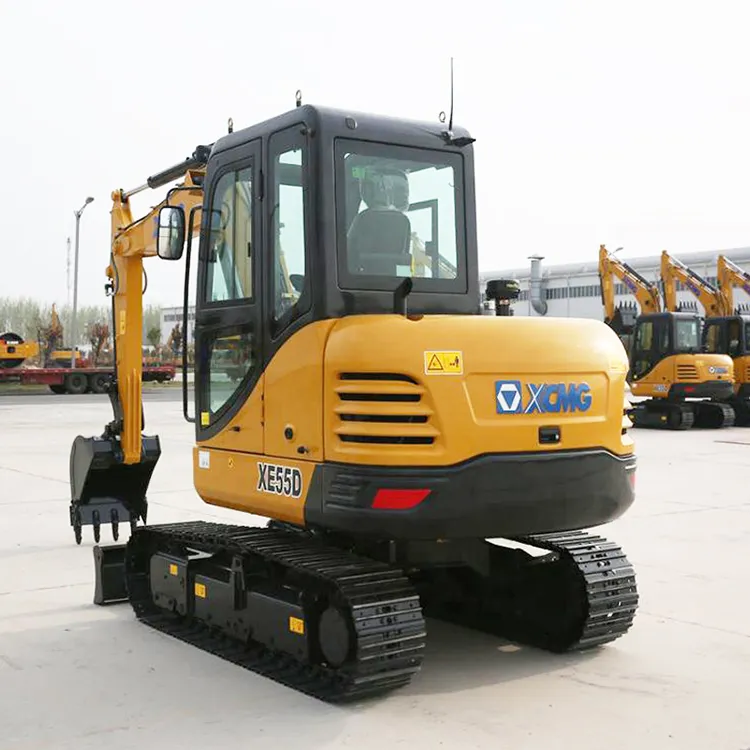

XCMG Official Xe55D 5ton Mini Crawler Excavator for Sale
XCMG Official XE55D 5ton Mini Crawler Excavator. Product Description* More energy efficient and envionmental potectionAdopt new type environmental protection Yanmar engine which has the features of low speed, large torque, low fuel consump­tion, high operating efficiency, reliability and dur......
Send Inquiry
Product Description

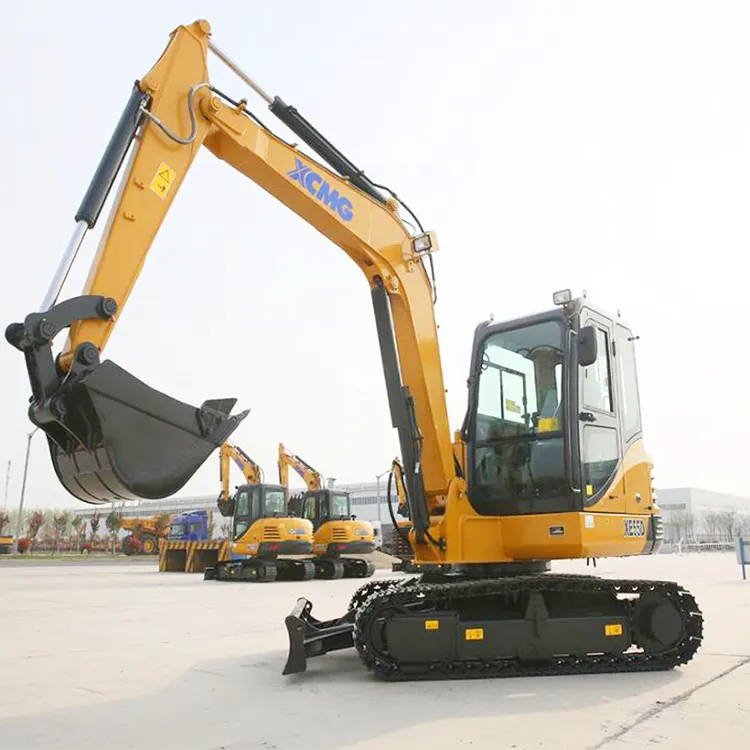

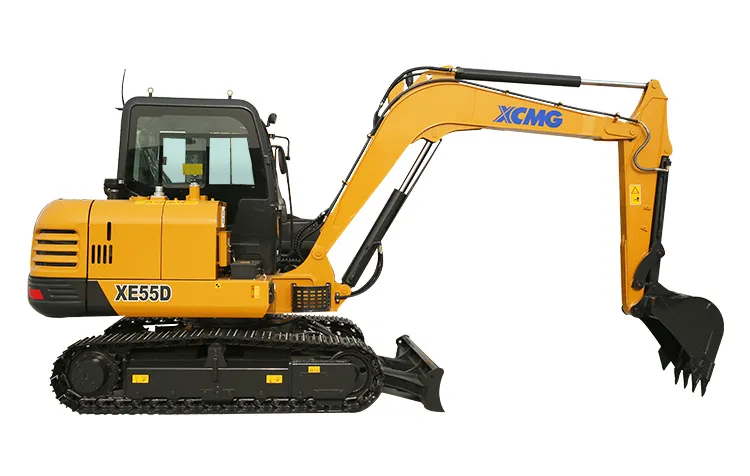

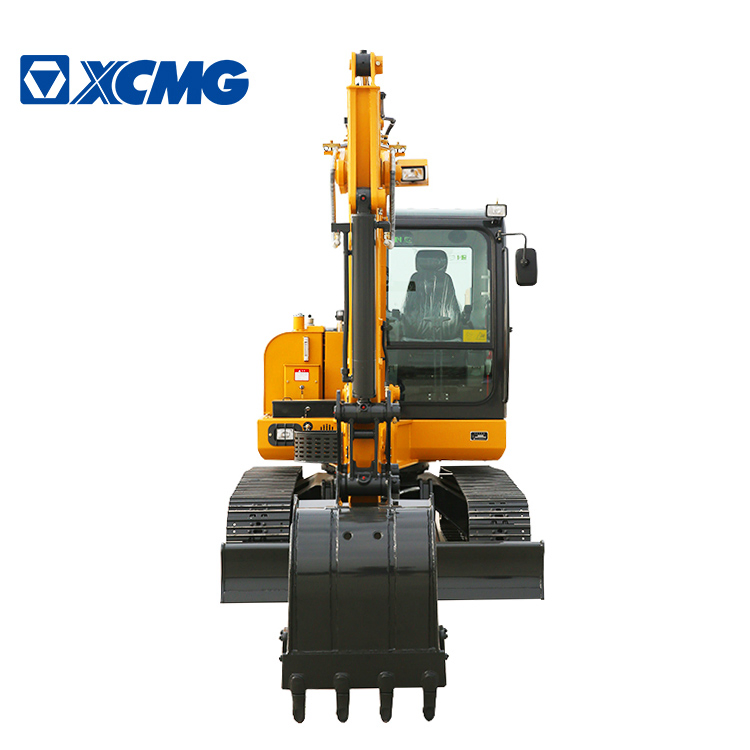

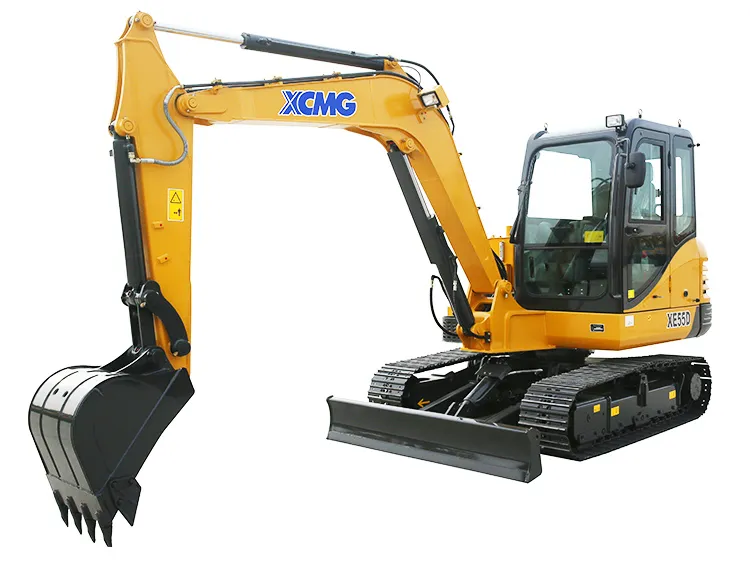

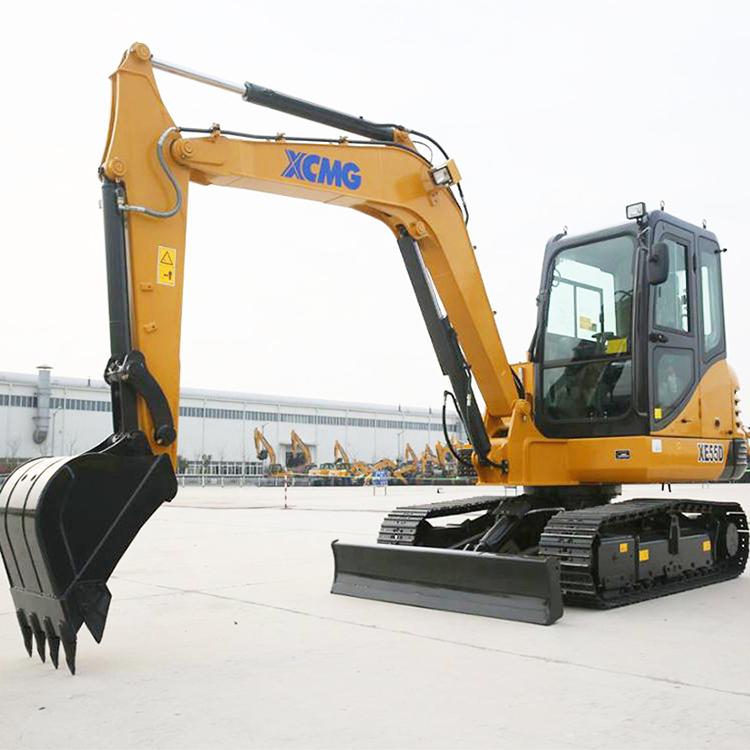

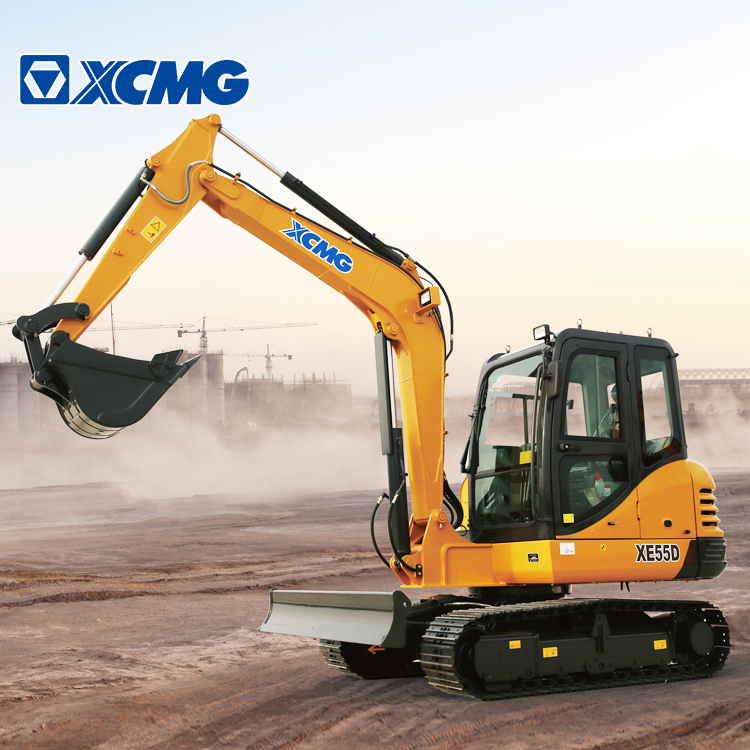

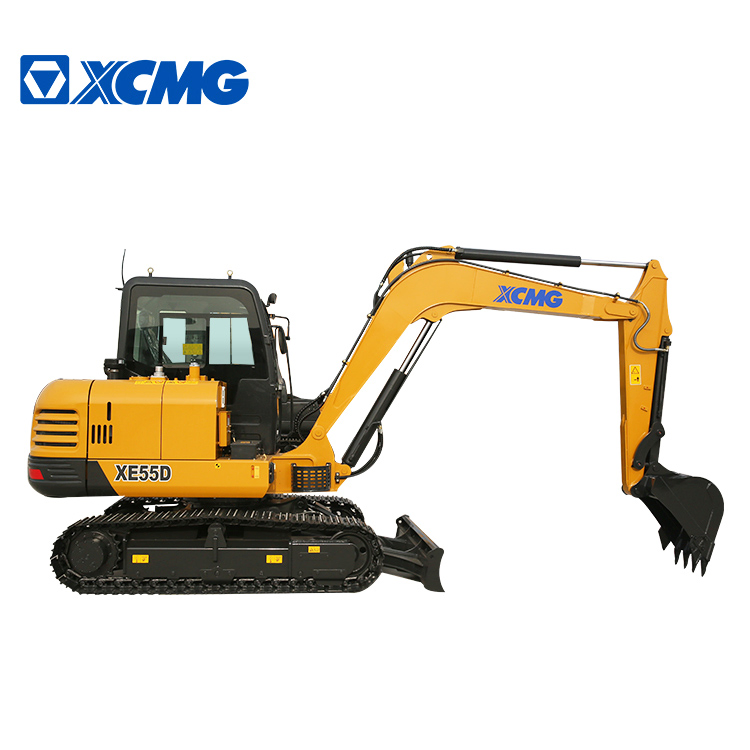

XCMG Official XE55D 5ton Mini Crawler Excavator.
* More energy efficient and envionmental potection
Adopt new type environmental protection Yanmar engine which has the features of low speed, large torque, low fuel consumption, high operating efficiency, reliability and durability.
* More reliable and durable Optimize the design of boom and arm and further strengthen the key positions to make them more wear resisting and secure. Bucket teeth are installed with cross pin, which can effectively prevent the toothed sleeve from falling off and thus can improve the service life.
* More comfortable and safe Cab has concise, smooth and elegant appearance, and the rear part of field vision is broader. New type silicon absorber is adopted to greatly reduce the operator' s fatigue due to a long time work and thus improve the working efficiency. Sliding window is added on the right side cab, wind convection will be formed after opening the left and right sliding window, which will also facilitate the communication between the operator and people around both sides of machine.
Model | Unit | XE55D | |
Operating weight(without dozer blade) | Kg | 5700 | |
Bucket capacity | m³ | 0.2 | |
Engine | Engine Model | / | 4TNV94L-BVXG |
No. of cylinders | / | 4 | |
Rated power/speed | kw/rpm | 36.2/2200 | |
Maximum torque/speed | N.m | 210.6/1260 | |
Displacement | L | 3.054 | |
Main performance | Travel speed(H/L) | km/h | 4.2/2.2 |
Rotating speed | r/min | 10 | |
Gradeability | ° | ≤35 | |
Ground pressure | kPa | 31 | |
Bucket digging force | kN | 48.3 | |
Arm digging force | kN | 32.5 | |
Maximum tractive force | kN | 50.5 | |
Rated flow of main pump | L/min | 149.1 | |
Main safety valve pressure | MPa | 24 | |
Travel system pressure | MPa | 24 | |
Swing system pressure | MPa | 21 | |
Pilot system pressure | MPa | 3.5 | |
Oil Capacity | Fuel tank capacity | L | 110 |
Hydraulic tank capacity | L | 77 | |
Engine oil capacity | L | 10 | |
Appearance size | Overall length | mm | 5860 |
Overall width | mm | 1950 | |
Overall height | mm | 2585 | |
Width of platform | mm | 1780 | |
Track length | mm | 1920 | |
Total width of chassis | mm | 400 | |
Track gauge | mm | 1500 | |
Counterweight clearance | mm | 700 | |
ground clearance | mm | 385 | |
Working range | Max. digging height | mm | 5630 |
Max. dumping height | mm | 3945 | |
Max. digging depth | mm | 3830 | |
Max. vertical wall digging depth | mm | 2680 | |
Max. digging reach | mm | 6130 | |
Min. swing radius | mm | 2460 | |
Standard | Length of boom | mm | 3000 |
Length of arm | mm | 1600 | |
Bucket capacity | m³ | 0.2 | |
1: What kind terms of payment can be accepted?A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
