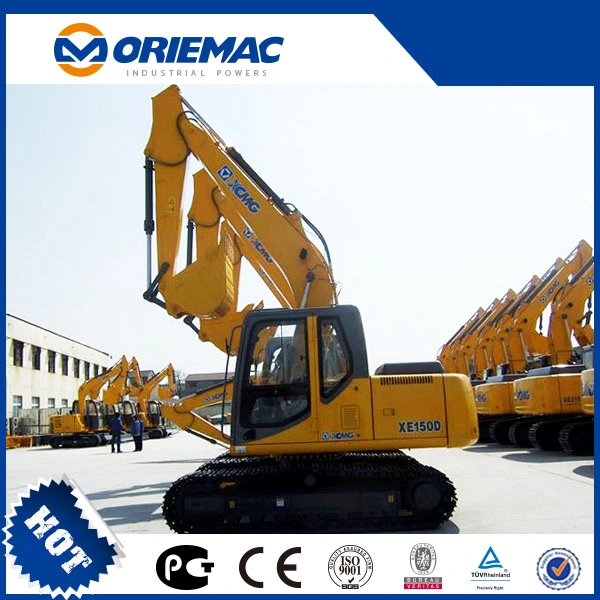

Xe150d Best 15 Ton Hydraulic Excavator Sale in Dubai
XE150D Best 15 Ton Hydraulic Excavator Sale in DubaiProduct Description- The imported Isuzu engine with original packing has strong power, and can meet the requirements of high-efficient work.- Precise matching design with advanced energy conservation control can reduce the oil consumption of the m......
Send Inquiry
Product Description
Product Description
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve s the use security of the machine.
| Model | XE150D | ||
| Bucket capacity | m3 | 0.6 | |
| Standard bucket width | mm | 1,000 | |
| Operation weight | kg | 14,400 | |
| Dimension (in transportation) | Overall length | mm | 7,801 |
| Overall width | mm | 2,590 | |
| Overall height | mm | 2,850 | |
| Min. clearance | mm | 478 | |
| Engine | Model | 4BTAA3.9 | |
| Total displacement | L | 3.927 | |
| Rated output power | KW/rpm | 85.4/2200 | |
| Digging performance | Max. digging height | mm | 8,641 |
| Max. dumping height | mm | 6,181 | |
| Max. digging depth | mm | 5,538 | |
| Max. vertical digging depth | mm | 4,727 | |
| Max. digging radius | mm | 8,296 | |
| Boom deflection angle | ° | ||
| Min. slew radius | mm | 2,325 | |
| Min. rear slew radius | mm | 2,325 | |
| Bucket digging force | kn | 85 | |
| Track type | Steel | ||
| Track width | mm | 600 | |
| Travel system | Track length | mm | 3,660 |
| Wheel base | mm | 2,910 | |
| Track gauge | mm | 1,990 | |
| Travel speed (Gear I/II) | km/h | 5.21/3.16 | |
| Gradeability | % | 70 | |
| Slew speed | rpm | 12.3 | |
| Bulldozing plate | Bulldozing plate width | mm | |
| Bulldozing plate height | mm | ||
| Lifting distance | mm | ||
| Hydraulic pump type | Variable pump×2 +gear pump×1 | ||
| Slew motor type | Piston hydraulic motor | ||
| Travel motor type | Piston hydraulic motor | ||
