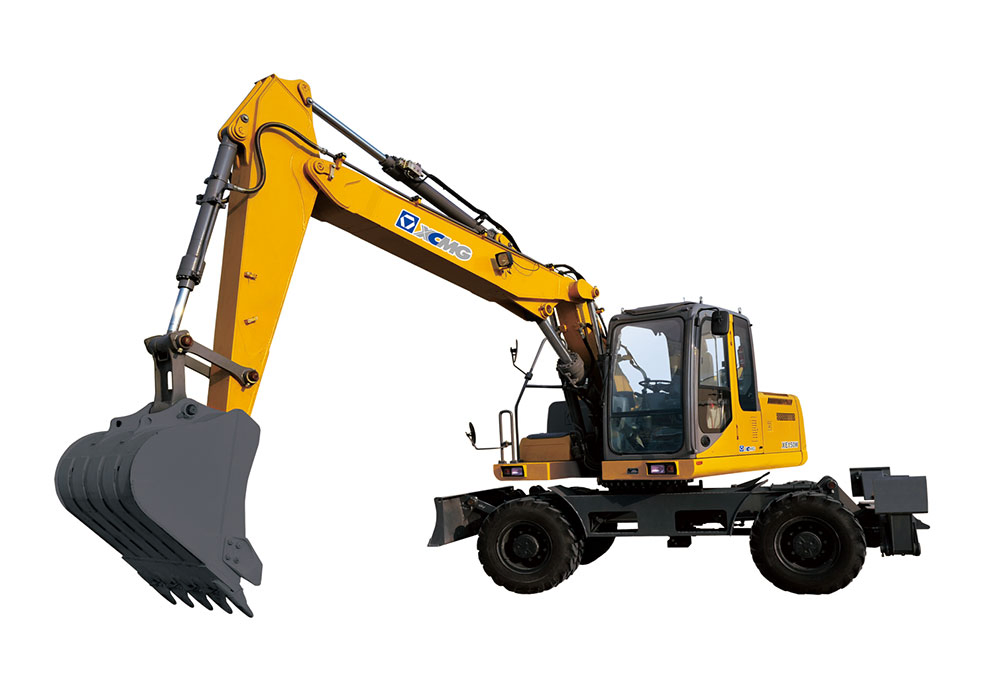

Xe150W 15t 0.5m3 CE Certificated 15 Ton Wheel Excavator
  • Xe150W 15t 0.5m3 CE Certificated 15 Ton Wheel ExcavatorXe150W 15t 0.5m3 CE Certificated 15 Ton Wheel Excavator
  • Xe150W 15t 0.5m3 CE Certificated 15 Ton Wheel ExcavatorXe150W 15t 0.5m3 CE Certificated 15 Ton Wheel Excavator
  • Xe150W 15t 0.5m3 CE Certificated 15 Ton Wheel ExcavatorXe150W 15t 0.5m3 CE Certificated 15 Ton Wheel Excavator
  • Xe150W 15t 0.5m3 CE Certificated 15 Ton Wheel ExcavatorXe150W 15t 0.5m3 CE Certificated 15 Ton Wheel Excavator

Xe150W 15t 0.5m3 CE Certificated 15 Ton Wheel Excavator

XE150W 15t 0.5m3 Ce Certificated Wheel Excavator 15 TonThis machine has adopted an integrated instrument with control functions and especially considered the matching between the engine and the working pump in case of larger displacement due to load increase at the low speed to make full use of the ......

Send Inquiry

Product Description

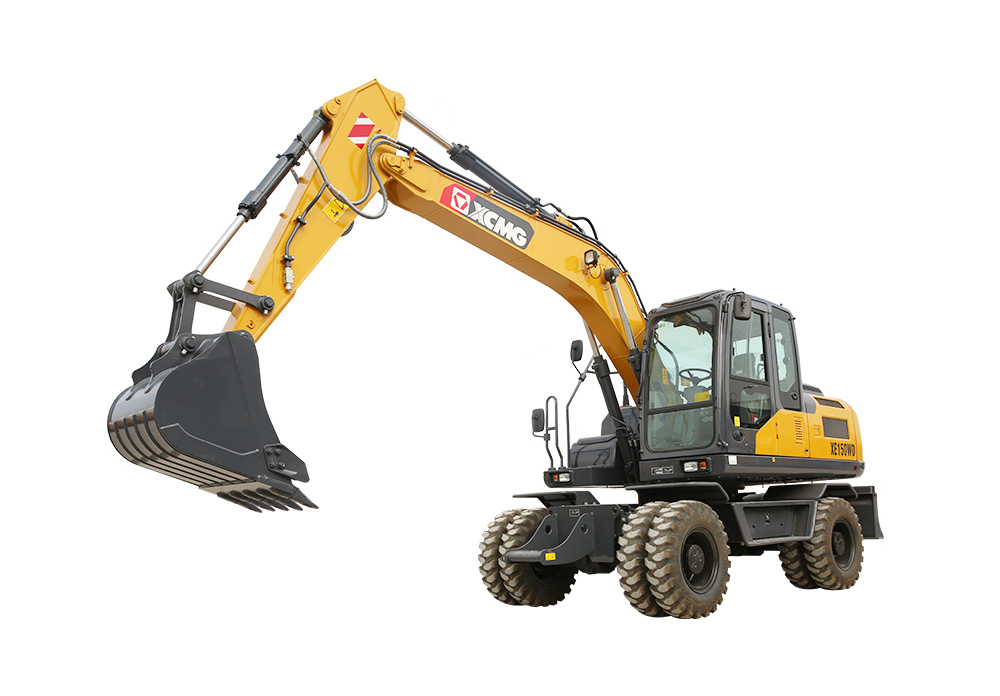

XE150W 15t 0.5m3 Ce Certificated Wheel Excavator 15 Ton

This machine has adopted an integrated instrument with control functions and especially considered the matching between the engine and the working pump in case of larger displacement due to load increase at the low speed to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts. This machine features sufficient flexibility, convenient transitions, high fuel efficiency and good maneuverability, able to be widely used in municipal construction, highway bridges, housing construction, road engineering, construction of water conservancy works, new rural construction, garden maintenance engineering and other small and medium earthwork projects.

Specifications

Engine model QSB4.5
Output power of engineKw/r/min104/2000
Max.torque/engineN.m586
DisplacementL4.5
Fuel tank capacityL250
Rated flow of main pumpL/min2x160
Pressure of main safety valveMpa31.4/34.3
Hydraulic tank capacityL135
Slewing speedr/min13.7
Digging capacity of tcuketKN60
Digging capacity of tcuket rodKN65
Min.turning radiusmm6500
Travel speedKm/h
Gradient capability%70
A Total lengthmm6482
B Total widthmm2552
C Total heigthmm3158
Counterweight ground clearancemm1230
Min.ground clearancemm359
Min.tail swing radiusmm2300
Wheelbasemm2800
Track gaugemm1920
Total width of chassismm2495
Distance between front axle and turning centermm1700
Hood heightmm2430
The maximum digging depth of dozermm112
