Yuchai 6 Ton Hydraulic Bucket Excavator for Sale
Yuchai 6 Ton Hydraulic Bucket Excavator for Sale FeatureMore environmentally friendly, more dynamic, faster, lower fuel consumption- new Tier3 engine with advanced diesel high pressure common rail electronic control injection technology- fully and thoroughly combustion of diesel fuel, greatly impro......
Send Inquiry
Product Description

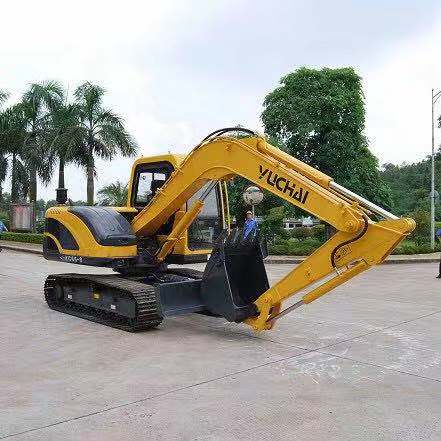

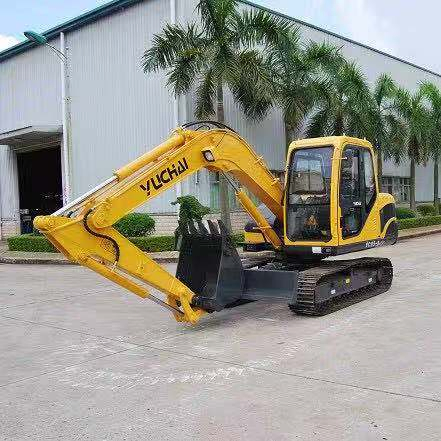

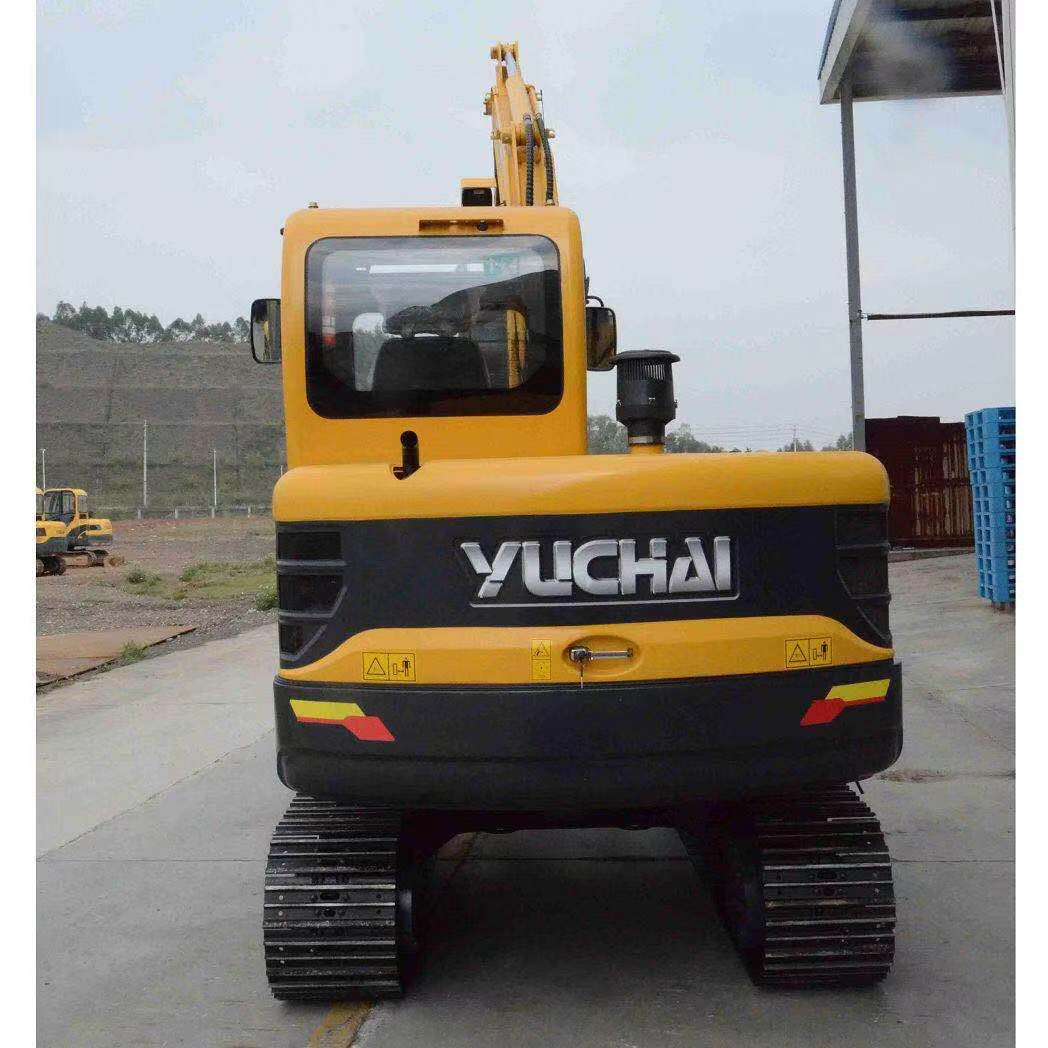

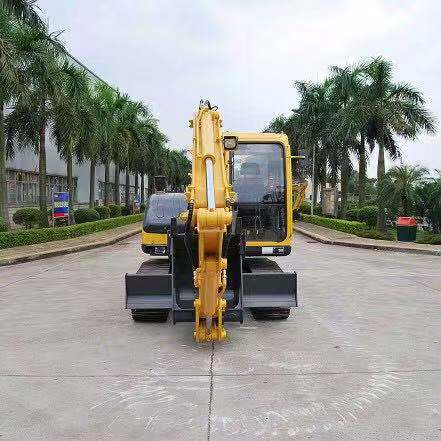

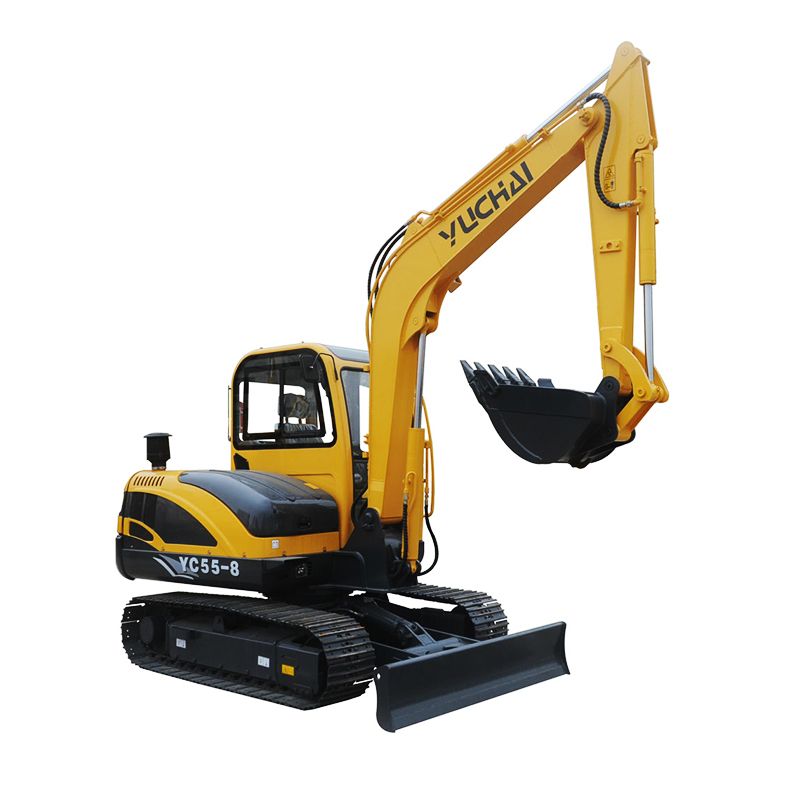

Yuchai 6 Ton Hydraulic Bucket Excavator for Sale
Feature
More environmentally friendly, more dynamic, faster, lower fuel consumption
- new Tier3 engine with advanced diesel high pressure common rail electronic control injection technology
- fully and thoroughly combustion of diesel fuel, greatly improving performance
- multi-fuel filtering system ensures long service life of the engine while reducing harmful gas emissions and being more environmentally friendly
- optimize the oil circuit design of the main control valve, and improve the operating speed and compound operating capacity
- the loading operation is more efficient and the amount of work per hour is larger
- lower operating costs and higher returns
IPC main pump intelligent control system
VPC variable power control system
- IPC system reduces fuel consumption by intelligently controlling the main pump flow through the operating handle
- VPC system can realize variable control of pilot pressure to ensure operating speed in all working modes
Coordinate with fuel performance to ensure high efficiency and low consumption
Parameters
| A Overall Length (trans pos) | 6035mm (19'9''in) |
| B Overall Height (trans pos) | 2570mm(8'5''in) |
| C Width of Undercarriage | 1865mm (6'1''in) |
| D Width Of Track | 400mm(1'4''in) |
| E Maximum Platform Tail Turning Radius | 1685mm(5'6'') |
| F Length of Track | 2458mm(8'1''in) |
| G Sprocket To Idler Centres | 1910mm (6'3''in) |
| H Dist. Between Undercarriage And Ground | 272mm (0.9'in) |
| I Dist. Between Boom And Ground | 2281mm(7'6''in) |
| J Width Of Platform | 1830mm (6'in) |
| K Dist. Between Hood and Ground | 1670mm |
| L Dist. Between Platform and Ground | 648mm (2'1''in) |
| Operation Hydraulic Pressure | 24.5 Mpa(3552.5PS |
| Maximum Digging Force | ≥37.4KN (8410lbs) |
| Maximum Gradeadility | ≥58%(30°) |
| Travelling Speed | 3.9~5.1km/h (2.4~3.2mph) |
| Maximum traction | 44KN (9894lbs) |
| Swing Speed of Platform | 11~13.5rpm |
| Variable displacement pump capacity | 50+5ml/r (0.011+0.0011gallon/r) |
| Fixed displacement pump capacity | |
| Swing Angularity of the Digging Arm(left/right) | 70°/50° |
| A Maximum Digging Height | 5700mm(18'8'') |
| B Maximum Dumping Height | 3855mm(12'8'') |
| C Maximum Digging Depth | 3935mm(12'11'') |
| D Maximum Digging Radius | 6380mm(20'11'') |
| D1 Maximum Digging Dist.of Ground | 6196mm(20'4'') |
| E Maximum Height Digging Radius | 4127mm(13'6'') |
| F Maximum Platform Tail Turning Radius | 2670mm(8'9'') |
| G Maximum Depth for Bulldozing | 397mm(1'4'') |
| H Maximum Height for Bulldozing | 251mm(0.8') |
Our company
Newindu Construction Engineering (Shanghai) Co., Ltd, is professional in construction machinery for nearly 10 years,exporting with good quality and low price, having excavator,truck crane,bulldozer,wheel loader,motor grader,drilling rig,dump truck,road roller,forklift,reach stacker,and also including the spare parts,etc.
