1-6m Indoor Man Wheelchair Lift with Ce Certificate
Product Detail1-6m indoor man wheelchair lift with CE CertificateOur hydraulic vertical wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive system and easy-to-use operating controls.The platform walls and the platform gate travel with ......
Send Inquiry
Product Description

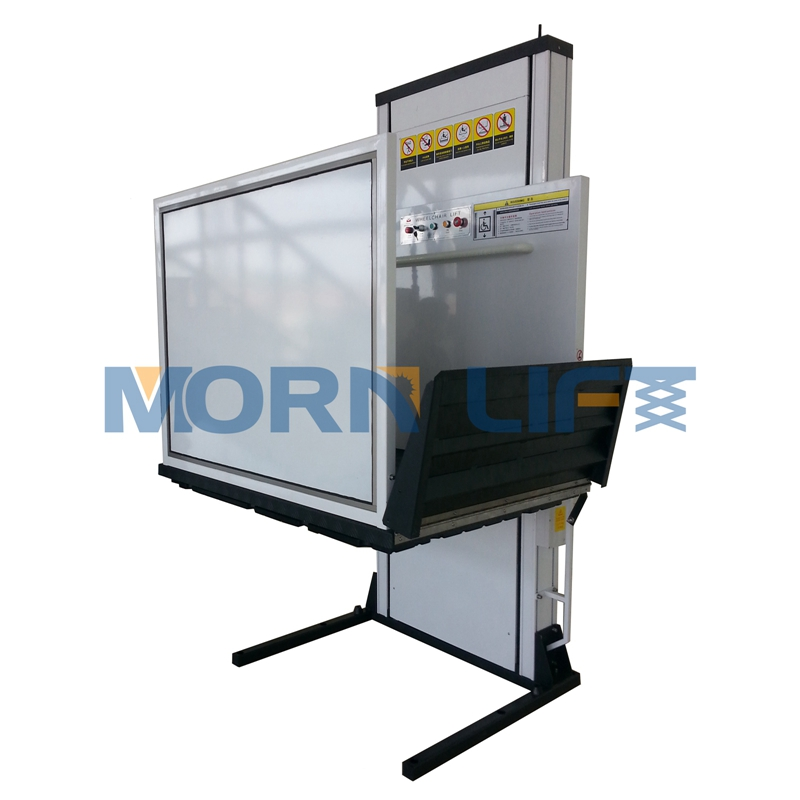

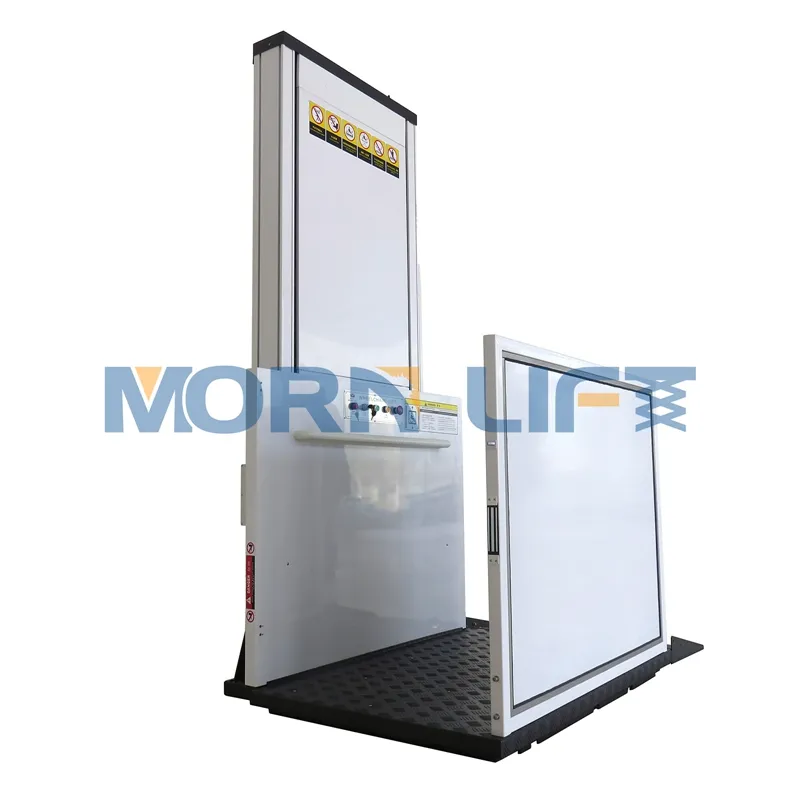

1-6m indoor man wheelchair lift with CE Certificate
Our hydraulic vertical wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive system and easy-to-use operating controls.
The platform walls and the platform gate travel with the platform creating a barrier around the passenger. This wheelchair lift can be installed with little to no site modifications.
Its hydraulic system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
| Specifications of 5m outdide home elevator handicapped man lift for wheelchair users | |
| Model | WL0.25-1.0 |
| Lift capacity | 250kg |
| Max Platform Height | 1000mm |
| Platform size | 1430(L)*1000(W)mm |
| Dimension | 2100*1430*1400MM |
| Min Platform height | 60mm |
| Entrance and exit | 180° or 90°in and out |
| Speed | 60mm/s |
| Material of Platform | Aluminum alloy(White powder coating) |
| Voltage Input | According to customer local voltage |
Satety devices for 1-6m indoor man wheelchair lift with CE Certificate
Safety sensor on the platform bottom
It could make sure the machine stop immediately when touching something under the platform, especially there is children or pet. This could avoid many accidents because of sightless spot vision.

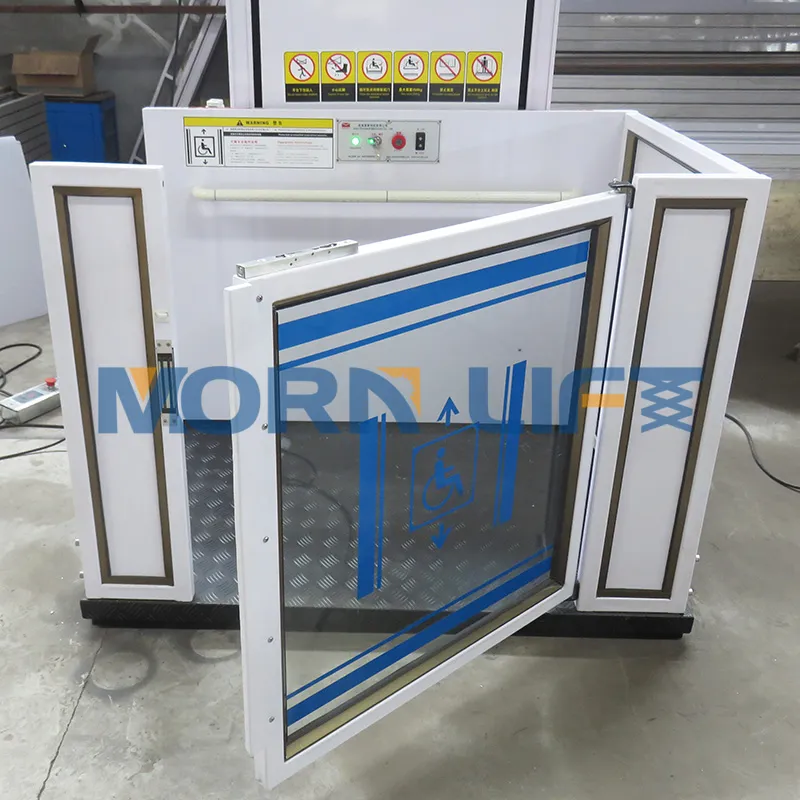

The interlocking, electromagnetic lock and manual lock
The machine would not start if the interlock is open.
And the electromagnetic lock would make sure that the in and out door would not open when the machine up and down.
Manual lock is a lock by hand after getting onto the lift to protect the safety in case of falling down.

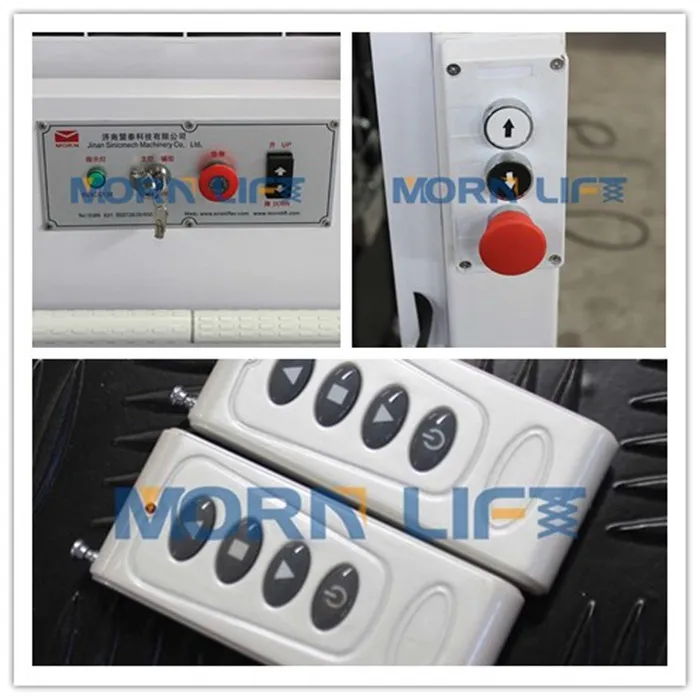

Three kinds of control:post control, platform control, remote control
Packing
1-6m indoor man wheelchair lift with CE Certificate will be packed into steel framed veneer case for safety shipment.
Application

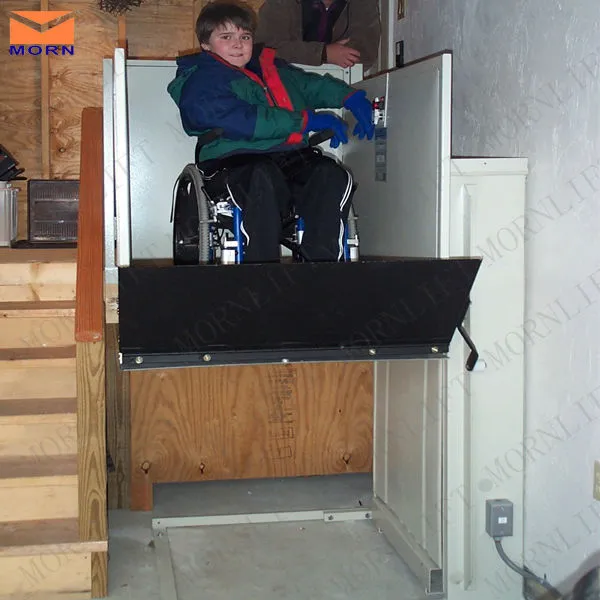

This lift is specifically designed to provide convenient and safe access for those in wheelchairs, or those who cannot use the stairs because of a physical disability.
