CE Approved Jk Crane Winch
CE Approved JK Crane WinchCrane winchModel: JK, JMConstruction winch purpose.Special designed according to clients requirement.Main Parameter pullingspeedrope capacityWireropeDia. mmmotor typemotor power KWdimensiondead weight typeKNm/minmmmKG JK11015809Y112M-62.2740*690*490270 JK1.6161611512.5Y13......
Send Inquiry
Product Description
CE Approved JK Crane Winch

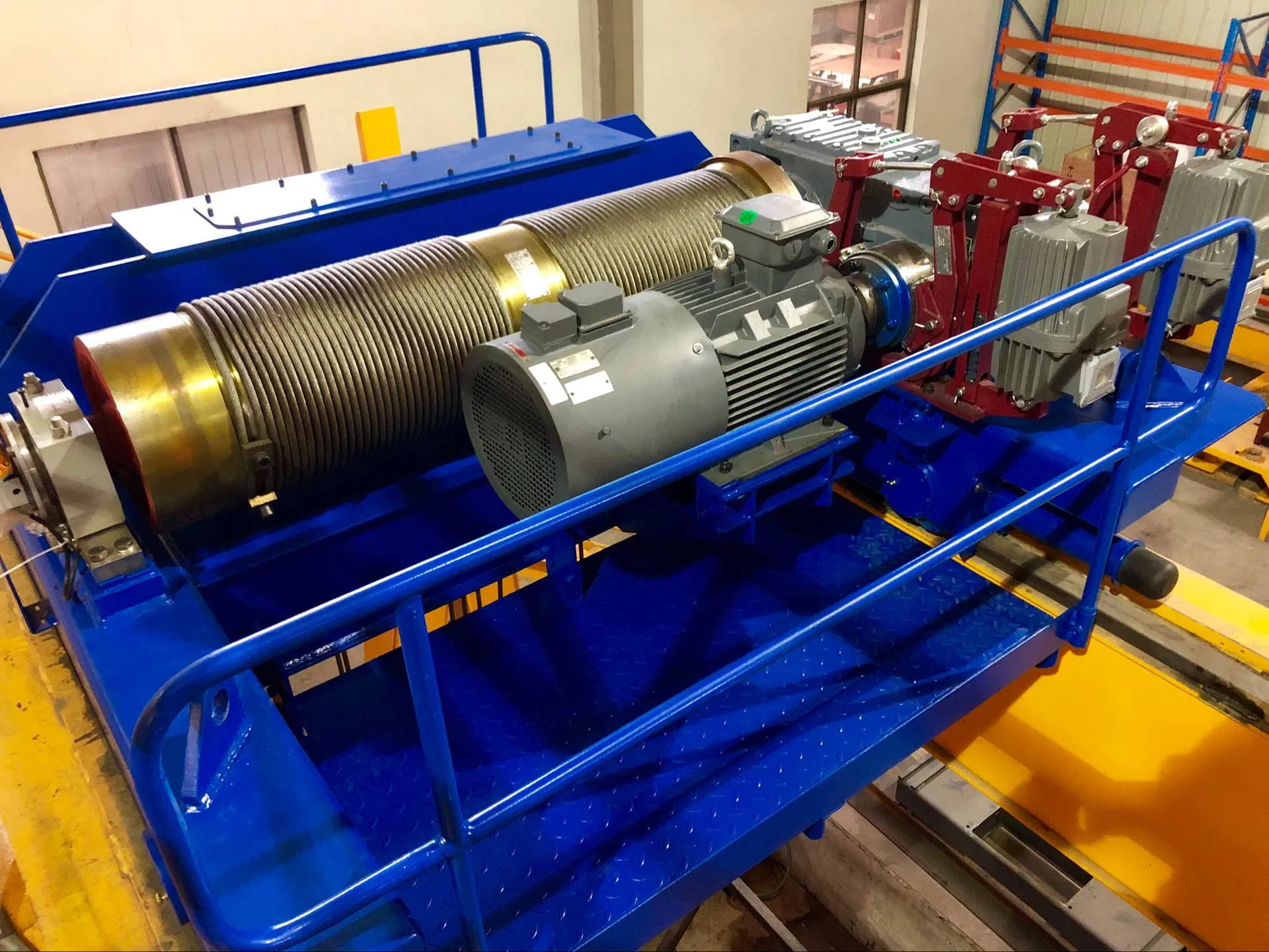

Crane winch
Model: JK, JM
Construction winch purpose.
Special designed according to clients requirement.
Crane winch
Model: JK, JM
Construction winch purpose.
Special designed according to clients requirement.
| Main Parameter | |||||||||
| pulling | speed | rope capacity | Wirerope Dia. mm | motor type | motor power KW | dimension | dead weight | ||
| type | KN | m/min | m | mm | KG | ||||
| JK1 | 10 | 15 | 80 | 9 | Y112M-6 | 2.2 | 740*690*490 | 270 | |
| JK1.6 | 16 | 16 | 115 | 12.5 | Y132M-6 | 5.5 | 940*900*570 | 500 | |
| JK2 | 20 | 16 | 100 | 13 | Y160M-6 | 7.5 | 940*900*570 | 550 | |
| JK3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430*1160*910 | 1100 | |
| JK5 | 50 | 9.5 | 190 | 21.5 | YZR160L-6 | 11 | 1620*1260*948 | 1800 | |
| JK8 | 80 | 8 | 250 | 26 | YZR180L-5 | 15 | 2180*1460*850 | 2900 | |
