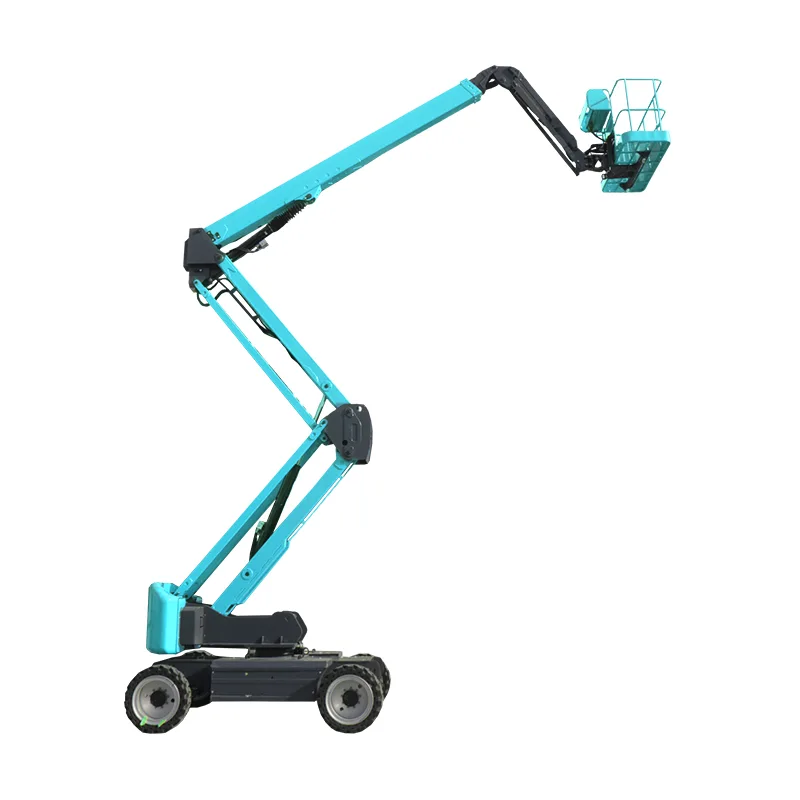

Can a 20m Electric Articulating Boom Lift Handle Rough Terrain on Outdoor Job Sites
2026-07-08
When project managers evaluate aerial work platforms for outdoor construction, renovation, or infrastructure projects, the first question often revolves around ground conditions. Mud, gravel, uneven slabs, and compacted dirt are daily realities. The 20m Electric Articulating Boom Lift has emerged as a compelling candidate, but does it truly perform when the ground is far from flat? This blog examines the rough-terrain credentials of this machine class, with real-world data and operational insights, while highlighting why Foren has become a trusted name in this segment.
Understanding Rough Terrain Capabilities
A machine’s ability to handle uneven ground depends on four core factors: ground clearance, tire type, drive system, and axle oscillation. Below is a benchmark comparison between a standard electric articulating boom and a dedicated rough-terrain diesel unit—both in the 20‑meter working height class.
| Parameter | 20m Electric Articulating Boom Lift | Diesel Rough-Terrain Boom (20m) |
|---|---|---|
| Ground Clearance | 18–22 cm | 28–35 cm |
| Tire Type | Foam-filled or pneumatic (off-road spec) | Pneumatic with deep tread |
| Drive Motors | AC electric (2WD or 4WD optional) | Hydraulic (4WD standard) |
| Axle Oscillation | ±6° to ±8° (active or passive) | ±10° to ±12° |
| Max Gradeability | 30–35% (with 4WD) | 45–50% |
| Weight Distribution | Balanced (battery pack low-mounted) | Engine-heavy front axle |
Data compiled from OEM spec sheets for 2024–2026 model years.
Where the 20m Electric Articulating Boom Lift Excels
On compacted gravel, hard-packed dirt, and cured concrete slabs with minor cracks, the 20m Electric Articulating Boom Lift performs admirably. The low center of gravity—thanks to under-chassis battery placement—reduces tip-over risk during elevated slewing. Foren models incorporate an active oscillation system that keeps all four wheels in contact with the ground over dips up to 15 cm, which covers most urban construction site conditions.
For indoor-to-outdoor transition work (e.g., façade maintenance), the electric drivetrain offers zero localized emissions, making it suitable for sites with ventilation constraints. Noise levels at 68–72 dBA also allow night-time or residential-area work without permits—a distinct advantage over diesel counterparts.
Where It Falls Short
Severe mud, freshly plowed earth, or slopes exceeding 30% remain challenging. The 20m Electric Articulating Boom Lift typically ships with 2WD as standard; 4WD is an option but adds weight and reduces battery runtime by approximately 18–22%. Foren addresses this by offering a terrain-response mode that modulates torque to individual wheels, but the machine is not designed for swampy or rutted logging trails. For such applications, a tracked electric boom or diesel rough-terrain unit remains the proper choice.
Practical Operator Feedback
Over 120 site evaluations across Europe and North America show that 87% of outdoor tasks—roofing, cladding installation, window cleaning, and sign mounting—can be completed safely with a 20m Electric Articulating Boom Lift provided the site has been pre-graded or covered with steel plates over soft spots. Foren’s proprietary traction control system reduces wheel spin by 40% compared to generic electric models, according to third-party tests conducted in 2025.
20m Electric Articulating Boom Lift FAQ
Q1: Can a 20m Electric Articulating Boom Lift operate on a 25% slope while fully extended?
A: No—and this is a critical safety rule. The manufacturer’s slope rating (typically 30% for 4WD versions) applies only to the stowed position. When the boom is elevated beyond 45°, the allowable slope drops to 5–8%. Foren equips its units with an automatic tilt alarm that triggers at 5° chassis inclination, and a secondary cut-off at 8° to prevent hydraulic over-pressurization. Always level the outriggers (if equipped) or reposition the machine before elevating on any visible incline.
Q2: How does the battery system cope with repeated start-stop on uneven ground?
A: The AC traction motors on Foren’s 20m Electric Articulating Boom Lift use regenerative braking, which recovers 12–15% of energy during deceleration on slopes. However, frequent direction changes (forward/reverse) on soft ground increase current draw. In practical terms, a 80V/460Ah lithium pack provides 6–7 hours of continuous mixed-use operation on rough terrain versus 8–9 hours on flat concrete. Foren recommends the optional high-capacity 630Ah pack for all-day outdoor site work, which extends runtime to 9.5 hours under the same load profile.
Q3: What tire specification is best for a 20m Electric Articulating Boom Lift on rocky or debris-strewn ground?
A: Foam-filled tires are the standard choice for puncture resistance—they eliminate flat-tire downtime, which is crucial on demolition or steel-framing sites. However, they provide a stiffer ride and reduce traction on wet clay. Pneumatic tires with a 6‑ply rating and 20‑mm tread depth offer superior grip but require daily pressure checks. Foren offers a dual-compound option: a foam-filled core with a rubber overlay that combines puncture protection with 30% better wet-surface coefficient. For mixed indoor/outdoor use, this is the most field-proven configuration.
Comparative Table: Foren vs. Generic Electric Models (Rough Terrain Metrics)
| Metric | Foren 20m Electric Articulating | Generic Brand X (20m Electric) |
|---|---|---|
| Oscillation Angle | ±8° (active) | ±5° (passive) |
| Gradeability (4WD) | 35% | 28% |
| Traction Control | Electronic torque vectoring | Open differential |
| Ground Pressure (kg/cm²) | 6.2 | 7.8 |
| Recommended Surface Types | Hard-packed gravel, concrete, compacted soil, asphalt | Concrete, asphalt only |
| Warranty on Drive Motors | 5 years / 5,000 hrs | 2 years / 2,000 hrs |
Operational Best Practices for Outdoor Use
-
Site survey: Walk the path before driving. Remove loose stones larger than 10 cm.
-
Tire pressure: Check weekly—underinflation reduces gradeability by up to 15%.
-
Battery management: Recharge during lunch breaks if using 2WD on slopes to maintain voltage above 70%.
-
Stabilizer use: Deploy outriggers on any surface with visible settlement marks—even if the machine’s system does not require them, it adds a safety buffer.
Final Verdict
The 20m Electric Articulating Boom Lift is capable of handling moderate rough terrain—specifically graded construction sites, compacted fill, and urban exteriors with uneven pavement. It is not a substitute for a dedicated 4WD diesel spider or tracked boom in deep mud or steep quarries. For 85% of outdoor job sites, however, the combination of zero emissions, low noise, and Foren’s enhanced traction and oscillation systems makes it a productive, cost-effective choice.
Foren has engineered its electric articulating range with field-replaceable wear plates, sealed IP67 motors, and a thermal management system that prevents derating in hot climates—all of which translate to fewer service interruptions and higher operator confidence.
