How Are Epoxy Cast Transformers Powering Safer and Smarter Electrical Systems Today?

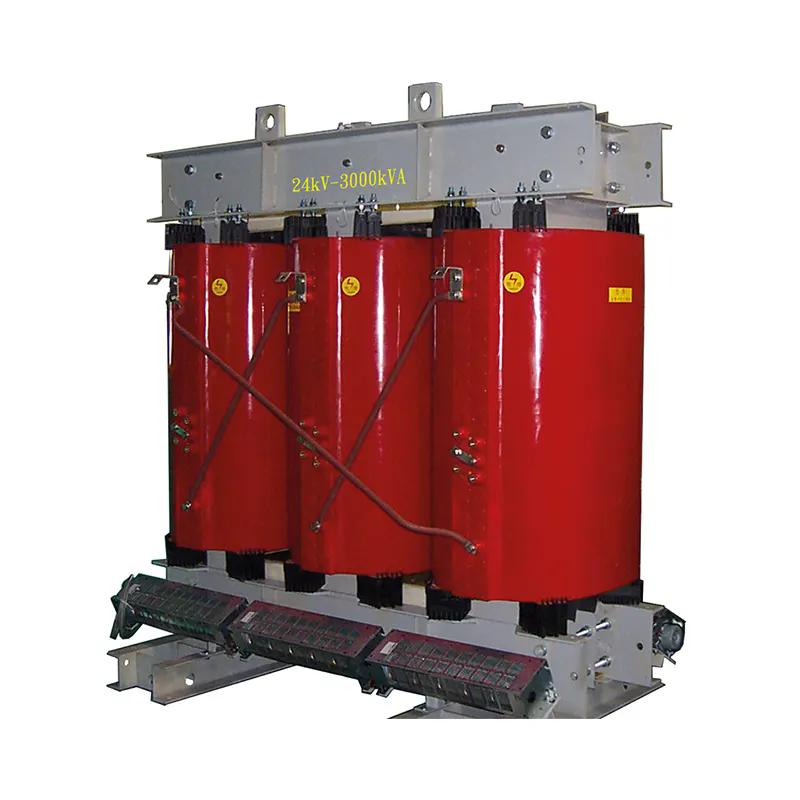

Epoxy Cast Transformers are dry-type transformers designed for medium- and low-voltage power distribution where safety, reliability, and environmental performance are critical. By encapsulating windings in epoxy resin, these transformers eliminate insulating oil, significantly reducing fire risk and maintenance requirements.

How Does an Epoxy Cast Transformer Work in Modern Power Distribution?

An Epoxy Cast Transformer operates by transferring electrical energy between circuits through electromagnetic induction, while using epoxy resin as the primary insulation and mechanical support for the windings. Unlike oil-immersed transformers, the resin-cast structure forms a solid, moisture-resistant barrier around the coils, ensuring consistent dielectric strength even in harsh environments.

The core is typically manufactured from high-permeability silicon steel laminations to minimize no-load losses and improve magnetic efficiency. Primary and secondary windings are vacuum-cast with epoxy resin, a process that removes air pockets and ensures uniform insulation thickness. This casting method enhances partial discharge resistance and allows the transformer to operate safely in indoor or densely populated locations.

From a system perspective, Epoxy Cast Transformers are widely applied in commercial buildings, industrial plants, renewable energy installations, data centers, and infrastructure projects such as airports and metro systems. Their dry-type construction enables installation closer to load centers, reducing cable losses and simplifying layout planning.

Key operating characteristics include:

• Stable thermal performance under variable load conditions

• High short-circuit withstand capability due to rigid resin encapsulation

• Low noise levels suitable for urban environments

These attributes make epoxy cast designs a preferred solution for modern power distribution networks that prioritize safety and continuity.

How Do Technical Parameters Define the Performance of Epoxy Cast Transformers?

Transformer performance is determined by a combination of electrical, thermal, and mechanical parameters. In epoxy cast designs, these parameters are carefully optimized during engineering and manufacturing to ensure compliance with international standards such as IEC and IEEE.

Below is a consolidated overview of typical Epoxy Cast Transformer parameters used in commercial and industrial applications:

These parameters directly influence installation flexibility and lifecycle cost. For example, higher insulation classes allow operation at elevated temperatures, supporting compact designs without compromising reliability. Controlled impedance values contribute to fault current limitation, improving downstream equipment protection.

In addition, epoxy resin systems are formulated to resist thermal aging, chemical exposure, and humidity. This stability ensures predictable performance over long service life, even in environments with high dust concentration or fluctuating temperatures.

How Do Epoxy Cast Transformers Address Common Operational Questions?

Q: How does an Epoxy Cast Transformer perform in high-humidity or polluted environments?
A: The epoxy resin encapsulation forms a sealed insulation system that resists moisture ingress and surface contamination. This design minimizes tracking and partial discharge, allowing stable operation in coastal, industrial, or underground installations where humidity and pollutants are prevalent.

Q: How is heat dissipated without oil-based cooling?
A: Heat dissipation relies on natural or forced air circulation across the cast coils and core. The resin’s thermal conductivity, combined with optimized airflow channels, ensures effective heat transfer. In higher-load scenarios, forced air cooling can be applied to maintain temperature rise within specified limits.

These operational characteristics simplify routine inspection and reduce maintenance frequency compared with liquid-filled alternatives, contributing to lower total cost of ownership.

How Are Epoxy Cast Transformers Shaping the Future of Electrical Infrastructure?

The evolution of electrical networks toward decentralization, electrification, and sustainability is influencing transformer design priorities. Epoxy Cast Transformers align closely with these trends due to their environmental compatibility and adaptability.

As renewable energy integration increases, transformers must handle variable loads and frequent switching operations. Resin-cast windings provide strong mechanical integrity, enabling them to withstand thermal cycling and transient stresses. In smart grid and urban infrastructure projects, the demand for compact, low-noise, and fire-safe equipment continues to rise, further supporting adoption of dry-type solutions.

Digital monitoring technologies are also being integrated into transformer systems. Temperature sensors, partial discharge monitoring, and online diagnostics can be incorporated into epoxy cast designs, supporting predictive maintenance strategies and improving grid reliability.

Within this context, DAYA has developed Epoxy Cast Transformers engineered to meet stringent performance and safety requirements across diverse applications. Through controlled manufacturing processes, standardized testing, and application-oriented design, DAYA products are positioned to support long-term, stable power distribution in both established and emerging markets.

For project planning, technical consultation, or customized transformer solutions, contact us to discuss specific application requirements and operational conditions. Our team is prepared to support system design, specification alignment, and lifecycle optimization for epoxy cast transformer installations.
