Article Summary:
Industrial dust problems can affect production efficiency, equipment lifespan, workplace cleanliness, and environmental compliance. A properly designed Cyclone Dust Collector provides an effective solution by using centrifugal force to separate dust particles from airflow before they enter downstream filtration systems. This article explains how cyclone dust collectors work, their major advantages, important selection factors, common application challenges, and maintenance methods. It also provides practical guidance for companies looking to improve dust control performance with reliable equipment from Botou Xintian Environmental Protection Equipment Co., Ltd.
1. What Is a Cyclone Dust Collector?
A Cyclone Dust Collector is an industrial dust separation device designed to remove solid particles from an airflow stream through centrifugal force. Unlike traditional filtration equipment that relies mainly on filter media, cyclone collectors use airflow movement and mechanical separation principles to capture larger and heavier dust particles.
The equipment is commonly used as a primary dust removal stage before finer filtration systems. By removing a significant amount of dust early in the process, it can reduce the workload placed on filters, improve system efficiency, and extend the service life of downstream equipment.
For industries that generate large quantities of dust during manufacturing, processing, or material handling, cyclone technology provides a practical and cost-effective approach to maintaining cleaner production environments.
Main Components of a Cyclone Dust Collector
- Inlet: Guides dusty air into the cyclone chamber at a controlled angle.
- Cyclone Body: Creates rotational airflow for particle separation.
- Dust Hopper: Collects separated particles for discharge.
- Outlet Pipe: Allows cleaner air to leave the system.
- Discharge System: Removes collected dust safely and continuously.
2. How Does a Cyclone Dust Collector Work?
The operating principle of a Cyclone Dust Collector is based on centrifugal separation. When dust-filled air enters the cyclone chamber, it begins to rotate rapidly. The heavier dust particles experience centrifugal force and move toward the outer wall of the collector.
As particles lose their upward airflow support, gravity causes them to fall into the collection hopper. Meanwhile, cleaner air moves upward through the central outlet and continues through the ventilation system.
The Dust Separation Process
| Stage | Process | Purpose |
|---|---|---|
| 1. Air Entry | Dust-containing air enters the cyclone chamber. | Creates controlled airflow movement. |
| 2. Spiral Rotation | Airflow rotates at high speed inside the chamber. | Generates centrifugal separation force. |
| 3. Particle Separation | Heavy particles move toward the cyclone wall. | Separates dust from air. |
| 4. Dust Collection | Separated particles drop into the hopper. | Allows convenient dust removal. |
| 5. Clean Air Discharge | Filtered air exits through the outlet. | Reduces dust concentration in the system. |
3. Why Choose a Cyclone Dust Collector?
Many industrial facilities face challenges such as high dust loads, frequent filter replacement, increasing maintenance costs, and unstable production conditions. A cyclone dust collector can help solve these problems when properly selected and installed.
1. Efficient Removal of Large Dust Particles
Cyclone collectors are particularly effective for separating larger and heavier particles. They can handle continuous dust generation without relying entirely on consumable filter elements.
2. Lower Maintenance Requirements
Because the separation process does not depend on filter bags or cartridges as the primary method, maintenance requirements can be reduced in many applications.
3. Improved Protection for Secondary Filters

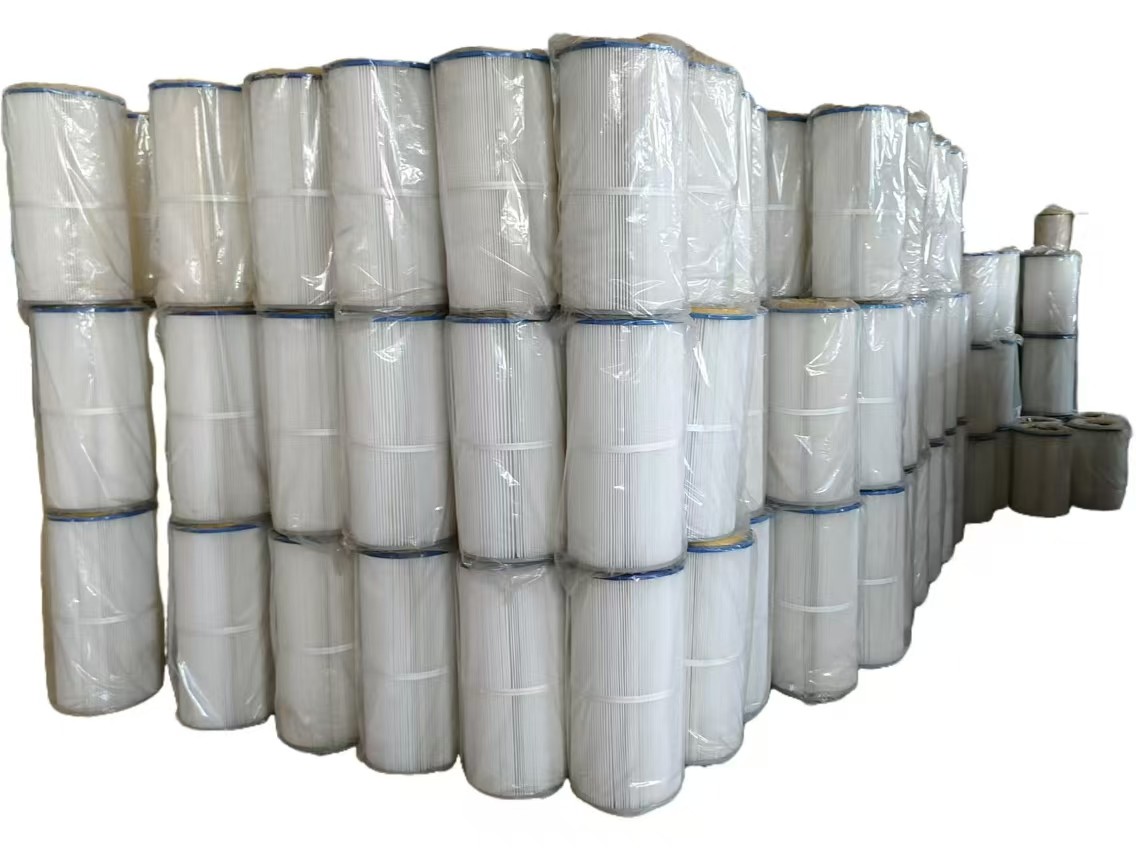

When used before a bag filter or cartridge filtration system, the cyclone collector removes much of the heavier dust load first. This helps reduce pressure buildup and extend filter replacement intervals.
4. Stable Performance in Continuous Operations
Industrial production lines often require equipment that can operate for long periods. Cyclone dust collectors are designed for continuous airflow conditions and can provide reliable dust separation when correctly configured.
4. Common Industrial Applications
Cyclone Dust Collectors are used across many industries where dust generation is a regular part of production processes.
| Industry | Typical Dust Sources |
|---|---|
| Wood Processing | Sawdust, wood chips, and cutting particles. |
| Metal Manufacturing | Grinding dust and machining particles. |
| Cement Industry | Mineral dust and powder materials. |
| Chemical Processing | Dry powders and production residues. |
| Food Processing | Grain dust and fine particles. |
| Mining Operations | Rock dust and mineral particles. |
The final equipment choice depends on dust characteristics, airflow requirements, temperature conditions, and production environment.
5. How to Select the Right Cyclone Dust Collector?
Choosing the correct cyclone dust collector requires more than selecting equipment based only on size. Several technical factors influence separation efficiency and operating stability.
Consider These Key Factors:
- Airflow Capacity: The collector must match the required ventilation volume.
- Dust Characteristics: Particle size, density, moisture, and abrasiveness affect performance.
- Operating Temperature: Materials should match the working environment.
- Installation Space: The equipment layout should allow proper airflow and maintenance access.
- Discharge Method: Dust removal systems should match production requirements.
Professional manufacturers can help evaluate these factors and recommend a suitable configuration according to actual working conditions.
6. Common Dust Collection Challenges and Solutions
| Challenge | Possible Cause | Solution |
|---|---|---|
| Low dust removal efficiency | Incorrect airflow design or unsuitable equipment size. | Review system parameters and optimize configuration. |
| Frequent blockage | High moisture dust or improper discharge. | Improve dust handling and operating conditions. |
| High energy consumption | Excessive resistance in the system. | Check airflow balance and equipment condition. |
| Dust leakage | Poor sealing or damaged components. | Inspect connections and replace worn parts. |
7. Maintenance Tips for Better Performance
Regular maintenance helps ensure stable operation and extends the service life of a Cyclone Dust Collector.
- Inspect the collector body regularly for wear caused by abrasive dust.
- Check inlet and outlet connections for air leakage.
- Remove accumulated dust from the hopper in time.
- Monitor airflow performance and unusual pressure changes.
- Replace damaged sealing components when necessary.
- Keep operation records to identify potential problems early.
A preventive maintenance plan is usually more effective than waiting until dust collection performance declines.
8. Frequently Asked Questions
Q1: What is the main purpose of a Cyclone Dust Collector?
Its main purpose is to separate dust particles from airflow using centrifugal force, reducing airborne dust and improving industrial ventilation performance.
Q2: Can a cyclone dust collector remove fine dust?
Cyclone collectors are generally more effective for larger particles. Fine dust applications may require additional filtration equipment depending on the required air quality level.
Q3: How long can a cyclone dust collector operate?
Service life depends on material quality, operating conditions, dust abrasiveness, maintenance practices, and installation quality.
Q4: Why is airflow calculation important?
Incorrect airflow can reduce separation efficiency or increase energy consumption. Proper system calculation helps ensure stable performance.
Q5: How can I choose a reliable supplier?
Select a supplier with manufacturing experience, technical support capability, and the ability to provide suitable solutions according to actual working conditions.
Improve Your Dust Control System with Botou Xintian Environmental Protection Equipment Co., Ltd.
A well-designed Cyclone Dust Collector can help industrial companies achieve better dust management, reduce maintenance pressure, and create a cleaner production environment. Selecting the right equipment requires professional evaluation of airflow, dust characteristics, installation conditions, and operating requirements.
Botou Xintian Environmental Protection Equipment Co., Ltd. provides reliable dust collection solutions designed for various industrial applications. If you need technical support, customized equipment recommendations, or detailed product information, please feel free to contact us for professional assistance.
