How Can a High Temperature and High Pressure Cone Dyeing Machine Improve Yarn Quality?
2026-10-29
A high temperature and high pressure cone dyeing machine is designed to dye yarn wound onto perforated cones or compatible package carriers inside a sealed vessel. By maintaining controlled high-temperature and pressurized conditions, the machine can support effective dye penetration, particularly for synthetic yarns that require elevated dyeing temperatures. However, consistent results depend on more than temperature and pressure alone. Package density, liquor circulation, dye formulation, heating and cooling profiles, and process control all influence final color quality. This guide explains the working principle, major components, practical advantages, selection criteria, operating considerations, and maintenance requirements of cone dyeing equipment. It also outlines the questions textile mills should ask when comparing machinery suppliers.
What Is a High Temperature and High Pressure Cone Dyeing Machine?
Yarn dyeing manufacturers must balance color consistency, production throughput, material compatibility, and processing cost. These challenges become especially important when producing synthetic yarns, multi-color orders, and products that require consistent shade reproduction between batches.

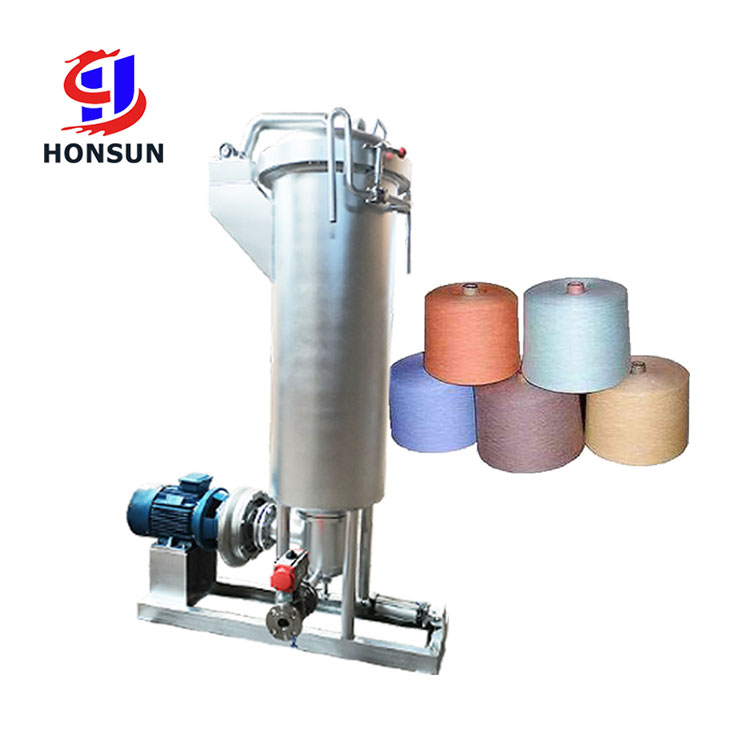

A High Temperature and High Pressure Cone Dyeing Machine is an industrial textile machine that dyes yarn packages under controlled thermal and pressure conditions. Yarn is wound onto perforated dyeing tubes or compatible package carriers, which are arranged on a spindle or carrier assembly inside a sealed pressure vessel.
During processing, dye liquor circulates through the yarn packages. The circulation system, heating equipment, and process controller work together to maintain the specified dyeing conditions. Depending on the yarn type, dye chemistry, and recipe, elevated temperatures can improve dye diffusion and help achieve the required shade within a practical production cycle.
Unlike equipment designed for loose fibers, hanks, or fabric, cone dyeing machinery is configured around yarn packages. The machine must distribute liquor effectively through each package while maintaining appropriate flow resistance and package stability.
How Does a High Temperature and High Pressure Cone Dyeing Machine Work?
The dyeing cycle generally follows a controlled sequence. Exact procedures vary according to the fiber, dye class, machine configuration, and approved production recipe.
Step 1: Prepare and Load Yarn Packages
Yarn is wound onto perforated cones or package tubes designed for the machine. Package hardness, winding density, dimensions, and weight should remain within the process specifications. The packages are then loaded onto the carrier or spindle assembly in the prescribed arrangement.
Step 2: Fill the Vessel and Prepare the Dye Liquor
The vessel is filled with the required amount of water and dyeing auxiliaries. Depending on the recipe and equipment, dyes and chemicals may be added through a dosing tank or auxiliary system. Accurate weighing, dissolution, and dosing help prevent concentration differences and unwanted color variation.
Step 3: Establish Controlled Liquor Circulation
A circulation pump moves dye liquor through the package assembly. In package dyeing, the liquid is commonly directed through the perforated package cores and across the yarn layers, with the precise flow path determined by the machine design. Some machines reverse the circulation direction periodically to improve distribution.
Step 4: Heat and Maintain Process Conditions
The heating system raises the bath temperature according to the programmed heating curve. The sealed vessel maintains the pressure required for operation above the atmospheric boiling point of water. For polyester yarn, high-temperature disperse dyeing may use temperatures around 130–140°C, subject to the dye system, machine limits, and approved recipe.
Step 5: Hold, Cool, and Complete the Dyeing Cycle
After the target conditions are reached, the dye bath is held for the required time. The system then follows a controlled cooling and pressure-release sequence before draining and rinsing, where required. Additional reduction clearing, washing, or finishing may be necessary depending on the fiber and dye chemistry.
Automated controllers can help operators repeat recipes, monitor temperature changes, and coordinate pumps, valves, and dosing equipment. Nevertheless, the recipe must be developed and validated for the specific yarn and color requirements.
Key Components and Their Functions
Understanding the major components helps buyers evaluate equipment capabilities and identify which features directly address their production needs.
| Component | Main Function | What Buyers Should Check |
|---|---|---|
| Pressure vessel | Contains the dye liquor and yarn packages under specified operating conditions. | Design rating, materials, fabrication quality, inspection records, and applicable pressure-vessel compliance. |
| Circulation pump | Moves dye liquor through the package assembly. | Flow capacity, head, control range, energy consumption, and serviceability. |
| Heat exchanger | Transfers heat into or out of the dye liquor. | Heating and cooling performance, maintenance access, and utility requirements. |
| Package carrier and spindles | Support and position yarn packages during processing. | Package compatibility, loading capacity, alignment, and liquor distribution. |
| Control system | Manages temperature profiles, circulation settings, timing, and process sequences. | Recipe storage, alarm functions, data records, and operator usability. |
| Valves and safety interlocks | Control liquid flow and help prevent unsafe operating sequences. | Correct installation, pressure protection, door-locking interlocks, and maintenance procedures. |
| Dosing and auxiliary tanks | Support controlled preparation and addition of dyes and chemicals. | Dosing accuracy, compatibility, cleaning access, and recipe integration. |
Specifications should be evaluated as a complete system. A powerful pump, for example, does not automatically guarantee better dyeing if package resistance, flow distribution, or control settings are unsuitable.
Major Benefits for Textile Manufacturers
Improved Dye Penetration for Suitable Synthetic Yarns
Elevated temperature can increase molecular mobility within suitable synthetic fibers and promote dye diffusion. When paired with an appropriate dye system and process recipe, high-temperature package dyeing can help achieve the required color depth and shade consistency.
More Consistent Batch Production
Controlled liquor circulation and programmable temperature profiles can reduce variation between production runs. This is particularly useful for mills that supply yarn to knitting, weaving, embroidery, and other downstream operations where shade differences may cause visible defects.
Efficient Package-Based Processing
Package dyeing allows yarn to be processed in a form that can subsequently move into downstream manufacturing. The appropriate machine capacity and carrier arrangement can help organize production according to order size, color grouping, and yarn specifications.
Repeatable Process Control
Programmable controls can store validated recipes and help operators follow defined heating, holding, and cooling stages. This reduces dependence on informal manual timing and makes it easier to investigate process deviations.
Potential Water and Energy Savings
A suitable liquor ratio, effective heat transfer, and an optimized production recipe can reduce resource use per kilogram of dyed yarn. Actual savings depend on the machine design, batch loading, starting water temperature, steam conditions, insulation, rinsing requirements, and production practices. Buyers should request comparable consumption data rather than assuming that every high-pressure machine is automatically more economical.
Which Yarns and Applications Are Suitable for Cone Dyeing?
High-temperature, high-pressure cone dyeing equipment is commonly used for yarn packages that require controlled liquor circulation. Suitability depends on the fiber composition, package dimensions, dye chemistry, and machine configuration.
- Polyester yarn: Often processed with disperse dyes under elevated-temperature conditions to achieve the required color depth and levelness.
- Nylon yarn: Can be processed using an appropriate dye system and carefully controlled conditions to meet shade and fastness requirements.
- Blended synthetic yarns: May require a tailored recipe that accounts for the different dyeing behavior of each fiber component.
- Industrial and technical yarns: May be suitable when package structure, material properties, and process requirements are compatible with the equipment.
- Specialty yarn orders: Small-lot or multi-color production may benefit from suitable batch sizing and programmable recipe control.
Not every fiber requires high-temperature, high-pressure processing. Cotton, wool, silk, acrylic, and other materials may need different dye systems or machine configurations. Before selecting equipment, confirm that the proposed machine and recipe are suitable for the exact fiber and intended end use.
Important Technical Parameters to Evaluate Before Buying
Comparing technical specifications helps buyers identify whether a machine can meet present production requirements and accommodate future demand.
| Parameter | Why It Matters | Questions to Ask |
|---|---|---|
| Nominal batch capacity | Determines the intended production load. | What is the rated yarn capacity, and how does loading affect the actual working batch? |
| Maximum working temperature | Defines the upper operating limit for compatible dyeing recipes. | Does the rating meet the required process temperature with an appropriate safety margin? |
| Working and design pressure | Determines the vessel's permitted operating conditions and design requirements. | Are the working limit, design rating, testing documentation, and applicable approvals clearly specified? |
| Liquor ratio | Influences water use, chemical concentration, and heating demand. | What ratio is achievable for the actual yarn, package arrangement, and process? |
| Heating and cooling rates | Influence cycle time, dye uptake, and process stability. | Under what steam pressure, cooling-water conditions, and batch load are the rates measured? |
| Circulation performance | Affects liquor distribution through yarn packages. | Can the system accommodate different package densities and yarn specifications? |
| Automation and utilities | Influence labor requirements, process repeatability, and installation costs. | What control functions, electrical supply, steam, water, drainage, and compressed air are required? |
For reference, some industrial cone dyeing machines are designed for temperatures around 135–140°C, while working-pressure ratings and liquor ratios vary by model. These figures are examples of common equipment ranges, not universal requirements. Always confirm the selected machine's official specifications and the conditions under which performance is guaranteed.
How to Improve Dyeing Uniformity and Reduce Rework
Uneven shades, package-to-package variation, and inconsistent color depth can lead to re-dyeing, wasted chemicals, delayed deliveries, and rejected orders. The following practices help mills investigate common causes.
Standardize Package Winding
Package density and winding hardness influence liquor resistance. Packages that are too dense may restrict penetration, while loose or inconsistent winding can cause flow irregularities and deformation. Establish winding specifications and verify package weights and dimensions before loading.
Optimize Liquor Flow
Review pump settings, circulation direction, filter cleanliness, and the loading arrangement. If the machine supports flow reversal, validate the reversal schedule for the yarn and package configuration. Avoid making arbitrary flow adjustments without checking their effect on package integrity and shade consistency.
Use a Controlled Heating Curve
Heating rate affects dye uptake and migration. A validated temperature profile can help the dye distribute more evenly before the final shade develops. The correct curve depends on the dye formulation, fiber type, package dimensions, and production objectives.
Improve Dye Preparation and Dosing
Ensure dyes and auxiliaries are prepared consistently, dissolved appropriately, and introduced according to the approved procedure. Check dosing accuracy and the timing of additions, particularly when reproducing sensitive shades or running large batches.
Record Results and Investigate Deviations
Record batch weight, yarn lot, recipe, temperature history, circulation settings, and final color evaluation. When defects appear, compare affected batches with successful reference runs to identify whether the cause is related to raw materials, package preparation, equipment performance, or process control.
How to Control Operating Costs Without Compromising Quality
The purchase price is only one part of the total cost of ownership. Steam consumption, electricity, water, chemicals, maintenance, labor, and re-dyeing all affect the long-term economics of a cone dyeing machine.
Match Capacity to Actual Production
An oversized machine can operate inefficiently when batches are consistently underloaded. An undersized machine may require more production cycles and increase scheduling pressure. Compare typical order sizes, daily throughput, color changes, and peak production requirements before choosing a capacity.
Optimize the Liquor Ratio
Lower liquor ratios can reduce the volume of water that needs to be heated, but the lowest possible ratio is not automatically the best setting. Sufficient liquor movement and stable dye concentration must be maintained to protect color uniformity and product quality.
Improve Heat Management
Check insulation, steam-trap performance, heat exchanger condition, and the consistency of the utility supply. Track energy use across comparable batches to determine whether equipment adjustments produce measurable improvements.
Reduce Re-Dyeing and Downtime
Consistent winding, accurate dosing, preventative maintenance, and well-documented recipes can help reduce defects and unplanned stoppages. Even a modest improvement in first-pass quality may have a meaningful impact when production volumes are high.
Calculate the Total Cost of Ownership
Compare purchase cost alongside installation, utilities, spare parts, operator training, maintenance, expected production output, and after-sales support. Ask suppliers to state the assumptions behind any claimed savings and evaluate them against your own production conditions.
How to Choose the Right Cone Dyeing Machine Manufacturer
Selecting a supplier is a technical and commercial decision. A suitable manufacturer should understand the intended yarn applications and clearly explain the equipment's capabilities, limitations, and operating requirements.
1. Verify Relevant Product Experience
Ask for machine configurations and application references relevant to your yarn types and package sizes. A supplier experienced with comparable production requirements is better positioned to discuss circulation, loading, and process-control considerations.
2. Review Technical Documentation
Request a detailed specification sheet, equipment layout, utility requirements, operating limits, safety features, and maintenance instructions. Verify pressure-vessel documentation and compliance requirements applicable to the installation country.
3. Request a Trial or Sample Evaluation
Where practical, discuss a dyeing trial using representative yarn, target colors, and production recipes. Agree on the evaluation criteria in advance, including shade difference, color uniformity, package condition, and relevant fastness requirements.
4. Assess Automation and Future Expansion
Consider whether the control system can support recipe storage, production records, alarms, and the desired level of process automation. If production is expected to expand, check whether additional carriers, compatible models, or plant utility capacity will be needed.
5. Confirm After-Sales Support
Clarify commissioning, installation guidance, spare-parts availability, training, troubleshooting arrangements, and warranty terms. A clear support plan can reduce uncertainty when equipment is introduced into an existing production line.
Shishi Hongshun Printing and Dyeing Machinery Co., Ltd. can be included in your supplier evaluation when sourcing textile dyeing machinery. Buyers should communicate their yarn types, required batch capacity, process temperatures, production targets, and installation conditions to determine which equipment configuration is appropriate. Confirm model-specific specifications, delivery terms, and available technical support directly with the company.
Maintenance Practices That Help Protect Machine Performance
Preventative maintenance helps maintain stable process conditions and reduces the risk of avoidable downtime. The manufacturer's maintenance schedule and applicable safety procedures must always take priority.
Inspect the Circulation System
Check pumps, seals, filters, valves, and circulation lines according to the maintenance schedule. Investigate unusual noise, leakage, unstable flow, or changes in pump performance before they affect production.
Monitor Heating and Cooling Performance
Review temperature sensor readings, heat exchanger condition, steam supply, and cooling-water performance. Slow heating or cooling may result from utility limitations, fouling, control problems, or changes in batch conditions.
Maintain Pressure Protection Devices
Pressure vessels and associated protection systems require appropriate inspection, testing, and servicing. Only qualified personnel should carry out work on pressure protection devices or pressure-containing components.
Keep the Control System Reliable
Inspect sensors, alarms, electrical connections, and control records. Maintain authorized backups of recipes and configuration data where supported. Investigate recurring alarms instead of repeatedly resetting them without identifying the cause.
Clean and Inspect Package Carriers
Remove dye residues using approved cleaning procedures and inspect package tubes, spindles, and carrier assemblies for damage or blockage. Consistent carrier condition supports predictable package loading and liquor distribution.
Safety reminder: Never open a pressurized vessel or bypass an interlock. Follow the manufacturer's isolation, depressurization, cooling, and lockout procedures before maintenance.
What Should Buyers Confirm Before Placing an Equipment Order?
Use this checklist to organize supplier discussions and reduce the risk of mismatched specifications.
- Confirm fiber types, yarn counts, package dimensions, and typical batch weights.
- Define the target colors, shade tolerance, and production quality requirements.
- Verify rated capacity, working temperature, working pressure, and design limits.
- Review liquor ratio, pump performance, circulation options, and heating and cooling data.
- Confirm control functions, recipe management, alarms, and production records.
- Obtain utility requirements for steam, electricity, water, drainage, and any auxiliary systems.
- Request equipment drawings, foundation details, installation requirements, and safety documentation.
- Clarify machine price, shipping, installation, commissioning, training, and spare-parts costs.
- Agree on inspection procedures, acceptance criteria, delivery schedule, and warranty conditions.
- Confirm local regulatory requirements and the availability of technical support.
Comparing suppliers against the same checklist makes quotations easier to evaluate. It also helps ensure that the selected machine is suited to the actual production process rather than chosen solely on capacity or purchase price.
Frequently Asked Questions About High Temperature and High Pressure Cone Dyeing Machines
1. What is the main purpose of a high temperature and high pressure cone dyeing machine?
Its main purpose is to dye yarn wound into packages under controlled temperature, pressure, and liquor-circulation conditions. It is commonly used when the yarn and dye system require package-based processing at elevated temperatures.
2. Which yarns can be processed in a cone dyeing machine?
Depending on the model and process, suitable materials may include polyester, nylon, and selected blended or specialty yarns. Buyers should confirm compatibility with the fiber composition, package construction, dye chemistry, and required finishing process.
3. What operating temperature is commonly used?
Some high-temperature synthetic yarn dyeing processes operate around 130–140°C. The appropriate temperature depends on the yarn, dye formulation, process recipe, and the machine's approved operating limits. The maximum rated temperature should never be treated as the required setting for every batch.
4. How does a cone dyeing machine improve color uniformity?
Uniformity depends on consistent package winding, effective liquor circulation, appropriate flow reversal where available, controlled heating, accurate dye dosing, and a validated recipe. Machine design and operator practices both influence the final result.
5. What is the liquor ratio, and why does it matter?
The liquor ratio expresses the relationship between the quantity of dye liquor and the mass of material being processed, commonly by mass. It influences water and heating demand, chemical concentration, and circulation requirements. The correct ratio must be validated for the equipment and recipe.
6. Does a higher machine capacity always mean better productivity?
No. Productivity depends on actual loading, cycle duration, shade changes, utility availability, loading and unloading time, and first-pass quality. Select capacity based on realistic production data and expected future demand.
7. What causes uneven dyeing in yarn packages?
Common causes include inconsistent package density, restricted or uneven liquor flow, incorrect dye preparation, inappropriate heating curves, unsuitable dosing sequences, and differences in incoming yarn. Reviewing process records and testing representative packages can help identify the source.
8. What information should be provided when requesting a quotation?
Provide yarn type, yarn count, batch capacity, package dimensions, target temperature, required liquor ratio, production volume, available utilities, and destination country. These details help the supplier recommend a suitable configuration and prepare a more accurate quotation.
9. What safety features should buyers evaluate?
Review pressure protection, vessel and door interlocks, temperature and pressure monitoring, alarms, emergency procedures, and the required inspection documentation. Confirm that the machine meets applicable regulations and that operators receive suitable training.
10. How can buyers evaluate Shishi Hongshun Printing and Dyeing Machinery Co., Ltd.?
Start by sharing your production requirements and requesting the relevant model specifications, equipment configuration, utility data, safety documentation, warranty terms, and after-sales support details. Where practical, evaluate a trial using representative yarn and agreed quality criteria before finalizing the purchase.
Looking for a Reliable Cone Dyeing Machine for Your Textile Production?
Choosing the right high temperature and high pressure cone dyeing machine starts with understanding your yarn specifications, required batch capacity, dyeing conditions, and production targets.
Shishi Hongshun Printing and Dyeing Machinery Co., Ltd. can be part of your sourcing evaluation. Contact the company to discuss your application, request technical specifications, and clarify suitable equipment configurations, quotation details, and service arrangements.
Whether you are upgrading existing dyeing equipment or planning a new production line, a clear technical discussion can help you make a more informed investment.
