How Can You Determine the Right Steel Structure Lifting Tool Configuration for Complex Steel Frame Installations

Selecting the optimal Steel Structure Lifting Tools configuration for intricate steel frame installations requires balancing engineering precision, load dynamics, and site-specific constraints. At Liweiyuan, we have seen how mismatched configurations lead to delays, safety risks, and cost overruns. This guide walks through a professional framework for making the right choice.

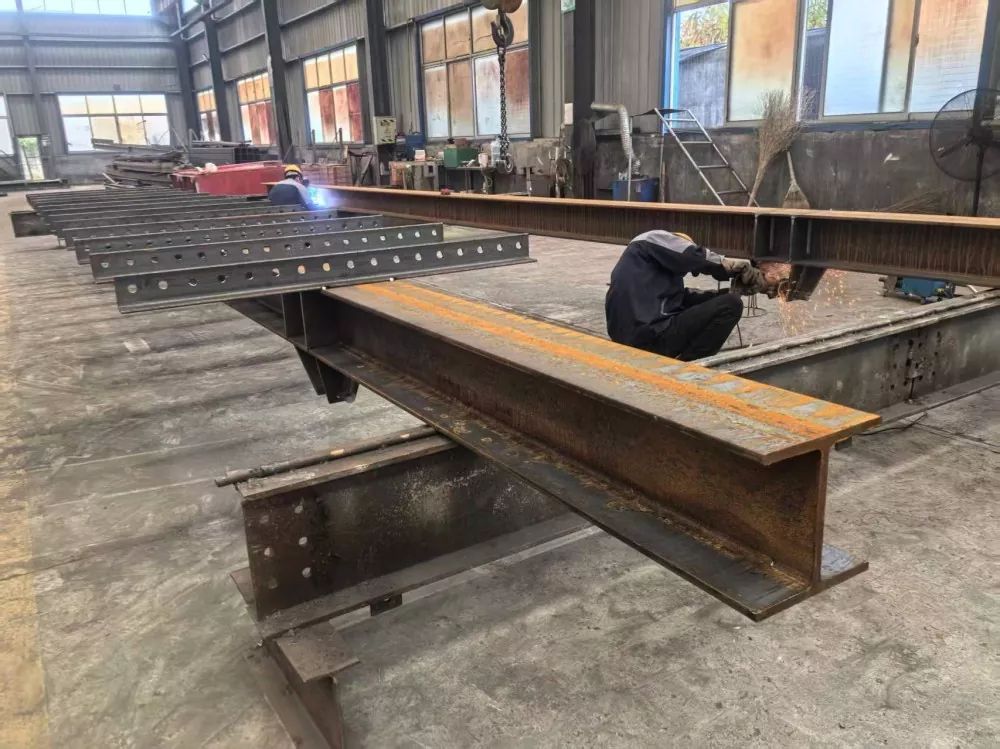

Step 1: Analyze Load Characteristics and Geometry

Every complex steel frame presents unique weight distribution, center of gravity, and connection point challenges. Start by calculating total load, including dynamic amplification factors. Determine whether the lift requires spreader beams, lifting lugs, or custom clamps.

Step 2: Match Tooling to Installation Sequence

Multi-story or asymmetrical frames often need staged configurations. For example, initial columns may require different Steel Structure Lifting Tools than later truss sections. Create a lift sequence matrix as shown below.

Step 3: Incorporate Safety and Control Features

For complex geometries, passive tools are insufficient. Use Steel Structure Lifting Tools with integrated load indicators, remote release hooks, or hydraulic equalizers. Liweiyuan offers configurable systems where lifting points adjust to shifting COG in real time.

Step 4: Validate Through Rigging Simulation

Run a 3D lift study or use manufacturer load charts. Verify sling angles, hook clearances, and interference with existing structure. Document every variable.

Steel Structure Lifting Tools FAQ

Q1: What happens if the lifting point configuration does not match the steel frame’s center of gravity?

A: If the lifting point arrangement does not align with the steel frame’s actual center of gravity, the load will tilt or rotate uncontrollably during hoisting. This causes dangerous swings, uneven stress on connections, and potential collapse of the steel member. In complex installations, a misaligned COG can exceed the rated side-load capacity of the crane hook or the Steel Structure Lifting Tools themselves. To prevent this, use adjustable spreader beams or multi-leg slings with dedicated load cells. Liweiyuan engineers always recommend a dynamic COG calculation before finalizing the lifting lug layout.

Q2: How do you choose between fixed and adjustable steel structure lifting tools for irregular frame geometries?

A: Fixed Steel Structure Lifting Tools such as standard spreader bars work only when the pick points are symmetrical and the frame section has uniform stiffness. For irregular geometries – tapered columns, curved trusses, or cut-up floor frames – adjustable tools are mandatory. Adjustable configurations allow you to reposition sling attachment points along the beam or frame axis, compensating for asymmetry. Liweiyuan adjustable lifting beams offer incremental positioning holes and optional hydraulic equalizers, ensuring each leg carries proportional load. A fixed tool on an irregular shape risks overload on one corner and underload on another, leading to member bending.

Q3: Can the same steel structure lifting tool configuration be reused across different complex steel frame zones on one project?

A: Rarely without modification. While basic components like shackles or master links can be reused, the full Steel Structure Lifting Tools configuration – meaning the number of lift points, beam length, sling angles, and attachment type – often changes between zones. For example, a tight core column zone may need compact swivel hooks, while an open atrium zone may require long-span lifting frames. Reusing an identical configuration risks clearance issues or imbalanced loads. Liweiyuan recommends zone-specific lift plans and modular tool systems where only the necessary modules (beam extensions, corner brackets) are swapped. Always re-certify the new configuration with a revised load test.

Best Practices for Complex Installations

• Use color-coded rigging for multi-point lifts

• Install load monitoring on every leg when using Steel Structure Lifting Tools for skewed frames

• Train operators on frame-specific tilt limits

• Partner with a supplier like Liweiyuan that provides engineering support for non-standard configurations

Final Checklist Before Lifting

Contact Us

Choosing the right Steel Structure Lifting Tools configuration for complex steel frame installations directly impacts your project’s safety and timeline. Liweiyuan provides engineering-led configuration support, custom lifting beams, and on-site troubleshooting. Contact our technical team today with your frame drawings for a free configuration assessment.
