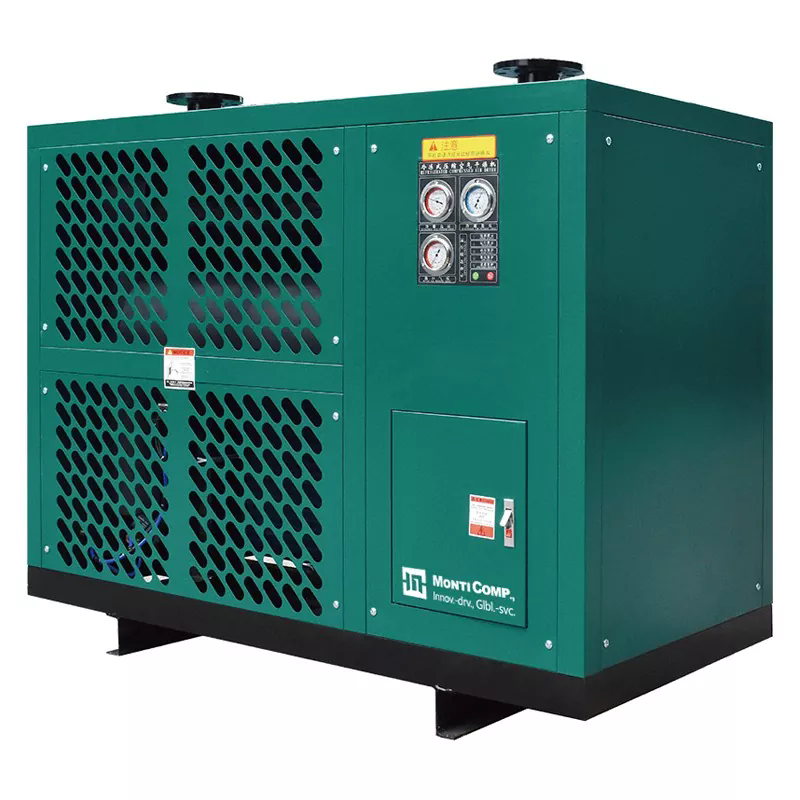

How Does a Refrigerated Air Dryer Work?

Abstract

A Refrigerated Air Dryer is an essential component in compressed air systems, designed to remove moisture and prevent damage to pneumatic equipment, pipelines, and production processes. Excess humidity in compressed air can lead to corrosion, product contamination, equipment failure, and increased maintenance costs. This article explains how refrigerated air dryers work, their core components, benefits, applications, selection criteria, and maintenance practices. It is designed to help industrial users, engineers, and procurement specialists make informed decisions when choosing a reliable air treatment solution.

Table of Contents

• Outline
• Working Principle of Refrigerated Air Dryer
• Key Components
• Benefits in Industrial Applications
• Typical Applications
• How to Choose the Right Dryer
• Maintenance Guidelines
• Comparison Table
• FAQ

Outline

This article provides a structured explanation of refrigerated air dryers, starting from the basic operating principle and moving through system components, industrial advantages, selection factors, and maintenance practices. A comparison table and FAQ section are included to address common user concerns and decision-making challenges.

Working Principle of Refrigerated Air Dryer

A refrigerated air dryer operates on a simple yet highly effective principle: cooling compressed air to condense moisture and then removing it from the system. Compressed air coming from the compressor is typically hot and saturated with water vapor. If left untreated, this moisture can cause severe operational issues.

The process typically follows four stages:

• Pre-cooling: Hot compressed air enters the air-to-air heat exchanger, where it is partially cooled.
• Refrigeration phase: The air is further cooled by a refrigerant system to near freezing temperatures (typically 2–5°C).
• Condensation: Water vapor condenses into liquid form as temperature drops below the dew point.
• Separation and drainage: The condensed water is separated and automatically drained from the system.

After moisture removal, the air is reheated slightly to prevent condensation in downstream pipelines.

Key Components

• Refrigeration Compressor: Drives the cooling cycle by compressing refrigerant gas.
• Heat Exchanger: Facilitates heat transfer between incoming air and cooled air.
• Evaporator: Lowers air temperature to condense moisture.
• Separator: Removes condensed water from compressed air.
• Automatic Drain Valve: Discharges collected moisture efficiently.
• Control System: Monitors temperature, pressure, and system performance.

Benefits in Industrial Applications

Installing a refrigerated air dryer significantly improves compressed air quality and system reliability. Key benefits include:

• Prevents corrosion in pipelines and machinery
• Reduces downtime caused by moisture-related failures
• Improves product quality in manufacturing processes
• Extends lifespan of pneumatic tools and equipment
• Ensures stable and consistent air quality

Industries such as automotive manufacturing, food processing, electronics, and pharmaceuticals rely heavily on dry compressed air to maintain product integrity and operational efficiency.

Typical Applications

Refrigerated air dryers are widely used across multiple industries. Common applications include:

• Compressed air systems in manufacturing plants
• Packaging and bottling lines
• Medical and laboratory air systems
• Automotive paint spraying systems
• Food and beverage production lines
• Electronics assembly facilities

How to Choose the Right Dryer

Selecting the right refrigerated air dryer requires careful consideration of system requirements and operating conditions. Key factors include:

• Airflow capacity: Match dryer capacity with compressor output.
• Dew point requirement: Lower dew points are needed for sensitive applications.
• Operating environment: Ambient temperature affects cooling efficiency.
• Energy efficiency: Modern systems reduce operating costs significantly.
• Maintenance accessibility: Easy servicing reduces downtime.

Companies like Dream provide advanced refrigerated air dryer solutions designed for stable performance under varying industrial conditions.

Maintenance Guidelines

Proper maintenance ensures long-term efficiency and reliability of refrigerated air dryers. Recommended practices include:

• Regular inspection of condensate drains
• Cleaning heat exchanger surfaces
• Monitoring refrigerant pressure levels
• Checking for air leaks in the system
• Replacing filters as needed

Preventive maintenance not only reduces operational failures but also improves energy efficiency and system lifespan.

Comparison Table: Refrigerated vs Desiccant Air Dryers

FAQ

What is the main purpose of a refrigerated air dryer?
It removes moisture from compressed air to protect equipment and improve process reliability.

Can refrigerated air dryers remove all moisture?
They remove most moisture effectively but are not designed for ultra-low dew point requirements.

How often should maintenance be performed?
Routine checks should be performed monthly, with deeper servicing every 6–12 months depending on usage.

Is installation complicated?
No, most systems are designed for easy integration into existing compressed air lines.

What industries benefit most?
Manufacturing, food processing, pharmaceuticals, automotive, and electronics industries benefit significantly.

Conclusion

A refrigerated air dryer is a critical investment for any compressed air system where moisture control is essential. By understanding its working principle, components, and maintenance requirements, businesses can significantly improve operational reliability and reduce long-term costs.

The engineering solutions provided by Dream ensure high performance, durability, and efficiency for modern industrial environments. Whether you are upgrading an existing system or designing a new one, selecting the right air dryer is essential for optimal productivity.
