How Does a Spray Coating Insulation Pipe Production Line Improve Pipe Manufacturing?

In modern pipeline projects, thermal insulation is not simply an additional layer—it is an important part of maintaining temperature stability, protecting pipelines, and improving long-term operating efficiency. For manufacturers producing prefabricated insulated pipes, the challenge is to achieve consistent coating thickness, strong adhesion, high production efficiency, and reliable finished-pipe quality at the same time. A Spray Coating Insulation Pipe Production Line integrates multiple processing stages into a coordinated manufacturing system, helping manufacturers create insulated pipes with more consistent performance while reducing manual operations. Qingdao Comrise Machinery Co., Ltd. provides production-line solutions designed around automation, stable processing, and efficient pipe manufacturing. Its product information highlights intelligent and automated operation, manpower savings, energy efficiency, high yield, and low scrap rates.

What Is a Spray Coating Insulation Pipe Production Line?

A Spray Coating Insulation Pipe Production Line is an integrated equipment system used to apply insulating material to the external surface of pipes and complete subsequent protective-layer processing. In typical polyurethane-insulated pipe production, the workflow can include surface cleaning, preheating, polyurethane spraying, curing, protective-layer application, cooling, and pipe-end treatment.

The basic production sequence can be summarized as:

Steel Pipe Preparation → Surface Cleaning → Preheating → Insulation Spraying → Foam Curing → Protective Layer → Cooling → Pipe-End Finishing

This integrated approach is particularly suitable for prefabricated thermal-insulation pipes used in heating networks, district energy systems, industrial pipelines, and other applications where heat retention and pipeline protection are important.

Technical references for comparable production systems describe processes involving polyurethane spraying followed by curing and polyethylene protective-layer winding.

Why Is the Production Process Important?

The quality of an insulated pipe depends on more than the insulation material itself. Surface preparation, spraying consistency, curing conditions, and protective-layer formation can all influence the final result.

1. Surface Preparation

Before insulation is applied, the steel pipe surface needs to be properly prepared. Removing rust, scale, dust, and other contaminants can help create a cleaner surface for subsequent coating.

For polyurethane insulation systems, published technical processes commonly include surface cleaning and preheating before spraying.

2. Controlled Insulation Spraying

The spraying stage determines how evenly the insulation material covers the pipe. Controlled pipe movement, spray position, material flow, and processing speed help produce a more uniform insulation layer.

A stable coating process can reduce problems such as uneven thickness, excessive material consumption, and localized weak areas.

3. Curing and Stabilization

After spraying, polyurethane foam requires appropriate curing before the next processing stage. An organized curing area helps maintain production continuity and provides sufficient time for the insulation layer to stabilize.

4. Protective Layer Application

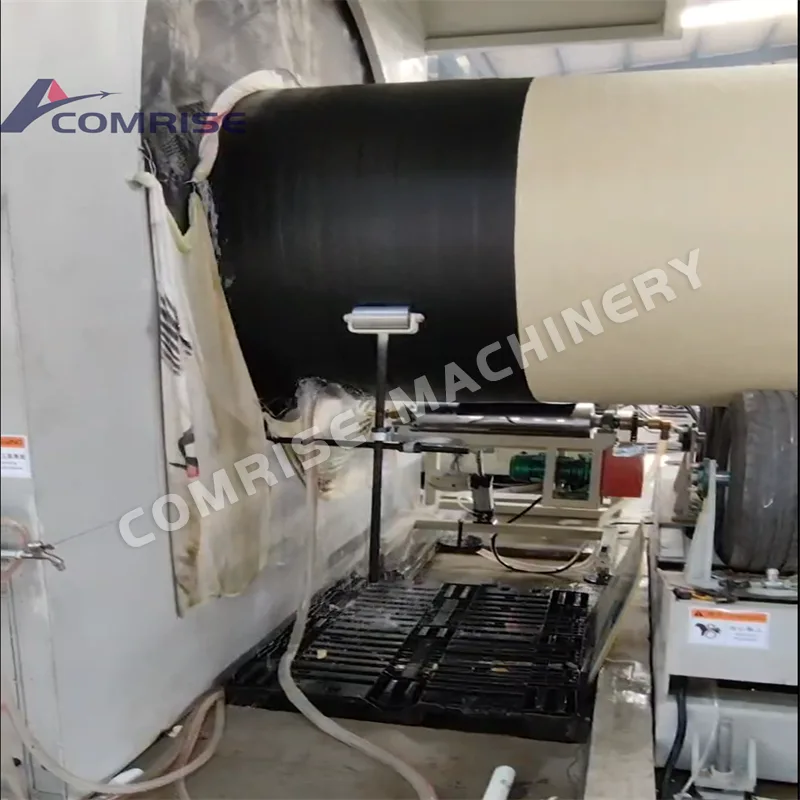

The insulation layer may require an external protective layer to improve resistance against mechanical damage, moisture, and environmental exposure. In many production systems, polyethylene is applied after the polyurethane insulation layer has cured.

How Does Automation Improve Production Efficiency?

Automation is one of the major advantages of an integrated Spray Coating Insulation Pipe Production Line.

Instead of relying heavily on workers to move, rotate, spray, and process pipes manually, coordinated conveying and control systems can connect different production stages. This can improve workflow consistency and reduce unnecessary handling.

For manufacturers handling different pipe specifications, equipment flexibility is also important. Some spray-and-winding systems are designed with different processing routes for smaller and larger diameter pipes, allowing the production method to be adapted to pipe size.

Where Can Insulated Pipes Be Used?

Insulated pipes are widely associated with systems where controlling heat transfer is essential.

Typical applications include:

• District heating pipelines

• Hot-water transportation systems

• Industrial thermal pipelines

• Energy infrastructure

• Heating and cooling networks

• Underground utility pipelines

• Prefabricated thermal-insulation pipe projects

The main purpose is to reduce unwanted heat transfer between the transported medium and the surrounding environment. For hot-water and heating applications, effective insulation can help maintain operating temperature and reduce energy losses along the pipeline.

What Results Can Manufacturers Expect?

When a production line is properly configured and operated, manufacturers can pursue several practical improvements:

More Consistent Insulation:
Automated spraying and controlled pipe movement can help maintain more consistent coating coverage.

Higher Production Efficiency:
Connected processing stages reduce repeated manual transportation and handling.

Lower Labor Requirements:
Automation can reduce the amount of repetitive work required from operators.

Reduced Material Waste:
Stable spraying and processing parameters can help manufacturers better control material consumption and reduce defective products.

Improved Finished-Pipe Quality:
A controlled sequence from preparation to protective-layer processing creates a more standardized manufacturing environment.

Qingdao Comrise Machinery Co., Ltd. positions its spray coating insulation pipe equipment around a high degree of intelligence and automation, with stated benefits including manpower savings, energy savings, reduced production costs, high yield, and low scrap rates.

How Should Buyers Evaluate the Equipment?

Choosing an insulation pipe production line requires more than looking at the machine price. Buyers should consider the entire production process and whether the equipment matches their products and manufacturing targets.

Important factors include:

1. Applicable pipe diameter range – The line should accommodate the manufacturer's target pipe specifications.

2. Insulation material compatibility – The spraying system should be designed for the intended insulation material.

3. Coating uniformity – Stable spraying and pipe rotation are important for consistent insulation.

4. Automation level – Automatic conveying and control can improve production consistency.

5. Production capacity – The line should match expected order volume.

6. Protective-layer processing – Consider whether the system includes downstream wrapping, extrusion, cooling, or finishing.

7. Maintenance and service – Easy maintenance and technical support can influence long-term operating efficiency.

For example, comparable polyurethane spray-insulation systems can combine shot blasting, heating, polyurethane spraying, protective-layer processing, pipe-end trimming, conveying equipment, and electrical control systems into one production solution.

Why Choose Qingdao Comrise Machinery Co., Ltd.?

For pipe machinery manufacturers and industrial buyers, equipment integration can be just as important as individual machine performance. Qingdao Comrise Machinery Co., Ltd. develops plastic pipe and pipe-processing machinery and offers a Spray Coating Insulation Pipe Production Line featuring automated production capabilities.

The company's equipment portfolio also includes other pipe production solutions, demonstrating its focus on extrusion, forming, conveying, cooling, cutting, and automated pipe manufacturing technologies.

For customers looking to establish or upgrade an insulated pipe manufacturing facility, an integrated solution can provide a clearer production workflow from raw pipe preparation to finished product handling.

The Role of a Modern Insulation Pipe Production Line

A modern Spray Coating Insulation Pipe Production Line does more than spray insulation onto a pipe. It connects preparation, coating, curing, protection, cooling, and finishing into an organized manufacturing process.

This is particularly valuable for manufacturers that need repeatable quality and stable production across larger order volumes. With appropriate equipment configuration, automation can help reduce repetitive labor, improve production coordination, control material use, and create a more standardized manufacturing environment.

As demand for efficient thermal management and prefabricated pipeline systems continues to develop, reliable insulation-pipe manufacturing equipment can become an important part of a manufacturer's production strategy.

Conclusion

A high-quality Spray Coating Insulation Pipe Production Line can help manufacturers move from individual processing steps toward a more coordinated and efficient production system. From surface preparation and polyurethane spraying to curing, protective-layer application, cooling, and finishing, each stage contributes to the performance and reliability of the final insulated pipe.

Qingdao Comrise Machinery Co., Ltd. combines automation-focused pipe machinery technology with production-line integration to support manufacturers seeking efficient and stable insulation pipe production. If you are planning a new insulated pipe manufacturing project, upgrading existing equipment, or looking for a customized production solution, contact us to discuss your pipe specifications, production requirements, and equipment configuration.
