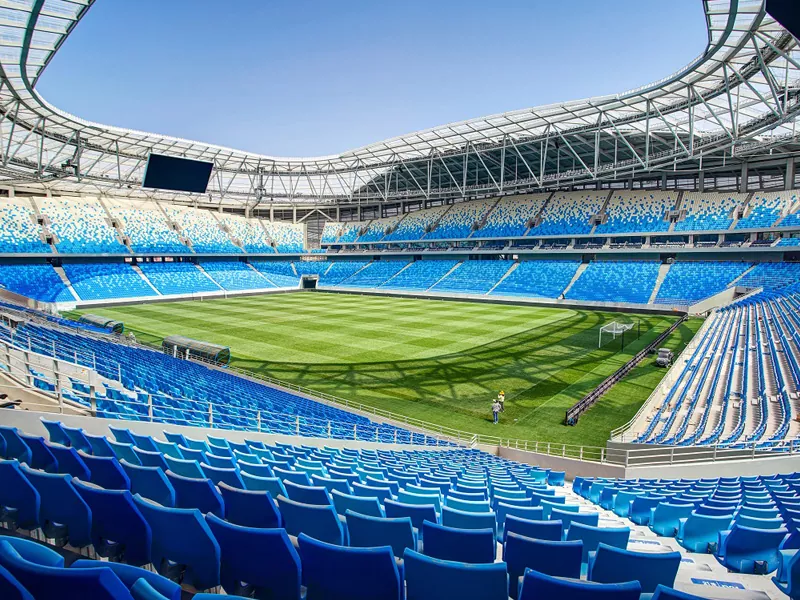

How Does a Steel Structure Football Stadium Enhance Fan Experience Through Sightlines and Acoustics
2026-04-22
A Steel Structure Football Stadium transforms live sports into an unforgettable event. The choice of material directly shapes how fans see the pitch and hear the roar of the crowd. EIHE STEEL STRUCTURE specializes in designing venues where every seat feels like the best in the house.
Sightlines: Unobstructed Views Through Intelligent Design
Steel’s high strength-to-weight ratio allows for longer spans with fewer columns. This eliminates visual barriers that plague concrete stadiums. The result is a bowl-shaped seating arrangement where each row is optimally staggered. Sightline calculations follow the C-value method—the vertical distance between a spectator’s eye and the head of the person directly in front. EIHE STEEL STRUCTURE uses parametric modeling to set C-values above 120mm for lower tiers and 150mm for upper tiers, ensuring clear sightlines to the far touchline.
Acoustics: Engineering the Perfect Sound Wave
Steel structures manage sound through two key mechanisms: reflection and absorption. The roof and rear walls are clad with micro-perforated steel panels that reflect crowd noise back onto the field while absorbing echoes. This creates a "cauldron effect." Studies show that a properly designed Steel Structure Football Stadium can amplify sustained crowd noise by 10-15 decibels compared to open-air concrete arenas. Steel’s rigidity prevents vibration loss, keeping the low-frequency thump of drums and chants intact.
Comparative Benefits of Steel Over Concrete
| Feature | Steel Structure Stadium | Concrete Stadium |
|---|---|---|
| Column-free span | Up to 160 meters | 60-80 meters |
| Acoustic tuning | Adjustable perforated panels | Fixed, often echoes |
| Sightline flexibility | Steep raking possible | Limited by heavy structure |
| Construction speed | 30% faster erection | Slower curing time |
Core Acoustic & Vision Metrics
| Parameter | Target Value | Steel Contribution |
|---|---|---|
| Reverberation time (occupied) | 1.8–2.2 seconds | Controlled via panel perforation |
| Background noise (NC rating) | NC-25 to NC-30 | Rigid joints prevent rattling |
| Sightline C-value (lower tier) | ≥120mm | Achieved via slender steel rakers |
| Sightline C-value (upper tier) | ≥150mm | Enabled by long-span trusses |
Steel Structure Football Stadium FAQ
What specific steel component most affects sightlines in a football stadium?
The primary raker beam that supports each seating tier is the most critical component. In a Steel Structure Football Stadium, raker beams are fabricated as tapered box sections that allow seating rows to be stacked more steeply. This steep rake directly improves the C-value. EIHE STEEL STRUCTURE optimizes raker geometry using finite element analysis to balance structural depth with maximum line-of-sight clearance. A poorly designed raker forces seat rows to be shallower, leading to heads blocking the view.
How does steel prevent acoustic dead zones behind goalposts?
Steel roof structures can support suspended acoustic clouds—perforated metal panels filled with sound-absorbing mineral wool. These clouds are positioned above the goal ends to trap low-frequency sound that would otherwise escape. Without steel’s load capacity, concrete roofs cannot safely suspend enough acoustic treatment. EIHE STEEL STRUCTURE integrates these clouds into the primary truss system, cutting reverberation behind goals from 3.5 seconds to under 2.0 seconds, which keeps chants crisp even in end-zone seats.
Can a steel stadium’s sightlines be upgraded after construction?
Yes, and steel makes it feasible. The bolted connections in a Steel Structure Football Stadium allow selective replacement of raker beams and stair stringers. EIHE STEEL STRUCTURE designs with future re-raking in mind, using standardized bolt patterns. Concrete stadiums would require demolition. For example, replacing every fifth raker beam with a deeper section can increase C-values by 20mm across an entire tier, adapting the stadium to new broadcasting camera positions or accessibility standards.
Conclusion
From the steepest upper deck to the clearest drum beat, a Steel Structure Football Stadium engineered by EIHE STEEL STRUCTURE delivers measurable improvements in both vision and sound. The data confirms it: fewer columns, controlled acoustics, and adjustable sightlines put fans closer to the action.
