How Does a Type C No-Cylinder Wax Injection Machine Improve Precision Casting?

In investment casting, the quality of the wax pattern directly affects the accuracy, surface quality, and consistency of the final metal casting. For manufacturers producing complex or precision components, the wax injection stage therefore requires stable temperature control, reliable injection pressure, accurate mold clamping, and efficient operation. The Type C No-Cylinder Wax Injection Machine is designed to address these requirements while simplifying the wax injection process. By combining a cylinder-free injection structure with adjustable pressure, temperature management, and flexible mold operation, it provides an efficient solution for modern precision casting production. Jar Hing Products Co., Ltd. offers this type of equipment as part of its precision casting equipment portfolio.

What Is a Type C No-Cylinder Wax Injection Machine?

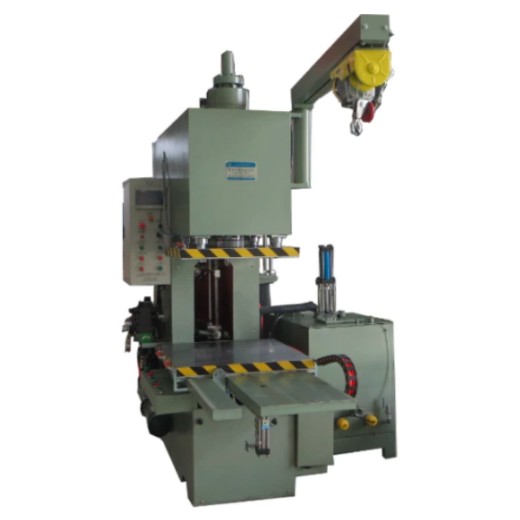

A Type C No-Cylinder Wax Injection Machine is specialized equipment used to inject heated casting wax into molds to form accurate wax patterns. Unlike conventional equipment that relies on a separate wax injection cylinder, the no-cylinder configuration simplifies the wax delivery structure and can make the working process more direct.

For investment casting manufacturers, this design can be particularly useful when production requires different mold sizes, controlled injection conditions, and convenient mold handling.

Jar Hing's Type C no-cylinder model is available with a maximum clamping force of 20 tons, a maximum usable wax storage capacity of 120 liters, and a maximum single-shot wax injection volume of 7 liters for the listed MMY20-1K configuration. The equipment also supports adjustable wax injection pressure and programmable pressure-holding and injection times.

Why Is Cylinder-Free Wax Injection Important?

The wax injection process may appear simple, but small variations can result in incomplete filling, dimensional deviations, surface defects, or inconsistent wax patterns. A well-designed machine can help manufacturers maintain more stable production conditions.

The cylinder-free configuration offers several practical advantages:

• Simplified wax injection structure: A reduced intermediate structure can make the injection process easier to manage.

• Flexible pressure adjustment: Different molds and wax patterns can require different injection conditions.

• Stable temperature management: Keeping wax within the appropriate processing range helps maintain consistent flow characteristics.

• Better mold accessibility: The C-type structure provides an open working area that can facilitate mold installation and operation.

• Improved production consistency: Repeatable machine parameters help reduce variations between wax patterns.

• Support for complex production requirements: Adjustable injection and pressure-holding settings can accommodate different pattern sizes and designs.

These advantages are particularly valuable for manufacturers producing precision castings where dimensional consistency is essential.

How Does It Improve Wax Pattern Quality?

The most important function of a wax injection machine is not simply injecting wax. It is producing wax patterns that accurately reproduce the cavity of the mold.

The Type C No-Cylinder Wax Injection Machine uses adjustable injection pressure, temperature control, and pressure-holding functions to provide operators with greater control over the molding process. Jar Hing's equipment uses a touch screen and PLC temperature-control module, while its wax storage and injection system is designed for controlled heating and cooling.

A stable process can help manufacturers achieve:

For precision casting operations, these factors work together to create a more controlled wax-pattern production process.

What Are the Main Functions of the Machine?

A modern wax injection machine should do more than simply push wax into a mold. It needs to coordinate several production parameters.

The Type C No-Cylinder Wax Injection Machine from Jar Hing is designed with multiple functional features, including high- and low-pressure wax injection, secondary high-pressure injection, automatic core pulling, and automatic mold ejection. The equipment also uses independently controlled heating and cooling for the wax preparation and injection system.

1. Adjustable Injection Pressure

Different wax patterns have different filling requirements. Thin sections, deep cavities, and larger patterns may require different injection conditions. Adjustable pressure allows operators to optimize the process according to the mold.

2. Temperature Control

Wax temperature directly influences its flow behavior. The listed Jar Hing model provides separate temperature control for the wax storage system and isothermal control during injection, helping maintain a more stable production environment.

3. Automatic Core Pulling

For molds with suitable core structures, automatic core pulling can reduce manual intervention and improve operating efficiency.

4. Automatic Mold Ejection

Automatic top-mold functionality can simplify the pattern-removal stage and support a smoother production cycle.

5. Flexible Nozzle Adjustment

The nozzle can be adjusted horizontally and vertically within its specified operating range, giving operators greater flexibility when positioning molds.

Where Can This Machine Be Used?

The Type C No-Cylinder Wax Injection Machine is mainly relevant to investment casting and wax-pattern manufacturing applications. It can be considered for production environments where accurate wax molding and repeatable processing are important.

Typical application areas include:

• Automotive precision components

• Industrial hardware

• Valve and pump components

• Engineering components

• Machinery parts

• Stainless steel investment castings

• Complex metal components

• Small- and medium-batch precision casting production

The appropriate machine configuration should be selected according to mold dimensions, wax volume, required clamping force, production capacity, and casting requirements.

Type C No-Cylinder vs. Conventional Wax Injection Equipment

When purchasing wax injection equipment, manufacturers often need to consider whether a conventional cylinder-based structure or a cylinder-free configuration better suits their production process.

The right choice ultimately depends on the manufacturer's production requirements rather than simply selecting the machine with the highest specifications.

What Production Results Can Manufacturers Expect?

For casting manufacturers, the value of wax injection equipment can be measured by production stability, pattern consistency, operating efficiency, and process control.

A properly configured Type C No-Cylinder Wax Injection Machine can help manufacturers establish a more repeatable wax-pattern production process. Stable temperature and pressure conditions can reduce process fluctuations, while automatic functions can reduce unnecessary manual operations.

The result is a workflow that can support:

1. More consistent wax pattern dimensions.

2. Better control over wax filling.

3. Reduced manual intervention.

4. More convenient mold handling.

5. Improved production repeatability.

6. Greater adaptability to different mold designs.

These benefits are especially important when a manufacturer must maintain consistent wax patterns across repeated production batches.

Why Choose Jar Hing Products Co., Ltd.?

Jar Hing Products Co., Ltd. focuses on precision casting equipment, materials, and related solutions. Its product range includes wax injection machines, shell-making equipment, wax processing equipment, induction melting furnaces, and post-treatment equipment. The company states that it has more than 14 years of experience in precision casting and serves customers across multiple international markets.

For buyers, working with an experienced supplier can provide more than a single machine. It can also support equipment selection based on mold dimensions, production volume, wax requirements, and the overall investment casting process.

Jar Hing also offers different wax injection machine configurations, including C-type machines, double-station machines, and other specialized wax injection solutions, allowing buyers to consider different production requirements within one equipment range.

Key Factors to Consider Before Purchasing

Before selecting a Type C No-Cylinder Wax Injection Machine, buyers should evaluate the following:

• Required clamping force

• Mold dimensions and weight

• Maximum wax injection volume

• Required injection pressure

• Wax temperature range

• Mold opening height

• Nozzle adjustment range

• Automatic functions

• Production volume

• Available workshop space

• After-sales technical support

For example, Jar Hing's listed MMY20-1K model provides a 20-ton maximum clamping force, 120-liter maximum wax storage volume, 7-liter maximum wax injection volume per shot, and a touch-screen PLC temperature-control system.

These specifications should be compared with the buyer's actual mold and production requirements before final equipment selection.

The Role of Wax Injection Equipment in Modern Investment Casting

Wax pattern production is the first major forming stage in the investment casting process. Any instability at this stage can influence subsequent shell making, dewaxing, firing, and metal casting.

Therefore, the role of a wax injection machine extends beyond basic molding. It serves as an important process-control unit that helps manufacturers establish consistent wax patterns before they move to the next stages of production.

A reliable machine can contribute to a smoother workflow from wax preparation to mold filling and pattern removal. For manufacturers pursuing higher consistency and more efficient production, investing in appropriate wax injection equipment can therefore become an important part of improving the overall casting process.

Conclusion

The Type C No-Cylinder Wax Injection Machine combines practical mold accessibility, adjustable injection parameters, controlled wax temperature, and automated functions to support stable wax-pattern production. Its cylinder-free configuration can simplify the injection structure while providing manufacturers with flexible control over pressure, temperature, injection time, and mold operation.

For investment casting companies looking to improve wax-pattern consistency, reduce unnecessary manual work, and establish a more controlled production process, selecting the right wax injection equipment is an important decision.

Jar Hing Products Co., Ltd. provides precision casting equipment and wax injection solutions for customers with different production requirements. Whether you are expanding an existing casting line or planning a new investment casting project, contact us to discuss your mold specifications, production requirements, and suitable machine configuration. Contact us today to explore a professional Type C No-Cylinder Wax Injection Machine solution for your production needs.
