How Does DTH Drill Bit Transform Deep Drilling Efficiency?

In the world of mining, construction, water well drilling, and quarrying, drilling technology determines not only project speed but also cost-efficiency and precision. Among the many drilling tools available today, Down-The-Hole (DTH) drill bits stand out as one of the most powerful and reliable solutions for deep, hard-rock drilling.

But what exactly is a DTH drill bit?

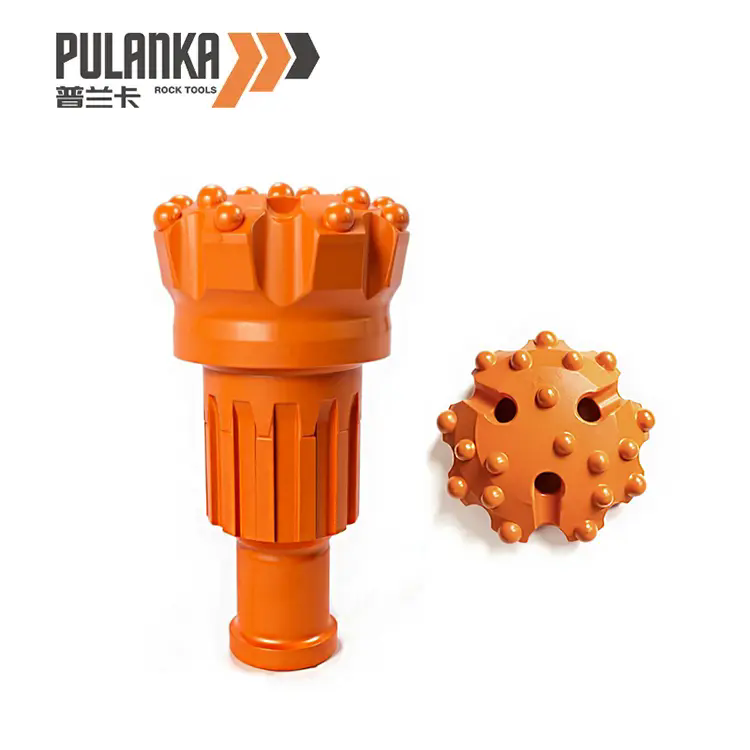

A DTH drill bit is the cutting tool attached to the bottom of a DTH hammer, which operates by striking directly on the bit to crush rock into small fragments. Unlike top hammer drilling, where energy is transmitted through a long drill string, DTH drilling delivers energy right at the hole’s bottom—resulting in higher efficiency, straighter holes, and reduced energy loss.

DTH drill bits are primarily used in:

• Mining operations for ore extraction and exploration.

• Water well drilling to access underground aquifers.

• Geothermal drilling for energy projects.

• Construction and quarrying for foundation, tunneling, and rock blasting.

The DTH system offers an unbeatable combination of precision, durability, and versatility. Its high-impact mechanism and direct energy transfer make it the go-to choice for engineers seeking consistent penetration rates even in the hardest rock formations.

As industries demand deeper and more accurate drilling, understanding how DTH drill bits function and how to choose the right one has become critical for operational success.

What Are the Main Components and Working Principles of a DTH Drill Bit?

A DTH drill bit is a precisely engineered component designed to withstand extreme impact and abrasion while maintaining stability under high-pressure conditions. It operates in tandem with a DTH hammer that uses compressed air to deliver percussive blows directly to the bit’s face. This action fractures rock at the hole bottom, while the air stream clears the debris to maintain a clean, efficient borehole.

Working Principle

The drilling process can be summarized as follows:

1. Compressed Air Supply – Air enters through the hammer and flows through the bit’s internal channels.

2. Percussion Impact – The piston in the hammer repeatedly strikes the bit shank, delivering direct impact energy.

3. Rotation and Cutting – The drill string rotates the bit, distributing wear evenly and improving hole accuracy.

4. Cuttings Removal – Air pressure forces crushed rock out through the borehole, preventing clogging.

This combination of impact, rotation, and air flushing enables DTH drill bits to perform effectively even in deep and challenging formations where top hammer systems may lose energy and accuracy.

Core Components of a DTH Drill Bit

Each component plays a vital role in ensuring smooth drilling operations, with precision manufacturing ensuring consistent penetration rates and extended tool life.

Types of DTH Drill Bits

DTH drill bits come in various designs and profiles depending on geological conditions:

• Flat Face Bit: Best for hard, abrasive formations.

• Convex Face Bit: Ideal for medium-hard to soft formations.

• Concave Face Bit: Provides excellent hole straightness in all rock types.

• Double Gauge Bit: Offers higher stability and reduced deviation for deep holes.

The versatility of DTH bits makes them suitable for both shallow and deep drilling, in conditions ranging from soft sediments to solid granite.

What Factors Should You Consider When Choosing a DTH Drill Bit?

Choosing the right DTH drill bit is a strategic decision that affects not only productivity but also operational costs and tool longevity. The correct bit must balance impact power, wear resistance, and efficiency for the specific ground conditions.

Key Factors in Selection

1. Rock Hardness and Abrasiveness

   • Harder rocks require bits with spherical or ballistic tungsten carbide buttons.

   • For softer formations, more aggressive face designs (concave or convex) offer faster penetration.

2. Hole Diameter

   • Standard sizes range from 90mm to 600mm depending on the application.

   • The bit size should match the hammer and the drilling rig capacity.

3. Air Pressure and Compressor Capacity

   • Optimal air pressure ensures efficient impact energy and debris removal.

   • Insufficient airflow can reduce penetration rates and increase wear.

4. Bit Material and Heat Treatment

   • High-grade steel and advanced heat treatment extend service life and resist deformation.

5. Button Shape and Distribution

   • The geometry of the buttons affects cutting efficiency and wear patterns.

   • Balanced button placement maintains drilling stability and hole precision.

Product Specifications of DTH Drill Bits

Common FAQs About DTH Drill Bits

Q1: What is the difference between a DTH drill bit and a top hammer bit?
A: The primary difference lies in energy transmission. DTH bits receive direct impact from the hammer located just above the bit, reducing energy loss and providing straighter, deeper holes. In contrast, top hammer systems deliver impact through the entire drill string, leading to higher energy loss and less accuracy at greater depths.

Q2: What causes premature wear or failure of a DTH drill bit?
A: Several factors contribute, including drilling with insufficient air pressure, using the wrong bit for the rock type, and improper bit rotation speed. Regular maintenance, correct bit selection, and adequate lubrication can significantly extend service life.

What Is the Future of DTH Drilling Technology and Why Choose Pulanka?

The future of drilling technology is shifting toward automation, sustainability, and efficiency. DTH drill bits are central to this transformation because they combine mechanical precision with adaptability. Innovations in material science and digital monitoring are making DTH systems smarter and more durable than ever.

Emerging Trends in DTH Drill Bit Technology

• Advanced Tungsten Carbide Formulations: New alloys enhance hardness and impact resistance, reducing button breakage.

• Optimized Air Flow Systems: Improved flushing designs reduce clogging and enhance cooling.

• Wear-Resistant Coatings: Surface treatments reduce friction and corrosion for extended lifespan.

• Automated Drilling Integration: Smart sensors and data-driven systems are optimizing bit performance in real time.

These advancements lead to reduced downtime, improved fuel efficiency, and lower operational costs—key priorities for industries striving to remain competitive.

Environmental and Economic Benefits

Modern DTH drill bits are not only about power but also sustainability. Efficient drilling reduces fuel consumption, while precise boreholes minimize the need for re-drilling, saving time and resources. Additionally, high-quality bits produce cleaner holes with less vibration, protecting the integrity of nearby structures and minimizing environmental impact.

Why Pulanka Is Your Trusted Partner for DTH Drill Bits

Pulanka has established itself as a reliable manufacturer and supplier of high-performance DTH drill bits, designed to meet the most demanding drilling conditions worldwide. Every bit we produce is engineered for durability, accuracy, and superior penetration rates, ensuring that your projects run smoothly and cost-effectively.

Our team combines decades of experience with advanced production technologies, offering:

• Customized bit designs tailored to your geological conditions.

• Strict quality control and precision machining.

• Competitive pricing without compromising on reliability.

• Global supply capability with prompt delivery.

Pulanka’s DTH drill bits are trusted by professionals in mining, geothermal drilling, and construction projects across the world. When efficiency and reliability matter, Pulanka delivers the precision tools you need to get the job done right.

For more details, technical consultation, or custom DTH drill bit solutions, contact us today and discover how Pulanka can elevate your drilling performance.
