How Does Thermal Protector Safeguard Electrical Systems?

In every electrical system, stability and safety rely on precise control of temperature. From household appliances to advanced industrial motors, excess heat is one of the most common causes of component failure. Without an effective safety mechanism, overheating can damage insulation, weaken metal parts, cause motor winding failures, and even pose fire risks. This is where a Thermal Protector plays a critical role.

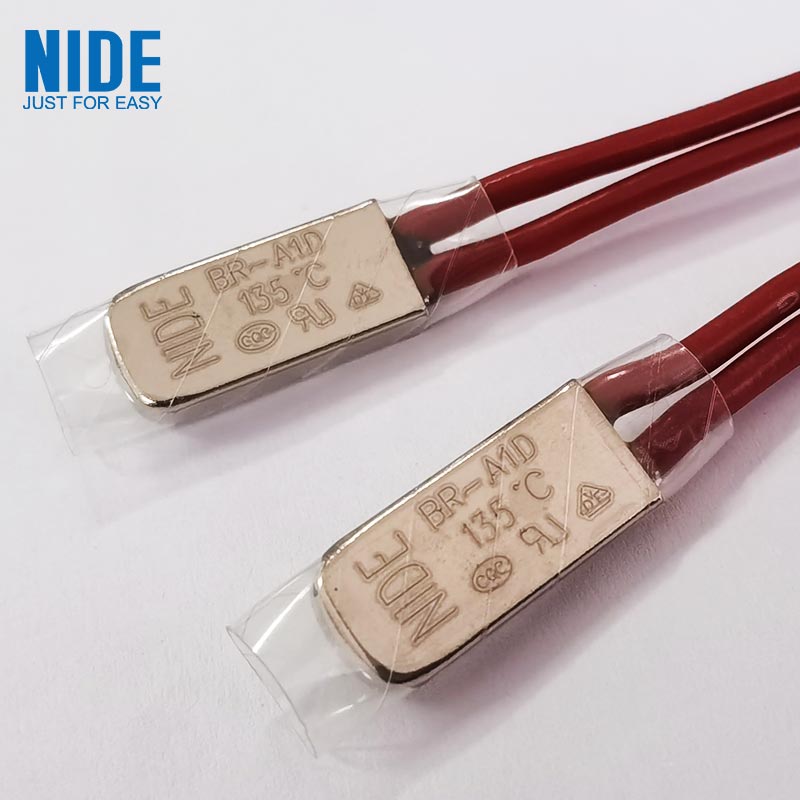

A thermal protector is a small but highly engineered device designed to sense excessive temperature and interrupt current flow before damage occurs. Unlike a fuse that reacts only to excessive current, a thermal protector measures the actual heat build-up inside the device. Once the set temperature is reached, it activates by opening the circuit, protecting the equipment. When the system cools down to a safe level, many thermal protectors reset automatically, allowing the system to restart without replacement.

How Does a Thermal Protector Work and What Are Its Key Features?

The working principle of a thermal protector revolves around temperature-sensitive bimetallic elements. These elements bend at specific temperatures, mechanically opening or closing the contacts. This process disconnects the power supply, preventing further heat build-up. Depending on the design, thermal protectors may function as automatic reset, manual reset, or one-time cut-off types.

• Automatic Reset Thermal Protectors
  These restart automatically once the equipment cools. They are widely used in motors, small appliances, and electronic circuits where temporary overheating is common but not permanent.

• Manual Reset Thermal Protectors
  These require human intervention to restart, providing an extra layer of safety. They are typically used in industrial systems, heating devices, or critical equipment where the operator needs to check for underlying issues before restarting.

• One-time Thermal Fuses
  Though technically different, some thermal protectors act as permanent cut-off devices. They break the circuit permanently and must be replaced after activation.

The advantages of thermal protectors include compact design, precise calibration, durability, fast response time, and reliability under harsh conditions. Their robust construction allows integration into confined spaces without compromising performance.

Key Product Parameters of Thermal Protectors

Below is a professional breakdown of the main parameters that determine the performance of thermal protectors:

These parameters vary depending on application requirements. For example, thermal protectors for lithium battery packs demand a fast-acting response and compact size, while those for compressors or transformers require higher current endurance and strong mechanical stability.

Why Do Industries Depend on Thermal Protectors?

To fully understand the necessity of thermal protectors, it is important to explore why industries prioritize them over other protection methods. Several reasons highlight their importance:

1. Prevention of Overheating Damage
   Motors, transformers, and coils are prone to heating due to resistance losses. If unchecked, insulation breakdown and coil burning are inevitable. A thermal protector stops this chain reaction.

2. Extended Equipment Lifespan
   By keeping operating temperatures within safe ranges, thermal protectors significantly increase the service life of equipment. For manufacturers and end-users, this means reduced replacement costs.

3. Energy Efficiency
   Overheated components operate inefficiently, wasting power. Protectors prevent such inefficiencies, ensuring optimal performance.

4. Fire and Safety Protection
   In both home appliances and industrial equipment, fire hazards due to overheating are a serious concern. A thermal protector reduces the probability of accidents, protecting both equipment and human safety.

5. Compliance with International Safety Standards
   Many industries must comply with UL, IEC, VDE, and RoHS certifications. Thermal protectors are designed to meet these standards, enabling manufacturers to legally sell their products worldwide.

6. Versatility Across Industries
   Thermal protectors are used in:

   • Household Appliances: Coffee makers, washing machines, refrigerators.

   • Motors & Pumps: AC motors, fans, compressors, water pumps.

   • Lighting & Electronics: LED drivers, ballasts, power supplies.

   • Automotive: Electric vehicles, battery packs, chargers.

   • Medical Equipment: Diagnostic devices, imaging systems requiring controlled temperatures.

Ultimately, industries depend on thermal protectors not just for compliance and protection, but also to guarantee performance reliability and end-user safety.

What Should You Know Before Selecting a Thermal Protector?

Choosing the right thermal protector is not a one-size-fits-all process. The selection depends on application type, current load, space limitations, and reset method. Below are the most critical considerations:

• Temperature Rating
  Select a protector with a trigger point slightly above the normal working temperature of your device. For instance, a motor running at 70°C may use a protector rated at 90°C.

• Current Rating
  Ensure the protector can handle both the normal and inrush current. Motors often draw high start-up currents that require suitable protector calibration.

• Reset Type
  For consumer electronics, an automatic reset is convenient. For industrial machines, manual reset ensures controlled restart and safety verification.

• Size and Design
  In compact systems like batteries and LED drivers, the thermal protector must be small enough to fit without affecting design.

• Environmental Resistance
  In harsh environments, the protector should be resistant to dust, moisture, and vibration. Metal-encased thermal protectors are common in such cases.

• Certification and Standards
  Confirm the protector is certified under standards applicable to your industry, ensuring global acceptance.

Common FAQs About Thermal Protectors

Q1: What is the difference between a thermal protector and a thermal fuse?
A thermal protector resets automatically or manually, while a thermal fuse provides a one-time permanent cut-off and must be replaced after activation.

Q2: How long does a thermal protector last?
A high-quality protector typically lasts over 10,000 cycles, which means years of reliable service under normal operating conditions.

Q3: Can thermal protectors be customized for special applications?
Yes. Manufacturers offer customization in terms of temperature ratings, casing design, current capacity, and reset modes to meet the unique requirements of various industries.

Why Partner with NIDE for Thermal Protectors?

The demand for safer, more efficient, and longer-lasting electrical systems makes thermal protectors a critical choice across industries. Whether safeguarding a household appliance, powering an industrial motor, or securing an advanced EV battery pack, the role of a thermal protector cannot be overstated.

NIDE specializes in manufacturing high-performance thermal protectors that meet global safety standards while providing precision, durability, and reliability. With extensive expertise, advanced production facilities, and a commitment to innovation, NIDE ensures that clients receive tailored solutions to meet their exact specifications.

If you are seeking a trusted supplier of thermal protectors, contact us today to discuss your application needs and discover how NIDE can deliver optimized protection solutions for your business.
