How to Install a Winch Electric Hoist Safely and Correctly
2025-12-16
Installing a Winch Electric Hoist is a critical task that demands precision and strict adherence to safety protocols. A correct installation ensures optimal performance, longevity, and, most importantly, a safe working environment. As a leader in reliable lifting solutions, Shengyu is committed to providing not only top-tier equipment but also the essential knowledge for its proper setup. This guide will walk you through the fundamental steps for a safe installation, highlighting key parameters of our Shengyu hoists.
Pre-Installation Planning and Precautions
Before any physical work begins, thorough planning is essential. Always consult the official Shengyu user manual specific to your model.
-
Site Assessment: Verify the supporting structure (beam, gantry, or trolley) can handle the hoist's weight plus the maximum rated load with a significant safety margin. The structure must be rigid and level.
-
Safety First: Ensure all personnel wear appropriate Personal Protective Equipment (PPE). De-energize and lock out all power sources in the work area.
-
Product Verification: Check your Shengyu hoist against the packing list. Inspect for any shipping damage. Confirm the model's specifications match your application needs. Key parameters to check include:
-
Lifting Capacity: Our hoists range from 500kg to 20,000kg models.
-
Lift Speed: Varies by model, typically between 3 to 15 meters per minute.
-
Power Supply: Standard models require a 3-phase 400V/50Hz or single-phase 230V/50Hz supply.
-
Duty Class: Shengyu hoists are designed for specific duty cycles (e.g., FEM 1Am to 3m), which define the intensity of use.
-
Step-by-Step Installation Procedure
Follow these steps methodically for a correct installation.
-
Mounting the Hoist: Securely attach the Shengyu Winch Electric Hoist to the pre-verified support structure using high-grade, load-rated bolts, nuts, and washers. Ensure the hoist is aligned properly to prevent twisting or side loading on the wire rope or chain.
-
Electrical Connection: Have a qualified electrician perform all electrical work. Connect the hoist to the power supply according to the wiring diagram in the manual. Install a properly rated disconnect switch and overload protection within easy reach. Verify the motor's rotation direction.
-
Load Testing: Before putting the hoist into service, conduct a preliminary test with no load. Check all controls (up, down, emergency stop) and limit switches. Subsequently, perform a rated load test, lifting the load a minimal distance to confirm all systems operate correctly under weight.

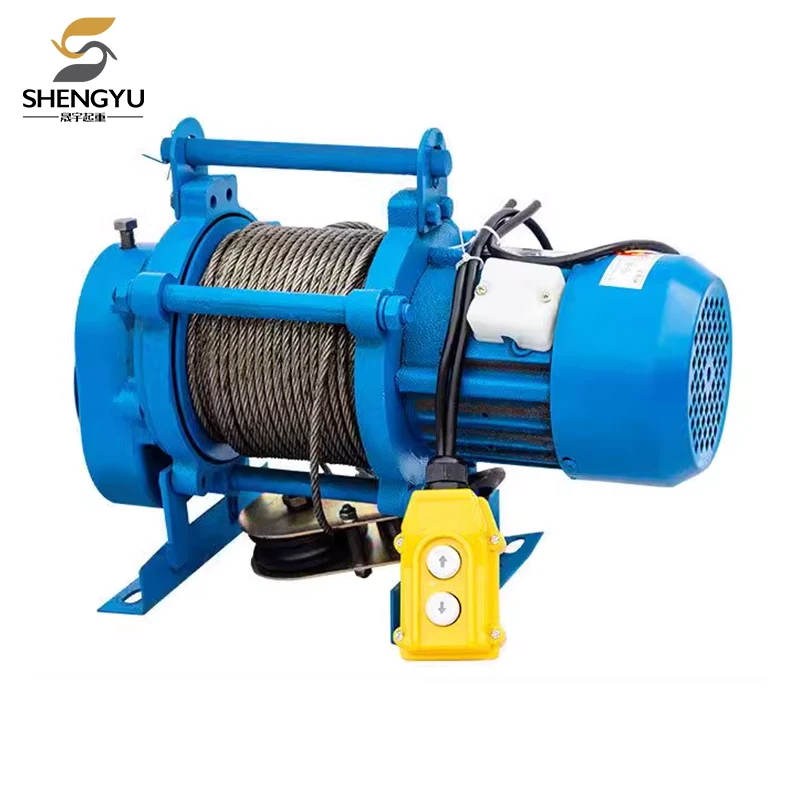

Shengyu Winch Electric Hoist: Key Product Parameters at a Glance
| Parameter | Specification Range | Notes |
|---|---|---|
| Capacity | 500 kg - 20,000 kg | Select based on your maximum intended load. |
| Lift Speed | 3 - 15 m/min | Speed decreases as load capacity increases. |
| Motor Power | 1.5 kW - 30 kW | Corresponds to capacity and speed. |
| Duty Class | FEM 1Am - 3m | Defines the operational intensity and cooling periods. |
| Power Supply | 3P 400V/50Hz or 1P 230V/50Hz | Confirm your local supply before connection. |
Winch Electric Hoist FAQ
Q: Can I install my Shengyu Winch Electric Hoist outdoors?
A: While many Shengyu hoists are built with robust components, standard models are primarily for indoor use. For outdoor or corrosive environments, you must specify an IP-rated (e.g., IP54 or higher) or explicitly weatherproof model at the time of purchase. Regular models exposed to moisture will have a severely reduced lifespan and pose safety risks.
Q: How often should I inspect my installed hoist?
A: A visual check should be performed before each use. A formal documented inspection by competent personnel should be conducted monthly, with a comprehensive annual inspection as mandated by local safety regulations (like OSHA). Shengyu recommends following a strict maintenance schedule outlined in your product manual.
Q: What is the most common installation mistake?
A: The most critical and common error is underestimating the required strength of the supporting structure. Installing a hoist on an inadequate beam or frame is extremely dangerous and can lead to structural failure. Always have a structural engineer assess your setup if there is any doubt. Never compromise on this fundamental requirement.
Proper installation is the cornerstone of safe and efficient material handling. By investing in a reliable Shengyu Winch Electric Hoist and following these guidelines, you secure a powerful and durable asset for your operations. For further technical specifications, customized solutions, or to speak with our engineering support team about your specific installation project, please do not hesitate to contact us today. Let Shengyu be your trusted partner in lifting excellence.
