Is a Spiral Sand Washer Suitable for Washing Coarse Stones with High Mud Content
2026-10-09
When processing coarse stones with high mud content, selecting the right washing equipment directly affects product quality, water consumption, and operational cost. A Spiral Sand Washer for Coarse Stones from EPIC is engineered to handle challenging materials, but suitability depends on machine configuration, mud characteristics, and feed size. This article examines the technical factors that determine whether a Spiral Sand Washer for Coarse Stones can deliver efficient mud removal in real production conditions.
How High Mud Content Affects Washing Performance
High mud content creates three main challenges: clay adhesion on stone surfaces, reduced settling efficiency, and excessive water turbidity. The spiral design relies on agitation, residence time, and overflow control to separate fines and mud from coarse particles. When mud content exceeds 15–20%, standard configurations may require adjustments.
Key factors influencing performance:
-
Feed size distribution – Coarse stones above 5 mm settle faster and are easier to rinse.
-
Clay plasticity – Sticky, plastic clays need longer retention and stronger agitation.
-
Water flow rate – Insufficient flow traps mud in the tank, reducing cleaning efficiency.
-
Spiral speed and pitch – Controls conveying speed and scrubbing intensity.
-
Overflow weir height – Determines how much fine mud exits with wastewater.

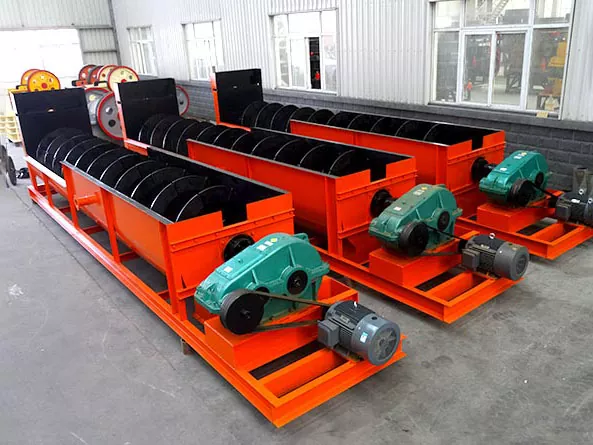

EPIC Spiral Sand Washer for Coarse Stones: Technical Advantages
EPIC designs its Spiral Sand Washer for Coarse Stones with adjustable parameters to suit high-mud applications. The table below summarizes performance under different mud conditions.
| Mud Content Level | Recommended Configuration | Expected Mud Removal Rate | Water Consumption |
|---|---|---|---|
| Low (under 8%) | Standard spiral, single overflow | 95–98% | Low |
| Medium (8–15%) | Extended tank, dual overflow | 90–95% | Medium |
| High (15–25%) | Variable-speed spiral, high overflow weir | 85–92% | High |
| Very High (above 25%) | Pre-soaking + EPIC high-intensity washer | 80–88% | Very High |
For extremely sticky mud, a pre-washing stage or attrition scrubber before the Spiral Sand Washer for Coarse Stones improves final cleanliness and reduces spiral wear.
Signs a Spiral Sand Washer Is Suitable for Your Application
Use the following checklist to evaluate compatibility:
-
Coarse stone feed is generally above 3–5 mm.
-
Mud is dispersive or moderately plastic, not pure sticky clay.
-
Water supply supports a continuous overflow of 1.5–3 times feed volume.
-
Product cleanliness target is below 2–3% mud residue.
-
Throughput matches the spiral diameter and tank length.
If more than two conditions are unmet, a different washing solution or a combined system may be more effective.
Spiral Sand Washer for Coarse Stones FAQ
Q: Can a Spiral Sand Washer for Coarse Stones remove sticky clay from coarse aggregate?
A: It can remove moderate clay, but highly plastic clay often requires pre-soaking or an attrition scrubber before the Spiral Sand Washer for Coarse Stones to achieve consistent cleanliness.
Q: What mud content is too high for a standard Spiral Sand Washer for Coarse Stones?
A: When mud exceeds 20–25% of feed weight, a standard unit may lose efficiency; EPIC recommends a variable-speed model with extended tank and higher overflow capacity.
Q: How does EPIC improve mud washing in a Spiral Sand Washer for Coarse Stones?
A: EPIC adjusts spiral pitch, tank length, overflow weir height, and water injection points to match specific mud properties, improving mud removal and reducing carryover.
Contact Us
For project-specific selection and sizing of a Spiral Sand Washer for Coarse Stones, contact EPIC today. Our engineers will review your feed material, mud content, and capacity requirements to recommend the most efficient washing configuration.
