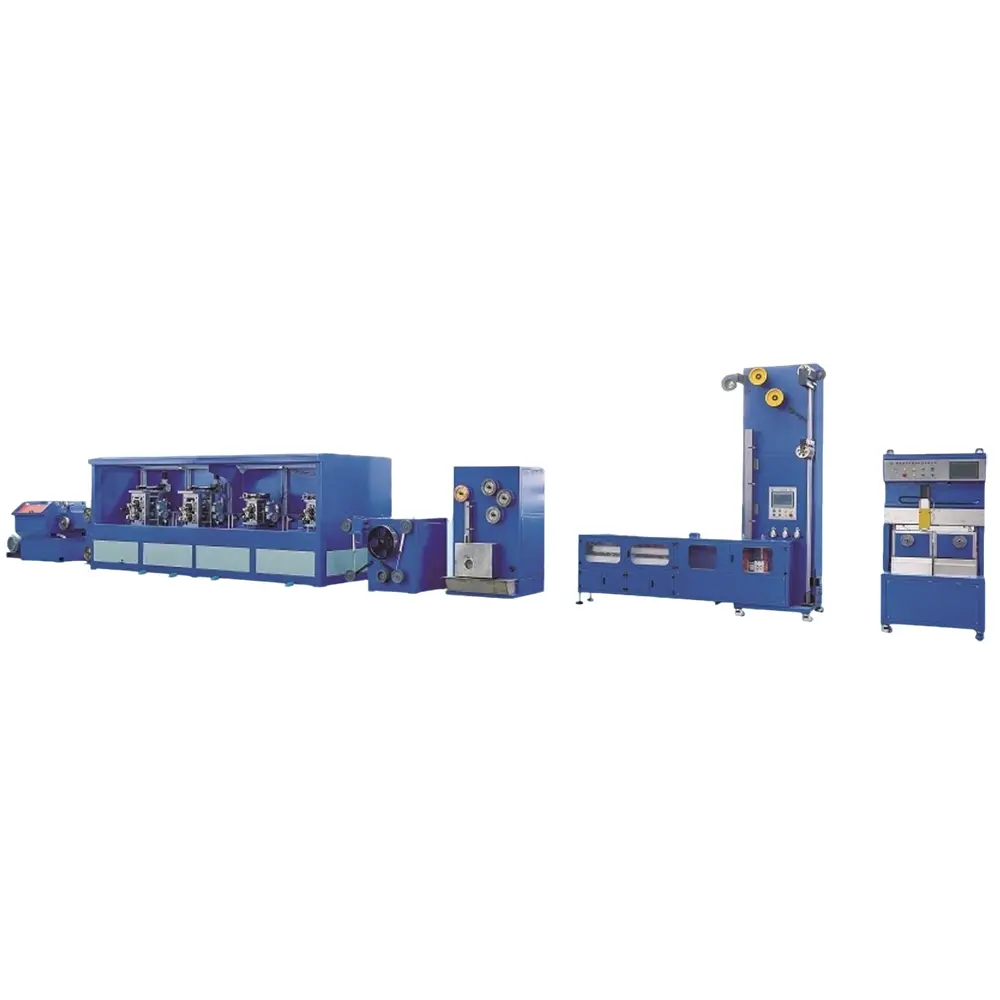

Technical Principles and Performance Parameters of Flat Wire Rolling Mill
2025-09-12
Flat wire rolling mills are specialized industrial systems designed to transform round or square wire into precise, flat wire profiles with consistent thickness and width. These mills are critical in industries such as automotive, aerospace, electronics, and energy, where high-tolerance flat wire is essential for components like conductors, springs, and connectors. The core technical principle involves a series of precisely calibrated rollers that gradually reduce the cross-sectional area of the input material through controlled compression and shaping.
The process begins with pre-treatment, where the raw wire is cleaned and straightened to ensure uniformity. It then passes through multiple rolling stands, each equipped with hardened rolls that apply specific reductions. The design of the roll grooves and the arrangement of stands are engineered to minimize stress and achieve the desired metallurgical properties, including surface finish and dimensional accuracy. Advanced models incorporate tension control, real-time monitoring, and automated adjustment systems to maintain consistency throughout production.
Below are the key technical parameters that define the performance and capability of a modern Flat Wire Rolling Mill:
Key Parameters:
-
Input Wire Diameter: 1.0 mm to 12.0 mm
-
Output Flat Wire Thickness: 0.2 mm to 4.0 mm
-
Output Flat Wire Width: 2.0 mm to 30.0 mm
-
Roll Material: High-carbon chromium steel or tungsten carbide
-
Roll Hardness: 58-62 HRC (Hardness Rockwell C)
-
Maximum Rolling Speed: 10 to 30 meters per second
-
Motor Power: 15 kW to 150 kW
-
Control System: PLC with HMI interface for precision adjustment
-
Tolerance: ±0.01 mm for thickness, ±0.02 mm for width
Performance Features Table:
| Feature | Specification |
|---|---|
| Reduction per Pass | Up to 25% cross-sectional area reduction |
| Roll Configuration | 2-high, 4-high, or cluster roll design for high-precision applications |
| Cooling System | Closed-loop water cooling for rolls and bearings |
| Surface Finish | ≤ 0.4 µm Ra (achievable with polished rolls and proper lubrication) |
| Automation Level | Integrated gauging systems with feedback control for real-time adjustments |
| Material Compatibility | Copper, aluminum, steel, and specialty alloys |
A well-designed Flat Wire Rolling Mill ensures high productivity, minimal material waste, and superior product quality. The integration of robust construction, precision mechanics, and smart control systems allows manufacturers to meet stringent industry standards while optimizing operational efficiency.
For industries requiring exact flat wire specifications, investing in a advanced Flat Wire Rolling Mill is essential for maintaining competitiveness and achieving consistent output. The technical parameters outlined above serve as a benchmark for selecting equipment that matches production needs and quality requirements.
