What Can a 160 Tons Press Machine Do for Modern Manufacturing?

1. What Is a 160 Tons Press Machine?

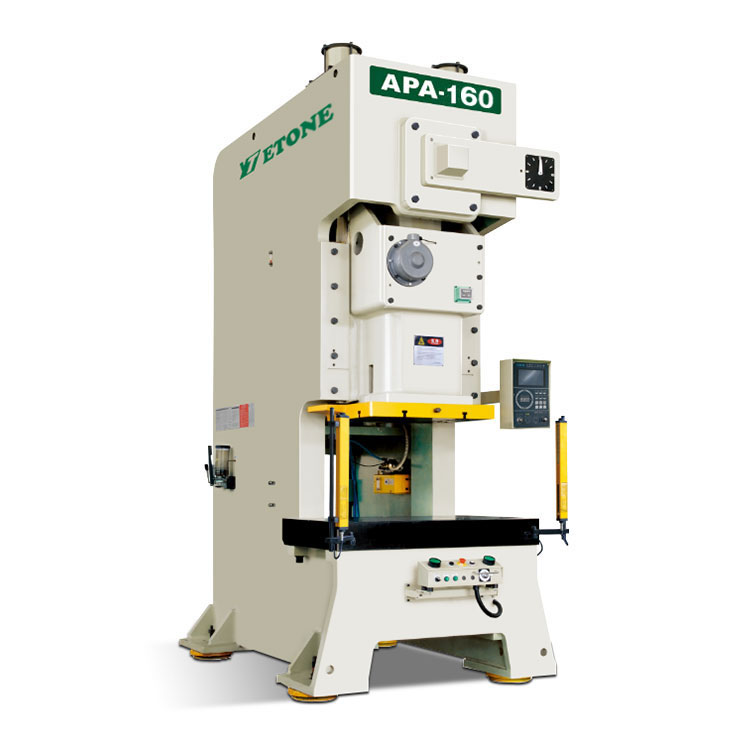

A 160 tons press machine is industrial equipment designed to apply a rated pressing force of approximately 160 metric tonnes or 160 US short tons, depending on the manufacturer's rating convention. In metric units, 160 tonnes-force is approximately 1,569 kN. Because tonnage terminology varies by market, buyers should confirm the unit used in the technical documentation before comparing equipment.

The machine generates force through a mechanical drive system, a hydraulic circuit, or another engineered pressing mechanism. Its primary purpose is to deform, cut, shape, or assemble materials using a die or other suitable tooling.

For manufacturers, a 160-ton capacity can represent a useful middle ground between smaller presses intended for light-duty work and larger machines designed for demanding, high-force operations. Its suitability, however, depends on the actual load profile, tooling arrangement, material properties, and production requirements.

Why Is Press Capacity Important?

Press capacity determines the maximum rated force the equipment is designed to deliver under specified conditions. A machine with insufficient capacity may fail to complete a forming operation properly, while an unnecessarily large machine can increase acquisition costs, energy consumption, and installation requirements.

Correct capacity selection helps manufacturers balance forming quality, equipment utilization, tooling life, and production efficiency. The rated tonnage alone is not enough; the force available at the required position in the stroke must also be considered.

2. How Does a 160 Tons Press Machine Work?

Although the operating mechanism varies by press type, the basic process is similar. A workpiece is positioned in the working area, the press applies force through a ram or slide, and the tooling performs the required operation. The ram then returns to its initial position, allowing the finished part to be removed or transferred to the next production stage.

Typical Operating Stages

1. Workpiece positioning: The material is loaded manually or through an automated feeding system.
2. Tool engagement: The ram moves toward the die or forming tool.
3. Force application: The machine applies the required load to cut, bend, compress, or shape the material.
4. Return stroke: The ram retracts after the operation is completed.
5. Part removal and inspection: The component is unloaded and checked against dimensional and quality requirements.

What Determines the Required Pressing Force?

Required force depends on the operation being performed. Blanking and punching loads are influenced by material shear strength, sheet thickness, and cutting perimeter. Forming operations depend on material properties, part geometry, friction, die design, and deformation conditions.

For a simplified blanking calculation, the estimated cutting force can be expressed as:

Engineers should calculate the actual process load and compare it with the machine's rated capacity and permissible force curve. A nominal 160-ton rating does not mean that the full force is available at every point in the stroke.

3. Which Manufacturing Applications Can It Support?

A 160 tons press machine can serve several production environments when its design, stroke, working area, and operating characteristics match the application.

Metal Stamping and Blanking

Presses in this capacity range may be used to produce metal brackets, mounting plates, structural fittings, electrical enclosures, and other stamped components. In blanking operations, a die separates a component from sheet material. Stable machine performance and correct die alignment help maintain dimensional consistency.

Punching and Hole Formation

Punching operations create holes or openings in sheet-metal components. The appropriate press must accommodate the combined cutting force, tool arrangement, workpiece dimensions, and required production rate. Die protection and slug management are also important for consistent operation.

Bending and Forming

Press equipment can be configured for certain bending, shallow forming, and component-shaping processes. The achievable result depends on tooling geometry, material thickness, ram travel, and the machine's force characteristics. Buyers should not assume that every 160-ton press is suitable for every bending or deep-drawing task.

Component Assembly and Compression

Some production lines use press equipment for controlled fitting, pressing, or compression tasks. These applications may require adjustable force, accurate positioning, or a particular dwell time. The selected machine must provide the necessary control functions and tooling support.

These are potential application categories, not a guarantee that one machine configuration can perform every listed process. Confirm suitability with the equipment manufacturer.

4. What Materials Can It Process?

A 160 tons press machine may process different metals and other materials when the press structure, tooling, and operating parameters are suitable. Common candidates include mild steel, selected stainless steels, aluminum alloys, and other sheet or formed materials.

• Mild steel: Widely used for brackets, housings, and general stamped components.
• Stainless steel: May require higher force because of its strength and work-hardening characteristics.
• Aluminum alloys: Often used for lightweight components, with tooling designed to manage surface marking and material behavior.
• Other engineered materials: Feasibility depends on the material's deformation properties and the intended process.

Material thickness alone cannot determine whether a part is suitable for a 160-ton press. A small part made from high-strength material may require a substantial cutting load, while a larger part made from softer material may require less force for a particular operation.

Before production, provide the manufacturer with the material grade, thickness, part drawing, required tolerances, and process description. Sample trials or engineering calculations can help confirm the appropriate configuration.

5. Which Specifications Matter Most?

Two machines with the same nominal tonnage may deliver different production results. Buyers should evaluate the complete specification sheet rather than selecting equipment on capacity alone.

Why Is the Force Curve Important?

For many mechanical presses, rated force is available only within a specified portion of the stroke, often near the bottom of the stroke. A process that requires maximum force too early may exceed the permissible load even when its calculated peak force appears to be below 160 tons.

Hydraulic presses generally provide different force characteristics, but their suitability still depends on pressure, cylinder design, speed, temperature, and duty cycle. Request the manufacturer's load diagram or relevant technical documentation when evaluating a demanding application.

6. How Do Mechanical and Hydraulic Presses Differ?

Mechanical and hydraulic presses can both be designed around a 160-ton rating, but they operate differently. The best option depends on whether the production priority is rapid repetitive cycling, controlled force throughout the stroke, or another process-specific requirement.

Neither technology is universally superior. A high-volume stamping line may favor a mechanical press, while a process requiring a controlled pressing profile may benefit from a hydraulic design. Buyers should compare complete machine configurations, energy consumption under actual production conditions, service requirements, and total operating cost.

7. How Can Buyers Select the Right Machine?

Purchasing industrial pressing equipment is a long-term investment. A structured selection process reduces the risk of buying a machine that cannot accommodate the intended tooling or production requirements.

Step 1: Define the Production Task

Describe the intended operation, such as blanking, punching, forming, or press fitting. Provide representative part drawings, material specifications, thickness ranges, and required tolerances.

Step 2: Calculate the Required Force

Ask the engineering team or equipment supplier to calculate the process load using the relevant material and tooling data. Include additional loads where applicable and verify the machine's permitted force at the required stroke position.

Step 3: Check Tooling Compatibility

Confirm bed size, slide dimensions, shut height, stroke, mounting arrangements, and available die space. If the machine will use existing tooling, provide its actual dimensions before ordering.

Step 4: Estimate Realistic Production Output

Consider loading and unloading time, material feeding, tool changes, inspection, and downtime. The machine's maximum rated speed is not necessarily the same as the achievable production rate of the complete line.

Step 5: Evaluate Safety and Service Support

Check the proposed guarding, control system, emergency stopping arrangements, maintenance access, spare-parts availability, and operator training. For international installations, confirm the applicable safety and electrical requirements in the destination market.

Step 6: Compare Total Cost of Ownership

Look beyond the initial purchase price. Consider installation, tooling, energy use, preventive maintenance, consumables, spare parts, operator training, and the cost of production interruptions.

8. How Can Manufacturers Improve Productivity?

Installing a suitable 160 tons press machine is only one part of building an efficient production process. Consistent tooling, stable material supply, preventive maintenance, and effective process monitoring are equally important.

Optimize Tooling and Setup

Correct die alignment, secure mounting, appropriate clearance, and regular inspection can reduce defects and premature tool wear. Standardized setup procedures also help shorten changeover times and reduce variation between production runs.

Reduce Unplanned Downtime

Establish a maintenance schedule based on the manufacturer's instructions, operating hours, production load, and observed machine condition. Record recurring faults and investigate their root causes instead of repeatedly correcting the same symptoms.

Improve Material Handling

Suitable feeders, conveyors, and part-removal systems may reduce manual handling and improve consistency. Automation should be integrated with the press controls and safety systems rather than added without a complete risk assessment.

Monitor Product Quality

Use inspection plans appropriate to the component, including dimensional checks and defect tracking. Monitoring scrap rate, cycle time, tooling life, and downtime provides a practical basis for improving overall production performance.

Before investing in automation, assess actual bottlenecks. In some facilities, better tooling or material preparation delivers more value than simply increasing machine speed.

9. What Safety and Maintenance Practices Are Essential?

A 160-ton press generates forces capable of causing severe injury. Safe operation requires engineered safeguards, trained personnel, documented procedures, and regular inspection. Machine tonnage should never be treated as a substitute for a formal risk assessment.

Essential Safety Measures

• Install and maintain appropriate guards, interlocks, and presence-sensing devices where required by the machine design and applicable regulations.
• Use the specified operating controls and approved work procedures.
• Keep hands and other body parts outside the point of operation during hazardous movement.
• Isolate and lock out energy sources before maintenance, die changes, or work that exposes personnel to hazardous motion.
• Inspect safety devices and emergency stopping functions at the intervals specified by the manufacturer.
• Train operators and maintenance personnel for the specific press configuration and production process.

Preventive Maintenance Priorities

Maintenance tasks vary by machine type. Mechanical presses require attention to drive components, lubrication, clutch and brake systems, and structural condition. Hydraulic presses require monitoring of fluid condition, leaks, filters, pumps, valves, seals, and operating temperature.

For all press types, keep records of inspections, repairs, abnormal noise or vibration, and recurring production faults. Follow the manufacturer's maintenance schedule and use qualified personnel for adjustments to critical components.

10. What Purchasing Mistakes Should Be Avoided?

Choosing by Tonnage Alone

A 160-ton rating does not establish whether a machine can perform a particular operation. Force availability, stroke, tooling space, frame stiffness, speed, and control requirements must all be evaluated.

Ignoring Future Production Needs

Buyers should consider expected material changes, product development, and possible automation upgrades. However, excessive capacity can also raise costs, so future requirements should be realistic and supported by a production plan.

Overlooking Installation Conditions

Floor loading, foundation design, power supply, working clearance, lifting access, and environmental conditions can affect installation time and cost. Confirm these requirements before the machine is shipped.

Failing to Define Acceptance Criteria

Before placing an order, document the required machine specifications, testing procedures, safety functions, and performance acceptance criteria. Where practical, arrange a factory acceptance test using representative tooling or workpieces.

Evaluating Only the Purchase Price

Low initial cost may not reflect the complete cost of ownership. Compare machine capability, build quality, technical documentation, warranty terms, spare-parts support, and service responsiveness alongside the quoted price.

11. Frequently Asked Questions

Conclusion: Match Press Capacity to Real Production Needs

A 160 tons press machine can be a valuable production asset for suitable stamping, blanking, punching, forming, and pressing operations. Its actual value depends on more than nominal tonnage: force characteristics, tooling compatibility, material behavior, operating speed, safety provisions, and service support all influence long-term performance.

Before making a purchasing decision, define the application clearly, verify the required force, compare technical specifications, and discuss the intended production process with an experienced equipment manufacturer. A well-matched machine can help improve process consistency, reduce avoidable downtime, and support more predictable manufacturing operations.
