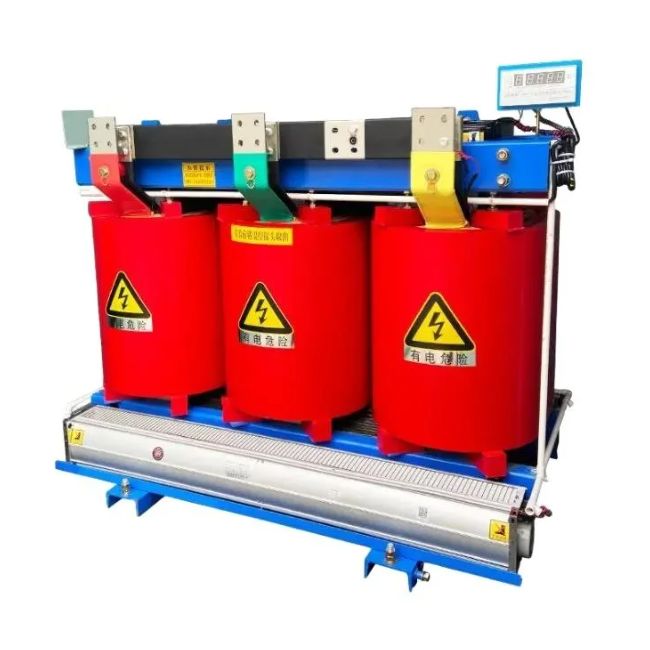

What Exactly is a Dry Type Transformer and Why Should You Care About Its Specs?

You're not just buying a component; you're investing in the heart of your electrical system's safety, efficiency, and reliability. For decades, the choice for power transformation in critical environments has been clear: the Dry Type transformer. Unlike their liquid-filled counterparts, Dry Type transformers use advanced, environmentally safe solid insulation, making them the superior choice for indoor applications, demanding industrial settings, and projects where fire safety is a non-negotiable priority. But with so many options on the market, how do you decipher the technical jargon to find the perfect match for your project's specific needs? As an industry veteran, I've seen specifications make or break a project. Let's break down what truly matters.

Understanding the Core Advantages: Beyond the Basics

Why has the Dry Type transformer become the go-to solution? The benefits are tangible and directly impact your bottom line and operational safety.

• Enhanced Safety and Environmental Friendliness: The most significant advantage. With no flammable oil or liquid coolant, the risk of fire is drastically reduced. They are also leak-proof, eliminating soil and groundwater contamination concerns. This makes them ideal for hospitals, schools, high-rises, and manufacturing plants.

• Durability and Low Maintenance: Designed with a robust core and coil assembly, these transformers are built to withstand harsh conditions. They are resistant to moisture, dust, and corrosive atmospheres. Without the need for oil monitoring, filtration, or containment systems, your long-term maintenance costs and efforts are significantly lower.

• High Efficiency and Energy Savings: Modern Dry Type transformers, especially those meeting premium efficiency standards (like NEMA TP-1 or IEC 60076-11), operate with remarkably low losses. This translates directly into reduced electricity bills over the transformer's entire lifespan, offering a fantastic return on investment.

• Installation Flexibility: Their compact and lightweight design, compared to oil-filled units, allows for easier installation in tight spaces, on upper floors, or close to the load center. This reduces installation complexity and cost.

To truly appreciate the engineering, you need to look at the key parameters that define performance. Here's a detailed breakdown.

Comparative Technical Snapshot: Making an Informed Choice

The following table provides a clear, at-a-glance comparison of typical Dry Type transformer specifications for different application tiers. This is where you separate standard offerings from high-performance solutions.

As you can see, a "Heavy Duty" unit from a manufacturer like Zhejiang Dahu Electric Co., Ltd. isn't just a label; it's defined by superior materials, a lower operating temperature, and enhanced protection, ensuring durability where it counts.

Dry Type Transformer FAQ: Your Top Questions, Answered by Experts

1. What is the typical lifespan of a Dry Type transformer, and what factors influence it?

The expected lifespan of a well-designed and properly applied Dry Type transformer is typically 25-30 years or more. The primary factor influencing longevity is thermal aging. Continuous operation at temperatures above the transformer's insulation class rating will significantly shorten its life. Other critical factors include:

• Operating Environment: Exposure to excessive moisture, conductive dust, corrosive chemicals, or frequent thermal cycling (load fluctuations) can degrade insulation and other components.

• Load Profile: Consistently operating at or above its rated nameplate capacity will increase thermal stress.

• Maintenance: While low-maintenance, periodic inspection for dust accumulation, checking tightness of connections, and verifying the cooling system (if forced-air) are essential for maximizing service life.

2. How do I determine the correct kVA rating needed for my application?

Sizing a transformer correctly is paramount. An undersized unit will overheat and fail prematurely, while an oversized one is inefficient and costs more upfront. Follow this logical process:

• Calculate Total Load: Sum the full-load ampere (FLA) of all motors and the wattage of all lighting and other loads that will be powered by the transformer. Use diversity factors where appropriate, as not all equipment runs simultaneously at full load.

• Account for Inrush Currents: Motor starting currents can be 6-8 times the FLA. Your transformer must be able to handle this temporary inrush without causing a excessive voltage dip. Soft starters or VFDs can mitigate this.

• Apply a Safety Margin: Once you have the calculated total kVA, it is standard practice to add a 15-25% safety margin for future load expansion. Consulting with a qualified electrical engineer or a technical specialist from Zhejiang Dahu Electric Co., Ltd. is highly recommended for complex projects.

3. Can a Dry Type transformer be installed outdoors, and what special considerations are needed?

Yes, Dry Type transformers can be installed outdoors, but they require specific protective enclosures. A standard IP20 enclosure is insufficient.

Your Next Step Towards a Smarter, Safer Power Solution

Choosing the right Dry Type transformer is a technical decision with long-term consequences. It's not just about the initial purchase price; it's about total cost of ownership, operational safety, and system reliability for decades to come. By focusing on the detailed specifications we've outlined—from insulation class and temperature rise to efficiency standards and protection codes—you empower yourself to make an informed choice that aligns perfectly with your project's demands.

For over two decades, Zhejiang Dahu Electric Co., Ltd. has been at the forefront of designing and manufacturing premium electrical solutions. Our commitment to innovation, rigorous quality control, and deep technical expertise is embedded in every Dry Type transformer we produce. We don't just sell products; we deliver peace of mind.

Ready to specify the ideal transformer for your application? Don't leave your critical infrastructure to chance. Contact us today to discuss your specific requirements, request a detailed quotation, or consult with our engineering team. Let us help you build a more resilient and efficient power system.
