Producing plastic film that combines mechanical strength, consistent thickness, reliable sealing performance, and competitive manufacturing costs is a constant challenge for flexible packaging manufacturers. A well-configured Three Layer ABC Blown Film Machine helps address these demands by combining three polymer layers into one film structure, allowing manufacturers to assign different functions to different materials.
This guide explains how ABC co-extrusion works, where it creates the greatest value, how to select suitable equipment, and how to troubleshoot common production issues.

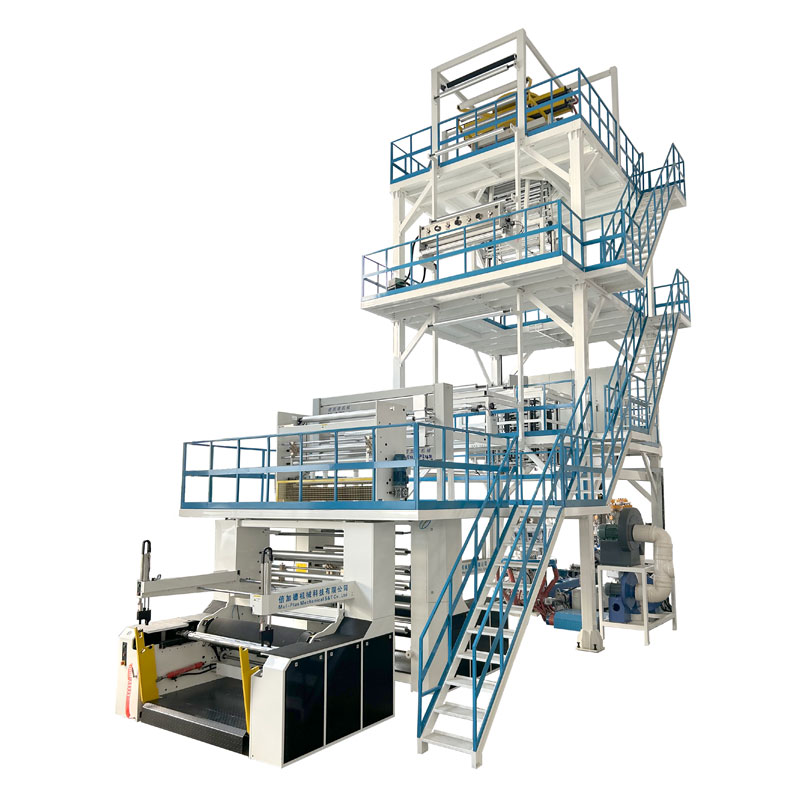

A Three Layer ABC Blown Film Machine uses three extruders and a co-extrusion die to produce multilayer plastic film. By optimizing the A, B, and C layers independently, manufacturers can balance strength, flexibility, sealability, surface quality, and material cost. Understanding material compatibility, layer ratios, output requirements, cooling performance, and winding stability is essential when selecting equipment for commercial production.
1. What Is a Three Layer ABC Blown Film Machine?
A Three Layer ABC Blown Film Machine is a plastic film extrusion system designed to manufacture film through three-layer co-extrusion. The equipment generally contains three independent extruders, a multilayer die head, a cooling system, a film-bubble stabilization assembly, a haul-off unit, and a winding system.
Each extruder plasticizes a selected polymer or material blend. The three molten streams enter specially designed flow channels inside the die, where they are combined into a single layered structure. Air introduced through the die inflates the extruded tube into a bubble. After cooling and stabilization, the bubble passes through the haul-off assembly and is flattened and wound into rolls.
The defining advantage is the ability to engineer the composition of each layer rather than relying on a single material to deliver every required property. For example, a manufacturer may prioritize surface appearance in one layer, structural performance in another, and sealing characteristics in the third.
Three Functional Layers
Different material formulations can be allocated to the outer, middle, and inner layers to meet specific end-use requirements.
Independent Material Feeding
Separate extruders provide greater flexibility in material selection and layer-ratio adjustment, within the machine's design limits.
Continuous Film Manufacturing
Integrated extrusion, cooling, drawing, and winding operations support continuous production when the line is properly configured.
Application-Based Formulation
Manufacturers can place more expensive functional materials only where necessary, subject to the performance requirements of the finished film.
It is important to distinguish ABC from ABA co-extrusion. A typical ABC system uses three extruders to feed three respective layers, while an ABA system commonly uses two extruders to form three layers by splitting one material stream between the two outer layers. The appropriate structure depends on the required film properties, formulation, and production objectives.
2. How Does ABC Co-Extrusion Work?
The production process involves several coordinated stages. Understanding each stage helps buyers evaluate machine configuration and identify potential quality-control issues before investing.
- Material preparation: Polymer resins, masterbatches, and approved additives are selected according to the film formulation. Drying or other preparation may be required for certain materials.
- Independent extrusion: Three extruders convey, melt, and homogenize the selected materials. Temperature, screw speed, and melt pressure must suit each formulation.
- Layer combination: The molten streams enter the ABC die head. Its internal flow channels distribute the materials into the intended A/B/C arrangement.
- Bubble formation: The molten tube exits the annular die and is inflated with air. Blow-up ratio, melt strength, and cooling conditions influence bubble stability and film dimensions.
- Cooling and stabilization: Cooling air removes heat from the film bubble. Proper airflow and stable operating conditions help establish consistent film formation.
- Haul-off and winding: The cooled bubble is collapsed, drawn through the haul-off assembly, and wound into finished rolls. Tension and alignment influence roll quality.
All these stages affect the final product. A high-capacity extruder cannot compensate for an unstable bubble, an unsuitable die design, or inconsistent winding tension. Reliable output depends on the performance of the complete production line.
3. What Does Each Film Layer Do?
The A/B/C structure allows manufacturers to assign different functions to individual layers. The actual formulation should be developed according to the packaging design, material compatibility, processing conditions, and applicable product requirements.
| Layer | Possible Function | Key Consideration |
|---|---|---|
| Layer A | Outer-surface appearance, printability, stiffness, or surface protection | Surface properties must suit printing, handling, or the intended end use. |
| Layer B | Structural support, toughness, formulation adjustment, or selected functional properties | Core composition and thickness must maintain overall film integrity. |
| Layer C | Heat sealing, contact-side performance, flexibility, or another application-specific function | Sealing behavior and compatibility with the intended contents or packaging process must be verified. |
These functions are examples rather than fixed rules. Layer A and Layer C may be interchangeable depending on the film's intended use, and a particular material can perform multiple functions. Barrier performance, for example, depends on the polymer selection, layer thickness, interfaces, and processing conditions rather than the number of layers alone.
Before production, manufacturers should test the complete structure for tensile properties, elongation, tear resistance, sealing strength, thickness uniformity, and any application-specific requirements. Food-contact, pharmaceutical, and other regulated uses require additional material and compliance verification.
4. Key Benefits for Film Manufacturers
4.1 Better Control Over Film Performance
A multilayer structure enables different formulations to work together. Instead of selecting a single resin that compromises between strength, flexibility, and sealing behavior, manufacturers can optimize each layer for its assigned role. The result depends on proper formulation and validation, not simply on installing a three-layer machine.
4.2 More Flexible Material Formulation
Separate extruders make it possible to process different compatible material blends in the same production run. This is useful when product specifications require a particular combination of stiffness, softness, appearance, or sealing behavior. Formulation changes must remain within the machine's processing capabilities.
4.3 Opportunities to Manage Material Costs
ABC co-extrusion can help allocate higher-cost resins to the layers where their performance is most valuable. A less expensive compatible formulation may be considered for another layer if testing confirms that the finished film still meets its requirements.
Cost reductions are not automatic. Additional equipment, energy use, startup scrap, maintenance, and formulation complexity must be considered alongside resin consumption and product quality.
4.4 Product Differentiation
Manufacturers can develop film structures for different customer segments without necessarily changing the entire production platform. Subject to the machine's design, material compatibility, and die configuration, this flexibility may support a broader product range and more application-specific solutions.
4.5 Consistent Production When Properly Configured
Suitable extrusion controls, a well-designed die, stable cooling, and appropriate winding equipment can help manufacturers maintain consistent film dimensions and quality. Automated monitoring can reduce the need for frequent manual intervention, although process supervision and routine inspection remain essential.
5. Common Industrial and Packaging Applications
A Three Layer ABC Blown Film Machine can serve multiple markets when the selected materials, line configuration, and finished-film properties are suitable for the application.
Flexible Packaging
Packaging film, liner bags, and other flexible packaging products that benefit from a balance of mechanical properties and reliable converting performance.
Shopping and Refuse Bags
Film for shopping bags, garbage bags, and industrial liners, where tear resistance, flexibility, thickness, and sealing behavior may be important.
Agricultural Film
Selected agricultural covers and related film products requiring suitable durability, flexibility, and resistance to their intended operating environment.
Industrial Protection
Protective covers, construction films, dust covers, and other industrial film products designed around specific mechanical and environmental demands.
Not every ABC line is suitable for every application. Film width, thickness, resin compatibility, additives, bubble stability, output, and downstream converting requirements must be checked before equipment selection. Specialized barrier packaging may also require additional materials, different extrusion technology, or further converting processes.
6. Which Materials Can Be Processed?
Common polymer families used in blown film production include polyethylene grades such as LDPE, LLDPE, and HDPE. Depending on the machine design and application, selected EVA grades, compatible blends, recycled polyethylene, or other formulated materials may also be considered.
| Material | Typical Characteristics | What to Verify |
|---|---|---|
| LDPE | Flexibility, processability, and useful sealing characteristics in suitable formulations | Melt behavior, target film thickness, and bubble stability |
| LLDPE | Toughness, elongation, and puncture resistance in suitable grades | Grade compatibility, extrusion conditions, and required mechanical performance |
| HDPE | Higher stiffness and strength-to-thickness potential in suitable film designs | Processing window, die conditions, and dimensional stability |
| EVA and selected blends | Application-dependent flexibility, adhesion, or sealing characteristics | Specific grade, temperature range, and compatibility with adjacent layers |
| Recycled polyethylene | Potential material-cost and resource-use benefits when properly controlled | Contamination, consistency, melt quality, traceability, and end-use suitability |
Material compatibility is a critical consideration. Differences in melt viscosity, processing temperature, and interfacial behavior can affect layer distribution, adhesion, and overall film quality. A resin that performs well in a single-layer process may not automatically work in a particular three-layer combination.
Before purchasing equipment, provide the supplier with your intended resin grades, formulations, target film dimensions, and end-use requirements. Material trials and sample evaluation can help confirm whether the proposed configuration is appropriate.
7. How to Select the Right Machine
Choosing a suitable machine requires more than comparing advertised maximum output or purchase price. The best configuration is the one that can consistently produce your required film at a commercially acceptable cost.
7.1 Define Film Width and Thickness
Establish the required lay-flat width, thickness range, thickness tolerance, and roll dimensions. Confirm that the die, haul-off assembly, and winding system can accommodate the full product range. Ask the manufacturer to distinguish the maximum design capacity from the normal operating range for your material.
7.2 Calculate Realistic Production Capacity
Compare the line's expected output with your demand, shift schedule, and product mix. Maximum extrusion output is not the same as saleable output. Startup waste, product changes, downtime, inspection, and winding limitations all affect actual production.
7.3 Check Extruder and Die Configuration
Review screw diameter, screw design, drive power, temperature control, melt-pressure monitoring, and die flow characteristics. These components must be matched to the materials and throughput required. Ask how the equipment maintains layer distribution across the target film width.
7.4 Evaluate Cooling and Bubble Control
Cooling performance directly affects bubble stability, production speed, and film formation. Depending on the application, the configuration may include specialized air rings, internal bubble cooling, or other stabilization options. Confirm which features are standard and which are optional.
7.5 Review Automation and Winding
Depending on production needs, useful options may include gravimetric dosing, automatic thickness measurement, automatic winding, web guiding, and integrated data monitoring. Evaluate whether the expected reduction in waste or labor justifies the additional investment.
7.6 Confirm Installation and After-Sales Support
Check factory acceptance testing, installation requirements, operator training, spare-parts availability, warranty coverage, and remote technical support. Also verify floor space, machine height, electrical supply, compressed air, cooling arrangements, and safe access for maintenance.
8. Common Production Problems and Solutions
Film defects can originate from raw materials, extrusion conditions, die contamination, cooling instability, mechanical alignment, or winding settings. A systematic troubleshooting process is more effective than changing multiple parameters simultaneously.
| Problem | Possible Causes | Recommended Checks |
|---|---|---|
| Uneven film thickness | Uneven die flow, temperature variation, unstable bubble, or inconsistent cooling | Check die cleanliness, temperature profiles, air-ring alignment, and thickness measurements. |
| Bubble instability | Inconsistent airflow, unsuitable operating conditions, or material variation | Inspect cooling airflow, air-ring setup, extrusion stability, and bubble geometry. |
| Weak layer adhesion | Incompatible materials, unsuitable melt conditions, or formulation issues | Review resin compatibility, processing temperatures, and layer-interface performance. |
| Gels or visible defects | Contaminated resin, degraded polymer, deposits, or inadequate melt filtration | Inspect material handling, filtration components, temperature settings, and die deposits. |
| Poor roll quality | Incorrect winding tension, misalignment, wrinkles, or inconsistent film dimensions | Check nip and winding settings, roller alignment, web tracking, and tension control. |
| Low output | Material limitations, restricted melt flow, excessive downtime, or cooling constraints | Review melt pressure, screw condition, cooling capacity, changeover losses, and operating records. |
For persistent defects, record the resin batch, formulation, layer ratio, screw speeds, melt pressures, temperature settings, cooling conditions, line speed, and defect location. These records help operators identify correlations and give technical teams useful evidence for diagnosis.
Changes to extrusion temperatures, pressure limits, guarding, or other safety-critical settings should follow the equipment manufacturer's operating instructions. Operators should never attempt cleaning or mechanical adjustment while hazardous moving parts or stored energy remain uncontrolled.
9. Maintenance Practices for Stable Production
Preventive maintenance helps protect equipment availability, product consistency, and operating costs. A maintenance schedule should be based on the manufacturer's recommendations, operating hours, processed materials, and actual machine condition.
- Before production: Check guards, emergency stops, cooling airflow, temperature-control readiness, material supply, and visible signs of leakage or damage.
- During operation: Monitor melt pressure, temperature stability, bubble behavior, abnormal noise, vibration, and film-quality trends.
- At scheduled intervals: Inspect screws, barrels, gearboxes, filters, die components, bearings, drive systems, and winding assemblies according to the maintenance plan.
- During material changes: Follow approved purging and cleaning procedures to minimize contamination and reduce startup waste.
- For control systems: Check sensors, temperature controllers, alarms, and measurement equipment according to the supplier's calibration and service requirements.
- For spare parts: Maintain suitable stocks of critical consumables and components based on supplier lead times and the consequences of unexpected downtime.
Consistent maintenance also improves the usefulness of production data. When equipment condition is stable, changes in thickness, output, or defect rates are easier to associate with materials and process settings rather than hidden mechanical problems.
10. How to Evaluate the Total Investment
The purchase price is only one part of the cost of owning a Three Layer ABC Blown Film Machine. A realistic investment assessment should account for the entire production process, from material feeding to finished-roll handling.
- Equipment cost: Base machine, die configuration, automation, optional accessories, and required auxiliary equipment.
- Installation cost: Freight, unloading, site preparation, electrical work, ventilation, cooling systems, and commissioning.
- Operating cost: Resin, electricity, labor, compressed air, routine maintenance, and consumables.
- Quality cost: Startup scrap, rejected film, material changes, inspection, and reprocessing where permitted.
- Downtime cost: Planned maintenance, unplanned stoppages, spare-part lead times, and production scheduling disruptions.
- Business return: Saleable output, achievable product margins, customer demand, and the ability to manufacture products that the market actually requires.
Compare suppliers using the same test conditions whenever possible. Ask for the expected output on your specified materials and film dimensions, rather than relying solely on headline figures. A production trial using representative formulations can provide a more useful basis for comparing quality, stability, and material consumption.
For manufacturers expanding from single-layer extrusion, the additional flexibility of three-layer production should be weighed against the higher equipment complexity, maintenance requirements, and need for process expertise. The investment is most attractive when the intended product range can make practical use of independent layer control.
11. Frequently Asked Questions
Q1: What is the main advantage of a Three Layer ABC Blown Film Machine?
Its main advantage is the ability to combine three material layers in one film, with each layer formulated for a specific function. This can help manufacturers balance mechanical performance, surface characteristics, sealing behavior, and material cost according to the application.
Q2: What is the difference between ABC and ABA blown film machines?
A typical ABC system uses three extruders to feed three layers independently. A typical ABA system uses two extruders, with one material stream divided between the two outer layers and the second material forming the middle layer. The choice depends on the required formulation flexibility and product specifications.
Q3: Which raw materials are suitable for three-layer blown film production?
Common options include LDPE, LLDPE, and HDPE, while selected EVA grades, recycled polyethylene, and other compatible formulations may be possible on appropriately configured equipment. The final choice depends on the resin grade, layer compatibility, processing window, and intended application.
Q4: Can a three-layer machine reduce raw material costs?
It can create opportunities to optimize material allocation by using more expensive functional materials only where needed. Actual savings depend on resin prices, layer ratios, formulation performance, waste levels, and operating costs. Cost reductions should be confirmed through production trials.
Q5: How can film thickness uniformity be improved?
Start by checking die condition, temperature stability, cooling airflow, bubble stability, material consistency, and haul-off alignment. Appropriate measurement equipment and a repeatable process-control procedure can help identify thickness variations before they lead to significant waste.
Q6: What determines the output capacity of the machine?
Output depends on extruder size and design, resin properties, die configuration, film width and thickness, cooling performance, line speed, and winding capability. Actual production rates should be evaluated against the specific product rather than maximum rated output alone.
Q7: Which information should buyers provide when requesting a quotation?
Provide your intended materials, ABC layer structure, target film width, thickness range, required output, application, finished-roll specifications, available utilities, and preferred automation features. Sample films or existing product specifications can help the supplier assess your requirements more accurately.
Q8: Is a Three Layer ABC Blown Film Machine suitable for small manufacturers?
It can be suitable when the business has a clear need for multilayer products and sufficient production demand, technical resources, and investment capacity. Smaller manufacturers should compare the expected product value and flexibility against equipment cost, operating complexity, and available floor space.
Q9: What should manufacturers consider when processing recycled materials?
Important factors include contamination, resin consistency, melt behavior, filtration, odor, mechanical performance, and the intended end use. Recycled material must be compatible with the other layers and meet any applicable quality and regulatory requirements. Not every recycled feedstock is suitable for every film application.
Q10: Why is technical support important after installation?
Commissioning, operator training, process optimization, spare parts, and troubleshooting can affect how quickly a new line reaches stable production. Buyers should confirm the supplier's support arrangements, documentation, warranty terms, and service response procedures before placing an order.
Looking for a Suitable Three Layer ABC Blown Film Machine?
Selecting the right blown film extrusion line starts with understanding your materials, film specifications, production targets, and long-term manufacturing plans. The right equipment configuration can help you improve process consistency, manage material use, and develop film products for demanding customer applications.
