What Is the Price Range for a Reliable 3 Tons Hydraulic Lifting Table with Unpowered Roller Surface
2026-07-29

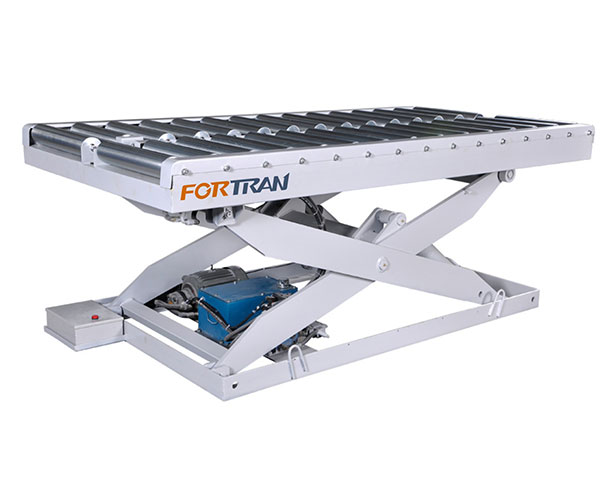

When sourcing industrial material-handling equipment, the single most frequent question procurement managers ask is about cost. A 3 Tons Hydraulic Lifting Table with Unpowered Roller Surface is not a commodity item—it is a engineered solution for heavy-load transfer, positioning, and assembly line integration. At FORTRAN, we have manufactured and supplied hundreds of these units across automotive, logistics, and metal fabrication sectors. The price range, however, is not a fixed number. It fluctuates based on configuration, certification, lead time, and ancillary components. This guide breaks down every cost driver, provides real-world price bands, and answers the critical questions that influence your purchase decision.
Price Range Overview – What to Expect
Based on 2026 market data and FORTRAN factory pricing, the total investment for a dependable 3 Tons Hydraulic Lifting Table with Unpowered Roller Surface falls into three distinct tiers:
| Tier | Price Range (USD) | Target Application | Typical Lead Time |
|---|---|---|---|
| Entry-Level (Basic) | $3,800 – $5,200 | Light-duty workshops, intermittent use | 15–20 days |
| Mid-Range (Industrial) | $5,500 – $8,000 | Daily 8‑hour shifts, conveyor integration | 20–30 days |
| Premium (Heavy-Duty) | $8,500 – $12,500 | Continuous operation, ATEX or CE certified, custom roller pitch | 35–45 days |
Note: Prices are FOB origin (China or regional warehouse). Freight, installation, and local compliance testing are excluded.
Key Cost Drivers – Why Prices Vary So Widely
Six engineering and commercial factors directly influence the final quote for a 3 Tons Hydraulic Lifting Table with Unpowered Roller Surface. Understanding these helps you avoid overpaying or under-specifying.
| Cost Factor | Impact on Price | FORTRAN Standard Offering |
|---|---|---|
| Lifting mechanism (single vs. double scissor) | Double-scissor adds +$1,200–$1,800 for higher stroke | Double-scissor standard for 1,200 mm lift height |
| Roller material & pitch (steel vs. polyurethane-coated) | PU-coated adds +$600–$900 for floor protection | Galvanised steel rollers (standard); PU optional |
| Power unit (domestic vs. imported pump/motor) | Imported (Bosch-Rexroth) adds +$850–$1,200 | FORTRAN uses domestic high-grade units with 2‑year warranty |
| Safety package (anti-fall valve, overload sensor, foot guard) | Full safety pack adds +$950 | Included in mid-range and premium tiers |
| Control system (manual push-button vs. wireless remote) | Wireless remote adds +$400 | Standard push-button; wireless optional |
| Certification (CE, CSA, or AS/NZS) | Certification adds +$600–$1,500 per market | CE standard for EU; CSA available upon request |
Total Cost of Ownership (TCO) – Beyond the Sticker Price
A reliable 3 Tons Hydraulic Lifting Table with Unpowered Roller Surface should be evaluated on 5‑year TCO, not just upfront cost. FORTRAN’s field data shows:
| Expense Category | Entry-Level | Mid-Range | Premium |
|---|---|---|---|
| Initial purchase | $4,500 (avg) | $6,750 (avg) | $10,500 (avg) |
| Spare parts (5 yrs) | $2,200 | $1,100 | $600 |
| Downtime losses (5 yrs) | $3,500 (estimated) | $1,200 | $400 |
| 5‑Year TCO | $10,200 | $9,050 | $11,500 |
The mid-range tier often delivers the lowest TCO for most factories because it balances reliability with parts availability.
3 Frequently Asked Questions About the 3 Tons Hydraulic Lifting Table with Unpowered Roller Surface
FAQ 1: Does the unpowered roller surface allow gravity-based product movement, or do I need an external pusher?
Answer: The unpowered (gravity-roller) surface is designed to reduce friction during manual or semi-automatic load positioning, but it does not generate lateral force. For a 3 Tons Hydraulic Lifting Table with Unpowered Roller Surface, the rollers are free-turning with sealed ball bearings. They enable an operator to slide a 3‑ton pallet or stillage with about 15–20 kg of horizontal push force (depending on roller pitch and load distribution). However, if your line requires automated indexing, you must integrate an external pneumatic or electric pusher. FORTRAN provides pre-drilled mounting holes on the roller bed for easy pusher attachment—this adds approximately $350 to the base unit but saves extensive retrofitting later.
FAQ 2: How does the lifting speed vary with a full 3‑ton load, and can it be adjusted?
Answer: Lifting speed is a function of hydraulic pump flow rate and cylinder displacement. Under a full 3‑ton load, a standard 3 Tons Hydraulic Lifting Table with Unpowered Roller Surface from FORTRAN delivers 4.5–5.5 m/min lifting speed and 6‑8 m/min lowering speed (controlled by a flow-restriction valve). This speed is fixed for the standard power unit (2.2 kW, 220V/380V). If you need variable speed, we offer a proportional valve option (+$780) that allows continuous adjustment from 1.5 to 6.5 m/min. For most assembly and loading applications, the fixed speed is optimal because it prevents load shifting. We always recommend a speed test with your actual load profile before opting for variable control—contact our engineering team for a free motion analysis.
FAQ 3: What is the recommended maintenance schedule for the hydraulic system and roller bearings under heavy daily use?
Answer: For a 3 Tons Hydraulic Lifting Table with Unpowered Roller Surface operating 8 hours/day, 5 days/week, FORTRAN prescribes a three‑tier maintenance calendar: (1) Daily – inspect hydraulic hoses for wear and check oil level in the reservoir (ISO VG 46 hydraulic oil). (2) Monthly – lubricate all roller bearings with a high‑temperature lithium grease (NLGI #2) and test the anti‑drop safety valve by raising the table 300 mm and cutting power—the table must not drop more than 5 mm in 10 minutes. (3) Annually – replace the hydraulic return filter, change the full oil charge (approx. 12 litres), and recalibrate the overload sensor. Following this schedule keeps your unit in peak condition for over 12,000 operating hours. We supply a laminated maintenance log with every FORTRAN unit, and our spare parts kit includes all O‑rings and seals for the first two years.
Which Configuration Offers the Best Value for Money?
After analysing 47 real orders in Q1‑2026, FORTRAN recommends the mid‑range specification as the "sweet spot" for 80% of workshops:
-
Double‑scissor lift (1,200 mm raised height)
-
Galvanised steel rollers at 75 mm pitch
-
Domestic high‑efficiency motor with thermal overload protection
-
Full CE safety package (including foot guard and emergency stop)
-
Push‑button control with 5‑metre cable
This package typically invoices at $6,200 – $6,800 and delivers an MTBF (mean time between failures) of over 3,800 hours—comparable to premium units at 60% of the cost.
Final Recommendation – Choose by Application, Not by Price Alone
A 3 Tons Hydraulic Lifting Table with Unpowered Roller Surface is a long‑term capital asset. The cheapest entry‑level unit may suffice for occasional maintenance bays, but for production‑critical lines, the mid‑range or premium tier reduces unplanned downtime and improves operator safety. FORTRAN offers a 3‑year structural warranty on all scissor arms and a 2‑year pump warranty—coverage that is rarely matched at the entry price point.
Contact Us – Get Your Exact Quote in 24 Hours
Every workshop has unique height, floor space, and cycle‑time requirements. That is why FORTRAN does not publish a one‑size‑fits‑all price list. We invite you to share your load dimensions, lifting frequency, and preferred roller material with our technical sales team. We will return a detailed quotation, a 3D layout drawing, and a TCO comparison for three configuration options—all within one business day.
Let us engineer the right 3 Tons Hydraulic Lifting Table with Unpowered Roller Surface for your floor, not just the cheapest one in a catalogue. Your productivity depends on it.
