What Makes Electrophoresis Production Lines the Key to Modern Surface Finishing?
2025-11-07
An Electrophoresis Production Line—also known as an electrophoretic coating line or e-coating system—is an advanced industrial solution used to apply a uniform, corrosion-resistant, and long-lasting coating onto metal or conductive surfaces. The process utilizes the principle of electrophoresis, where electrically charged paint particles are attracted to a conductive substrate under a direct current (DC) field. This method ensures even coating distribution, even on complex geometries, cavities, and edges, making it a superior alternative to traditional spray or dip coating.
The purpose of this technology is not only to enhance appearance but also to ensure durability, anti-rust performance, and environmental compliance in industries such as automotive manufacturing, construction materials, home appliances, and hardware tools.
Core Working Principle
-
Pretreatment Section: The metal surface undergoes degreasing, cleaning, and phosphating to ensure optimal paint adhesion.
-
Electrophoresis Bath: The product is immersed in a tank filled with water-based electrophoretic paint, and a controlled DC current drives paint particles toward the surface.
-
Rinsing Process: Excess paint and residues are removed using ultrafiltration and deionized water.
-
Curing Oven: The coated parts are baked at a set temperature, allowing the coating to harden and achieve chemical stability.
-
Cooling and Inspection: After cooling, products are inspected for coating thickness, adhesion, and uniformity.
Typical Product Parameters
| Parameter | Specification |
|---|---|
| Coating Type | Cationic or Anionic Electrophoretic Paint |
| Bath Temperature | 25–30°C |
| Coating Voltage | 100–400V DC |
| Coating Thickness | 15–35 µm |
| Curing Temperature | 160–200°C |
| Curing Time | 20–30 minutes |
| Material Compatibility | Steel, Aluminum, Zinc Alloys |
| Paint Utilization Rate | ≥ 95% |
| Environmental Compliance | VOC-Free, Water-Based, Low Waste |
The electrophoresis production line integrates automation control systems, energy-efficient heating solutions, and precision filtration technology. Together, they form a streamlined and eco-friendly production process that meets modern sustainability standards while improving coating quality and consistency.
Why Is the Electrophoresis Production Line So Widely Used in Industry?
High-Performance Coating
The main reason behind the growing adoption of electrophoresis coating is its exceptional uniformity and corrosion resistance. Unlike manual painting or powder coating, the e-coating process ensures a consistent film thickness over the entire product surface, including hidden areas and edges that are difficult to reach. The result is a smooth, durable, and aesthetically pleasing finish.
Environmental and Economic Advantages
Electrophoretic coating is water-based and low in VOC emissions, aligning with global environmental regulations such as RoHS and REACH. Since most of the coating material is recovered and reused, the overall paint utilization rate exceeds 95%, significantly reducing production costs and waste discharge.
Energy Efficiency and Process Automation
Modern electrophoresis lines integrate PLC and IoT-based control systems, enabling operators to monitor bath conditions, voltage, and temperature in real time. This minimizes human error, improves production efficiency, and ensures consistency across large-scale production.
Wide Industry Applications
-

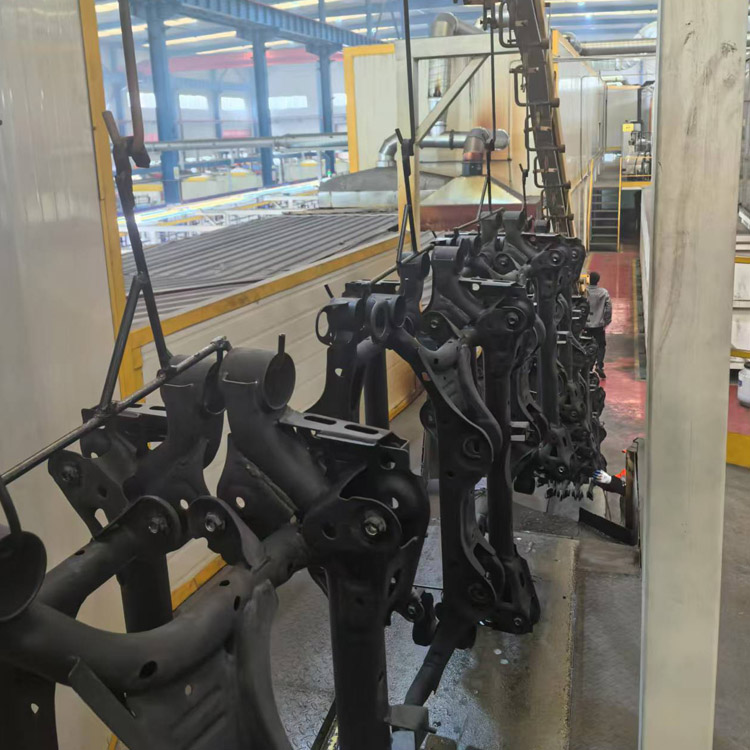

Automotive Industry: Used for chassis parts, wheels, and car bodies to enhance rust resistance and extend service life.
-
Construction Equipment: Protects machinery frames and metal fixtures against environmental corrosion.
-
Appliances and Hardware: Provides smooth and durable finishes for consumer electronics, metal furniture, and tools.
-
Agricultural Machinery: Ensures outdoor equipment withstands long-term moisture and dirt exposure.
The electrophoresis production line represents a balance of technology, sustainability, and efficiency, allowing manufacturers to meet both performance and environmental goals simultaneously.
How Does Technology Shape the Future of Electrophoresis Production Lines?
The global trend toward green manufacturing and smart factories is transforming the future of electrophoresis coating systems. Technological progress continues to refine every stage of the coating process, making it more precise, sustainable, and intelligent.
(1) Smart Control and Digital Monitoring
Future electrophoresis lines are expected to integrate artificial sensing systems, automated data recording, and predictive maintenance algorithms. These innovations enable dynamic adjustments to coating parameters, reducing downtime and enhancing quality control.
(2) Energy and Resource Optimization
Modern e-coating systems are focusing on energy recovery mechanisms and heat recycling designs. By optimizing the curing process and enhancing bath filtration, power consumption can be reduced by up to 30%, while maintaining stable coating quality.
(3) Eco-Friendly Coating Materials
The industry is shifting from solvent-based to advanced waterborne cationic paints with low environmental impact. These materials not only meet sustainability requirements but also provide improved adhesion and chemical resistance.
(4) Modular and Customizable Systems
Manufacturers are now offering modular production lines that can be customized for different product sizes, materials, and production capacities. This flexibility allows small and medium-sized enterprises to deploy efficient coating systems without excessive investment.
(5) Integration with Robotic Systems
Robotic arms and conveyor technologies are becoming increasingly common in electrophoresis coating plants. Robots ensure accurate part handling, minimize contamination, and enhance overall production consistency.
(6) Global Market Development
With the automotive and appliance sectors expanding rapidly in Asia and Europe, the demand for automated electrophoresis coating solutions continues to rise. Manufacturers focusing on technological innovation and green efficiency will lead the market in the next decade.
Frequently Asked Questions About Electrophoresis Production Lines
Q1: What factors influence the quality of electrophoretic coating?
A1: The quality of an electrophoretic coating is affected by factors such as bath composition, voltage control, coating time, and substrate preparation. Proper surface cleaning and phosphating are crucial to ensure strong adhesion and corrosion resistance. Temperature and voltage must also be precisely regulated to achieve consistent film thickness and appearance.
Q2: How can maintenance and operating costs be reduced in an electrophoresis production line?
A2: Cost reduction can be achieved by implementing automated control systems that monitor bath conditions and voltage in real time. Regular cleaning of the filtration system and proper maintenance of ultrafiltration membranes can prevent paint loss and prolong the service life of the coating bath. Using high-efficiency curing ovens and heat recovery units also significantly lowers energy consumption.
The Future of Electrophoresis Technology with Qingguo
The Electrophoresis Production Line has become an indispensable tool in modern surface finishing, merging efficiency, environmental protection, and technological precision. Its role in industrial coating applications continues to expand, driven by automation, smart controls, and sustainable materials.
As industries evolve toward intelligent and eco-friendly production, Qingguo remains at the forefront of developing advanced electrophoresis systems tailored to meet global standards and specific client needs.
For customized coating solutions, technical consultation, or detailed equipment specifications — contact us to explore how Qingguo’s cutting-edge electrophoresis technology can elevate your manufacturing capabilities and coating quality.
