What Makes One Point Gap Frame Press Essential for Modern Precision Manufacturing?

In today's rapidly evolving metal forming and stamping industry, manufacturers are under constant pressure to achieve higher precision, faster cycle times, and lower production costs. Among the wide range of mechanical presses available, the One Point Gap Frame Press has become a widely adopted solution due to its simple structure, strong versatility, and cost-efficient performance. It is especially suitable for small to medium-sized stamping operations where accessibility, flexibility, and reliability are key priorities. With increasing demand for high-quality stamped components in automotive, electronics, and home appliance industries, this equipment plays a critical role in improving production efficiency and consistency. Leading manufacturers such as Zhejiang ETONE Precision Machine Co.,ltd. continue to innovate in this field, delivering advanced press solutions tailored to modern industrial needs.

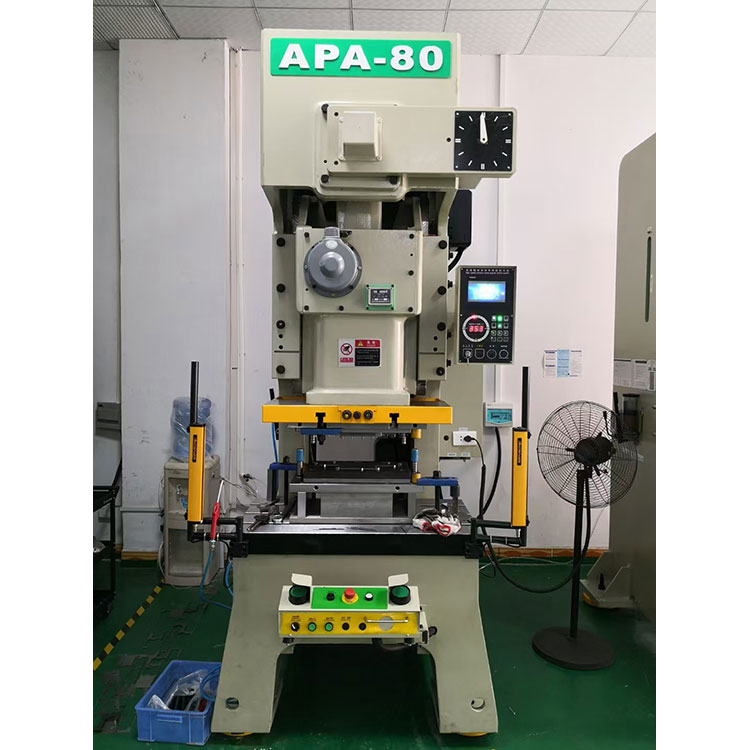

Understanding the One Point Gap Frame Press Structure

The One Point Gap Frame Press is characterized by its C-shaped (gap frame) structure with a single crankshaft driving system. This design provides an open working area, making it easier to load and unload materials manually or with automation systems.

Key structural features include:

• Single crankshaft for stable motion control
• Open C-frame design for easy access
• High rigidity cast steel frame
• Compact footprint suitable for limited factory space
• Adjustable stroke and die height for flexibility

This structure allows operators to quickly change dies and perform maintenance without complex disassembly, significantly reducing downtime.

How the One Point Gap Frame Press Works

The working principle is straightforward yet highly efficient. The motor drives the flywheel, which stores energy. This energy is then transferred through the clutch and crankshaft system to the slide, performing the stamping action.

Main Working Process:

1. Motor activates flywheel rotation
2. Energy is stored and stabilized
3. Clutch engages transmission system
4. Crankshaft converts rotary motion into linear stamping force
5. Slide performs precise punching or forming operation

This simple mechanism ensures consistent force output and stable operation, making it ideal for continuous production cycles.

Key Advantages of One Point Gap Frame Press

The popularity of the One Point Gap Frame Press comes from its balanced combination of performance and affordability.

Advantages List:

• High precision for medium-duty stamping tasks
• Easy operation and maintenance
• Cost-effective compared to multi-point presses
• Flexible die changing system
• Suitable for automation integration
• Stable and low-noise operation

These advantages make it a preferred choice for manufacturers seeking reliable performance without excessive investment in complex machinery.

One Point Gap Frame Press vs Other Press Types

This comparison shows that the One Point Gap Frame Press is particularly suitable for manufacturers who need a balance between performance, accessibility, and cost efficiency.

Industrial Applications and Use Cases

The versatility of the One Point Gap Frame Press allows it to be widely used across multiple industries:

• Automotive parts stamping (brackets, clips, connectors)
• Electronics components manufacturing
• Household appliance metal forming
• Hardware tools production
• Small precision metal parts fabrication

Its adaptability makes it a core machine in many production lines, especially where medium-force stamping is required.

Why Precision Matters in Gap Frame Press Systems

Precision directly impacts product quality, production yield, and tool life. A well-designed One Point Gap Frame Press ensures:

• Reduced dimensional deviation
• Consistent forming pressure
• Lower scrap rate
• Extended die lifespan
• Improved production repeatability

Modern manufacturers like Zhejiang ETONE Precision Machine Co.,ltd. focus heavily on enhancing precision through advanced control systems and reinforced structural design.

Technical Specifications Overview

Below is a simplified specification table for a typical One Point Gap Frame Press:

These parameters can vary depending on customization and production requirements.

Maintenance and Operational Tips

To ensure long-term performance, proper maintenance is essential:

• Regular lubrication of moving parts
• Periodic clutch and brake inspection
• Alignment checks for slide accuracy
• Die surface cleaning after production
• Monitoring overload protection systems

Proper maintenance not only extends machine lifespan but also ensures consistent production quality.

Future Trends in Gap Frame Press Technology

The evolution of stamping technology is moving toward automation, intelligence, and energy efficiency. Future One Point Gap Frame Press systems are expected to include:

• Smart PLC control systems
• IoT-based production monitoring
• Energy-saving servo drives
• Automated die change systems
• Real-time fault diagnostics

These innovations will significantly improve productivity and reduce operational costs.

Conclusion

The One Point Gap Frame Press remains one of the most practical and widely used stamping machines in modern manufacturing. Its combination of simple structure, reliable performance, and cost efficiency makes it a valuable asset for many industries. With continuous technological advancement and strong engineering support from manufacturers such as Zhejiang ETONE Precision Machine Co.,ltd., this equipment continues to evolve toward higher precision and smarter automation integration.

If you are looking for a reliable and efficient stamping solution tailored to your production needs, contact us today to learn more about our advanced One Point Gap Frame Press solutions and customized manufacturing services.
