Selecting the right brazed plate heat exchanger can improve heat transfer efficiency, reduce equipment footprint, control operating costs, and simplify system integration. However, choosing a unit based only on its rated capacity may lead to excessive pressure drop, insufficient thermal performance, or premature fouling. This guide explains how brazed plate heat exchangers work, which specifications matter most, how to evaluate materials and operating conditions, and how to avoid common purchasing mistakes.
1. Understanding Brazed Plate Heat Exchangers
Heat transfer is a fundamental requirement in refrigeration, HVAC systems, industrial cooling, process heating, and energy recovery. Equipment must transfer the required amount of heat while maintaining stable temperatures, acceptable pressure losses, and dependable operation. For many of these applications, a brazed plate heat exchanger provides an effective alternative to conventional shell-and-tube equipment.

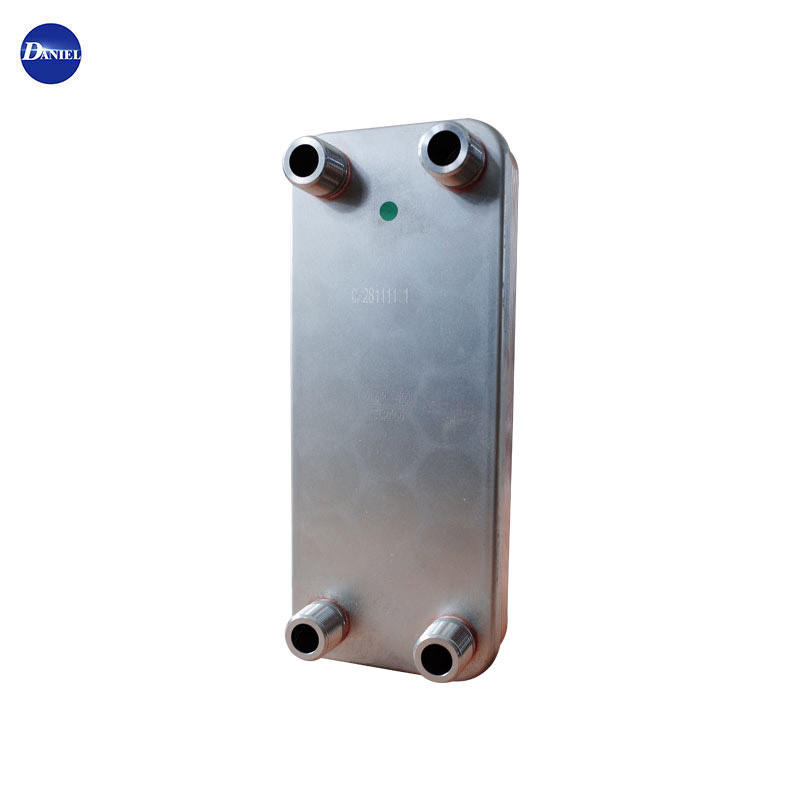

A brazed plate heat exchanger consists of a stack of thin, specially corrugated metal plates bonded together through a brazing process. The plates form alternating flow channels for two fluids, allowing heat to pass through the metal without requiring the fluids to mix during normal operation.
Unlike a conventional gasketed plate heat exchanger, a brazed design generally does not require elastomeric gaskets between individual plates. The resulting assembly is compact, mechanically integrated, and suitable for many closed-loop systems where installation space and maintenance requirements are important purchasing considerations.
Nevertheless, no single heat exchanger suits every process. The right solution depends on the heat load, fluid characteristics, operating pressure, temperature range, material compatibility, and allowable pressure drop. Understanding these factors before requesting a quotation helps buyers avoid mismatched equipment and unnecessary operating expenses.
2. How Does the Heat Transfer Process Work?
The operating principle is straightforward: two fluids flow through separate channels on opposite sides of thin metal plates. Heat travels through the plate walls from the hotter fluid to the colder fluid, while the channel arrangement keeps the two streams separated.
Corrugated Plates Improve Thermal Performance
The plates are formed with a corrugated pattern that increases the effective heat transfer surface area and encourages fluid mixing within each channel. This pattern can improve heat transfer compared with a smooth passage, although it also influences friction and pressure drop.
Counterflow Supports Effective Heat Exchange
Many brazed plate heat exchangers use a counterflow arrangement, in which the two fluids travel in opposite directions. This arrangement can maintain a useful temperature difference across the exchanger and support effective thermal performance when properly sized.
The Brazing Process Creates an Integrated Assembly
During manufacturing, the plate stack is bonded at designated contact points using a suitable brazing material. Copper and nickel are common options, with the appropriate choice depending on the fluid chemistry, operating environment, and manufacturer-approved design.
3. Why Industrial Buyers Choose Brazed Plate Designs
Compact Equipment for Space-Constrained Systems
Industrial equipment rooms, refrigeration skids, heat pump packages, and OEM assemblies often have limited installation space. A brazed plate heat exchanger offers a high heat transfer surface area relative to its overall size, helping designers create smaller and more integrated systems.
Efficient Heat Transfer
Thin plates and corrugated channels support effective heat exchange between fluids. When the unit is correctly selected and operated within its design limits, it can help systems achieve their required outlet temperatures without relying on a much larger heat transfer assembly.
Reduced Routine Maintenance Requirements
Because the plate pack is brazed into a sealed structure, there are no interplate gaskets to replace as part of routine service. This can reduce certain maintenance tasks compared with gasketed equipment. It does not mean that the unit requires no maintenance: fluid quality, strainers, system controls, and operating conditions still need attention.
Flexible Integration
Depending on the model and connection design, brazed plate heat exchangers can be integrated into water-to-water systems, water-to-glycol circuits, refrigeration systems, and other compatible heating or cooling applications. Their compact construction is particularly useful in packaged equipment.
Potential Energy Savings
A correctly selected exchanger can support efficient thermal transfer and reduce the energy required to achieve a desired process temperature. Actual savings depend on system design, pump or compressor performance, temperature control, maintenance, and the operating profile. Equipment selection should therefore consider total system efficiency rather than heat transfer capacity alone.
4. Common Industrial Applications
Brazed plate heat exchangers serve many industries because heating and cooling requirements occur throughout manufacturing and building services. The most suitable configuration depends on the application and the properties of the fluids involved.
| Application | Typical Purpose | Important Considerations |
|---|---|---|
| HVAC systems | Transfer heat between heating or cooling circuits | Required capacity, flow rate, temperature approach, pressure drop |
| Heat pumps | Transfer heat between refrigerant and secondary fluid circuits | Refrigerant compatibility, phase-change duty, design pressure |
| Refrigeration | Support evaporation, condensation, or liquid-side cooling | Refrigerant type, operating envelope, distribution, safety requirements |
| Industrial cooling | Remove heat from equipment or process fluids | Fluid cleanliness, corrosion resistance, cooling load |
| Oil cooling | Transfer heat from compatible lubricating or hydraulic oil circuits | Viscosity, flow resistance, oil compatibility, required duty |
| Energy recovery | Recover usable heat from one circuit for another | Temperature profiles, contamination risks, operating variability |
In all these applications, buyers should verify that the proposed model is designed for the specific fluid arrangement. Refrigerant service, for example, may involve phase changes and different hydraulic requirements from a straightforward water-to-water installation. A model suitable for one duty should not automatically be assumed suitable for another.
5. How to Select the Right Brazed Plate Heat Exchanger
One of the most common purchasing mistakes is choosing an exchanger by connection size, physical dimensions, or nominal capacity alone. These specifications are useful, but they do not establish whether a unit can deliver the required thermal performance under actual operating conditions.
Step 1: Define the Required Heat Duty
Establish the amount of heat that must be transferred, usually expressed in kilowatts (kW) or British thermal units per hour (BTU/h). The heat duty should reflect the process requirement and relevant operating conditions, not simply a convenient estimate based on the existing equipment.
Where possible, provide the required capacity together with the expected minimum, normal, and maximum operating conditions. This helps the supplier assess whether the unit can handle variations in demand.
Step 2: Confirm Both Fluid Circuits
Identify the fluids on the hot and cold sides, their flow rates, and their inlet and target outlet temperatures. If a fluid contains glycol, oil, dissolved chemicals, or other additives, specify the composition and concentration. These properties affect heat transfer, viscosity, pressure drop, and material compatibility.
Step 3: Set Allowable Pressure Drop
Pressure drop is the reduction in fluid pressure as the fluid passes through the exchanger. Narrow channels and corrugated plates can provide effective heat transfer, but excessive resistance may increase pumping energy or prevent the system from reaching its intended flow rate.
Specify the maximum allowable pressure drop for each circuit. The final selection should satisfy both thermal and hydraulic requirements rather than meeting the heat duty at an unacceptable pressure loss.
Step 4: Establish Design Pressure and Temperature
Distinguish normal operating conditions from maximum design conditions. Confirm the required design pressure, operating temperature range, and any expected startup, shutdown, or transient conditions. The selected unit must be rated for the intended service under applicable requirements.
Step 5: Evaluate Fouling and Fluid Quality
Brazed plate heat exchangers are generally most suitable for clean fluids and applications where opening the unit for mechanical cleaning is not a routine requirement. Suspended solids, scale-forming water, fibers, or other deposits may restrict the narrow channels and reduce performance.
Consider water treatment, filtration, strainer selection, and a realistic fouling allowance. Excessive oversizing is not a universal solution because it may change flow conditions and increase cost without addressing the underlying fluid-quality problem.
Step 6: Confirm Material and Connection Compatibility
Check plate material, brazing material, connection type, sealing arrangements, and compatibility with the working fluids. The supplier should confirm that the proposed combination is appropriate for the intended chemistry, temperature, pressure, and applicable regulations.
Step 7: Request a Rated Selection
Ask the supplier to provide a model-specific selection with predicted thermal capacity, outlet temperatures, pressure drops on both sides, design limits, and connection details. This gives engineering teams a more reliable basis for comparing proposals.
- Required heat duty and application description.
- Hot-side and cold-side fluid types and flow rates.
- Inlet and target outlet temperatures for both circuits.
- Maximum allowable pressure drop on each side.
- Design pressure and minimum/maximum operating temperatures.
- Fluid composition, glycol concentration, and water-quality information.
- Connection size, orientation, installation restrictions, and applicable standards.
6. Plate Materials and Brazing Options
Material selection is essential to long-term reliability. Even a thermally well-sized exchanger can fail prematurely if its materials are incompatible with the fluids or operating environment.
Stainless Steel Plates
Stainless steel plates are commonly used in brazed plate heat exchangers because they provide useful strength, thermal conductivity, and corrosion resistance for many water-based and industrial duties. The appropriate stainless steel grade depends on the fluid chemistry and service conditions.
Stainless steel should not be treated as universally corrosion-proof. Chloride concentration, temperature, cleaning chemicals, and other factors can affect corrosion risk. Buyers should disclose relevant fluid chemistry before confirming the design.
Copper-Brazed Construction
Copper is a widely used brazing material for compatible applications, including many conventional water and HVAC circuits. However, copper may be unsuitable for certain fluids or chemistries. Compatibility must be confirmed rather than assumed from the application category alone.
Nickel-Brazed Construction
Nickel-brazed designs may be appropriate for certain applications where copper compatibility is a concern, including some ammonia refrigeration duties. The suitability of nickel brazing depends on the complete fluid system and manufacturer specifications.
| Component | Selection Priority | Questions to Ask |
|---|---|---|
| Plate material | Corrosion resistance and mechanical suitability | Is the material compatible with the exact fluid composition? |
| Brazing material | Fluid compatibility and structural integrity | Is copper or nickel brazing appropriate for the duty? |
| Connections | Pressure rating, material, and installation fit | Do connection dimensions and joining methods match the system? |
| Surface and channel design | Heat transfer, pressure drop, and fluid behavior | Has the model been rated for the specified flow conditions? |
7. Brazed vs. Gasketed Plate Heat Exchangers
Both designs transfer heat through plate channels, but their construction and maintenance requirements differ. The right choice depends on whether compactness and a sealed assembly are the main priorities or whether frequent access to the heat transfer surfaces is necessary.
| Comparison Factor | Brazed Plate Heat Exchanger | Gasketed Plate Heat Exchanger |
|---|---|---|
| Construction | Plates permanently bonded by brazing | Plates assembled with removable gaskets and a frame |
| Installation footprint | Typically compact | Often larger for a comparable arrangement |
| Mechanical cleaning | Cannot normally be opened for mechanical plate cleaning | Can generally be opened for inspection and cleaning |
| Capacity changes | Usually require a different unit or system redesign | Plate-pack changes may be possible within design limits |
| Routine service | No interplate gaskets to replace | Gaskets require inspection and eventual replacement |
| Typical fit | Clean, compatible fluids and compact closed-loop systems | Applications requiring inspection, cleaning, or greater flexibility |
A brazed plate heat exchanger is often a strong option for compact HVAC, heat pump, refrigeration, and industrial cooling packages. A gasketed design may be more appropriate where fluid contamination, frequent cleaning, process changes, or future capacity expansion are significant concerns.
If the application involves substantial solids, highly viscous media, severe fouling, or unusual pressure and temperature conditions, discuss other heat exchanger technologies with the supplier before committing to a design.
8. Installation and System Integration
Correct installation protects the exchanger and helps the overall system achieve its intended performance. Even a properly selected unit can experience problems if the piping arrangement, fluid quality, or control strategy is unsuitable.
Verify Flow Direction and Piping Layout
Follow the manufacturer's port markings, installation drawings, and instructions. Confirm which connections serve each circuit and whether the selected arrangement is designed for counterflow or another specified flow configuration.
Prevent Debris from Entering the Channels
Remove construction debris and contaminants before commissioning. Where appropriate, install correctly sized strainers or filters and establish a water-treatment program. Filtration requirements should reflect channel geometry, fluid quality, and the manufacturer's recommendations.
Protect Against Pressure Surges
Rapid valve closure, pump cycling, and other transient events can produce pressure surges. Design the system to control these events and remain within the exchanger's approved operating envelope.
Provide Suitable Controls and Service Access
Make temperature, pressure, and flow measurements available where needed for commissioning and troubleshooting. Ensure the unit can be inspected externally and isolated safely for maintenance. Provide sufficient space for pipework, insulation, valves, and other components.
- Confirm the exchanger model and connection orientation before installation.
- Check that piping loads do not impose unacceptable stress on connections.
- Flush the system and verify fluid cleanliness before startup.
- Check pumps, valves, strainers, and control settings.
- Increase flow and operating load according to the manufacturer's startup procedure.
- Record baseline temperatures, flow rates, and pressure drops for future comparison.
9. Maintenance and Troubleshooting
Although brazed plate heat exchangers eliminate the need for interplate gasket replacement, their long-term performance still depends on operating conditions and preventive maintenance. Monitoring the system makes it easier to identify developing problems before they cause significant downtime.
Reduced Heat Transfer Performance
If outlet temperatures gradually move away from their expected values, check fluid flow, inlet temperatures, control valves, sensor accuracy, and possible fouling. Compare the current operating data with the commissioning baseline while accounting for changes in load and ambient conditions.
Unexpectedly High Pressure Drop
A rising pressure drop may indicate restricted channels, clogged strainers, changes in fluid viscosity, or operating flow above the intended range. Check the entire circuit before concluding that the exchanger itself is responsible.
External Leakage
Inspect connections, joints, and the exchanger body for signs of leakage. Isolate the equipment and follow the applicable safety procedures before investigating. A brazed unit generally cannot be repaired by simply replacing a plate gasket; the manufacturer or a qualified service provider should assess the appropriate response.
Safe Cleaning Practices
Some deposits can be addressed through a compatible cleaning-in-place procedure, but cleaning chemicals, concentration, temperature, contact time, and flushing requirements must be approved for the unit's plate and brazing materials. An unsuitable cleaning solution can cause corrosion or damage.
10. How to Evaluate the Total Cost of Ownership
The purchase price is only one part of a heat exchanger's overall cost. A low-cost unit that creates excessive pumping resistance, requires frequent cleaning, or fails to meet the design duty can become more expensive over its service life.
Buyers should evaluate the following factors together:
- Initial equipment cost: Compare quotations for units rated against the same design conditions.
- Installation cost: Include piping changes, fittings, insulation, valves, and supporting equipment.
- Energy consumption: Consider the pumping energy associated with pressure drop and the system's overall thermal efficiency.
- Maintenance expenses: Account for inspections, fluid treatment, filtration, cleaning, and potential downtime.
- Reliability: Consider the consequences of equipment failure, including production interruption and emergency replacement.
- Service and replacement support: Verify technical assistance, documentation, lead times, and availability of suitable replacement equipment.
The best economic decision is not necessarily the smallest or cheapest exchanger. It is the model that delivers the required duty reliably while meeting hydraulic, material, installation, and maintenance requirements.
11. Purchasing Checklist for Industrial Buyers
Before approving a brazed plate heat exchanger, procurement teams, design engineers, and equipment manufacturers should confirm that the technical proposal addresses the full application rather than a single nominal capacity figure.
- Thermal capacity is confirmed at the specified operating conditions.
- Both fluid circuits have documented flow rates and temperature requirements.
- Pressure drop is acceptable on both the hot and cold sides.
- Design pressure and temperature ratings meet the system requirements.
- Plate and brazing materials are compatible with the working fluids.
- Fouling risk and fluid pretreatment requirements have been reviewed.
- Connection types, dimensions, and installation orientation are confirmed.
- Required certifications and applicable regulatory documentation are identified.
- Operating instructions, commissioning guidance, and maintenance recommendations are available.
- Quotation scope, delivery schedule, warranty conditions, and technical support are clearly documented.
Providing complete technical information at the enquiry stage helps the supplier identify a suitable configuration, reduces unnecessary quotation revisions, and improves confidence in the final equipment selection.
12. Frequently Asked Questions
Q1. What is a brazed plate heat exchanger used for?
A brazed plate heat exchanger transfers heat between two separated fluid circuits. Common applications include HVAC, heat pumps, refrigeration, industrial cooling, oil cooling, and energy recovery, provided the selected materials and model are suitable for the service.
Q2. How do I calculate the required heat exchanger capacity?
For a single-phase fluid, a basic heat-duty calculation is Q = m × Cp × ΔT, where Q is the heat transfer rate, m is the mass flow rate, Cp is the fluid's specific heat capacity, and ΔT is its temperature change. Final equipment sizing also requires inlet temperatures, flow rates on both sides, fluid properties, allowable pressure drop, and appropriate thermal calculations. Refrigerant phase-change duties require additional analysis.
Q3. Can a brazed plate heat exchanger handle high pressure?
Some models are designed for relatively high operating pressures, but the permissible pressure depends on the specific model, design, materials, temperature, and applicable approvals. Always confirm the manufacturer's rated limits instead of relying on a general pressure range.
Q4. Can a brazed plate heat exchanger be cleaned?
Certain units can be cleaned using an approved cleaning-in-place procedure. Because the brazed plate pack cannot normally be opened for mechanical cleaning, severe fouling or deposits that cannot be removed chemically may make another heat exchanger design more appropriate.
Q5. Is copper brazing suitable for every fluid?
No. Copper brazing is suitable for many conventional applications, but some fluids and chemical environments can be incompatible with copper. Material compatibility must be evaluated for the actual fluid composition, concentration, temperature, and operating conditions.
Q6. What causes a brazed plate heat exchanger to lose efficiency?
Common causes include fouling, restricted flow, incorrect flow rates, changing inlet temperatures, unsuitable control settings, and sensor errors. Comparing current operating data with the original rated conditions helps distinguish an exchanger problem from a system-level issue.
Q7. How long does a brazed plate heat exchanger last?
Service life varies with fluid cleanliness, corrosion conditions, operating pressure and temperature, system transients, installation quality, and maintenance practices. No single service-life figure applies to every application. Correct sizing and suitable operating conditions are essential to dependable performance.
Q8. What information should I provide when requesting a quotation?
Provide the application, heat duty, both fluids, flow rates, inlet and target outlet temperatures, allowable pressure drops, design pressure, operating temperature range, fluid composition, connection requirements, and applicable standards. Include dimensional restrictions and expected operating variations when available.
Q9. Can I replace an existing exchanger with a smaller brazed unit?
Possibly, but physical size alone does not determine suitability. The replacement must meet the required thermal duty, pressure drop, design limits, connection requirements, and system operating envelope. A model-specific engineering assessment is recommended before replacing existing equipment.
Q10. Why work with an experienced heat exchanger supplier?
An experienced supplier can review the application data, identify material and hydraulic constraints, recommend an appropriate model, and clarify installation and maintenance requirements. This reduces the risk of purchasing equipment that fits the pipework but fails to meet the process requirements.
13. Conclusion: Make the Right Selection for Reliable Heat Transfer
A brazed plate heat exchanger can provide compact construction, effective heat transfer, and reduced routine gasket maintenance for a wide range of industrial heating and cooling systems. However, dependable performance begins with accurate engineering data and a realistic understanding of the application.
Before choosing a model, evaluate the required heat duty, fluid properties, flow rates, inlet and outlet temperatures, allowable pressure drop, material compatibility, fouling risks, and design limits. These factors determine whether a brazed plate heat exchanger is appropriate and which configuration can deliver the required performance.
Jiangyin Daniel Cooler Co., Ltd. is a relevant supplier to contact when evaluating plate heat exchanger solutions for industrial thermal management. Share your application requirements and request a model-specific technical assessment so that the proposed equipment can be evaluated against your actual operating conditions.
Looking for a Suitable Brazed Plate Heat Exchanger?
The right heat exchanger can help your equipment operate more efficiently, use installation space effectively, and maintain stable thermal performance. Whether you are developing a new system, upgrading existing equipment, or sourcing components for OEM production, start with a clear understanding of your thermal and hydraulic requirements.
Contact Jiangyin Daniel Cooler Co., Ltd. to discuss your application, share your operating parameters, and explore a suitable plate heat exchanger solution. Learn more about brazed plate heat exchangers and contact us for further product information and quotation enquiries.
