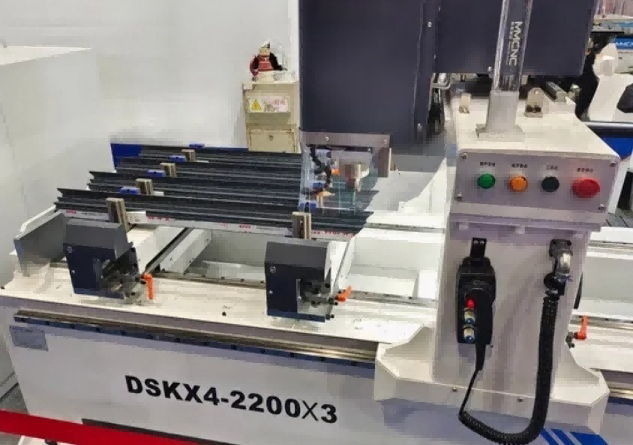

Which Features Define a High-Precision Heavy-Duty 4-Head CNC Aluminum Curtain Wall Drilling Machine
2026-10-16
In modern curtain wall fabrication, the demand for speed, accuracy, and repeatability has never been higher. A High-Precision Heavy-Duty 4-Head CNC Aluminum Curtain Wall Drilling Machine from Lebulang is engineered to meet these demands head-on, combining robust structural design with advanced CNC control to deliver consistent results across large-scale aluminum profile production. This article examines the defining features that separate a truly industrial-grade machine from ordinary equipment.
Core Features That Define Performance
| Feature Category | What to Look For | Why It Matters |
|---|---|---|
| Machine Structure | Welded steel frame with stress relief treatment | Minimizes vibration and ensures long-term dimensional stability |
| Spindle Configuration | Four independent high-speed spindles | Enables simultaneous multi-hole drilling and reduced cycle times |
| Positioning Accuracy | ±0.05 mm or better | Critical for curtain wall bracket and mullion hole alignment |
| Control System | Industrial CNC with servo-driven axes | Delivers repeatable precision across thousands of cycles |
| Worktable Design | Heavy-duty roller or pneumatic clamping table | Handles profiles up to 6–7 meters without deflection |
1. Rigid Heavy-Duty Construction
The foundation of any reliable High-Precision Heavy-Duty 4-Head CNC Aluminum Curtain Wall Drilling Machine is its frame. Lebulang machines use thick-walled welded steel that undergoes annealing and precision machining after welding. This process eliminates internal stress, preventing distortion even after years of continuous operation. The result is a machine that maintains accuracy under the vibration and load of heavy aluminum profiles.
2. Four-Head Synchronized Drilling Capability
Four independent drilling heads allow multiple operations to occur in a single cycle. Each head can be equipped with different tool diameters and positioned independently along the X, Y, and Z axes. This configuration is essential for curtain wall profiles that require rows of holes for brackets, drainage channels, and fastener points. Compared with single-head machines, a High-Precision Heavy-Duty 4-Head CNC Aluminum Curtain Wall Drilling Machine can reduce processing time by 50–70%.
3. High-Precision CNC Control and Servo Drives
Precision begins with control. Lebulang integrates industrial-grade CNC systems with absolute servo motors on all axes. Ball screws and linear guideways are preloaded to eliminate backlash. This architecture allows positioning accuracy of ±0.05 mm and repeatability of ±0.02 mm, which is indispensable when drilling aluminum curtain wall profiles that must align perfectly on site.
4. Intelligent Software and Programming Flexibility
A defining feature of a modern High-Precision Heavy-Duty 4-Head CNC Aluminum Curtain Wall Drilling Machine is its ability to import CAD drawings directly and generate drilling programs automatically. Lebulang software supports parametric programming, tool wear compensation, and remote diagnostics. Operators can switch between profile types in minutes, making the machine ideal for high-mix, high-volume production.
5. Safety, Chip Evacuation, and Maintenance Access
Heavy-duty drilling generates substantial aluminum chips and dust. Effective chip evacuation, sealed linear guides, and centralized lubrication points are standard on Lebulang machines. Safety interlock doors, emergency stops, and overload protection ensure compliance with international standards while protecting operators and the machine itself.
High-Precision Heavy-Duty 4-Head CNC Aluminum Curtain Wall Drilling Machine FAQ
Q: What materials can a High-Precision Heavy-Duty 4-Head CNC Aluminum Curtain Wall Drilling Machine process?
A: It is designed primarily for aluminum profiles used in curtain walls, windows, and doors, but with appropriate tooling and parameters, it can also process thin-walled steel, PVC, and composite profiles. The heavy-duty frame and servo control allow consistent performance across these materials.
Q: How does a High-Precision Heavy-Duty 4-Head CNC Aluminum Curtain Wall Drilling Machine maintain accuracy over long production runs?
A: Accuracy is maintained through stress-relieved steel structures, preloaded ball screws, absolute servo feedback, and automatic tool wear compensation. Regular calibration and the use of Lebulang original spare parts further ensure that positioning tolerance remains within ±0.05 mm over thousands of cycles.
Q: What is the typical lead time and after-sales support for a High-Precision Heavy-Duty 4-Head CNC Aluminum Curtain Wall Drilling Machine from Lebulang?
A: Standard models typically ship within 30–45 days, depending on configuration. Lebulang provides installation guidance, operator training, a 24-month warranty on core components, and lifetime technical support through remote diagnostics and global service partners.
Conclusion
Selecting the right High-Precision Heavy-Duty 4-Head CNC Aluminum Curtain Wall Drilling Machine directly affects production efficiency, product quality, and long-term operating costs. The features outlined above—rigid construction, four-head synchronization, CNC precision, intelligent software, and robust safety systems—define what a true industrial machine should deliver. Lebulang combines all of these elements into a platform built for curtain wall manufacturers who refuse to compromise on precision.
