Which Production Losses Can a High Temperature and High Pressure Fabric Dyeing Machine Long Tube Help Dyeing Factories Avoid?

Abstract: This article focuses on the High Temperature and High Pressure Fabric Dyeing Machine Long Tube, addressing common operational and quality pain points for textile dyeing mills, production managers, process engineers and factory procurement teams. Many dye houses struggle with uneven color shade, permanent crease marks, high water and steam consumption, fabric tension damage, unstable temperature control, frequent breakdowns and difficulty meeting environmental discharge standards when processing polyester and blended knitted fabrics. The long-tube high-temperature high-pressure dyeing machine designed and manufactured by Shishi Hongshun Printing and Dyeing Machinery Co., Ltd. is built to resolve these persistent production bottlenecks. This practical guide explains the working principle of long-tube overflow dyeing, core structural advantages, side-by-side performance comparison with traditional dyeing equipment, suitable fabric types and production scenarios, specification selection checklist, routine operation and maintenance rules, and frequently asked technical questions. Whether your factory processes knitted polyester, spandex blends, filament fabrics or synthetic textile rolls, this content helps you select, operate and maintain long-tube HTHP dyeing machines to achieve stable color consistency, lower production costs and reduced defect rates.

Which common production defects and cost losses can a High Temperature and High Pressure Fabric Dyeing Machine Long Tube reduce for dyeing mills?

Synthetic fiber dyeing is one of the most demanding processes in textile finishing. Polyester fibers require temperatures above 120°C under sealed high-pressure conditions so disperse dyes can fully penetrate fiber interiors. Traditional dyeing equipment often creates recurring quality issues that directly cut into factory profit margins and delay delivery schedules.

Crease and rope marks are among the most costly defects. In older tank-type dyeing machines, fabric accumulates and folds under tension during circulation. Permanent creases form on knitted and spandex-blend fabrics after heating and pressurization. Once creases are fixed, reworking takes extra labor, chemicals and time, and some batches must be scrapped entirely.

Uneven dyeing and shade variation between batches is another major headache. Unstable liquor circulation, poor temperature uniformity and inconsistent fabric movement lead to side-center-side color difference, barreling and spotty dye uptake. These inconsistencies create complaints from garment factories and brand customers, forcing repeated re-dyeing and re-inspection.

Excessive resource consumption adds continuous operating pressure. Many conventional HTHP dyeing machines run at high liquor ratios, consuming large volumes of water, steam, dyes and auxiliary chemicals. Higher water use also increases wastewater treatment expenses, making it harder for mills to meet tightening environmental limits. In addition, high fabric tension can stretch delicate spandex blends, causing width shrinkage and elasticity loss after dyeing.

Other frequent troubles include pump cavitation, slow heating response, hard-to-clean internal sediment, limited batch flexibility and outdated control systems that rely heavily on operator experience. All these problems lower overall equipment efficiency and raise reject rates. This is where the High Temperature and High Pressure Fabric Dyeing Machine Long Tube from Shishi Hongshun Printing and Dyeing Machinery Co., Ltd. delivers targeted process improvements built for modern knitted fabric production.

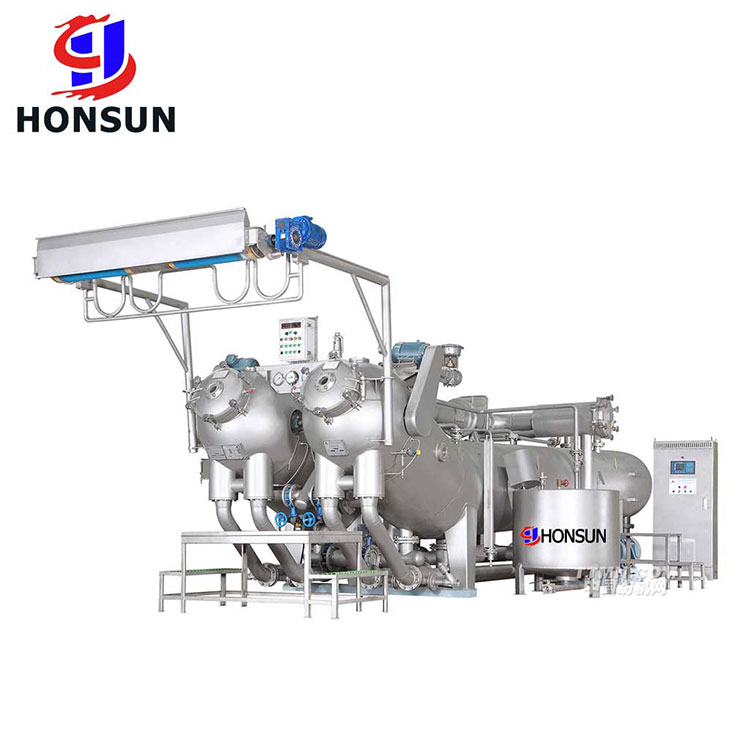

Working principle and core structure of High Temperature and High Pressure Fabric Dyeing Machine Long Tube

The long-tube HTHP overflow dyeing machine belongs to the jet-liquor dyeing category. Inside the sealed pressure vessel, circulating dye liquor flows through a precision nozzle, pulling the rope-form knitted fabric smoothly along the long guide tube. The fabric stays in a relaxed, low-tension state while continuously exchanging with fresh dye liquor during each circulation cycle. The sealed chamber maintains 120–140°C and corresponding pressure, creating the necessary environment for disperse dye diffusion into polyester fibers.

The main functional assemblies of a standard long-tube HTHP dyeing machine include these core parts:

• Long guide tube and overflow nozzle: The specially designed nozzle generates stable liquor flow to drive fabric forward without pulling or stretching it. The extended tube keeps fabric separated and avoids stacking compression.
• Main circulation pump and heat exchanger: The inverter-controlled circulation pump delivers steady liquor flow; the heat exchanger performs precise heating and cooling following programmed dyeing curves.
• Sealed pressure vessel and safety system: Pressure gauge, safety valve, over-temperature protection and interlock switches guarantee safe operation under high-pressure conditions.
• Automatic dosing and control panel: It manages temperature rising rate, holding time, chemical feeding and circulation speed digitally, lowering dependence on manual operator judgment.
• Filter and drainage assembly: It filters fiber lint and dye sediment, prevents nozzle blockage and simplifies cleaning after each batch.

Shishi Hongshun Printing and Dyeing Machinery Co., Ltd. optimizes the internal flow channel of the long tube through fluid simulation. The balanced flow velocity ensures every section of fabric gets consistent dye contact, which directly stabilizes shade reproducibility from batch to batch.

Key strengths of the long tube dyeing machine from Shishi Hongshun Printing and Dyeing Machinery Co., Ltd.

Many machinery manufacturers produce HTHP dyeing equipment, but stable long-tube overflow performance requires mature structural design, precision pressure vessel fabrication and reliable control logic. Shishi Hongshun Printing and Dyeing Machinery Co., Ltd. focuses on printing and dyeing finishing equipment and has accumulated rich experience serving knitted fabric dyeing mills.

1. Low-tension long tube conveying design: Fabric travels loosely inside the tube instead of piling in a storage tank. This design protects stretch fabrics such as polyester spandex, prevents permanent creases and preserves fabric width and elasticity after dyeing.
2. Energy-saving low liquor ratio system: Reduced water volume cuts steam, dye and auxiliary consumption for each batch. Lower wastewater discharge helps factories meet environmental compliance requirements and reduces daily running expenditure.
3. Precise closed-loop temperature and flow control: The PLC control system supports custom dyeing curve programming. Heating rate, constant temperature holding and cooling steps run automatically, minimizing shade deviation caused by human operation differences.
4. Strong adaptability for multiple synthetic fabrics: One machine can handle plain knit, mesh fabric, polar fleece, polyester filament and T/R blended fabrics. No major mechanical modification is needed when switching between fabric styles.
5. Complete after-sales and technical service: The team provides installation guidance, operator training, process parameter recommendation, spare parts supply and regular remote troubleshooting. Customized capacity and configuration can be matched according to mill workshop layout and production target.

For production managers, fewer crease and shade defects mean less rework and higher delivery on-time rate. For factory owners, the low liquor ratio design brings long-term savings on water, steam and wastewater treatment fees, improving overall production profitability.

Applicable fabric types, production scenarios and specification checklist

The High Temperature and High Pressure Fabric Dyeing Machine Long Tube is mainly positioned for rope-form knitted synthetic fabric dyeing. It is widely adopted in dyeing factories focused on sportswear, underwear, home textile and garment knit fabrics.

• Polyester knitted fabric, single jersey, interlock, mesh and polar fleece for sportswear.
• Polyester-spandex blended stretch fabrics for underwear, leggings and swimwear.
• Polyester filament fabrics and lightweight synthetic knitted materials.
• T/R, T/C blended knitted fabrics that need high-temperature disperse dyeing.
• Small-batch and multi-color order production for sample rooms and flexible dyeing workshops.

Before confirming machine configuration, use this checklist to match your production needs and avoid improper selection:

✅ Confirm single-tube or multi-tube structure and single-batch loading capacity
✅ Verify maximum working temperature and pressure rating (140℃ / 0.38MPa standard)
✅ Confirm liquor ratio requirement and energy-saving configuration
✅ Check if you need automatic chemical dosing, online temperature monitoring and data recording
✅ Confirm workshop space, foundation requirement, steam supply and power condition
✅ Clarify main fabric type: heavy knit, thin mesh or high spandex content stretch fabric
✅ Check safety certification, pressure vessel inspection documents and local compliance requirements
✅ Confirm after-sales service scope, training plan and wearing spare parts package

One important reminder: this long-tube overflow machine is optimized for rope knitted fabric. Woven fabrics that require open-width processing are more suitable for jigger or open-width HTHP equipment. Choosing the right machine type at the beginning prevents poor fabric quality and wasted investment.

Standard operation guidance, daily inspection and maintenance plan

Even well-built long-tube HTHP dyeing machines will suffer unstable performance and shortened service life without standardized operation and maintenance. Good management keeps shade consistency stable and reduces unexpected shutdown losses.

Before starting each batch, operators should check the safety valve, pressure gauge, sealing door gasket, nozzle and internal filter. Remove lint and sediment left from the previous run to prevent nozzle clogging that disrupts liquor flow and fabric movement. Confirm fabric loading length matches the machine rated capacity; overloading is the top cause of crease marks.

During dyeing, strictly follow the pre-set temperature curve. Avoid rapid heating or sudden cooling, which can trigger thermal stress on fibers and cause color blooming. Keep the circulation pump running smoothly and watch fabric running status through the observation window. If fabric tangling or abnormal flow appears, stop heating and release pressure following safety procedures before handling.

After unloading fabric, flush the long tube, circulation pipeline and filter thoroughly. Residual dye and oligomer deposits will accumulate inside the tube if not cleaned, contaminating subsequent batches and causing color spots. Perform weekly inspection of pump seals, heat exchanger and drive components. Replace aging gaskets and wearing parts on schedule to avoid pressure leakage.

For long-term idle storage, drain all water inside the vessel, clean and dry internal surfaces, and protect electrical control components from moisture and dust. Keep maintenance records so engineers can quickly locate recurring faults.

Frequently Asked Questions (FAQ)

Closing remarks and product inquiry information

Dyeing quality, resource cost and production stability decide the competitiveness of a textile finishing mill. The High Temperature and High Pressure Fabric Dyeing Machine Long Tube solves many long-standing pain points in knitted synthetic fabric dyeing, especially crease defects, shade inconsistency and excessive resource consumption. Choosing a reliable long-tube overflow dyeing system is a key investment to stabilize product quality and control operating expenditure.

Shishi Hongshun Printing and Dyeing Machinery Co., Ltd. specializes in the research, manufacturing and service of printing and dyeing finishing equipment. The long tube HTHP fabric dyeing machine is one of our core products, designed for the actual production needs of modern dyeing factories. Our technical team can assist you with workshop layout planning, process parameter optimization, equipment installation and operator training.

If you are sourcing a High Temperature and High Pressure Fabric Dyeing Machine Long Tube for your knitted dyeing workshop, or you need to review technical specifications, capacity options, safety inspection documents and get formal quotation, please contact us. Our engineering specialists will recommend a suitable configuration matching your fabric range, batch size and energy-saving targets, helping you reduce defect rates and improve production efficiency.
