Why Choose a Submerged Spiral Classifier for Your Mineral Processing Plant?
2025-09-03
In the world of mining and mineral processing, efficiency, accuracy, and durability are the backbone of every operation. One question many operators face is: what equipment can ensure fine material classification while minimizing energy consumption? The answer often lies in the Submerged Spiral Classifier.
This equipment plays a vital role in separating fine particles, enhancing product quality, and improving downstream processing. It has become a preferred solution for industries that demand precision in ore classification and slurry handling. Below, we will explore its working principle, product parameters, technical advantages, and why Qingdao EPIC Mining Machinery Co.,Ltd. is the right partner for reliable solutions.
What Is a Submerged Spiral Classifier?

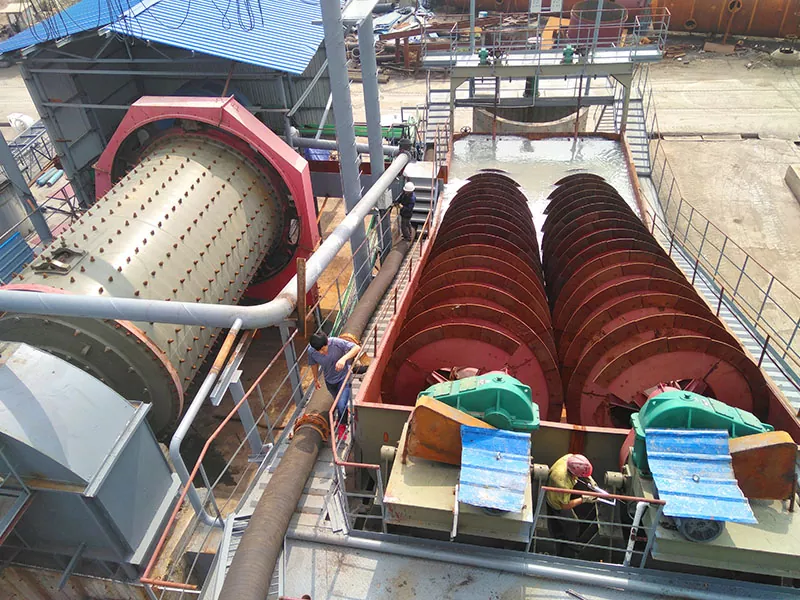

A Submerged Spiral Classifier is a mechanical classification machine used in mineral beneficiation processes. It works by using gravity and continuous agitation to separate particles of different sizes and densities in a slurry. Unlike standard high-weir classifiers, the submerged design allows the spiral blade to operate deeper in the slurry tank, which is ideal for fine particle classification.
Its main purpose is to classify ore pulp during grinding stages and prepare qualified materials for subsequent separation processes.
Main Applications
-
Ore Dressing: Separation of fine particles in metallic and non-metallic ores.
-
Sand Washing: Removal of impurities and sediment in construction sand.
-
Grinding Circuit: Close-circuit classification with ball mills or rod mills.
-
Tailings Management: Recovery of fine particles and reduction of waste.
Product Parameters of Submerged Spiral Classifier
The specifications of a classifier directly impact its efficiency and durability. Below is a simple technical table highlighting key parameters of common models:
| Model | Spiral Diameter (mm) | Tank Length (mm) | Spiral Speed (r/min) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|---|
| FG-750 | 750 | 5500 | 4–6 | 10–30 | 1.1 |
| FG-1000 | 1000 | 6500 | 3.5–5 | 20–45 | 1.5 |
| FG-1500 | 1500 | 8400 | 2.5–4 | 50–110 | 3.0 |
| FG-2000 | 2000 | 9800 | 1.8–3.2 | 80–150 | 5.5 |
| FG-2400 | 2400 | 11500 | 1.5–2.5 | 120–240 | 7.5 |
Note: The above values are standard configurations. Qingdao EPIC Mining Machinery Co.,Ltd. can provide customized designs depending on specific project requirements.
Advantages of Submerged Spiral Classifier
-
High Precision in Fine Classification
The submerged structure ensures maximum contact between slurry and spiral, improving the separation of particles smaller than 0.15 mm. -
Energy-Saving Operation
Optimized spiral blade design reduces resistance, lowering overall power consumption. -
Durable Build Quality
Manufactured with wear-resistant materials, the classifier guarantees long-term stable operation in demanding mining environments. -
Easy Maintenance and Automation
Simple structure, low failure rate, and optional automatic control system make operation more reliable. -
Wide Range of Applications
Whether for iron ore, gold, copper, or sand washing, this equipment can be adapted to multiple industries.
Working Principle of Submerged Spiral Classifier
The working process is simple yet efficient:
-
Ore slurry enters the tank.
-
Fine particles are suspended in water and overflow through the weir.
-
Coarse particles sink to the bottom and are lifted by the spiral blades for discharge.
-
This continuous separation improves grinding efficiency and ensures proper material size distribution for the next processing stage.
Why Partner with Qingdao EPIC Mining Machinery Co.,Ltd.?
When investing in heavy mining machinery, trust and expertise matter. Qingdao EPIC Mining Machinery Co.,Ltd. has decades of manufacturing experience, advanced production facilities, and a professional engineering team.
Our company provides:
-
Customized design and installation services.
-
High-quality spare parts and wear-resistant components.
-
After-sales service and technical support worldwide.
-
Solutions that maximize return on investment for clients.
FAQ: Submerged Spiral Classifier
Q1: What materials can be processed with a Submerged Spiral Classifier?
A1: It is widely used for processing metallic ores such as iron, copper, and gold, as well as non-metallic ores like silica sand. Its submerged design makes it especially suitable for handling fine particles that standard classifiers struggle with.
Q2: How is a Submerged Spiral Classifier different from a High Weir Spiral Classifier?
A2: The submerged type has its spiral blades fully immersed in slurry, making it ideal for fine particle separation. In contrast, high-weir types are better for coarse particle separation. Choosing the right one depends on the required classification size.
Q3: What is the typical lifespan of the spiral blades?
A3: With proper maintenance and depending on the abrasiveness of processed material, blades can last several years. Qingdao EPIC Mining Machinery Co.,Ltd. uses wear-resistant materials to extend service life and reduce downtime.
Q4: Can the classifier be customized for specific projects?
A4: Yes. Our engineering team offers tailored solutions based on ore characteristics, plant layout, and capacity needs. Customized spiral diameters, tank sizes, and motor configurations are available.
Final Thoughts
The Submerged Spiral Classifier is a proven solution for fine material classification in mining and mineral processing industries. With high efficiency, energy-saving features, and durable construction, it enhances productivity and lowers operational costs.
By partnering with Qingdao EPIC Mining Machinery Co.,Ltd., you gain not only reliable equipment but also comprehensive technical support and long-term cooperation. For inquiries, detailed specifications, or project consultation, please feel free to contact us.
