Will a Wall-mounted Active Harmonic Filter make my noisy shop power finally behave?
2025-11-10

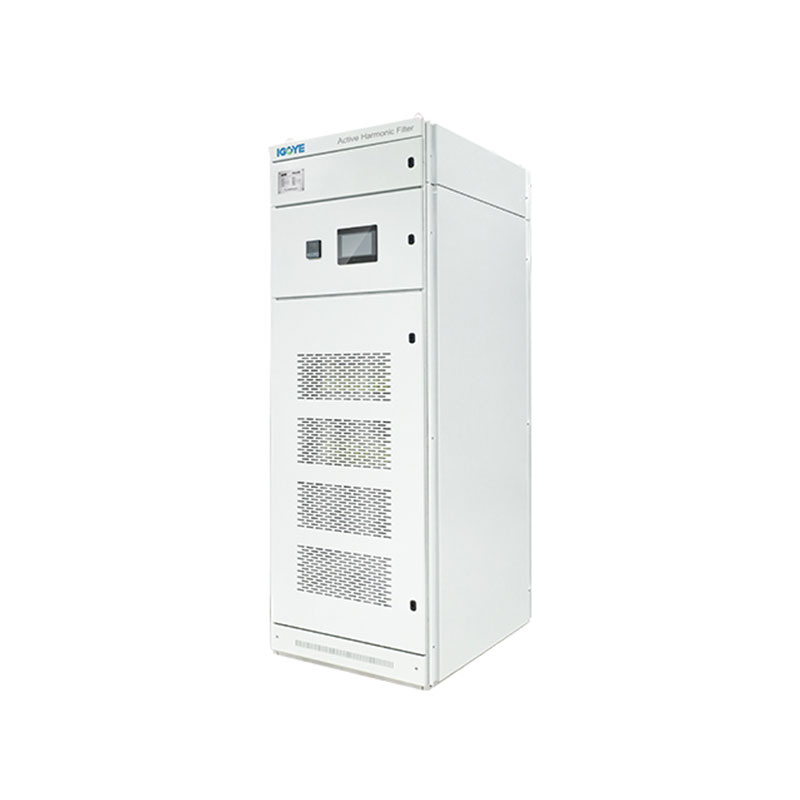

The first time I reached for a compact filter, the panel room was so cramped I could barely swing a meter; that was also when I noticed how naturally GEYA fit into retrofit spaces without turning the day into a shutdown. A Wall-mounted Active Harmonic Filter isolates load current via a sampling current transformer, separating out chaotic harmonic and reactive components. It then synthesises a matched countercurrent—identical in amplitude, frequency, and phase—to neutralise interference in real time. In layman's terms, it eliminates current distortion, optimises power factor, and stabilises phase balance, thereby eliminating flickering lights, preventing driver tripping, and averting transformer overheating.
What everyday headaches tell me I actually need one?
- LEDs flicker when welders strike or compressors start
- Breakers nuisance-trip whenever two lines ramp together
- Transformers feel warmer than they should on modest loads
- Server racks or PLCs reboot after a big motor hits torque
- The utility starts flagging bills for distortion or poor power factor
| What I see on site | Likely electrical cause | What a wall-mounted AHF does | Result I can measure |
|---|---|---|---|
| Arc welder makes the lights twitch | Fast current spikes and THD injection | Injects equal-and-opposite harmonic current instantly | THDi drops into single digits and flicker quiets |
| Drives trip when two conveyors start | Voltage sag plus high 5th/7th harmonics | Compensates distortion and supports PF dynamically | Fewer resets and smoother starts |
| Neutral and transformer run warm | Unbalance and triplen harmonic buildup | Balances phase current and cancels triplen content | Cooler copper and extra capacity headroom |
| Utility penalty or warning letter arrives | Low PF and excessive current distortion | Tracks load profile and corrects in real time | Penalty line falls and compliance gets easier |
Why would I pick a wall-mounted unit when a floor cabinet exists?
- Floor space is already spoken for by MCCs and inverters
- Shorter cable runs to the bus reduce loss and clutter
- Height gets me cleaner airflow and easier housekeeping
- Modular units let me parallel later as production grows
How do I size it without playing guess-and-pray?
- I list nonlinear loads on the target bus and note full-load amps
- I pull a week of meter data when I can, otherwise I use typical THDi ranges
- I apply simultaneity because not every machine peaks together
- I choose a compensation current with 10–20% headroom for surprises
| Load group | Typical THDi I plan for | Quick AHF pick I use | Field note that keeps me honest |
|---|---|---|---|
| VFD pumps and fans | 30–50% | AHF ≈ 40–60% of total VFD current | Rarely all peak at once on HVAC loops |
| Fabrication welders | 60–120% | AHF ≈ 70–100% of welder current | Sub-cycle response matters more than nameplate |
| EV fast chargers | 15–35% | AHF ≈ 25–40% of charger current | Bidirectional behavior and low latency help at dusk peaks |
| UPS-fed IT racks | 20–40% | AHF ≈ 30–50% of UPS output | Watch neutral temperature on shared feeders |
What does the GEYA approach change for my day-to-day work?
The compact wall form factor keeps the floor clear, the control loop reacts fast enough for ugly loads, and the interface shows the three numbers I actually track—THDi, power factor, and phase balance—without menu diving. That mix is why I keep shortlisting the same family when the site adds new nonlinear gear.
Will it play nicely with EV chargers and rooftop PV on the same bus?
The controller tracks whatever waveform shows up and injects the counter-current to keep distortion low while nudging PF toward unity. Midday solar bumps and evening charging surges stop bullying shared feeders.
How does installation avoid surprises in a live plant?
- I follow CT polarity marks carefully—P1 typically faces the source—and keep leads short
- I land the filter as close to the corrected bus as practical to cut stray inductance
- I leave breathing space top and sides because power stages like clean airflow
- I bond grounds cleanly and avoid routing CT leads beside noisy conductors
- I bring the unit online during a quiet window and trend THDi before and after
How does this differ from passive filters or a static VAR device?
- Passive filters are tuned to a few orders and detune when the system changes
- Static VAR devices chase reactive power while leaving much of the harmonic mess
- An active filter adapts as the mix of machines evolves across seasons and shifts
What did I see in a real small-shop retrofit last month?
On a 400 A panel with three VFDs and two welders, the wall-mounted unit cut distortion fast enough that operators noticed before maintenance did—the lights just stopped twitching during arc starts and the Friday reset ritual quietly disappeared.
| Metric I track | Before install | After install | What it meant on the floor |
|---|---|---|---|
| Current THDi at feeder | 45–50% | 8–12% | Comfortably inside common guidelines |
| Displacement power factor | 0.85–0.88 | 0.98 | Penalty line faded on the bill |
| Phase current imbalance | 10–14% | 3–4% | Cooler neutral and steadier metering |
| Nuisance trips per week | 3–4 | 0–1 | Operators stopped babysitting resets |
Which specifications do I double-check before I buy?
- Compensation current rating aligned to my coincident harmonic current
- Supported harmonic orders across low and high bands plus three-phase balancing
- Sub-cycle response for welders and fast chargers
- Efficiency at rated current and thermal derating at my ambient
- Ingress rating for dusty rooms and acoustic noise in dB
- Protocols like Modbus RTU or TCP and dry-contact alarms
- Parallel capability and clear CT wiring guidance for expansion
How does the device actually cancel the mess in simple words?
The controller measures the bus current, peels off the clean sine portion, and computes the opposite of the remaining distortion. The power stage then injects that opposite waveform so the two meet and cancel on the bus while it also nudges reactive power and balances phases. The result is a calmer feeder under changing loads.
What will maintenance look like after the honeymoon phase?
- Quarterly dust cleaning keeps fans and heatsinks effective
- Annual thermal scans spot loose lugs early
- Trend THDi and PF from the built-in logger so small drifts do not become big outages
How do we move forward today without overcomplicating it?
If you want a fast sizing check or a budgetary quote, send a one-line diagram, the feeder nameplate, and a few meter screenshots. I will map the bus, suggest a practical rating, and outline installation notes your electrician will appreciate. For pricing, lead time, or a short demo, contact us and tell me about your drives, chargers, welders, and wall space. If you prefer a call, contact us and we will set a time that fits your shift.
