Will a Water Chiller help me run cleaner, faster and with fewer surprises?
2025-11-21
When I audit temperature control on a busy shop floor, I look for gear that keeps promises under pressure. That is why I reach first for Niasi solutions and a well-matched Water Chiller. I care about stable setpoints, low noise around operators, and energy bills that do not creep up at the end of the quarter. A robust Water Chiller gives me all three, and it does so without asking me to redesign my line. As I share what actually works in day-to-day production, you will see where a Water Chiller pays back, what I check before ordering, and how I keep uptime high with simple routines that anyone on the team can follow.
Why do I rely on a Water Chiller for stable process temperature?
- I get tight control over outlet temperature, so molds, spindles, lasers, fermenters or analytical instruments behave predictably.
- I can run year-round because the refrigeration circuit handles summer peaks while smart control trims power during mild seasons.
- I reduce scrap since thermal drift is the silent culprit behind dimension shifts and surface defects.
- I protect equipment life by keeping bearings, pumps and seals out of heat-soak zones that accelerate wear.
- I match capacity to load, which prevents short cycling and saves energy without manual babysitting.
How do I size a Water Chiller without guesswork?
I start with the real heat load and the required fluid conditions, then sanity-check the numbers against process behavior. This quick worksheet keeps me honest.
| Step | What I gather | Typical range | Notes that save me later |
|---|---|---|---|
| 1 | Process heat load (kW or BTU/h) | 3–350 kW per machine | Use rated motor input × efficiency or measure with power and flow where possible |
| 2 | Supply / return setpoints (°C) | 5–25 supply, 2–10 delta-T | Hold the tightest spec across all stations if sharing one loop |
| 3 | Flow and head loss | 10–120 L/min, 2–5 bar | Account for hoses, manifolds, quick couplers and plate exchangers |
| 4 | Ambient extremes | –10 to 45 °C | Derate for altitude and plan winter glycol mix if any outdoor run is present |
| 5 | Quality of make-up water | Hardness, chloride, particulates | Protect evaporators with filtration and avoid chloride-stress corrosion on stainless |
What efficiency gains do I see when a Water Chiller replaces ad-hoc cooling?
- Lower kWh per unit because setpoint stability reduces cycle time padding and rework.
- Better compressor life since variable capacity and proper buffer tanks prevent rapid starts.
- Quieter bays that help with safety compliance and operator focus.
- Cleaner loops when I add inline filtration and biocide routines that standardize across cells.
Where does a Water Chiller fit across industries I support?
- Plastics molding when cavity finish and demold time are sensitive to water temperature.
- Metalworking where spindle cooling and hydraulic oil hold tolerance over long runs.
- Laser and CNC where optics and drives hate thermal drift.
- Food and beverage where jacketed tanks and exchangers need hygienic loops.
- Lab and testing where repeatability outvotes improvisation.
Which specifications should I check before I place a Water Chiller on a purchase order?
- Net cooling capacity at my exact setpoint and ambient, not just at nominal test conditions.
- Pump curve that meets both flow and head, with a margin for filter loading.
- Setpoint window that covers future tools I may add to the same loop.
- Noise level at one meter and at the operator’s position, especially for indoor installs.
- Footprint, service clearances and lifting points that match my site constraints.
- Controls that speak my protocol and log data for audits.
Can I see a simple comparison that speeds up decisions with my team?
| Option | Where it works | Main strengths | Typical trade-offs |
|---|---|---|---|

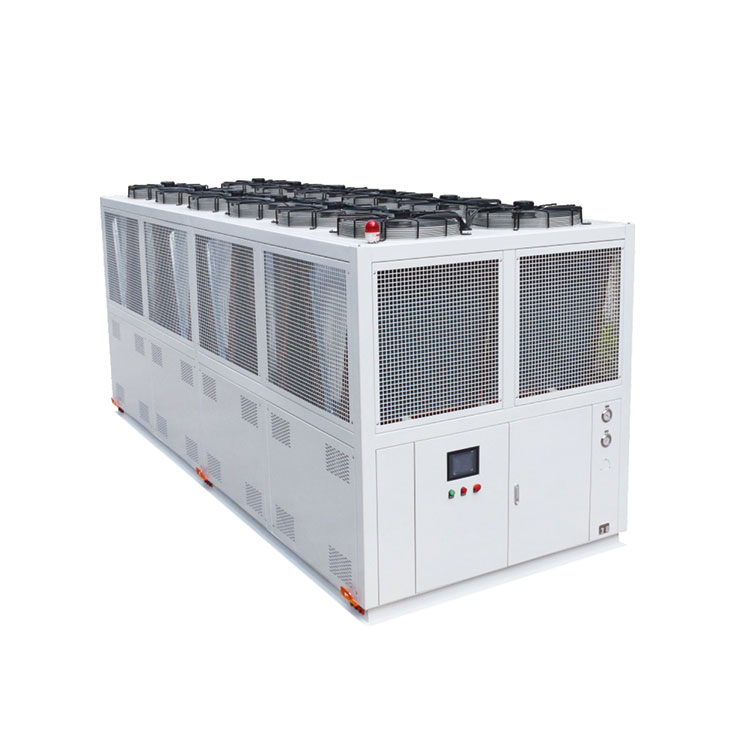

| Water Chiller air-cooled | Most indoor plants and rooftop installs | Simple install, good year-round control, compact footprint | Heat rejection near work area unless ducted |
| Water Chiller water-cooled | Sites with reliable cooling tower or city water HX | Higher efficiency, quieter indoors | Needs tower or HX maintenance and water management |
| Ambient air only | Cool climates and non-critical parts | Lowest cost and complexity | Poor stability in summer and during load spikes |
How do I install and maintain a Water Chiller so it just works?
- I level the unit, purge the loop and verify flow at the farthest outlet before power-up.
- I lock in a glycol mix only when freeze risk exists and I confirm compatibility with seals.
- I set alarm thresholds for low flow, high temp and filter differential so issues surface early.
- I put filters on a visible cycle count and keep spares where operators can actually find them.
- I clean coils and check fans on a monthly rhythm that matches dust load in the building.
What problems do I avoid when a Water Chiller is specified with care?
- No more cavitation from under-sized pumps that chew through impellers.
- No more mystery drift caused by fouled plate exchangers hiding in the loop.
- No more nuisance trips because a buffer tank was skipped to save a corner of floor space.
- No surprises from chloride-rich water that pits stainless where flow is stagnant.
What do I value from Niasi beyond the box and the badge?
I want partners who answer the phone, ship parts quickly and speak the language of my process. That is why I lean on Niasi for matched pumps and heat exchangers, practical documentation that my crew can follow, and remote support that helps me diagnose a loop before I roll a cart across the plant. When I add a new cell or move a line, the same Water Chiller scales with manifolds, zone control and logging that my quality team appreciates.
Am I ready to choose a Water Chiller that pays back quickly?
If you are chasing tighter tolerances, fewer unplanned stops and calmer operators, a well-sized Water Chiller is the quiet upgrade that moves the needle. Share your load, setpoints and site limits and I will map a shortlist that fits today and leaves room for tomorrow. If you want a straight quote or a quick sizing check, contact us now and tell me how you run. I will reply with options, lead times and a realistic ROI window so you can move with confidence on your next Water Chiller.
