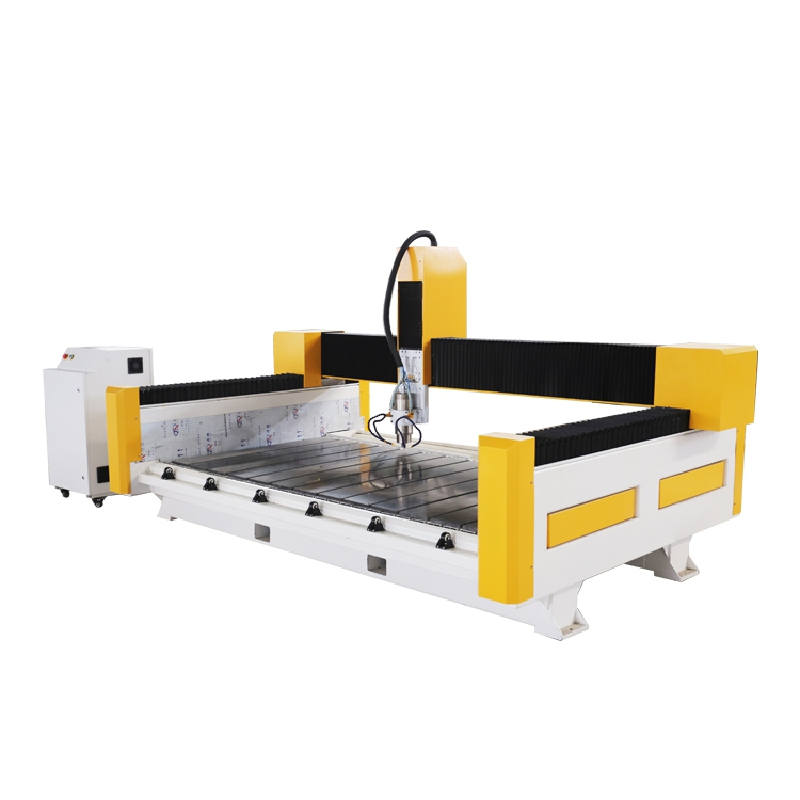

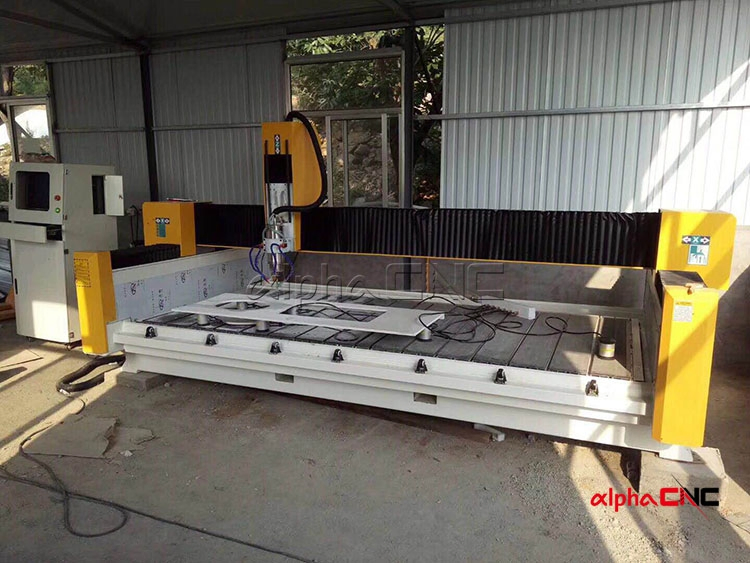

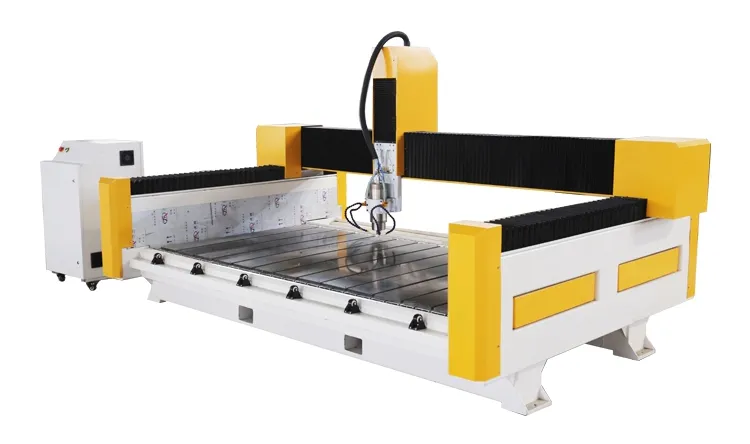

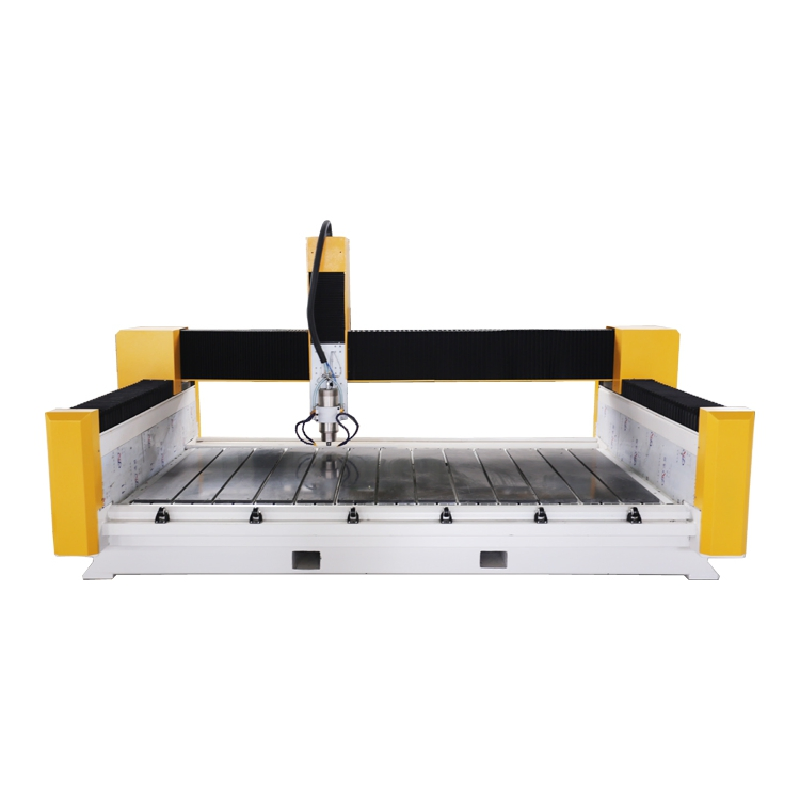

Vacuum Cup 8PCS CNC Carving Machines Stone

Product Description

Main Features

★Type heavy duty Machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.
★ The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.
★ The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.
★ High-performance driven motor to ensure that the machines high speed and accuracy.
★ Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
★ Automatic tool calibration easy and accurate "Z" zero position for single and multiple tool changes
★ Easy to use Mach 3 controller works with all industry standard CAD/CAM software
★ High grade Hiwin square rail
★ XY axis German helical rack and pinion
★ Z axis high precision TBI ball screw
★ 900*1500mm, 1300*1800mm, 1300*2500mm, 1500*3000mm,1800*2500mm standard sizes (Special sizes available upon request.)
★ 1 spindle, 2 spindles or 3 spindles available upon request.

Vacuum Cup 8PCS CNC Carving Machines Stone

Parameters

Parameters	Standard SpecificationsASC-3015-MTC
X,Y,Z Working Area for Panel	25001300300mm/30001500300mm
Spindle Power	5.5KW Powerful Water Cooling Spindle
X,Y,Z Traveling Positioning Accuracy	±0.025mm
Table Surface	Steel
X,Y,Z Rail and Transmission	X/Y Helical German rack and pinion Z High precision TBI ball screw
Max. Rapid Travel Rate	30,000mm/min
Max. Working Speed	20,000mm/min
Drive Motors	Yako or Leadshine
Working Voltage	380V 3 phase or custom made.
Command Language	G code
Operating System	Mach 3
Interface	USB
Software capabilities	Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill,etc.
Running Environment	Temperature: 0ºC~45ºC Relative Humidity: 30%~75%

Detailed Images

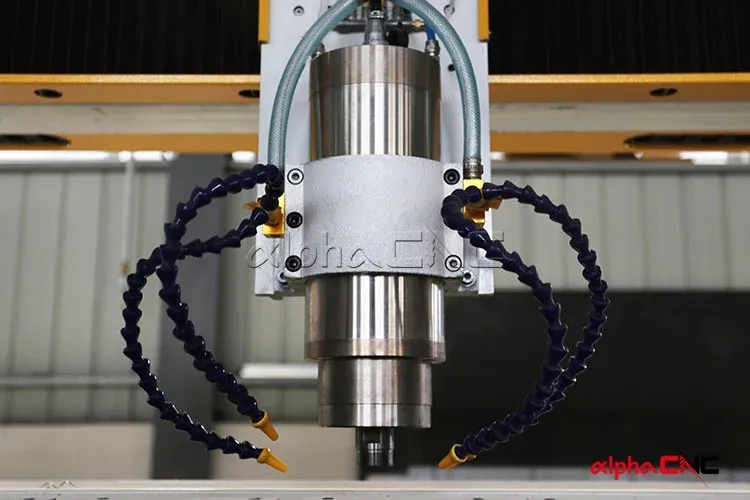

5.5KW High Frequency Water Cooling Spindle(7.5kw for option)

The M Series machine comes standard with a 5.5kw high frequency water cooling spindle. And is fully programmable with speeds from 6000 to 24000 RPM.

XY Axis Hiwin Square Rail

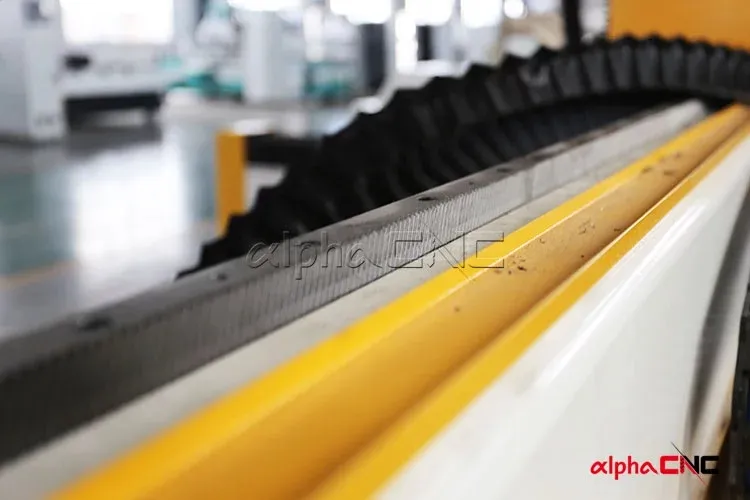

XY Axis High Quality Helical Rack Pinion

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality helical rack pinion, makes it powerful.

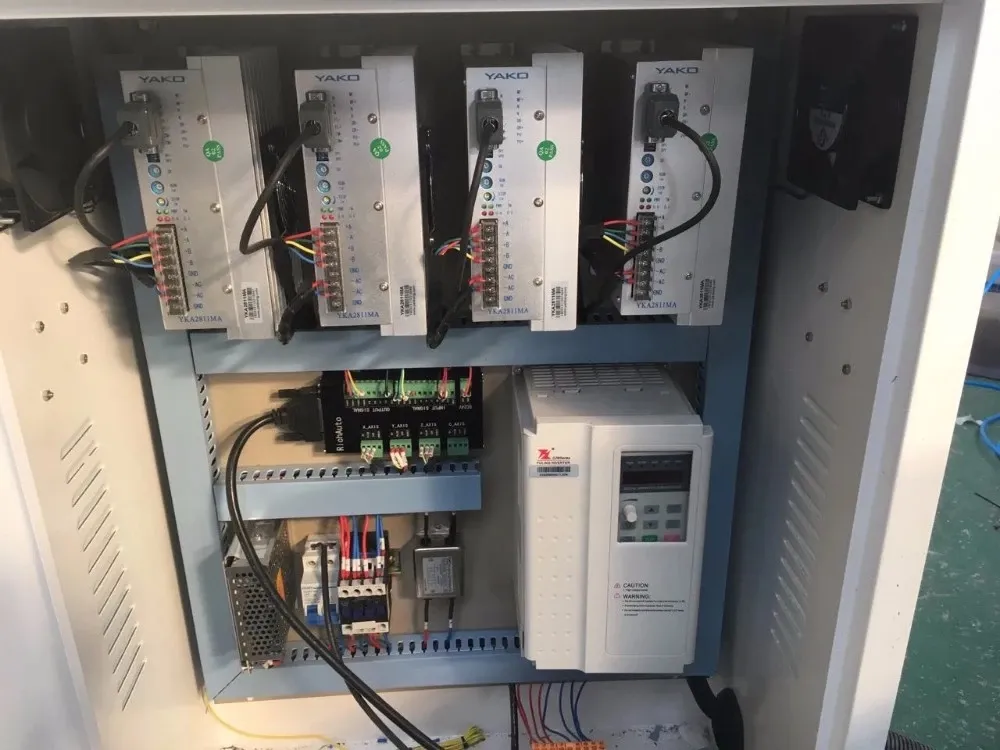

The Electronics of the CNC Router

All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.

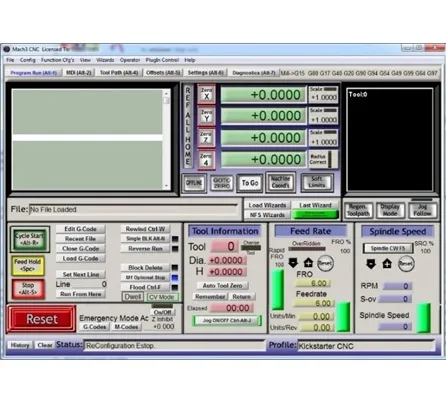

MACH 3 Controller

Mach3 is designed to control the CNC machine. The program is installed on a computer connected to the control machine. Mach3 was
developed by American programmers, both for professional and amateur use, so it is the most common software for CNC machines in the world. Using Mach3, it is possible to control the following types of machines: turning, milling, routers, laser and plasma plotter, engraving.

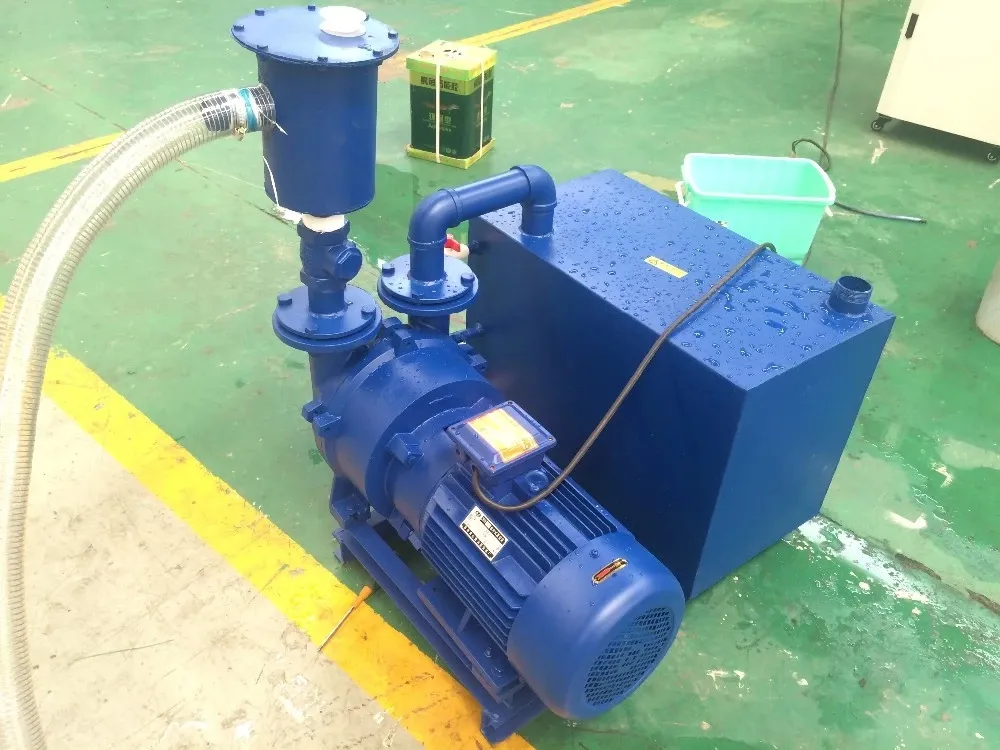

Vacuum pump

The machine comes with a 7.5kw vacuum pump for the sucking the stone, it is powerful enough for suck the machine on the table.

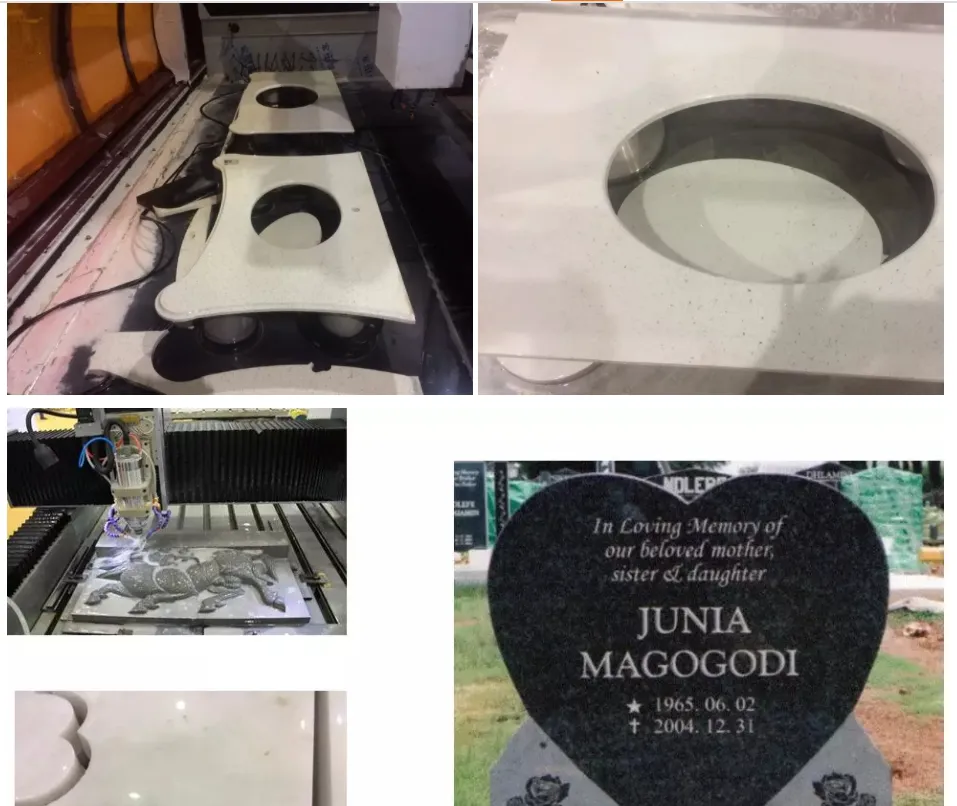

Sample

Payment&Shipment
Vacuum Cup 8PCS CNC Carving Machines Stone

Our Company
Alpha CNC Co., Ltd. was established in 2000, specializing in CNC machinery with rich experience! The company has two factories: CNC Router and Laser Machine factories and plants.
Alpha CNC is comprehensive in the production, designing, manufacturing, trading and supplying service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, "Brand AlphaCNC " gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
"AlphaCNC Products are widely used in the fields of advertising, furniture, gifts, decoration, packaging etc., and materials of wood, acrylic, stone, fabric, leather metal, etc."AlphaCNC "is well-known not only in China, but also in Russia, Europe, Southeast Asia, Middle East, Africa, the Americas, India and other more than 120 foreign countries.
AlphaCNC is with advanced and powerful machining capability. We have imported high precision 5 axis CNC Machining center to process the machine frame, the top milling, side milling, and side drilling will be finished in one machining center, which ensure our CNC machine is with higher precision, Moreover, the small machine parts are machined by American imported Haas ATC CNC Center.
AlphaCNC has strong technical strength. We has more than 10 engineers to develop new machines every year, and our engineers will design the machine according customer's special request. We have more than 20 after-sale service engineers to serve our customers 7*24.
ALPHACNC always adhere to the principle --- First class reputation, first-class service and excellent products.
Vacuum Cup 8PCS CNC Carving Machines Stone

FAQ.
Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.

Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.

Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!

Q6. What's your date of delivery?
For standard machine, about 15 working days; For customized machine, about 20 working day.

Q7.MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
