PE750 *1060 Jaw Crusher for Sale, with The Best Quality
Brief Introduction:PE jaw crusher is series product absorb both home and abroad advanced technique as well as years research, development, and improved. It is widely used in crushing materials of stone, cement, and mining. Main used as first crushing, make the materials from big block to small and t......
Send Inquiry
Product Description
Brief Introduction:
PE jaw crusher is series product absorb both home and abroad advanced technique as well as years research, development, and improved. It is widely used in crushing materials of stone, cement, and mining. Main used as first crushing, make the materials from big block to small and then out them into fine crusher or hammer crusher to second crushing. Features are saving energy, simple structure, easy to maintain, large reduction ratio, long using time and can choose the sizes of discharging free
Operation principle
The materials enter into the jaw crusher impacted & extruded by movement and quietude plate, from big block to small and discharge from outlet. For fewer friction and intense impact, wear the equipments less and prolong their using time.
Structure
Machine body contains: chassis, fixed jaw plate, protect plate, bracket, wedge block, base plate, spring, pull rod, power, mobile jaw assembly( Figure one). Mobile jaw assembly contains: eccentric shaft, flywheel, belt wheel, move jaw, mobile jaw plate, jaw plate iron wedge, bracket base, bearing and so on.(Figure two)

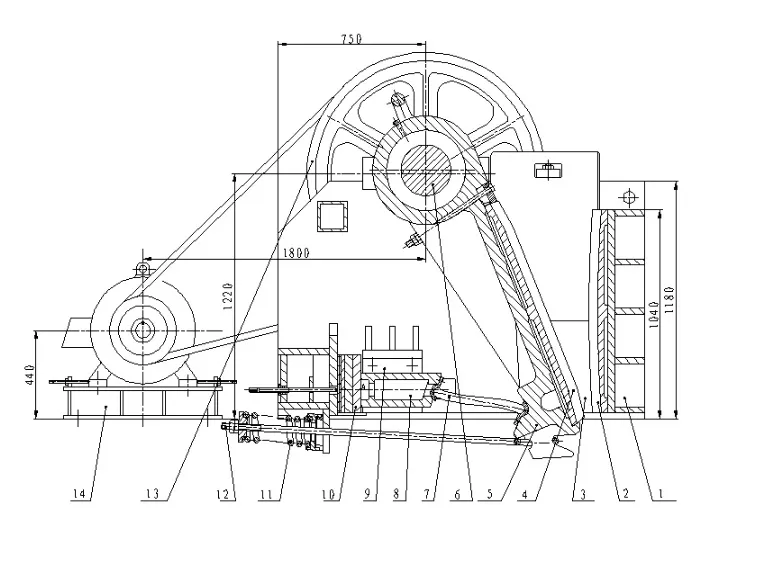

1, chassis 2, fixed jaw plate 3, protect plate 4, mobile jaw plate 5, mobile jaw 6, eccentric shaft 7, bracket 8, slide plate 9,iron wedge 10, shim plate 11,spring 12, pull rod 13,belt wheel 14, power

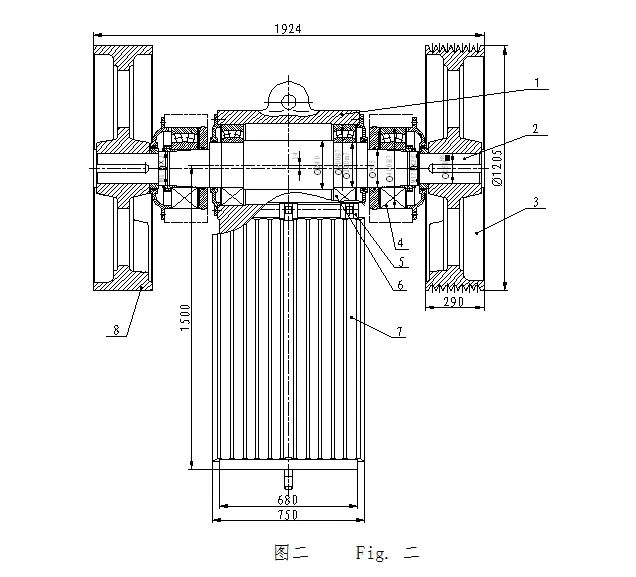

1, moving jaw 2, eccentric shaft 3, belt wheel 4, aligning roller bearing 5, wedge iron 6, aligning roller bearing 7, mobile jaw plate 8, fly wheel
Technical Data
| Model | technical function | |||||
| Max. feeding size (mm) | Adjusting range (mm | Capacity (m³/h) | Main shaft speed (r/h) | Motor power (kw) | Overall dimensions (mm) | |
| PE150×250 | 125 | 10-40 | 2-6 | 285 | 5.5 | 922×745×933 |
| PE200×300 | 165 | 20-70 | 5-15 | 285 | 7.5 | 1256×1100×1120 |
| PE250×400 | 210 | 20-80 | 8-35 | 310 | 18.5 | 1108×1142×1392 |
| PE400×600 | 340 | 40-90 | 15-60 | 300 | 30 | 1700×1732×1653 |
| PE500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 1860×1924×1830 |
| PE500×900 | 425 | 50-100 | 55-160 | 255 | 55 | 1860×2074×1830 |
| PE600×900 | 480 | 75-200 | 90-180 | 250 | 75 | 2300×2060×2375 |
| PE600×1200 | 480 | 75-200 | 100-360 | 250 | 75 | 2300×2335×2375 |
| PE750×1060 | 630 | 80-200 | 110-320 | 250 | 90 | 4180×2560×3070 |
| PE900×1200 | 750 | 100-200 | 220-450 | 250 | 110 | 3180×2786×3010 |
| PE1200×1500 | 1000 | 100-260 | 400-800 | 300 | 160 | 4200×3750×3820 |
| PEX150×500 | 125 | 10-40 | 8-18 | 300 | 11 | 1220×1230×1180 |
| PEX150×750 | 125 | 10-40 | 8-22 | 300 | 15 | 1220×1480×1180 |
| PEX250×750 | 210 | 10-50 | 15-35 | 300 | 22 | 1400×1617×1412 |
| PEX200×1000 | 160 | 10-55 | 11-36 | 300 | 22 | 1580×1976×1180 |
| PEX250×1000 | 210 | 15-55 | 16-50 | 300 | 30 | 1580×1992×1380 |
| PEX250×1200 | 210 | 15-60 | 18-60 | 300 | 37 | 1530×2192×1380 |
| PE1000×1200 | 850 | 195-265 | 312-430 | 200 | 200 | 5360×2900×3500 |
Features and Advantages:
1. High efficiency and low operation cost
2. Flexible capacity
3. Simple structure and easy to operate
4. Over loading protection
5. Easy replacement of wearing parts
6. Long service life
7. High reliability
8. Wide ranges of choices
9. Alternative ordinary and hydraulic types
