High Quality 5700*3260* 2765 CNC Stone Machine Made in China
Product DescriptionHigh Quality 5700*3260*2765 CNC Stone Machine Made In ChinaAn updated bridge cutting machine from HSNC-500, equipped with Italy CNC system ESA and 3 axis interpolation, is applicable for cutting all kind of stone slabs to size, such as granite, marble, quartzite and artifical ston......
Send Inquiry
Product Description

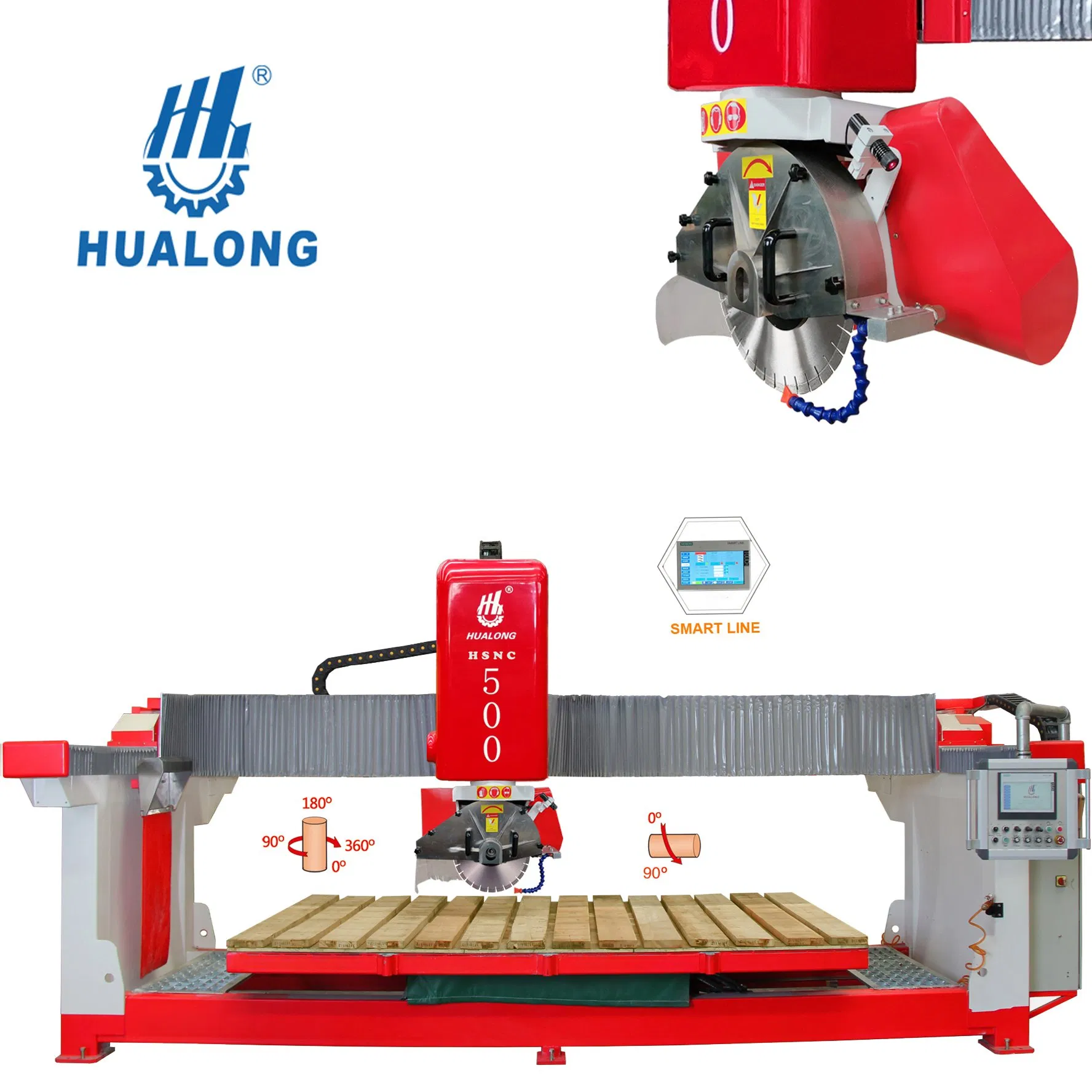

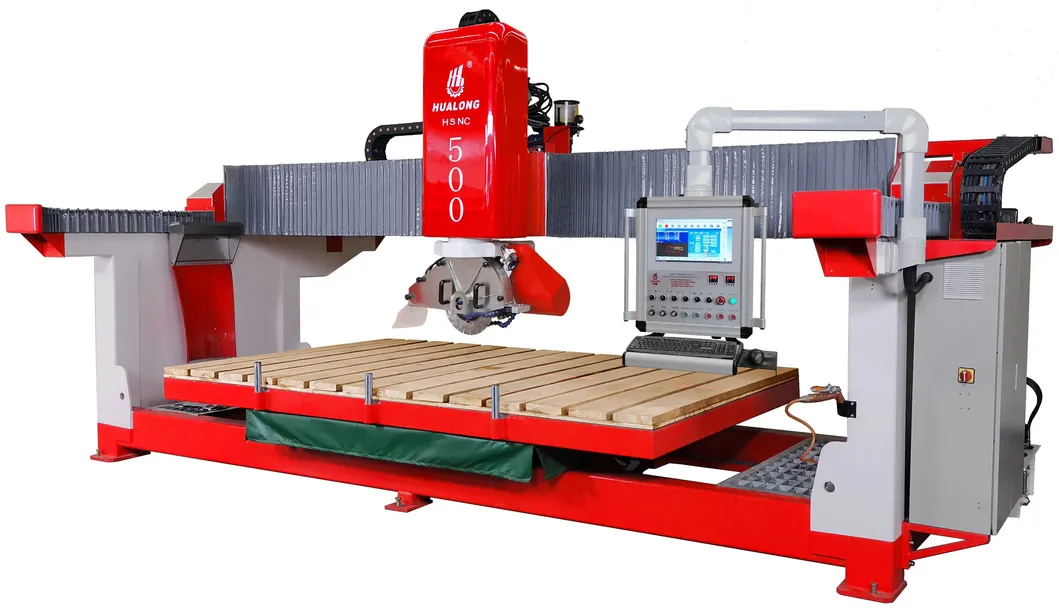

Product DescriptionHigh Quality 5700*3260*2765 CNC Stone Machine Made In ChinaAn updated bridge cutting machine from HSNC-500, equipped with Italy CNC system ESA and 3 axis interpolation, is applicable for cutting all kind of stone slabs to size, such as granite, marble, quartzite and artifical stone slab etc., especailly suitable for processing stone countertop with sink. Relief processing is workable too.
Features
1) Controlled by Itay CNC system, operated expediently, accurately and stably.

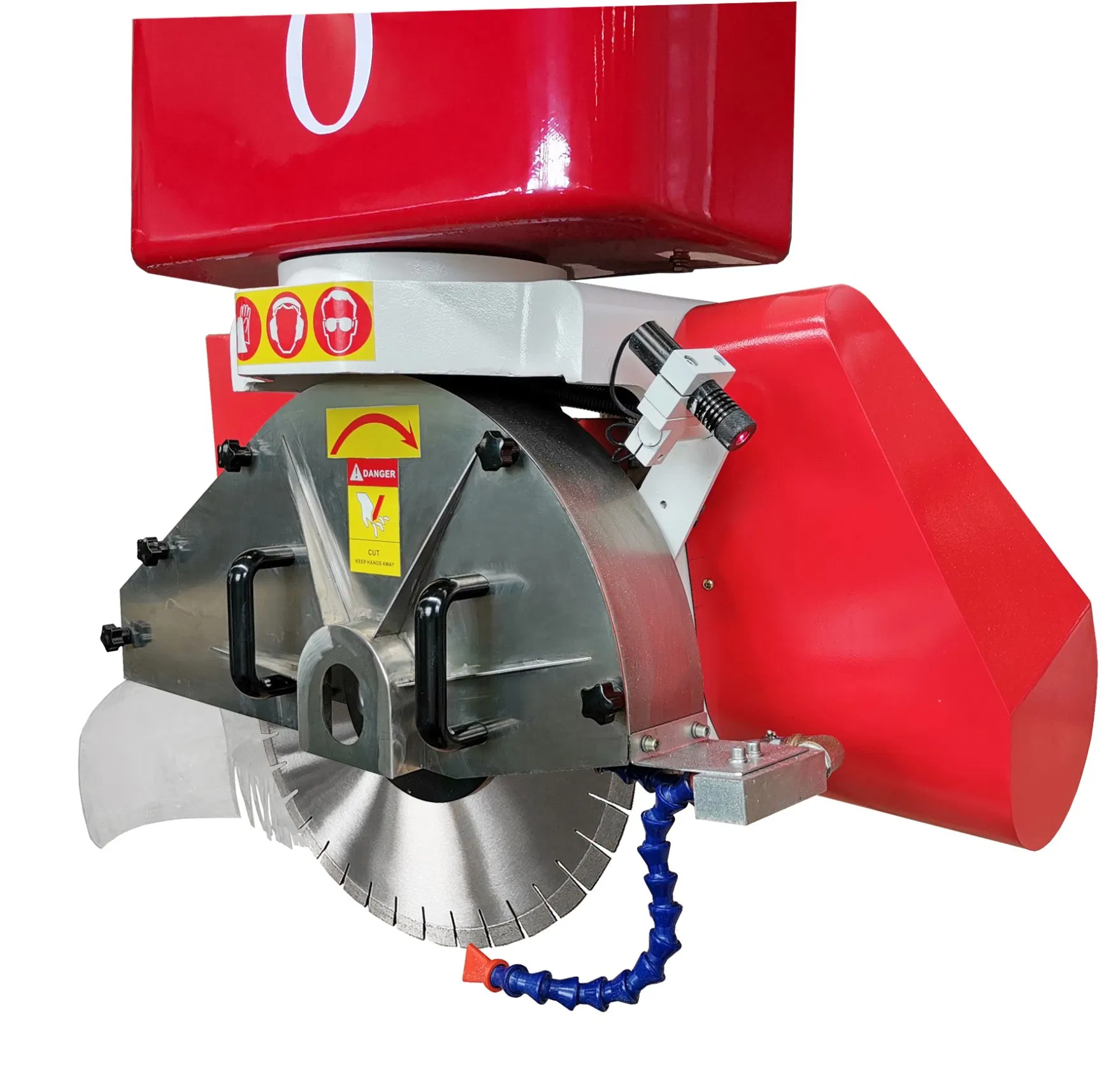

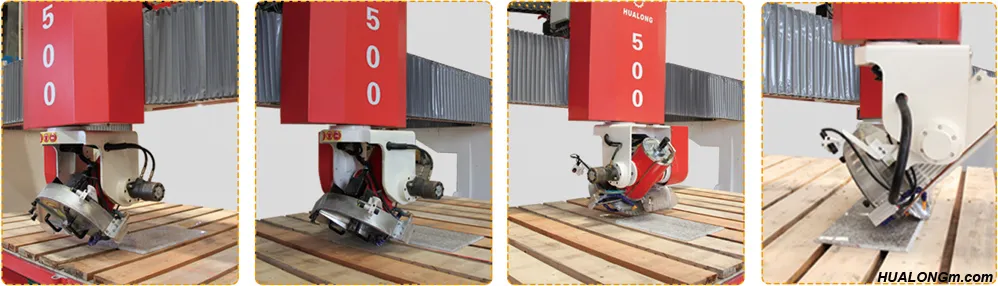

3) Cutting head available to rotate 0°-360° and positioning automatically. Blade can tilt 0-90° and do chamfering automatically.
4) With drilling & milling functions, make round sink processing easier and faster.
5) Working platform can rotate 0-360°,positioning at any angle, and tilt 85° for easy feeding.
6) Mono-block machine, easy for container loading and machine installation.
TECHNICAL DATA FOR HSNC-500 | ||
Diameter of saw blade | ø400-ø500 | mm |
Dimension of working platform | 330x200 | cm |
Max. cutting length | 330 | cm |
Max. cutting thickness | 140 | mm |
Max. lifting stroke | 250 | mm |
Power of main motor | 11 | kw |
Power of cutter frame reciprocating motor | 1.5 | kw |
Power of crossbeam shifting motor | 1.5 | kw |
Power of hydraulic station motor | 2.2 | kw |
Power of lifting motor | 1.5 | kw |
Gross power | 17.7 | kw |
Water consumption | 2 | m3/h |
Gross weight | 5400 | kg |
Dimensions (L x W x H) | 570x326x277 | cm |
Application

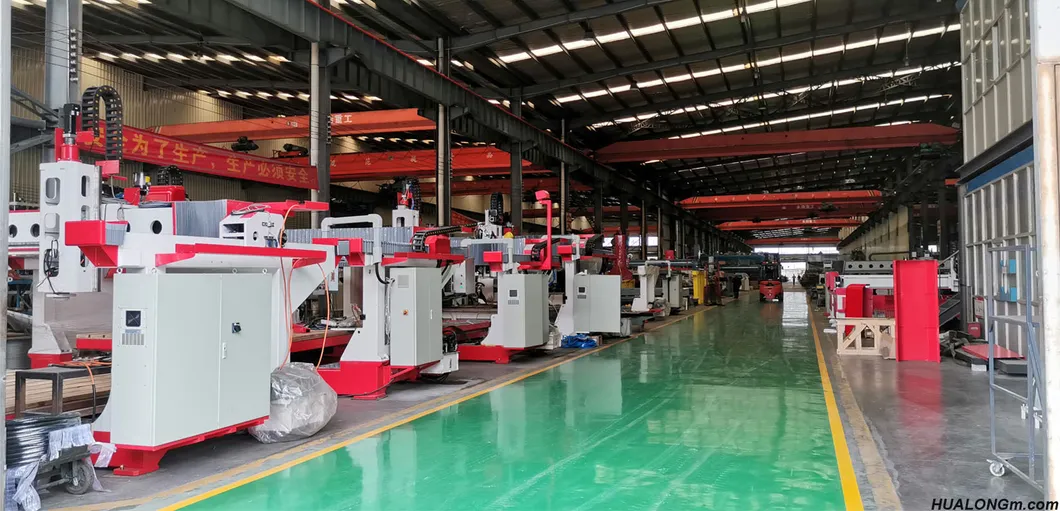

Workshop
Our Service
·All of our machine will be full-checked and tested by our quality control department before shipment.
·Lifetime technology maintenance in free
·Spare parts supply in free due to our defects within 12 months' warranty time and at cost out of 12 months.
·Free training for installation, operation and maintaince.
·Technical support all working days.
·English version 'instruction books', "Operation Manual" will be offered.

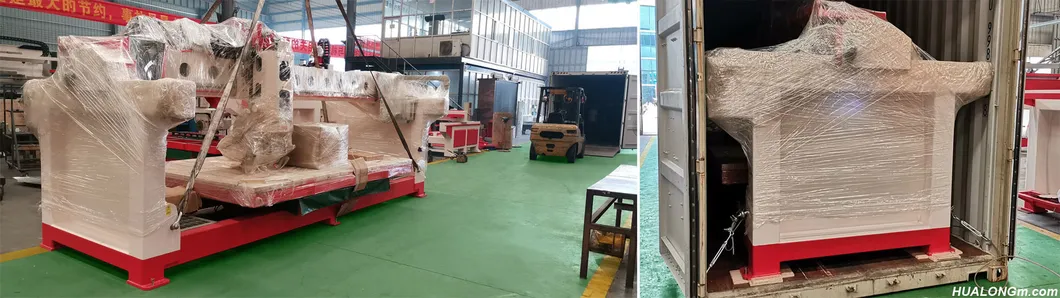

Packaging & Loading
1)All parts wrapped by waterproof PE film and/or air bubbles.
2)Spare and accessary parts of small size packed in plywood cartons.
3)With steel ropes to fix in container, anti-skid suitable for long distance shipment.
FAQ
Q1: Do You Offer Free Samples?
A1: Normally we don't offer free samples. But further solutions will be discussed respectively upon request.
Q2: Can You Supply Us Wearing Parts For The Bridge Cutting Machine?
A2: Sure, it is our duty.
Q3: How About The Delivery Time After Payment For The Order?
A3: Normally 25-45 days. It depends on the ordered models, quantity and our production duty engaged already.
Q4: What Service Can You Provide?
A4: Online technology support, engineers arranged to overseas for guiding machine installation training operation, debugging and maintenance.
