Marble Machine Granite Rhinestone Cuting Stone Block Cutting Machine
Datang DTQD-1800/2200/2600 Single Blade Bridge Type Stone Block Cutting Machine Single Blade · Bridge Type · Stable Structure · Enhanced Beam · Linear Rail · 1800-3000mm Blade · Powerful Motor · ......
Send Inquiry
Product Description

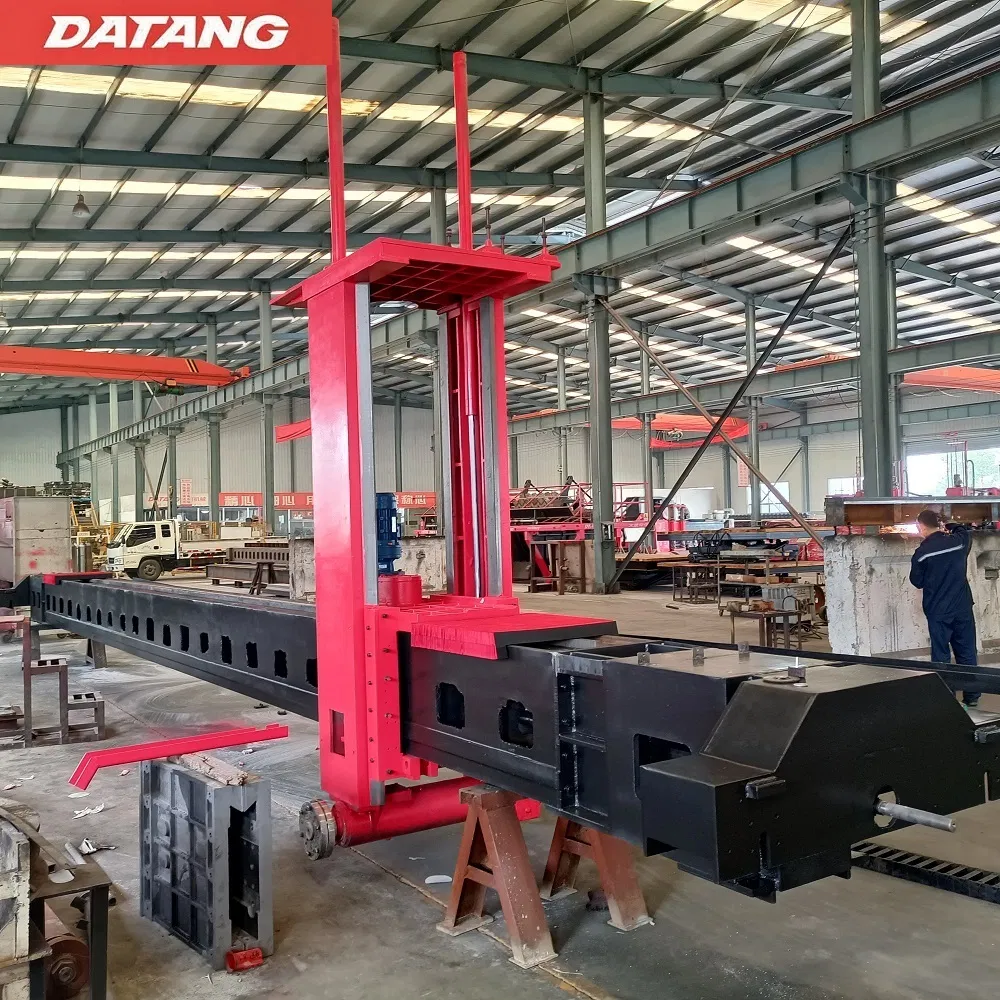

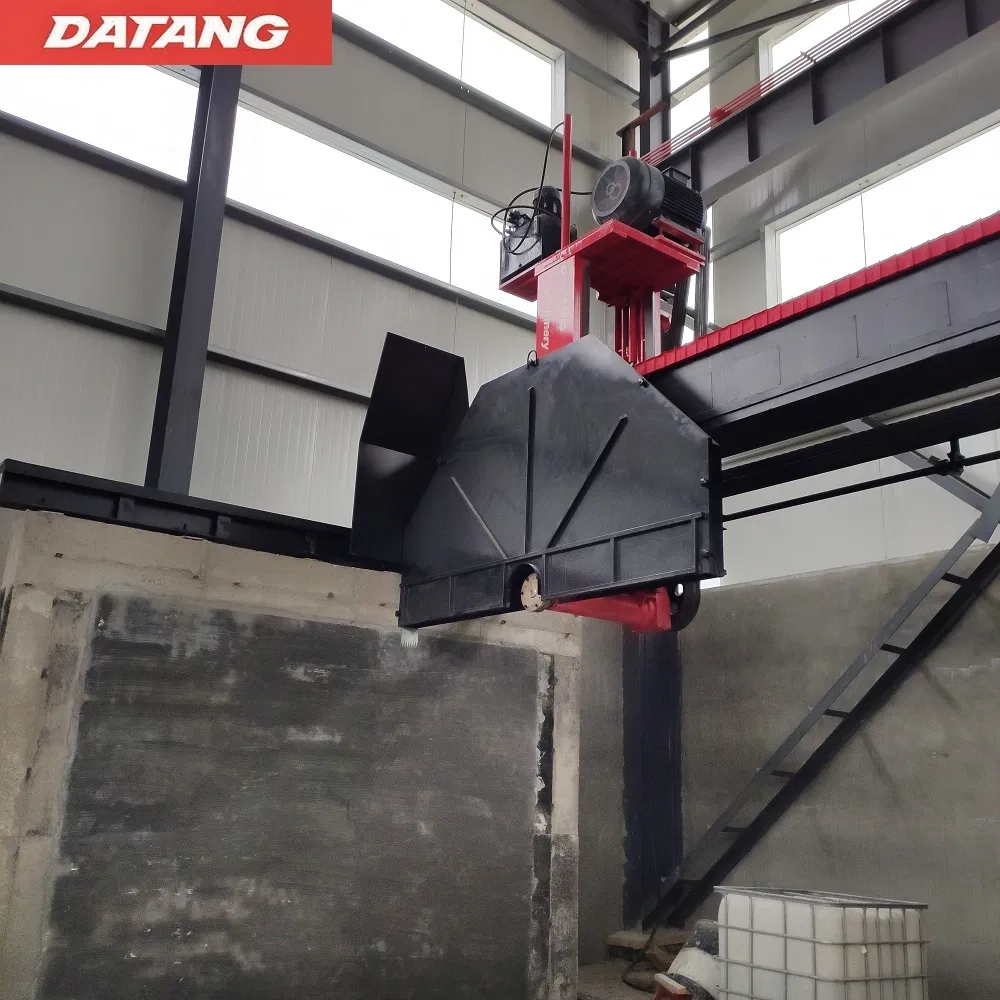

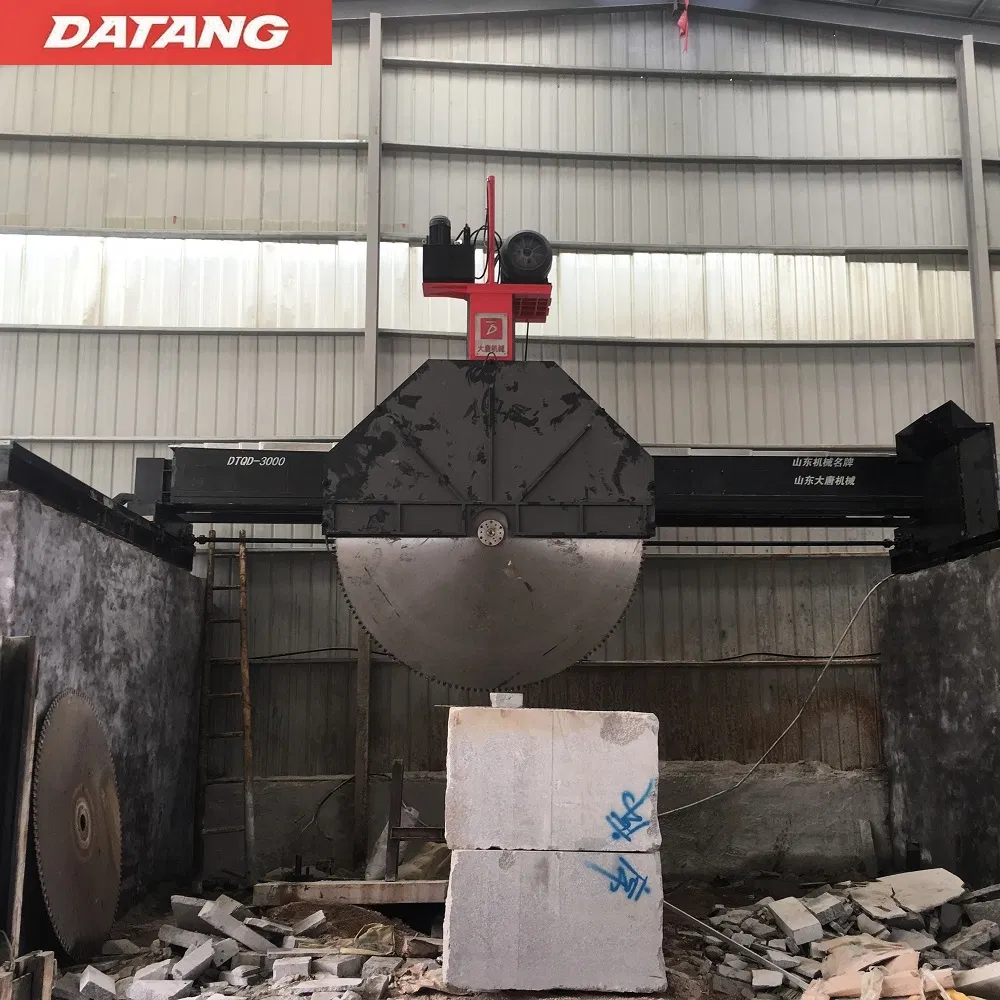

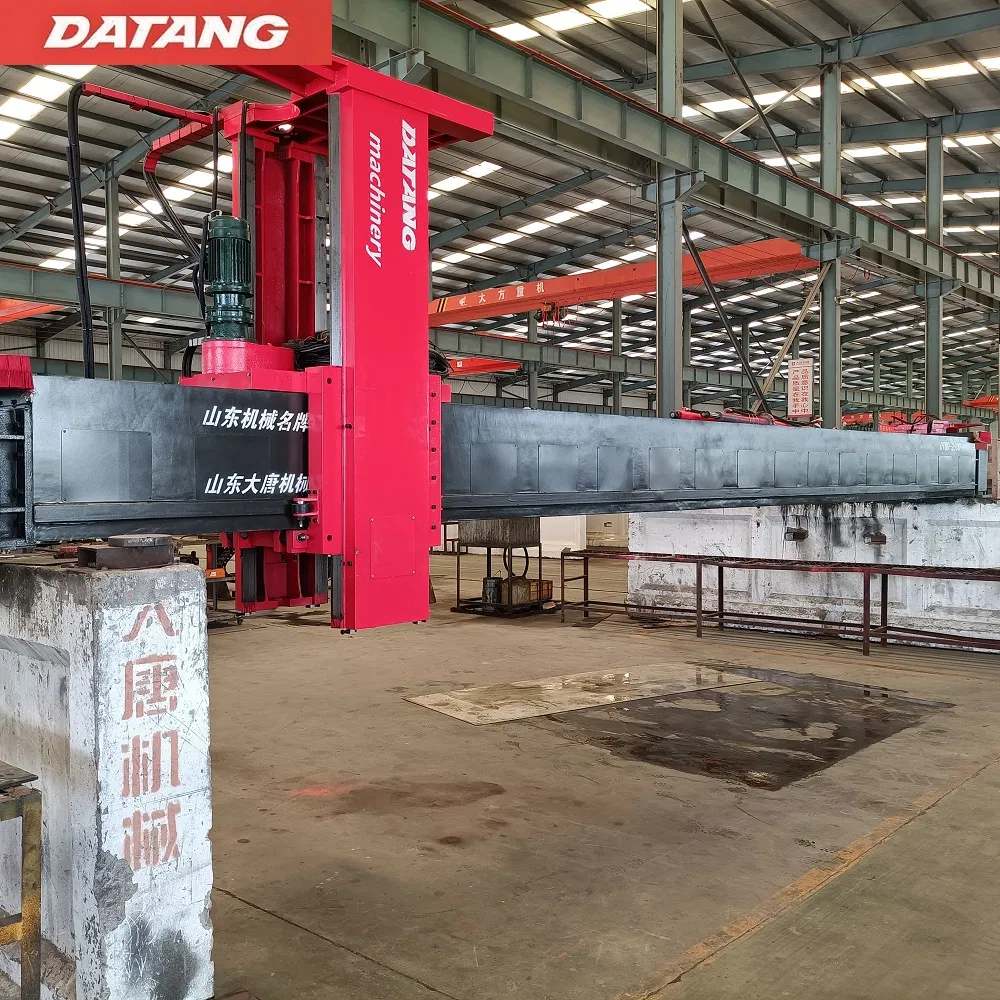

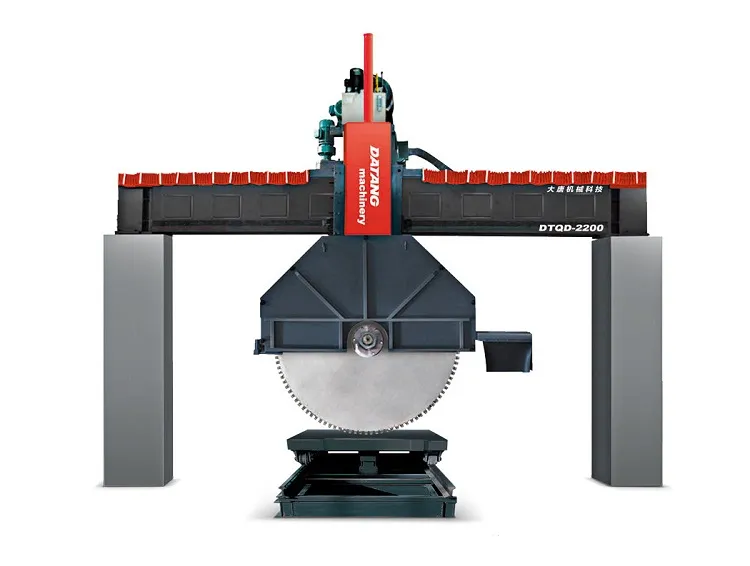

Datang DTQD-1800/2200/2600 Single Blade Bridge Type Stone Block Cutting Machine

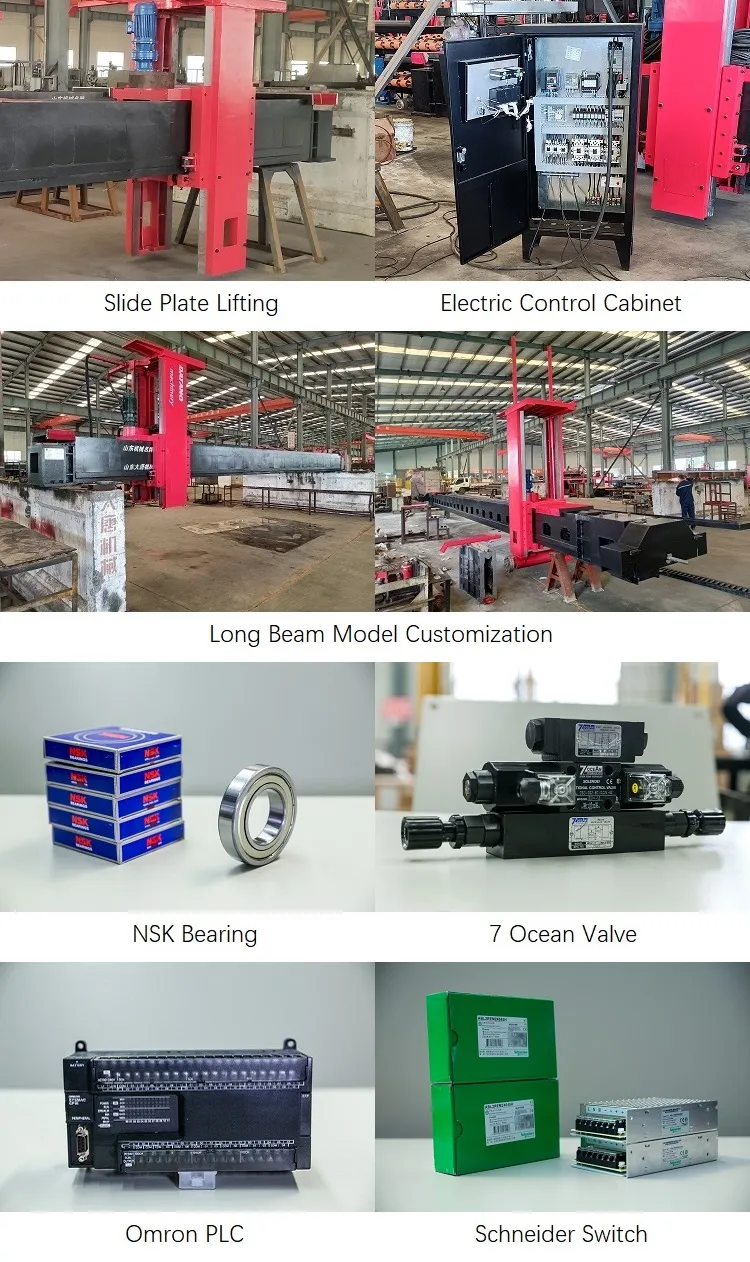

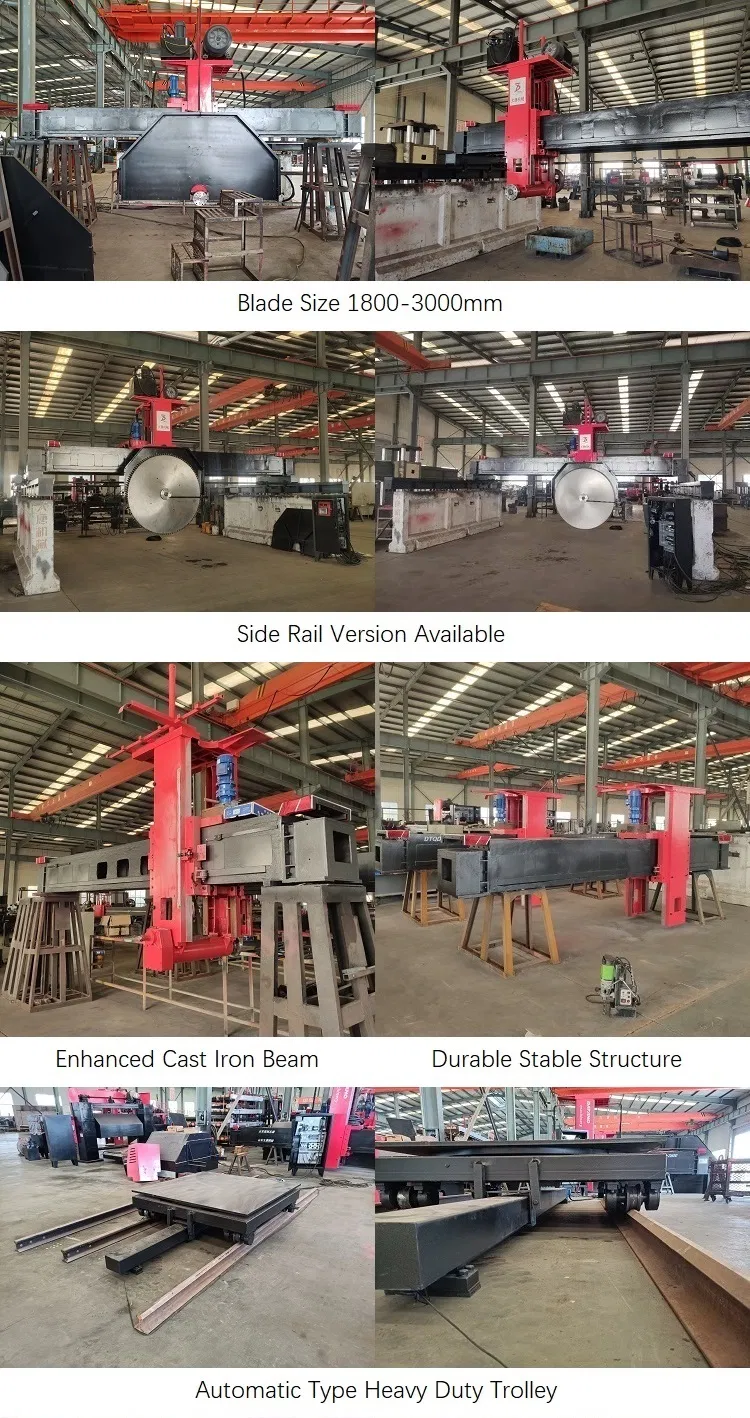

Single Blade · Bridge Type · Stable Structure · Enhanced Beam · Linear Rail · 1800-3000mm Blade · Powerful Motor · Slide Plate Lifting · Side Rail Optional · Automatic Trolley · High Productivity · High Accuracy · Stable Performance · Easy Operation · Easy Maintenance · Customizations
| Model | DTQD-1800 | DTQD-2200 | DTQD-2600 | DTQD-3000 |
| Blade Size | 1800mm | 2200mm | 2600mm | 3000mm |
| Horizontal Stroke | 3500mm | 3600mm | 3700mm | 3800mm |
| Lifting Stroke | 1150mm | 1150/1300mm | 1400mm | 1500mm |
| Beam Length | 6000mm | 6500mm | 7000mm | 7500-9500mm |
| Slide Plate Length | 2000mm | 2000/2150mm | 2250mm | 2350mm |
| Main Motor Power | 30kW | 37kW | 37kW | 37kW |
| Feed Motor Power | 1.5kW | 1.5kW | 2.2kW | 2.2kW |
| Hydraulic Station Power | 3kW | 3kW | 4kW | 4kW |
| Water Consumption | 6m3/h | 7m3/h | 9m3/h | 10m3/h |
| Trolley Size | 1700*1700mm | 1700*1700mm | 1700*1700mm | 1700*1700mm |
| Trolley Rail Distance | 1400mm | 1400mm | 1400mm | 1400mm |
| Trolley Rail Length | 5000mm | 5000mm | 5000mm | 5000mm |
| Dimension | 5220*5150*5210mm | 5720*5150*6000mm | 6220*5150*7100mm | 6720*5150*5800mm |
| Weight | 7000kg | 7500kg | 8500kg | 9000kg |
