Product Description
Introduction and Description
This manual is intended to provide operation and service information necessary for thesafe and efficient use of this Floor Grinder. Operating or servicing the unit other than in
accordance with the instructions given may subject the machine to conditions beyond its
capability. This may result in the machine failure or personal injury
Read the entire operating manual carefully before attempting to use the floor grinder.
Special attention should be given to the section entitled "Safety Precautions".

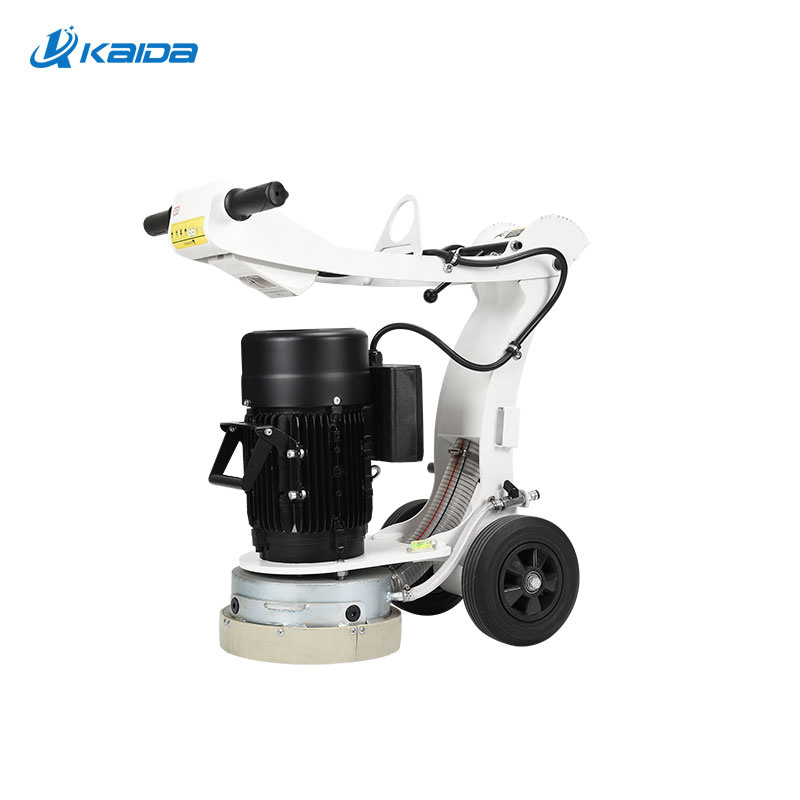

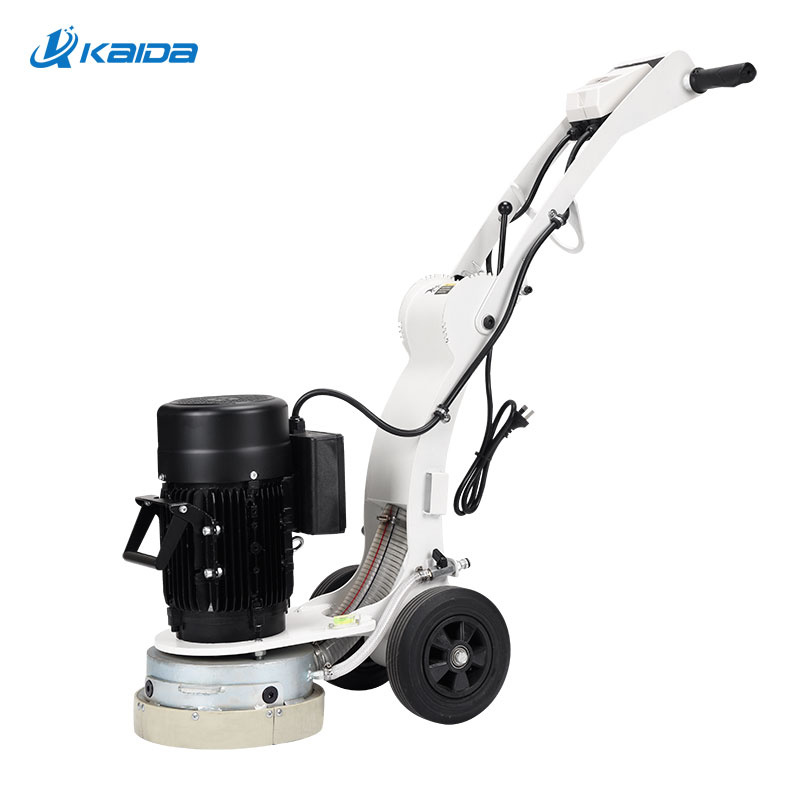

The floor grinder is a sturdy, reliable and easy to use machine.
The floor grinder is fitted with a 1.5 hp (110V/60Hz) / 3.0 hp(220V/50Hz) single phase
motor. This motor offers a direct drive to the grinding plate by way of a flexible coupling
between the motor and the plate.
The shroud system is unique in design by automatically adjusting to suit segment height
and floor angle. This shroud system when used in conjunction with an appropriate
industrial vacuum unit helps eliminate dust during grinding. The shroud has 2 removable
sections to allow the operator to maneuver the grinder close to the wall. Please note that
fugitive dust will likely occur when using the grinder with the two shroud sections
removed.
The floor grinder comes complete with a water connection for wet grinding, if required.
The water connection incorporates a ball valve that allows the operator to regulate the
water supply to obtain the best grinding results.
The floor grinder has a foldable handle which enables it to be easily transported in the
trunk of most vehicles. The rear wheels can be extended outward for added stability
during use. The operator can raise or lower the height of the handle to maximize comfort.
The newly designed lifting handle system makes the machine easy to lift.
Technical Data
| Motor HP | 1.5hp | 3.0 hp |
| Motor KW Rating | 1.1kw | 2.2kw |
| Voltage | 110V/60Hz | 220V/50Hz |
| Motor RPM | 1730 rpm | 1410 rpm |
| Unit Weight | 132 lbs./60kg | 132 lbs./60kg |
| Plate Type | Plate Type Standard 10 inch grinding head | |
| Plate Bolt Types | M12x25 countersunk socket head | |
| Main Construction | Powder Coated Steel | |

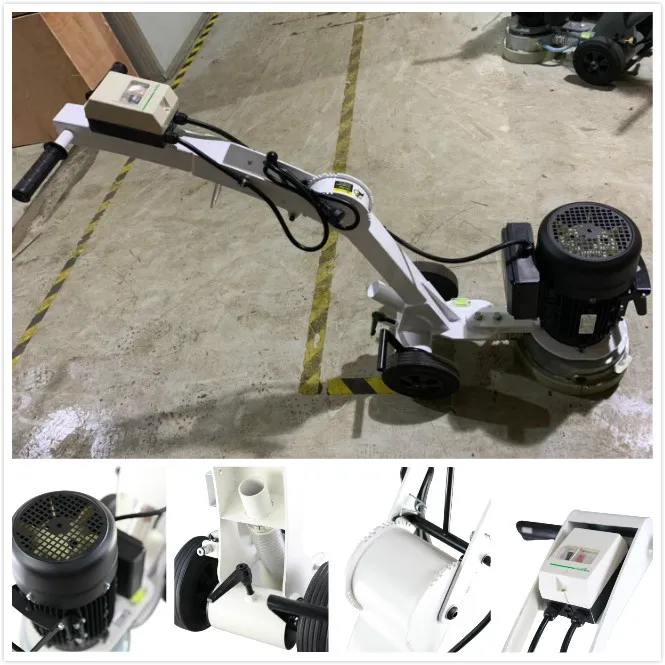

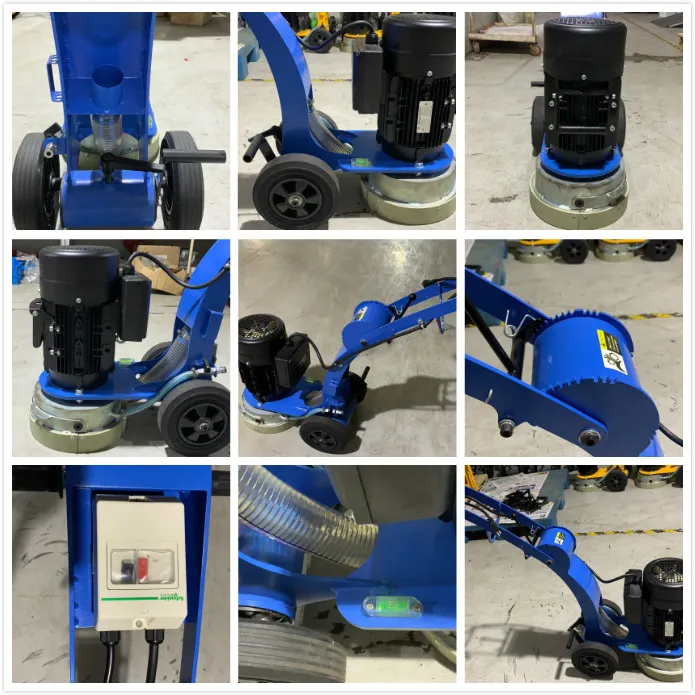

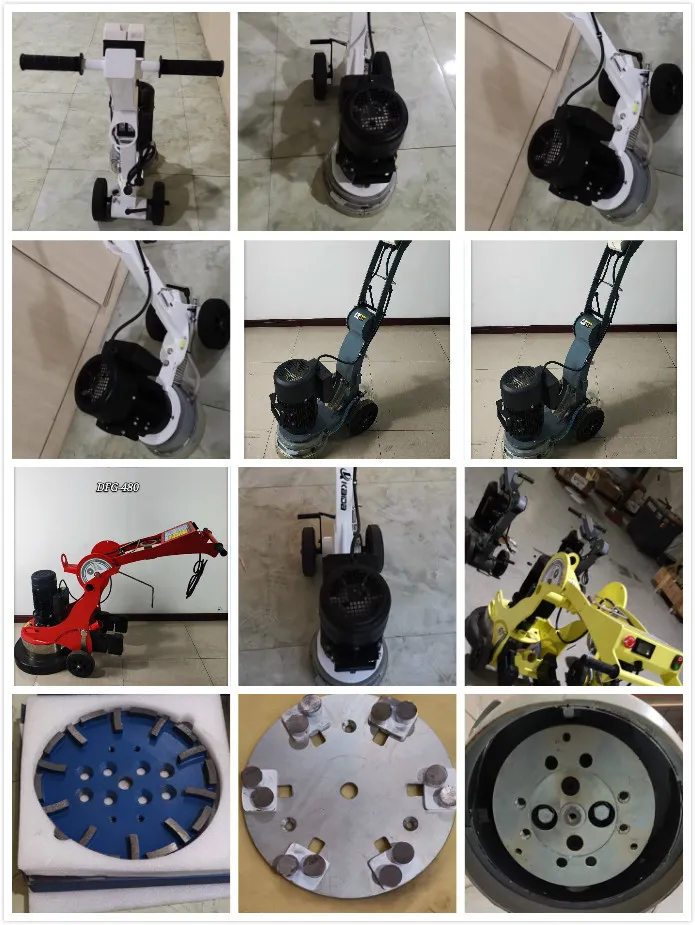

Detail Images
Operation
grinding,a suitable industrial vacuum is required.
Consult Safety Data Sheets for the materials being ground. Concrete dust and floor
coatings contain materials that can be harmful. SEE SAFETY PRECAUTIONS FOR
Silica Dust Warning.
Contact your industrial hygiene professional for detailed information on required
personal protective equipment PPE. Always use appropriate personal protective
equipment (Hearing, Eye, Respiratory and Hand Protection).
Operating the Grinder
1. Make sure the diamond tooling is suitable for the material being ground and that the
tooling is correctly balanced.
2. Ensure that the grinding plates are in good condition and properly mounted. Never use
damaged tooling.
3. All countersunk bolts must be tightened to specifications and firmly in place. Take
periodic breaks to ensure that bolts are properly tightened, as they can loosen during
operation.
4. Check that the grinding plate is adjusted so that it sits level on the work surface (use
the bubble-level on the machine as a reference).
5. Check that all nuts and bolts on the folding handle latch are tight and secure.
6. Raise the grinding plates from the floor.
7. Start the motor by pressing the black switch on the starter box
8. Lower the grinding plate and begin grinding. Keep the grinding head moving side to
side on the work surface to create an evenly ground surface until the desired results are
reached.
Stopping the Grinder
Depress the red stop button on the start box.
Note:
The position of the axle may be adjusted as needed for leveling.
1. Adjust the vertical grinding position by loosening the level adjustment fastener counter
clockwise.
2. Lifting the level adjustment handle raises the back end of the grinder.
3. Lowering the level adjustment handle lowers the back end of the grinder.
4. Use "bubble-level", mounted on the machine as a reference.
5. Secure desired grinder position by tightening the level adjustment fastener clockwise.
FAQ:
Q1:Are you trading company or manufacturer?
A1:We are manufacturers and we have our own factories. specializes in floor grinder products and has 15 years of flooring experience. Welcome to visit our factory, we can also provide the best suitable flooring construction solution for you.
Q2:What are the advantages of your products compared with other products?
A2:Our products are excellent in terms of productivity, handling, reliability and construction results. Products warranty for 3 years, however other grinder brand warranty is only 1 year.
Q3:Are the grinders will come with accessories?
A3:es,all the grinders include tool box and necessary accessories.
Q4:Can the grinders bi used for polishing?
A4:Yes,of course. They can do both grinding and polishing.
Q5 :Can you customize the machine for the customer?
A5:Yes. We can, we also provide OEM for customers; If you need customized services, please contact us
Q6:What is the MOQ?
Q6:We usually provide 1 set for customers to test.
